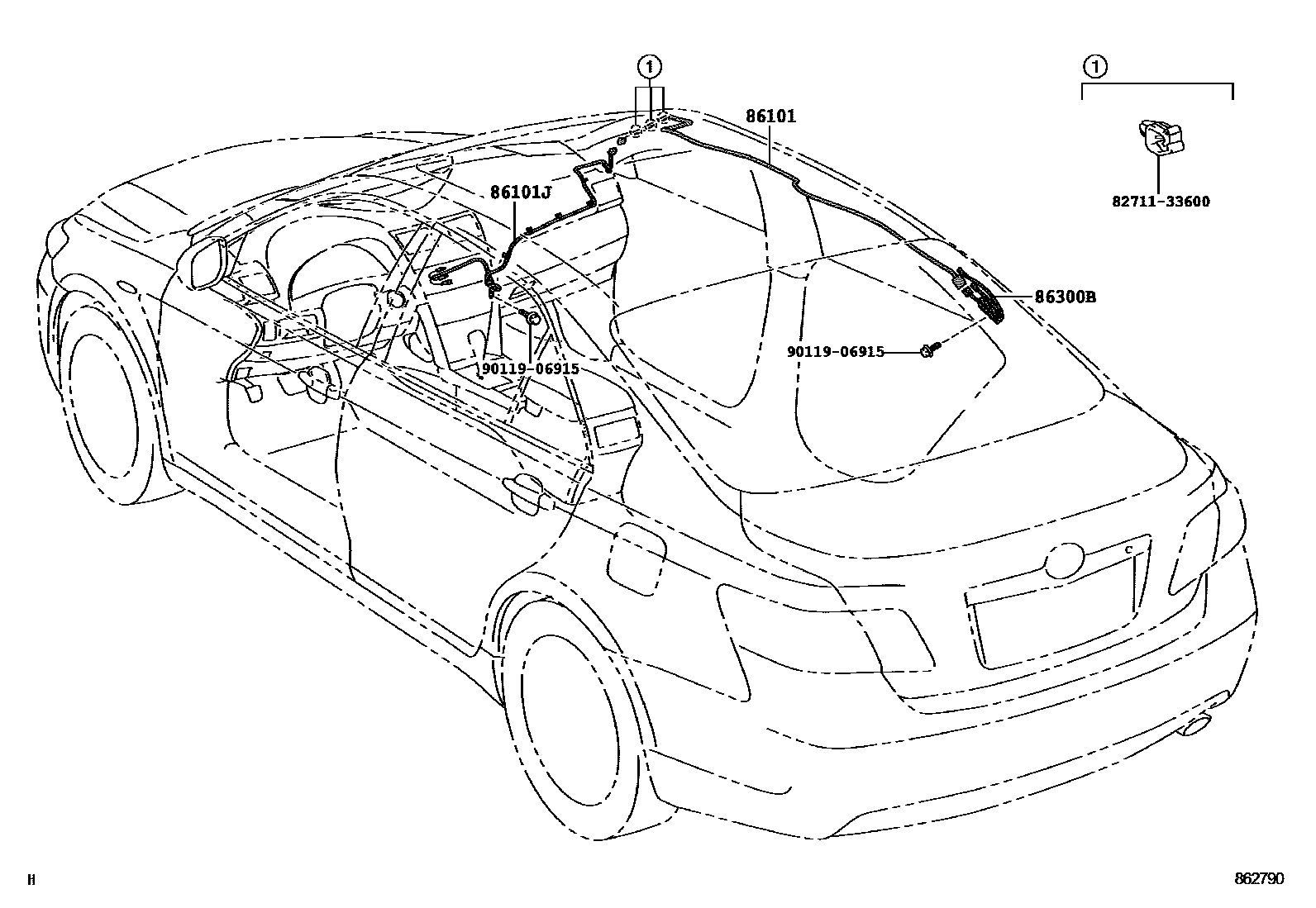

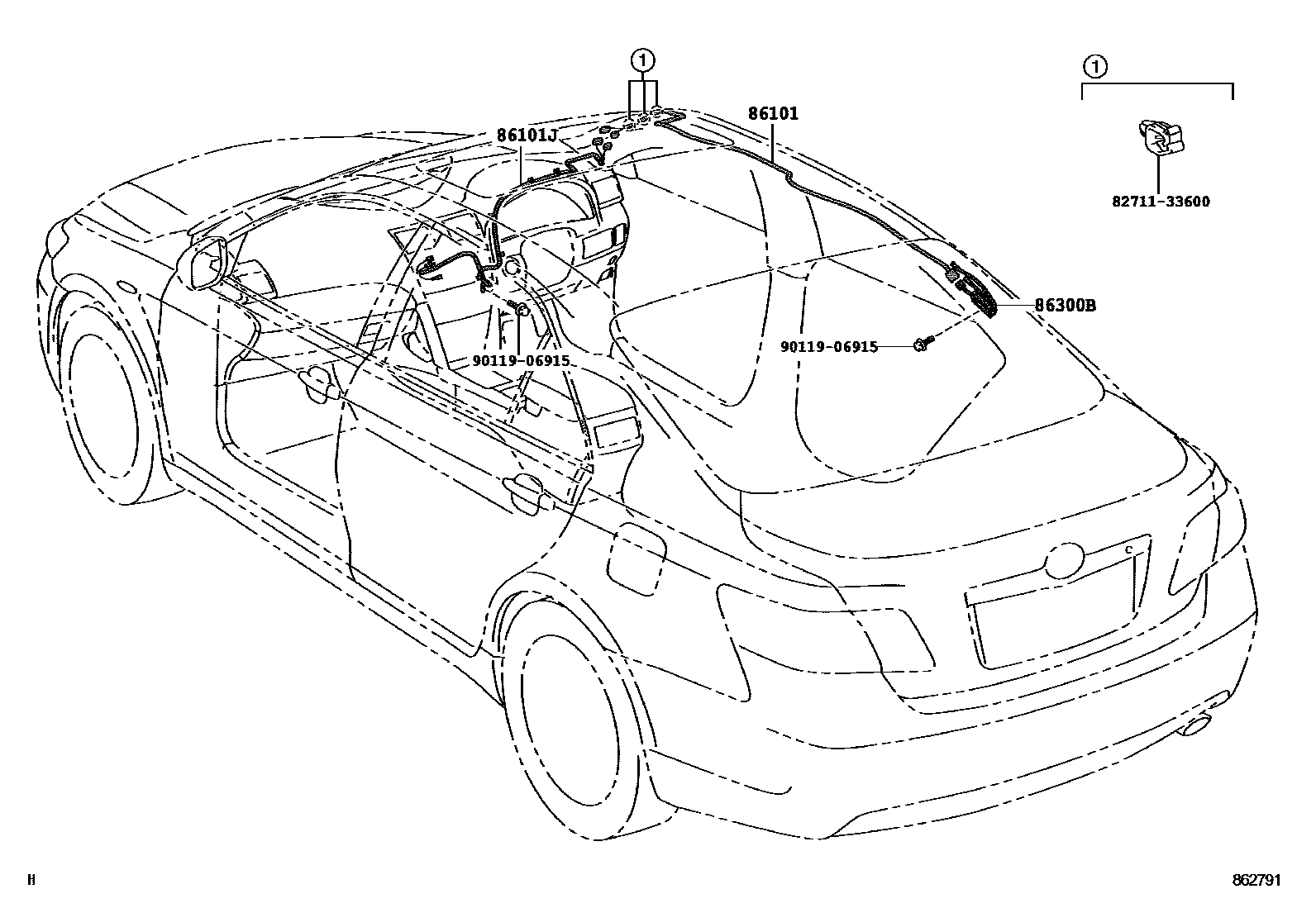

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-33540 · 86101-33541 · 86101-33560 · 86101-33561 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-33580 · 86101-33581 · 86101-33620 · 86101-33621 · 86101-33750 · 86101-33751 |
| 86300B | Amplifier antenna assembly | 86300-33280 · 86300-33300 · 86300-33301 |
