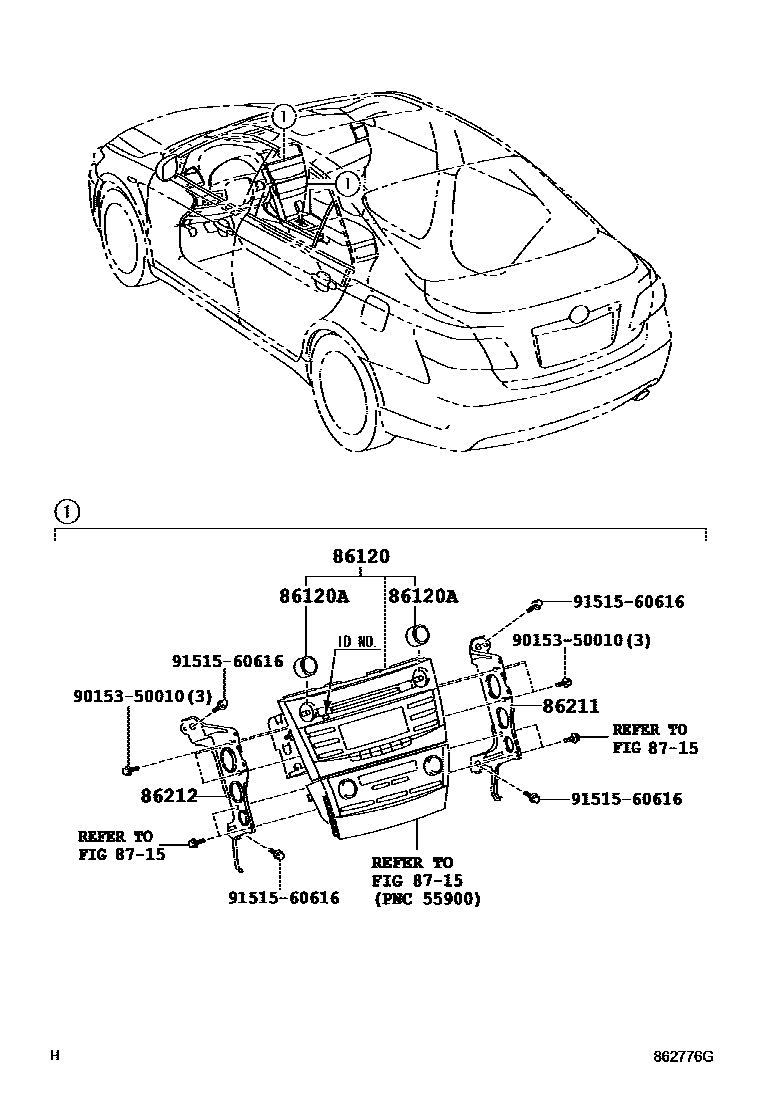

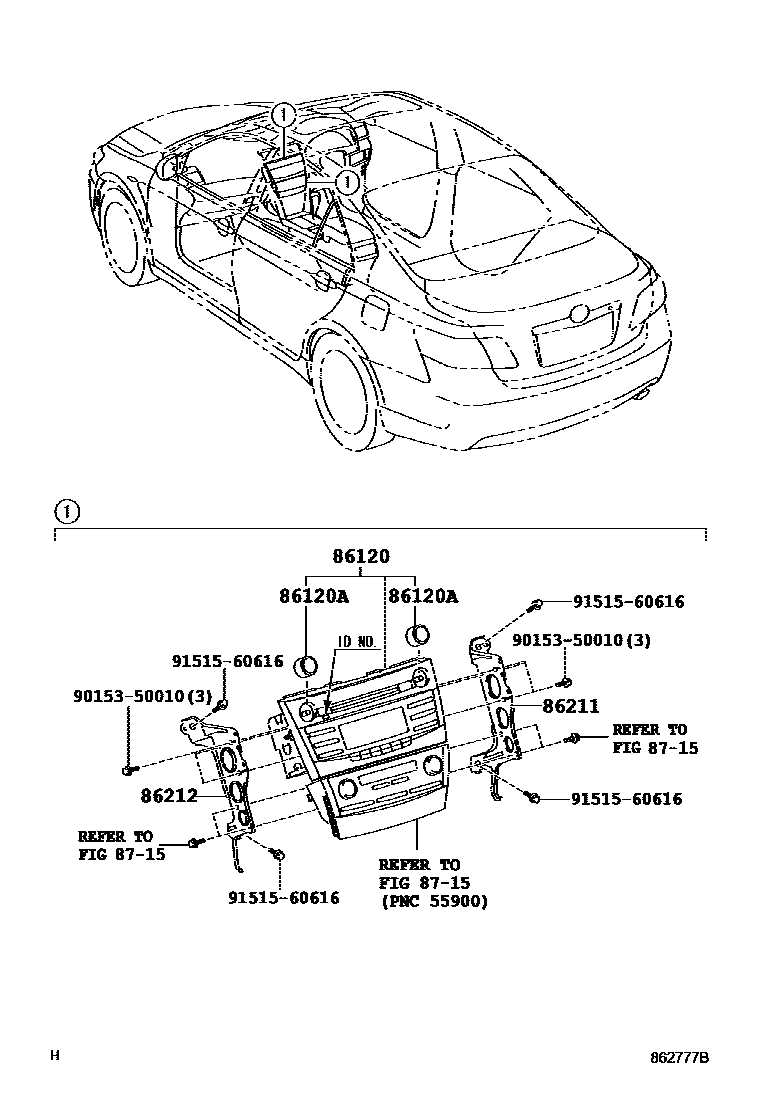

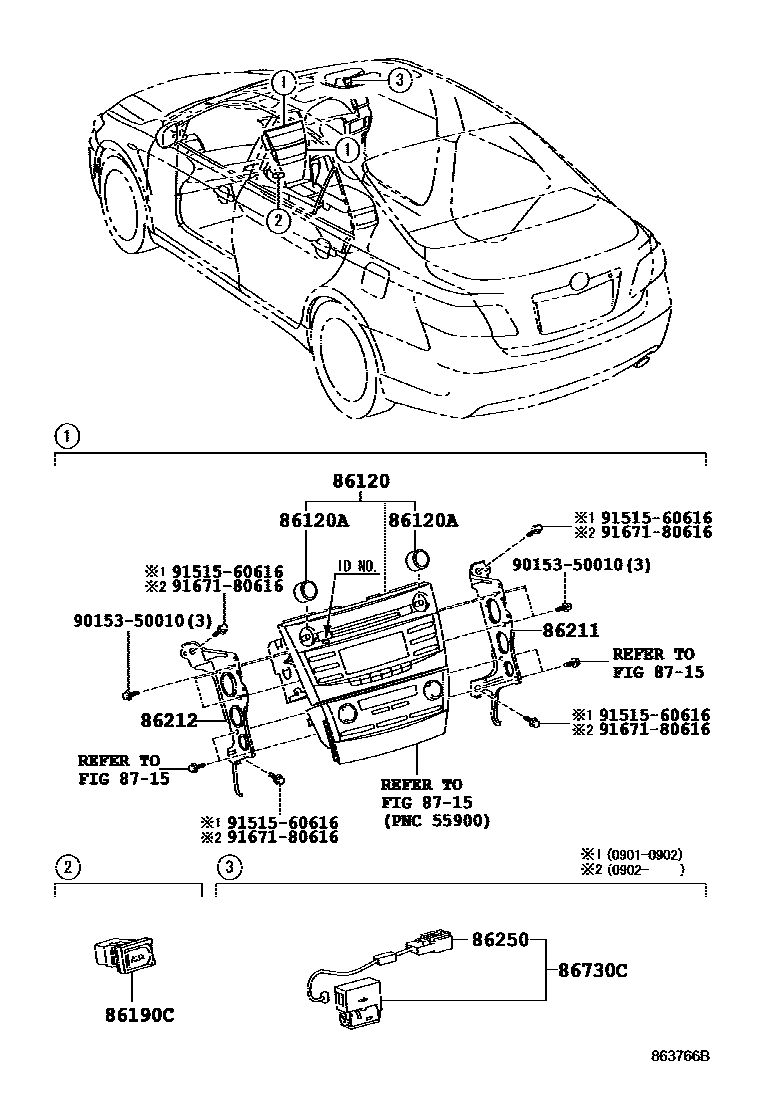

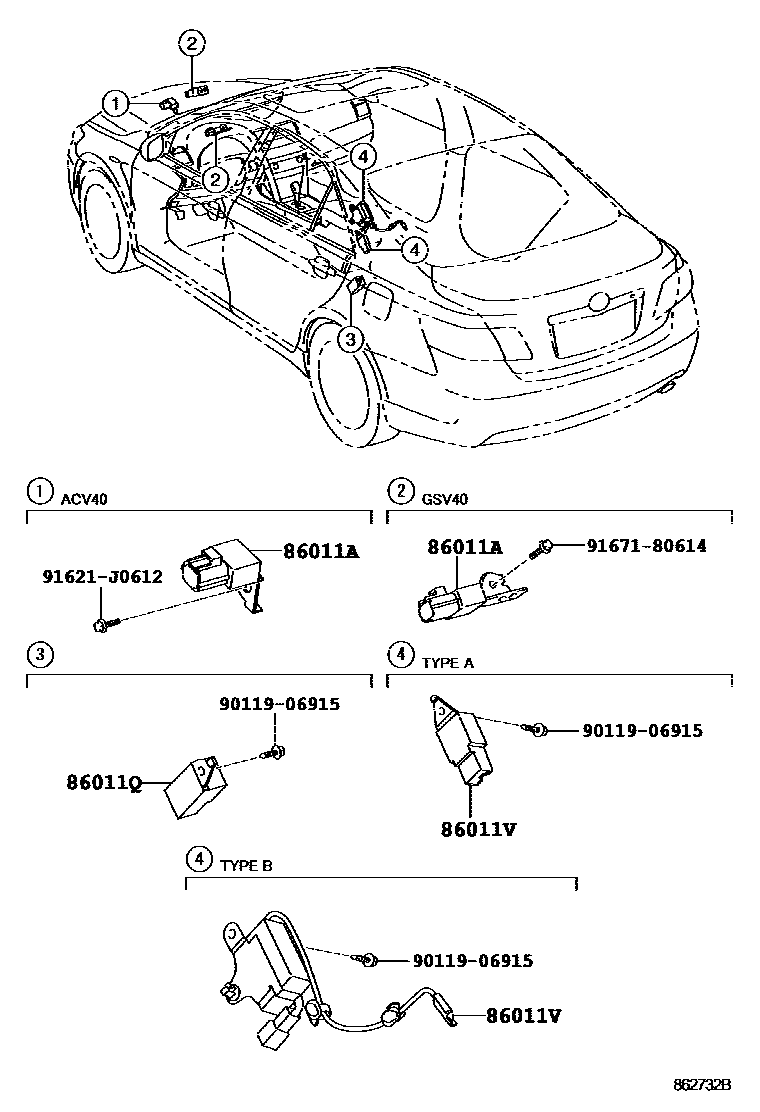

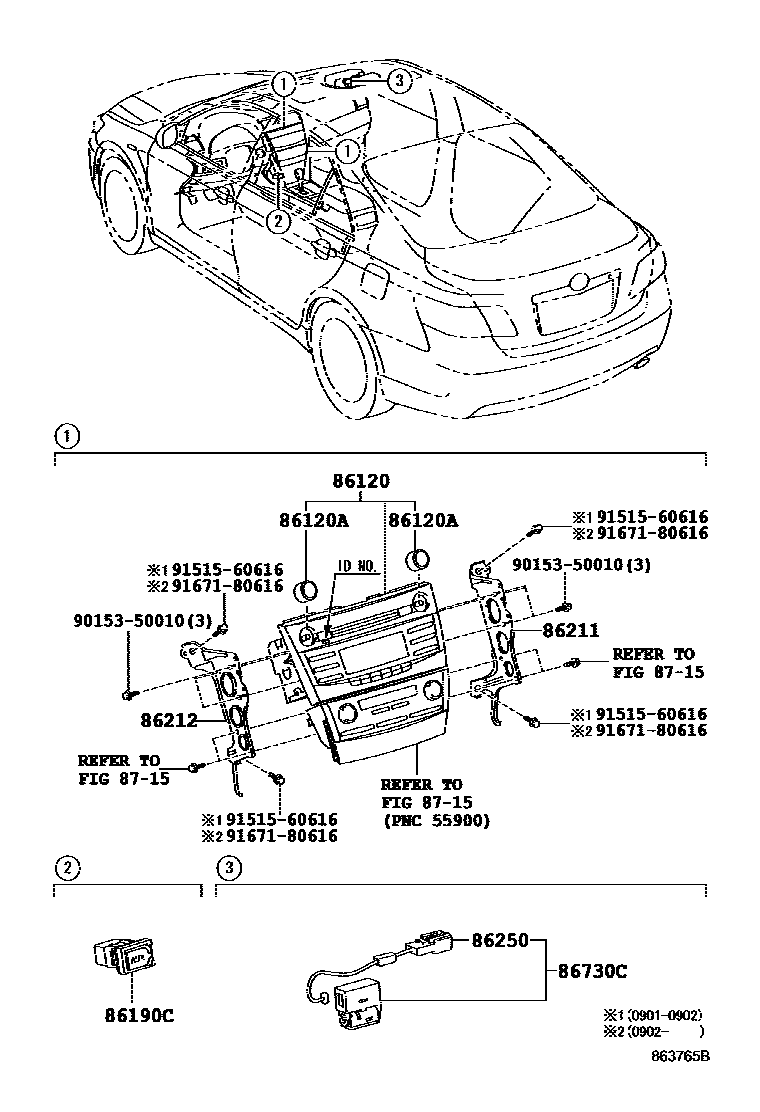

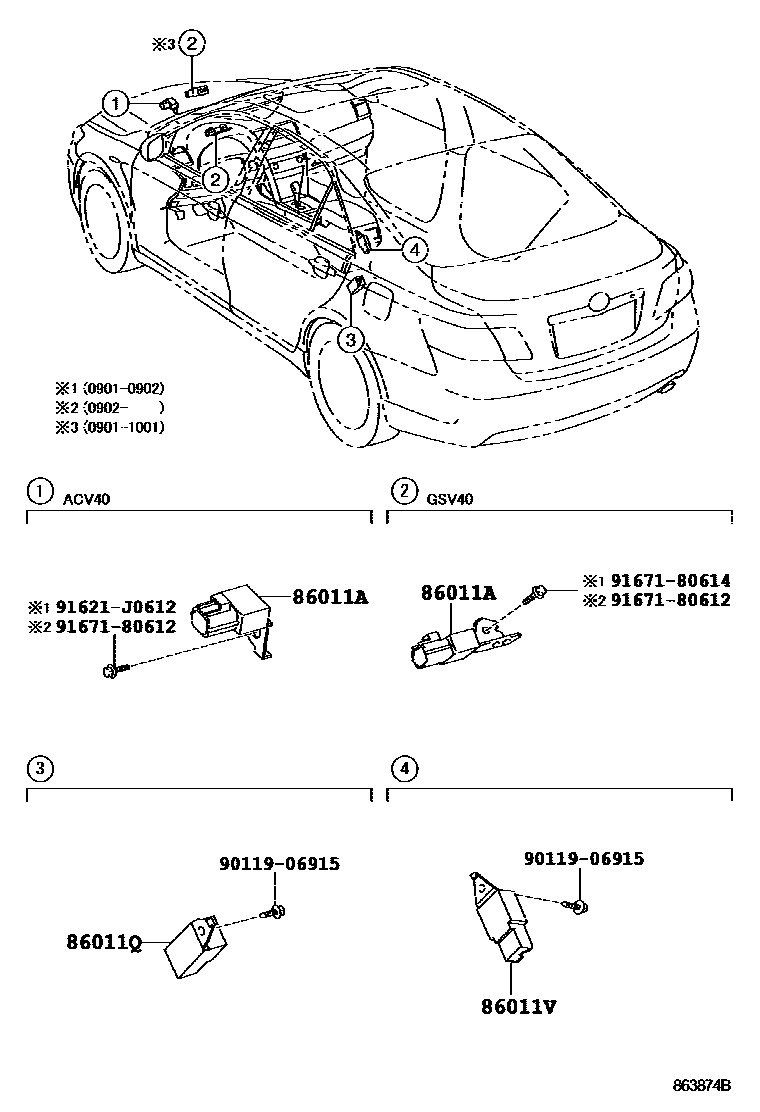

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 6 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04157 · 90980-04182 · 90980-04191 · 90980-04195 · 90980-04203 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86011V | radio settings phase modulator | 90980-04198 · 90980-05371 |
| 86120 | Radio assembly | 86120-33850 · 86120-33860 · 86120-33870 · 86120-33880 · 86120-33881 · 86120-33D50 · 86120-33D60 · 86120-33D70 · 86120-33D80 |
| 86120A | Radio switch knob | 90010-23025 · 90011-23013 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-48010 |
| 86211 | No. 1 radio bracket | 86211-33210 |
| 86212 | No. 2 radio bracket | 86212-33210 |
| 86250 | amplifier loudspeaker assembly | 86250-52030 |
| 86730C | Telephone amplifier assembly | 86730-73010 |
