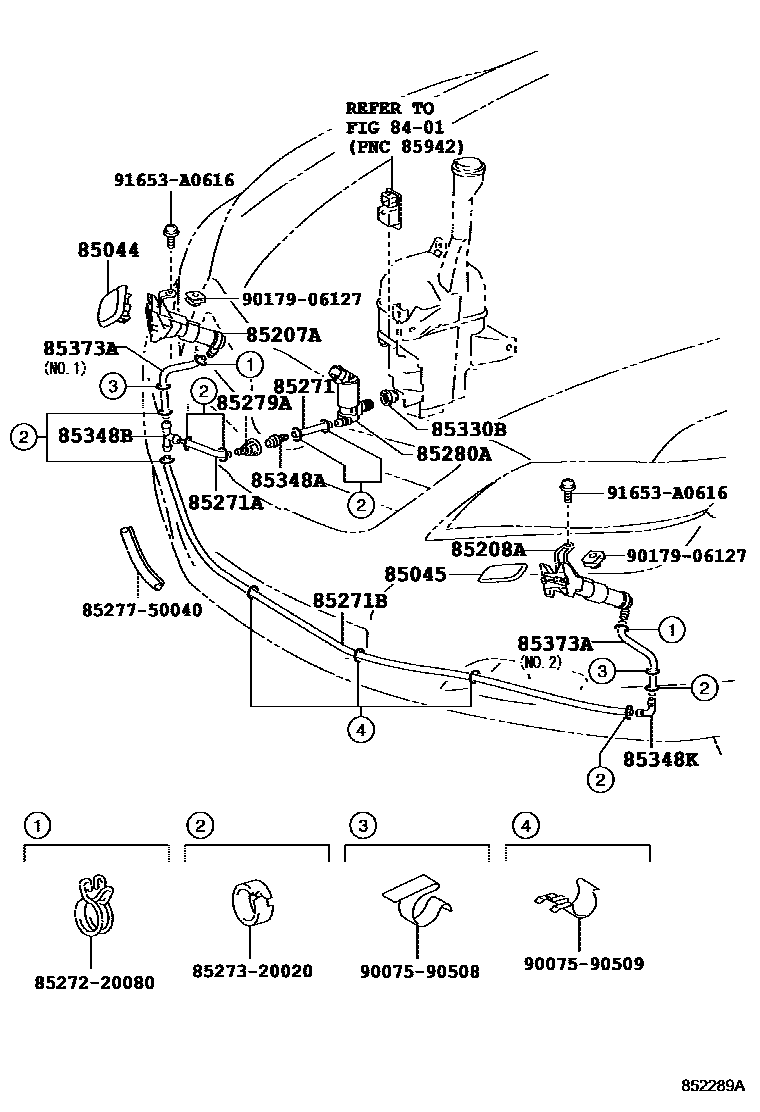

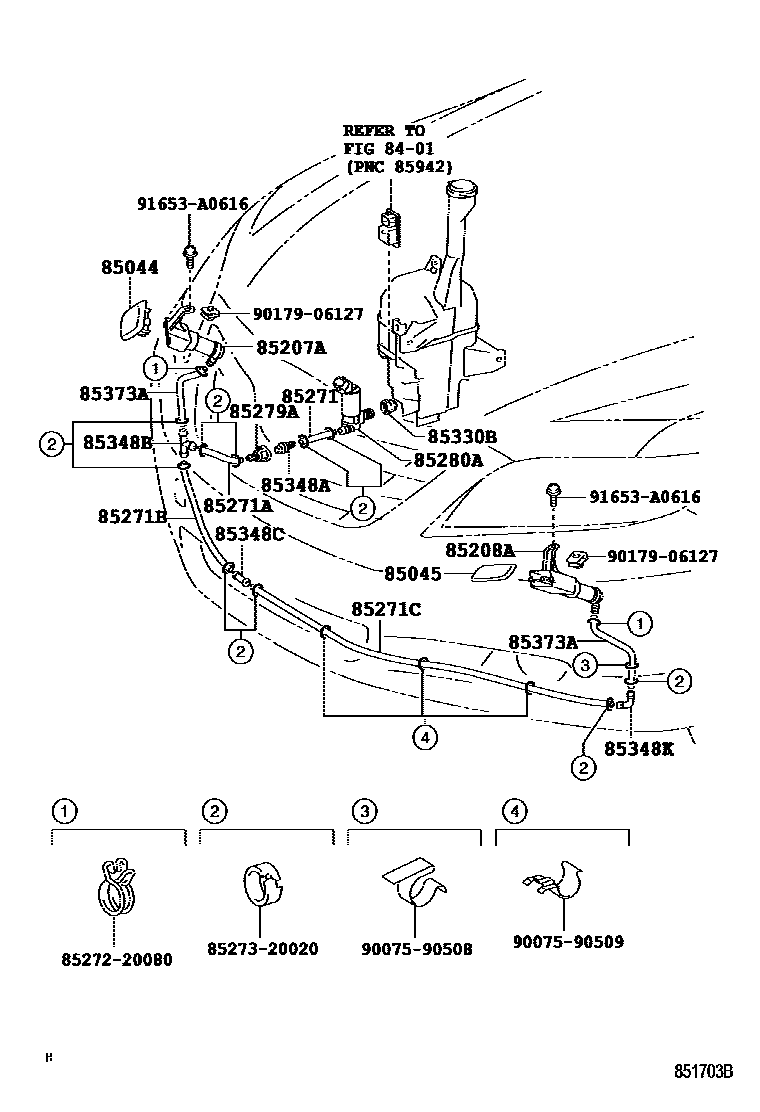

Toyota CAMRY 前大灯清洗器 — Figure 8505
Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-33010 · 85207-33060 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-33010 · 85208-33060 |
| 85271 | No. 1 headlight washer hose | 85375-16020 |
| 85271A | No. 2 headlight washer hose | 85375-32180 · 90445-14055 |
| 85271B | No. 3 headlight washer hose | 85276-33060 · 85377-12380 |
| 85271C | No. 4 headlight washer hose | 85375-20150 |
| 85279A | Headlight washer hose connector | 85279-33050 |
| 85280A | Headlight washer motor and pump assembly | 85280-30040 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 85279-33040 |
| 85348B | No. 2 headlight washer hose connector | 85287-53060 · 85352-12010 |
| 85348C | No. 3 headlight washer hose connector | 85379-89131 |
| 85348K | No. 1 headlight washer elbow joint | 85379-22080 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85271-12020 · 85375-12510 · 85375-89133 |
