Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.

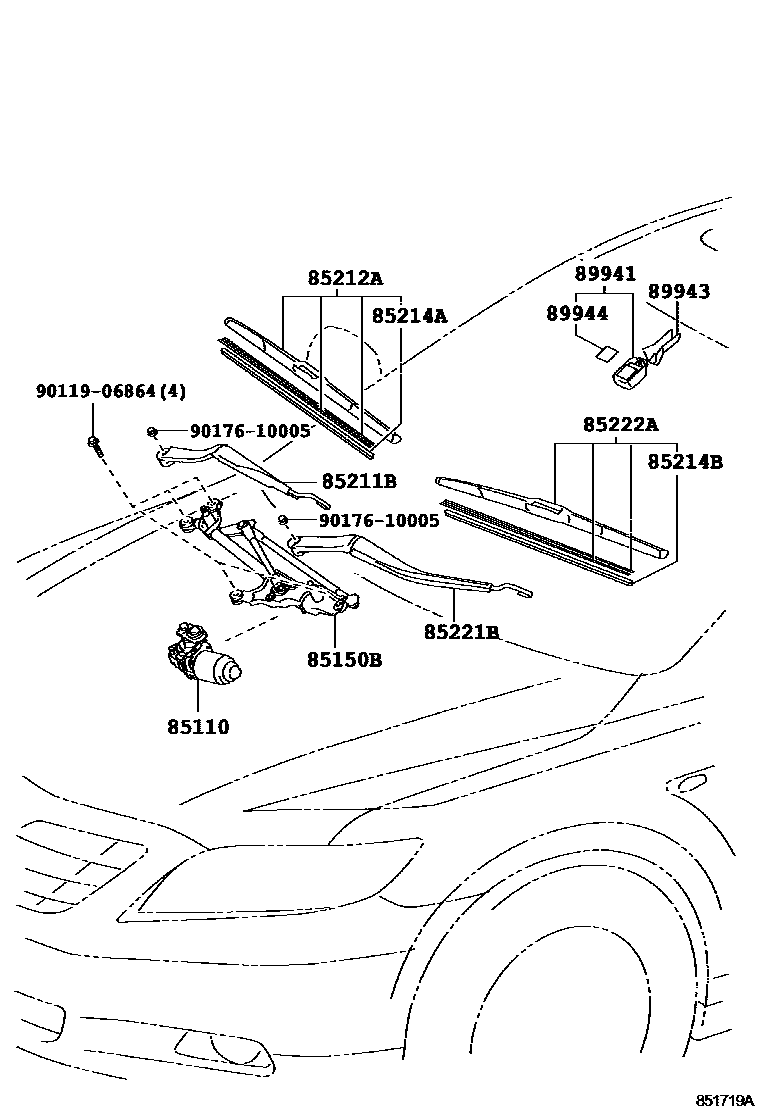

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 851719A
挡风玻璃刮水器 — 851719A (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-33050 · 85110-33310
85150BWiper connecting rod assembly85150-33230 · 85150-33250
85211BRight front wiper arm85211-33270 · 85211-33280
85212ARight front wiper blade85212-33240 · 85212-53080 · 85212-53081
85214ARight wiper rubber strip85214-30380 · 85214-53090
85214BLeft wiper rubber strip85214-30380 · 85214-53090
85221BLeft front wiper arm85221-33260 · 85221-33270 · 85221-33271
85222ALeft front wiper blade85222-33250 · 85222-53060
89941rain sensor89941-42010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
