Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 4 PNC and OE references.

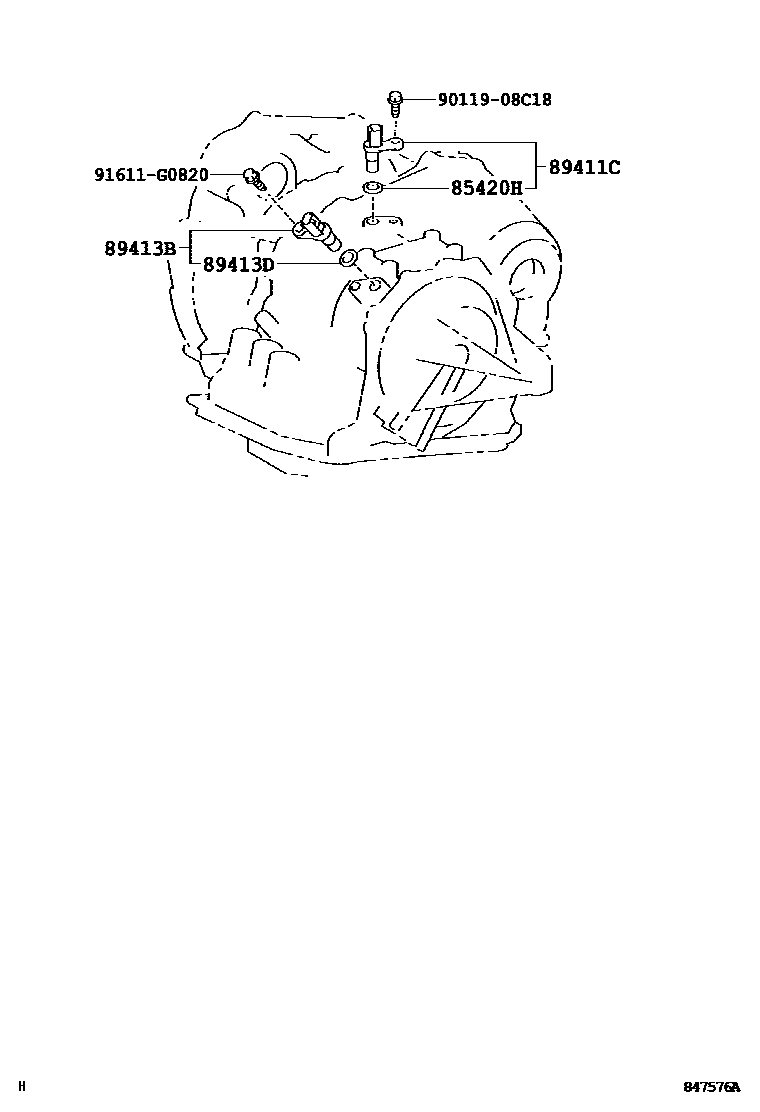

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 847576A
超速档和电子控制变速器 — 847576A (200601 – 999999)
Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 847674A
超速档和电子控制变速器 — 847674A (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
85420HO-ring (for speed sensor)90301-11008
89411CSpeed sensor89413-24010
89413BTransmission speed sensor89413-24010 · 89413-33030
89413DO-ring (for transmission speed sensor)90301-11008
