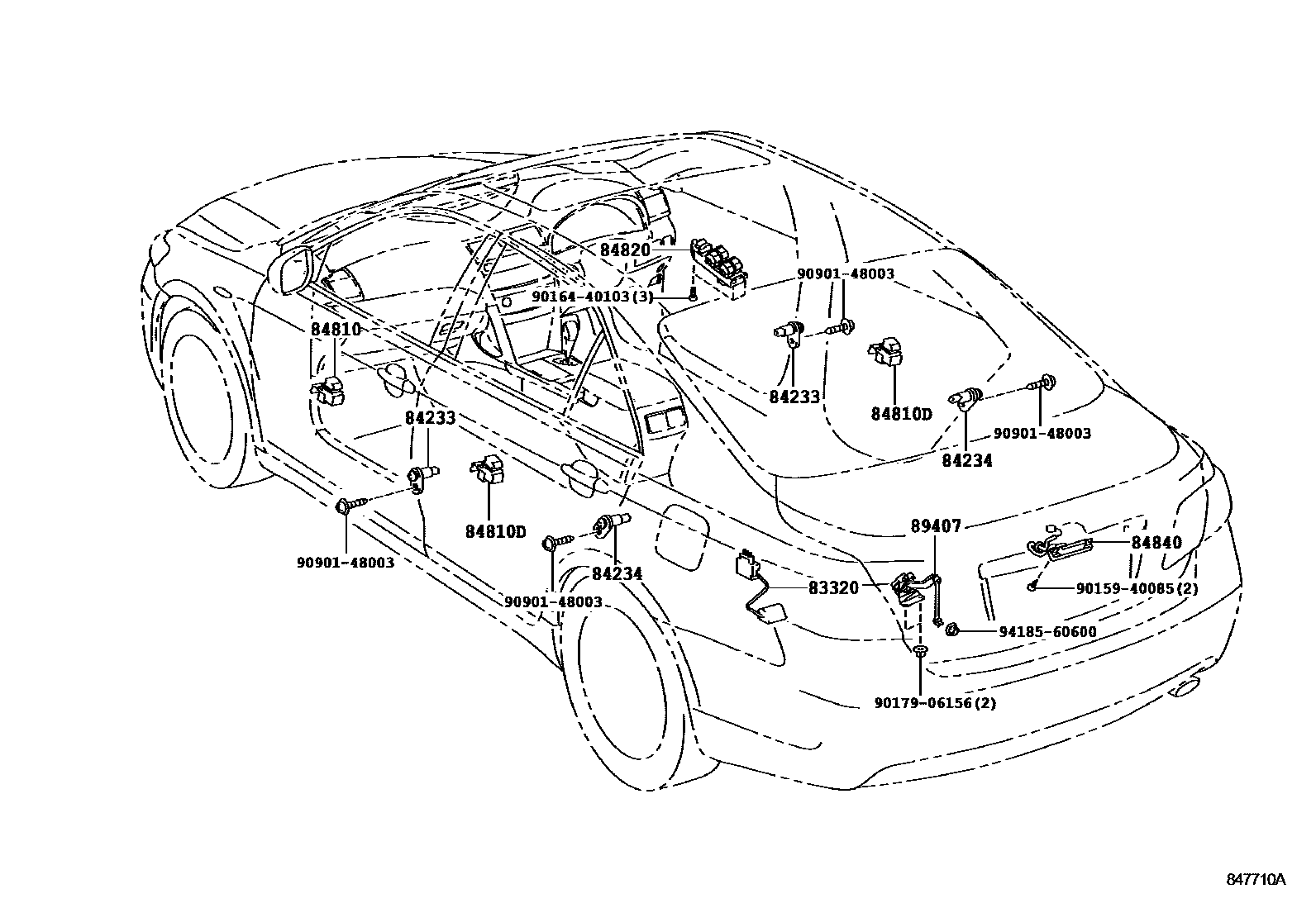

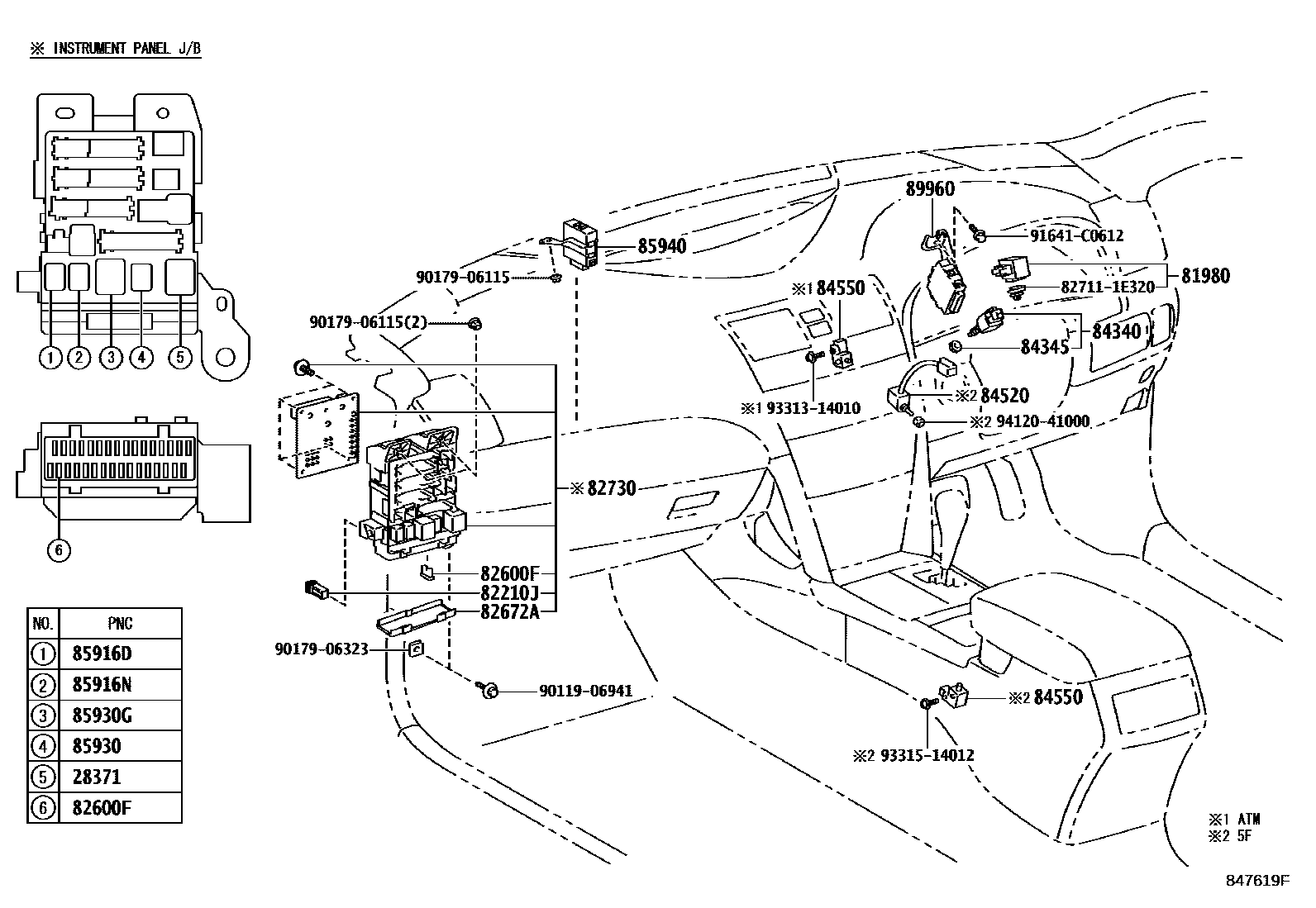

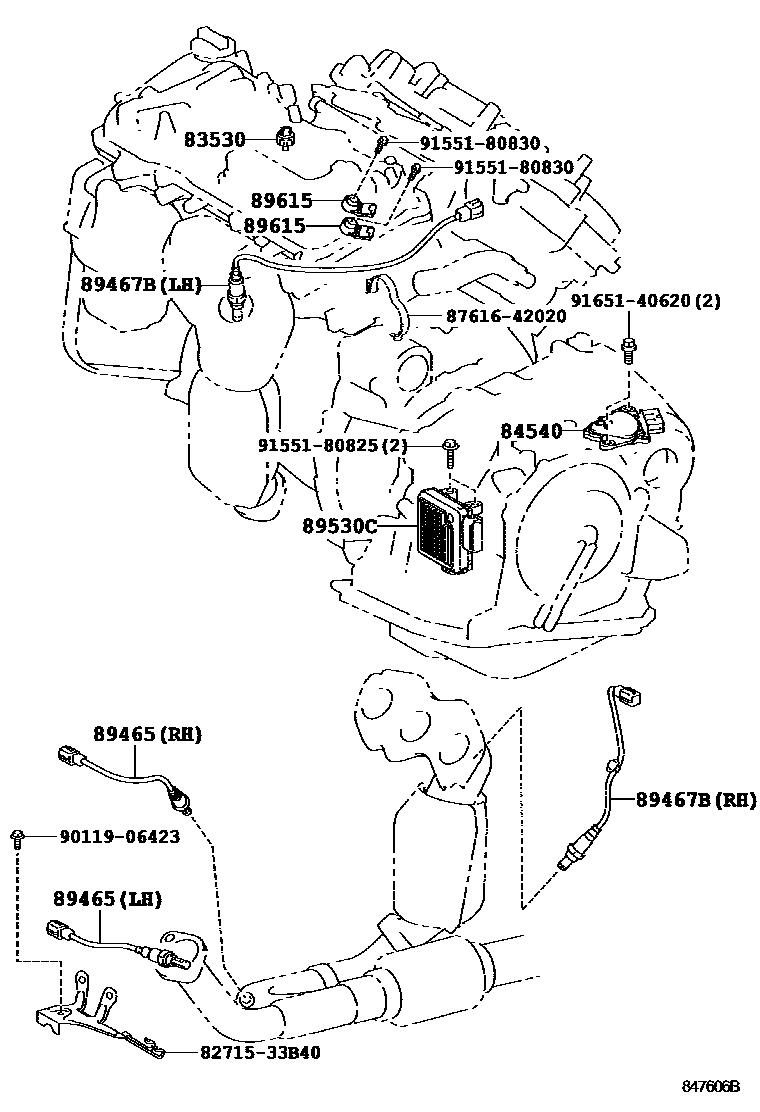

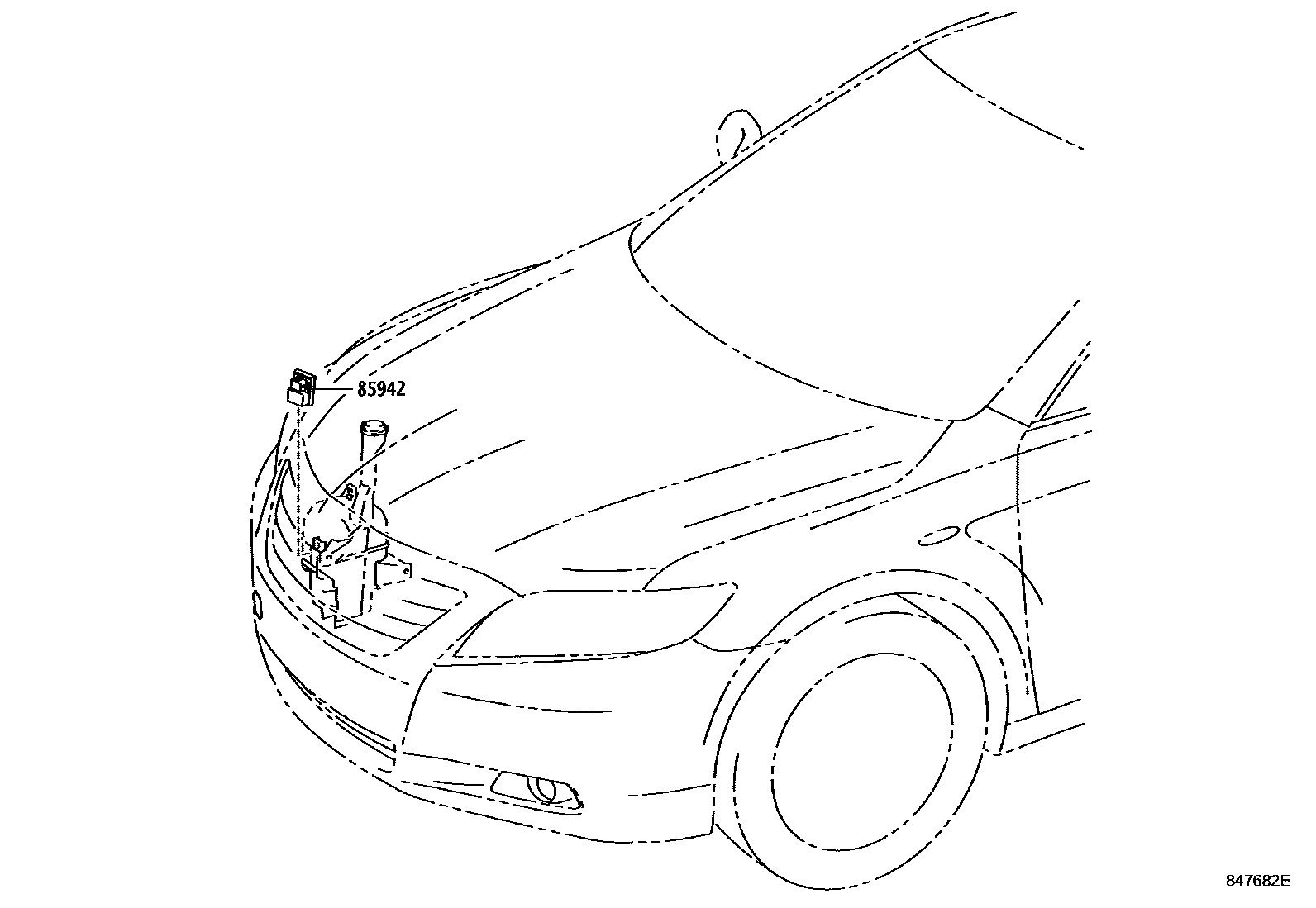

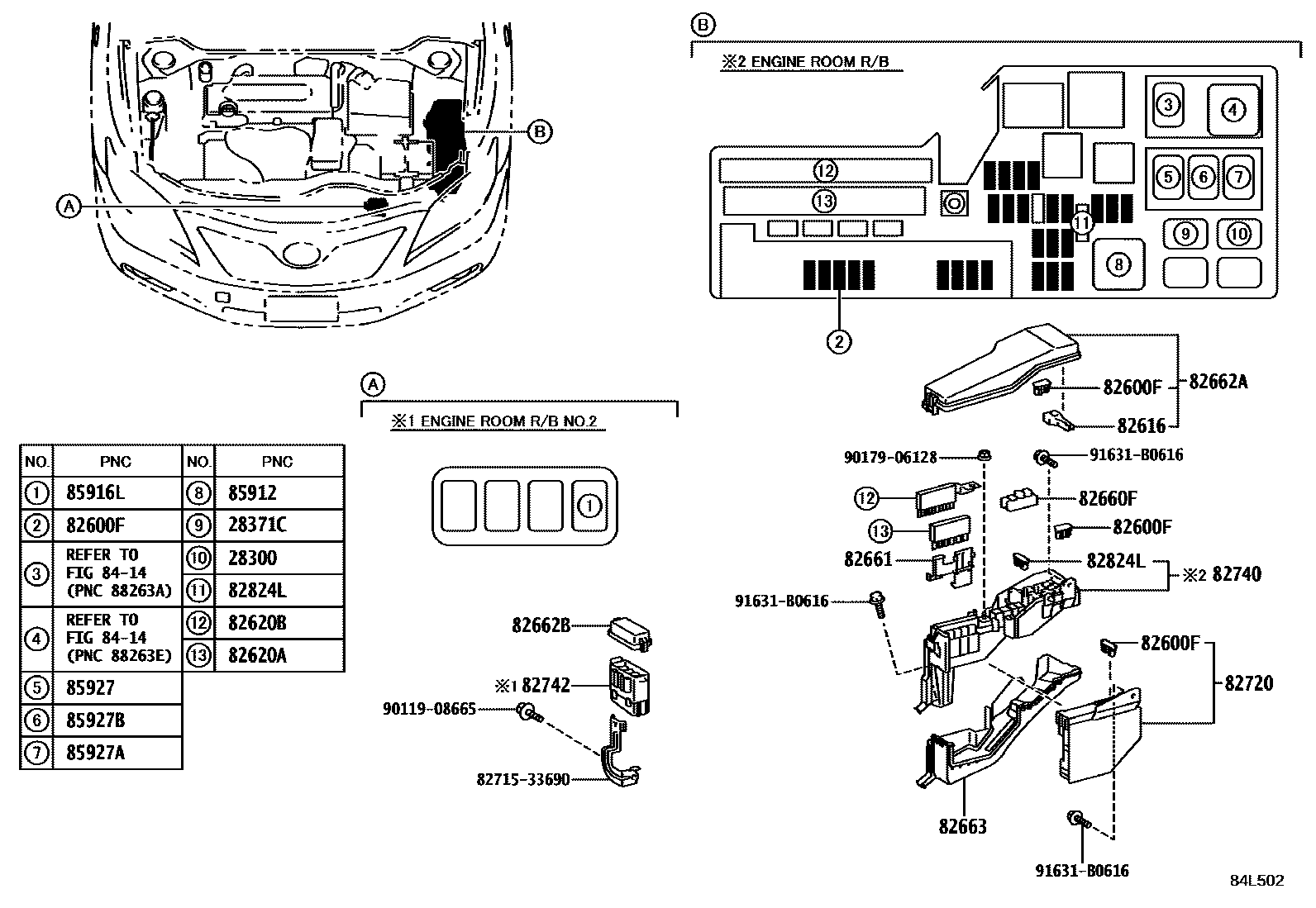

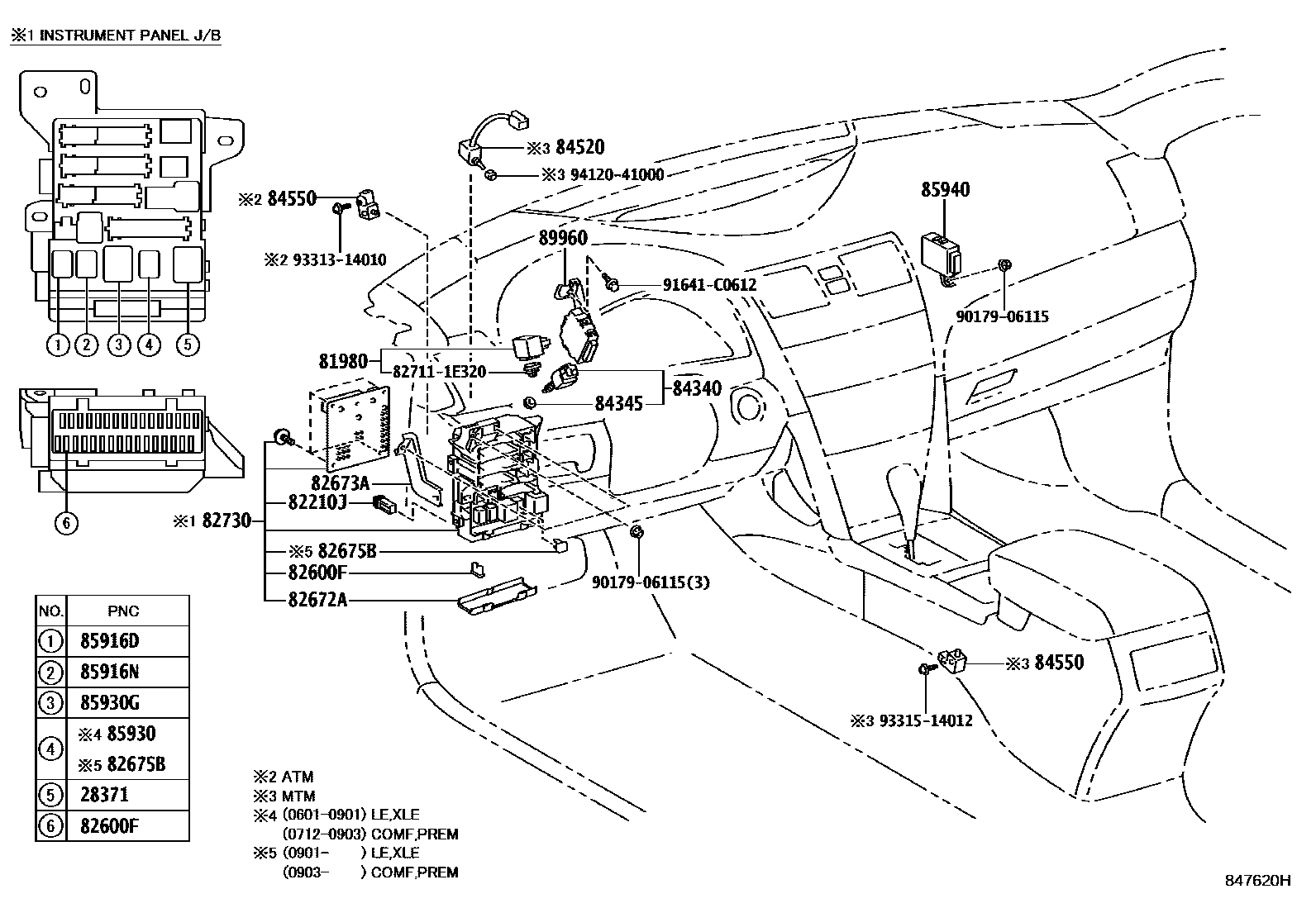

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 15 images and 81 PNC and OE references.
PNC and OE references

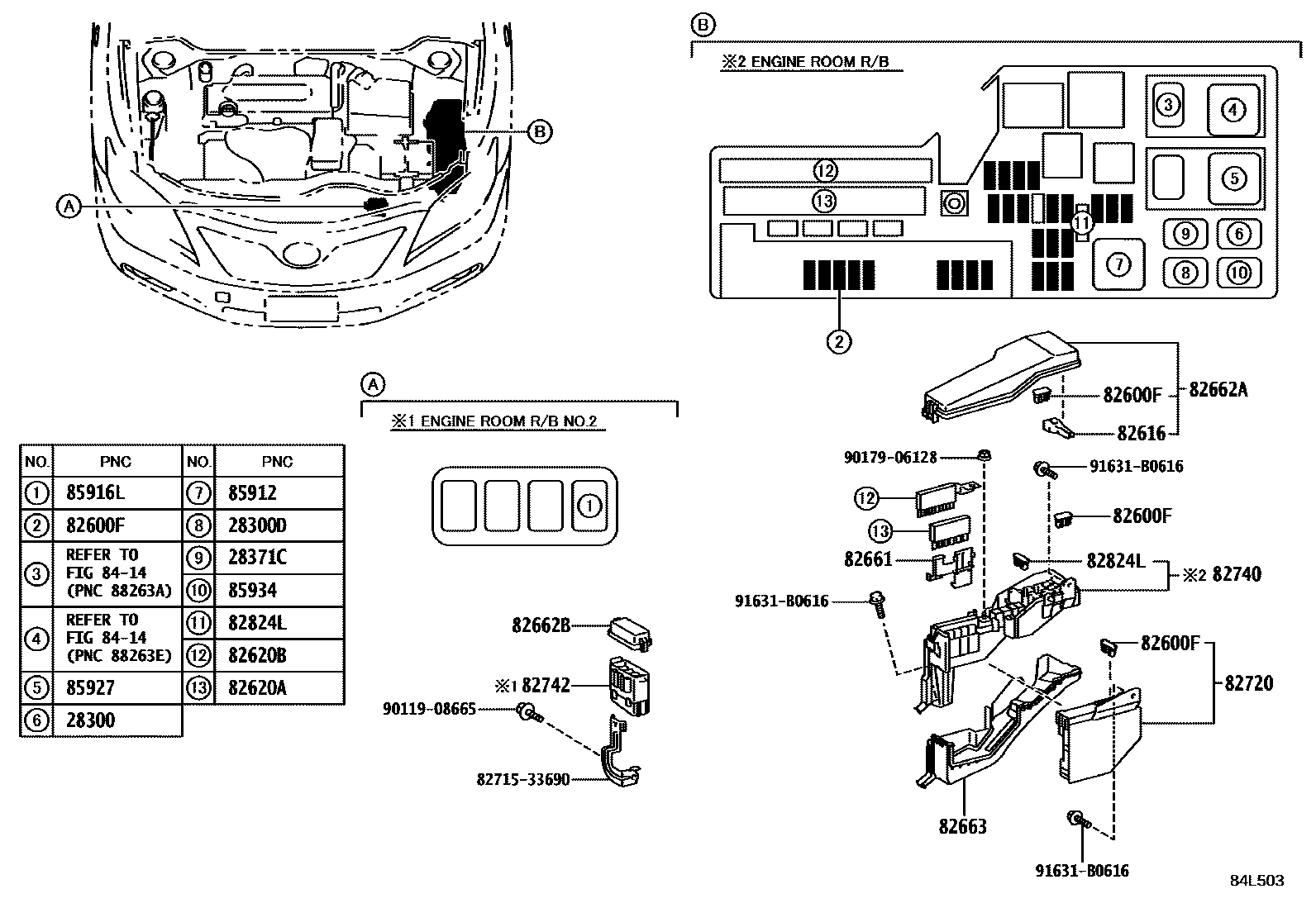

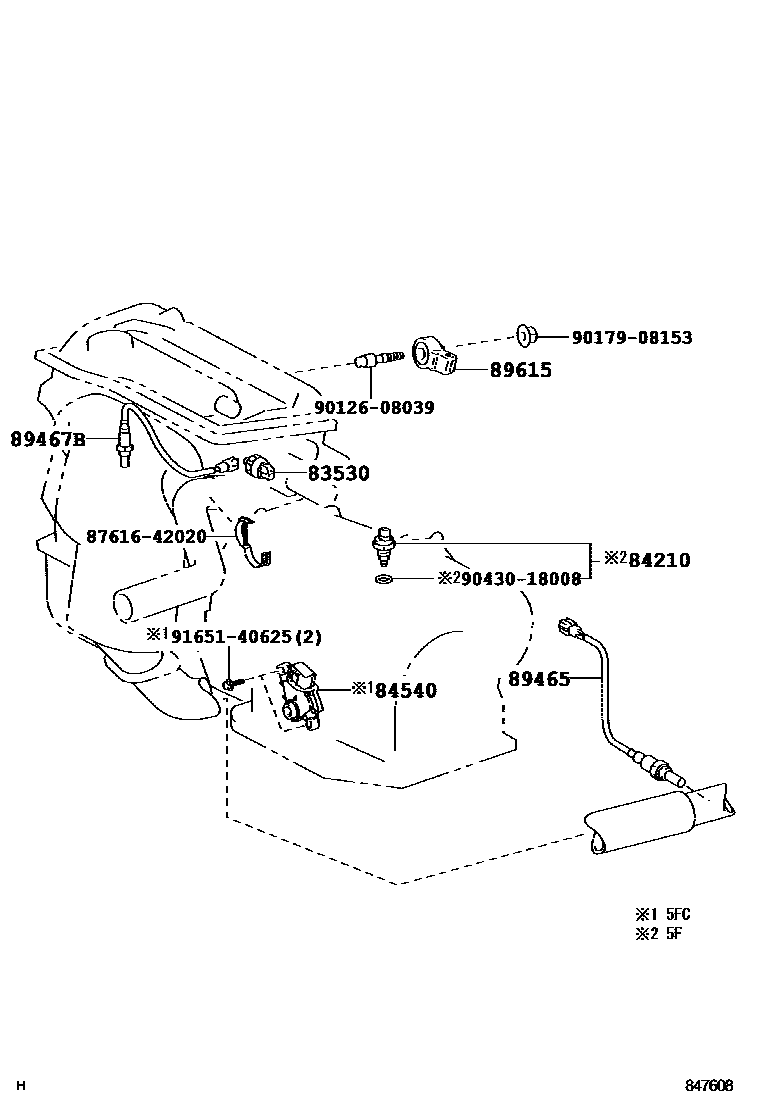

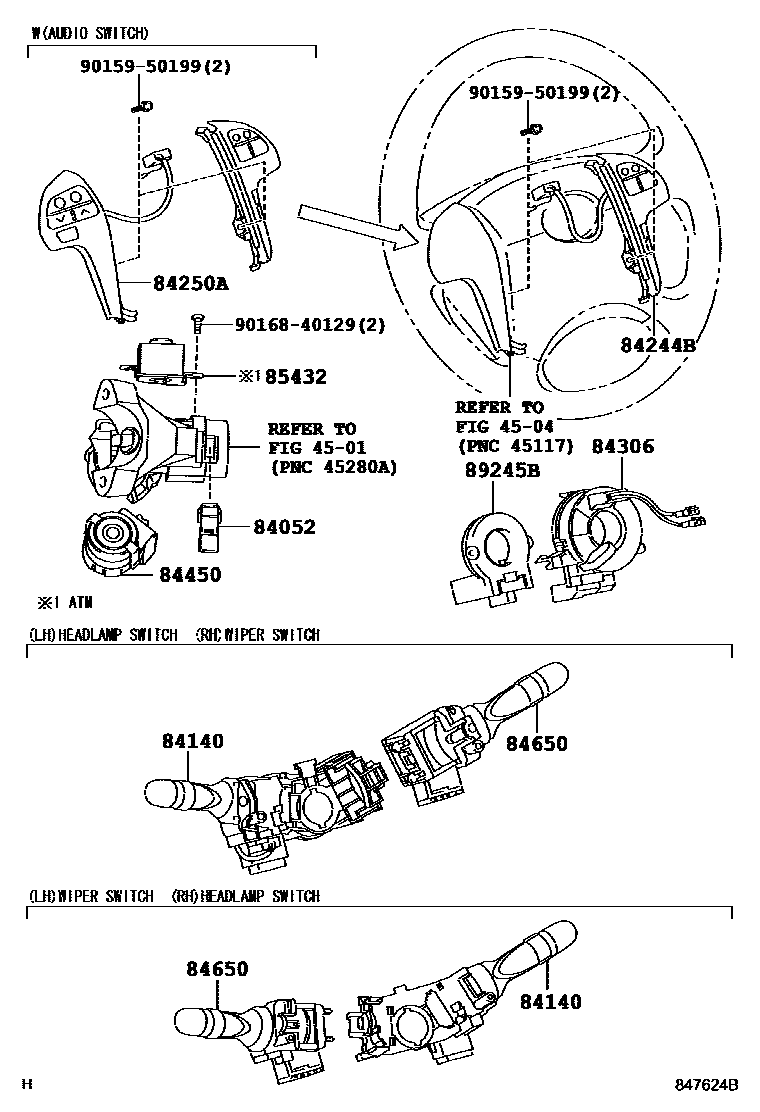

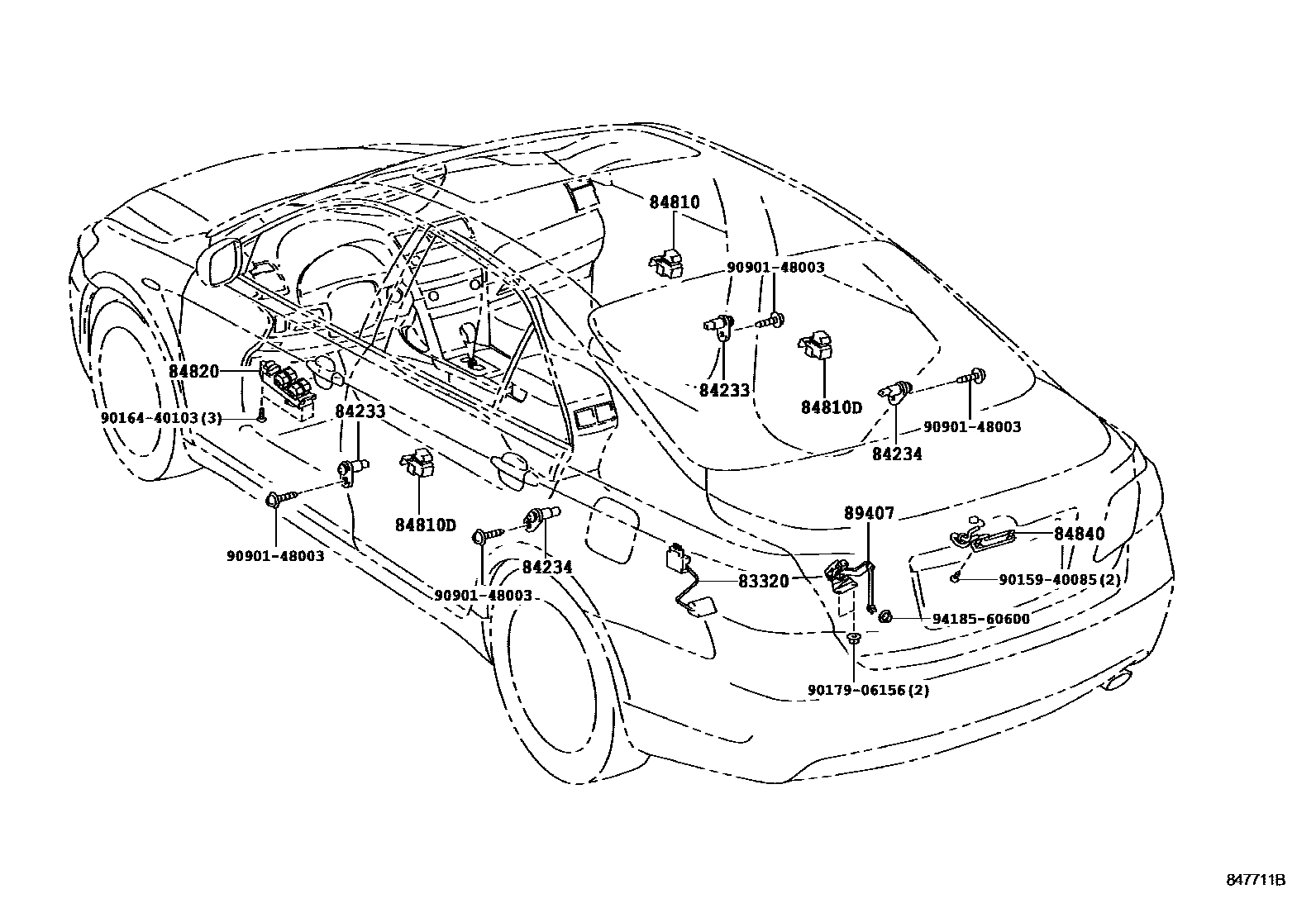

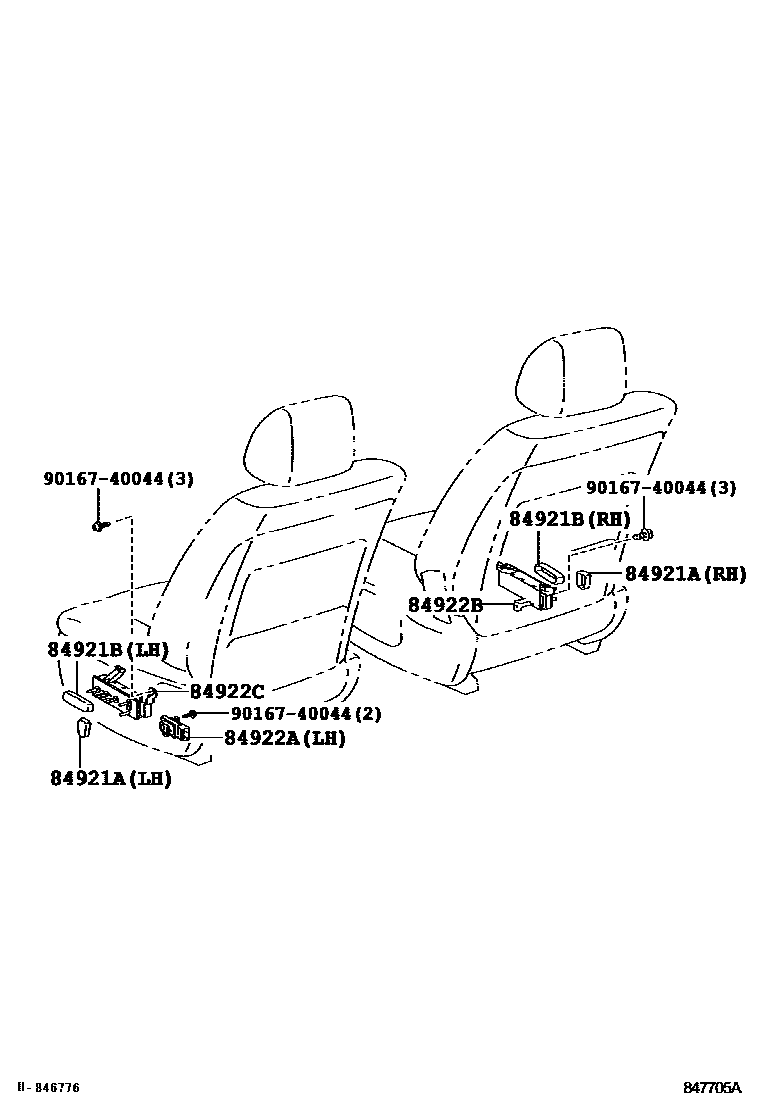

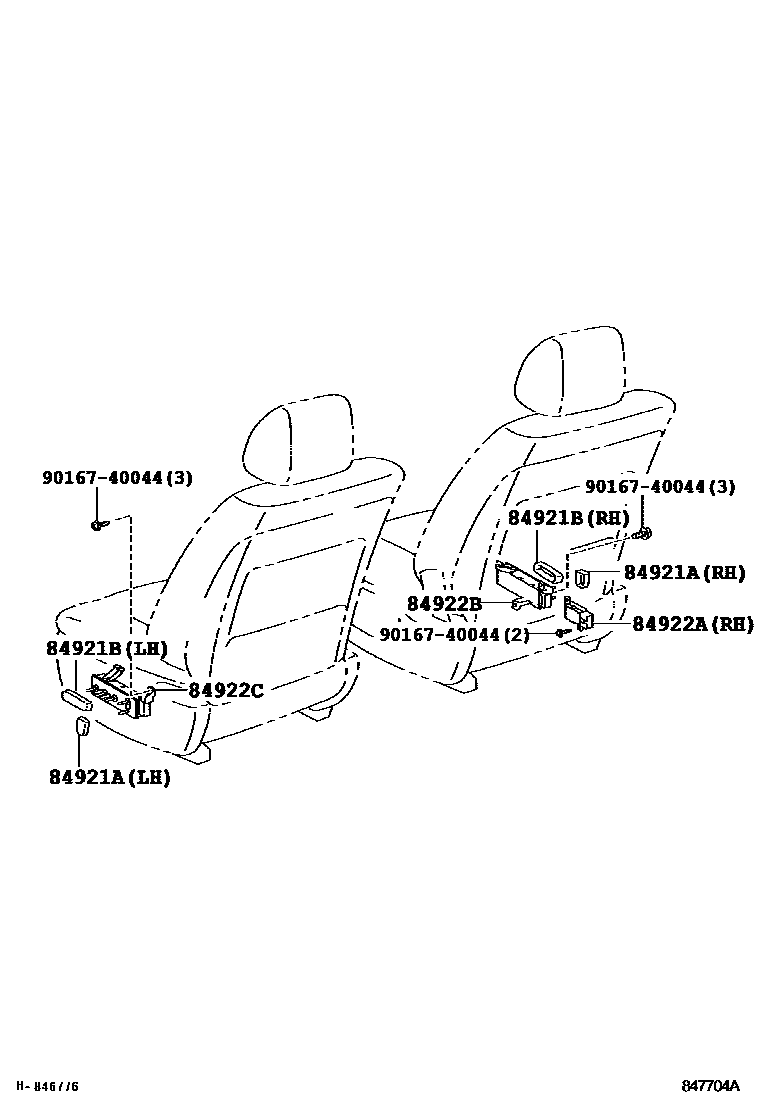

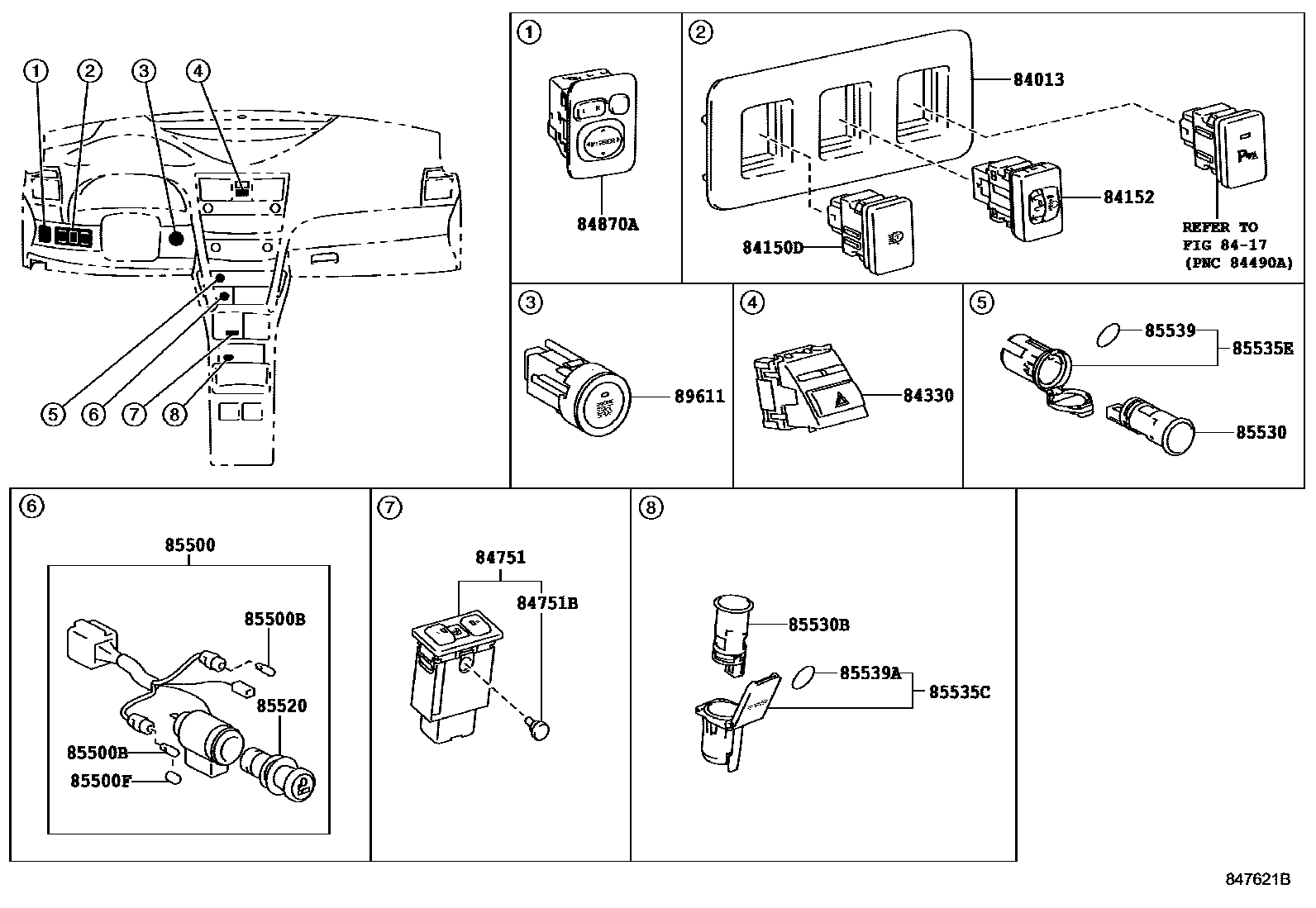

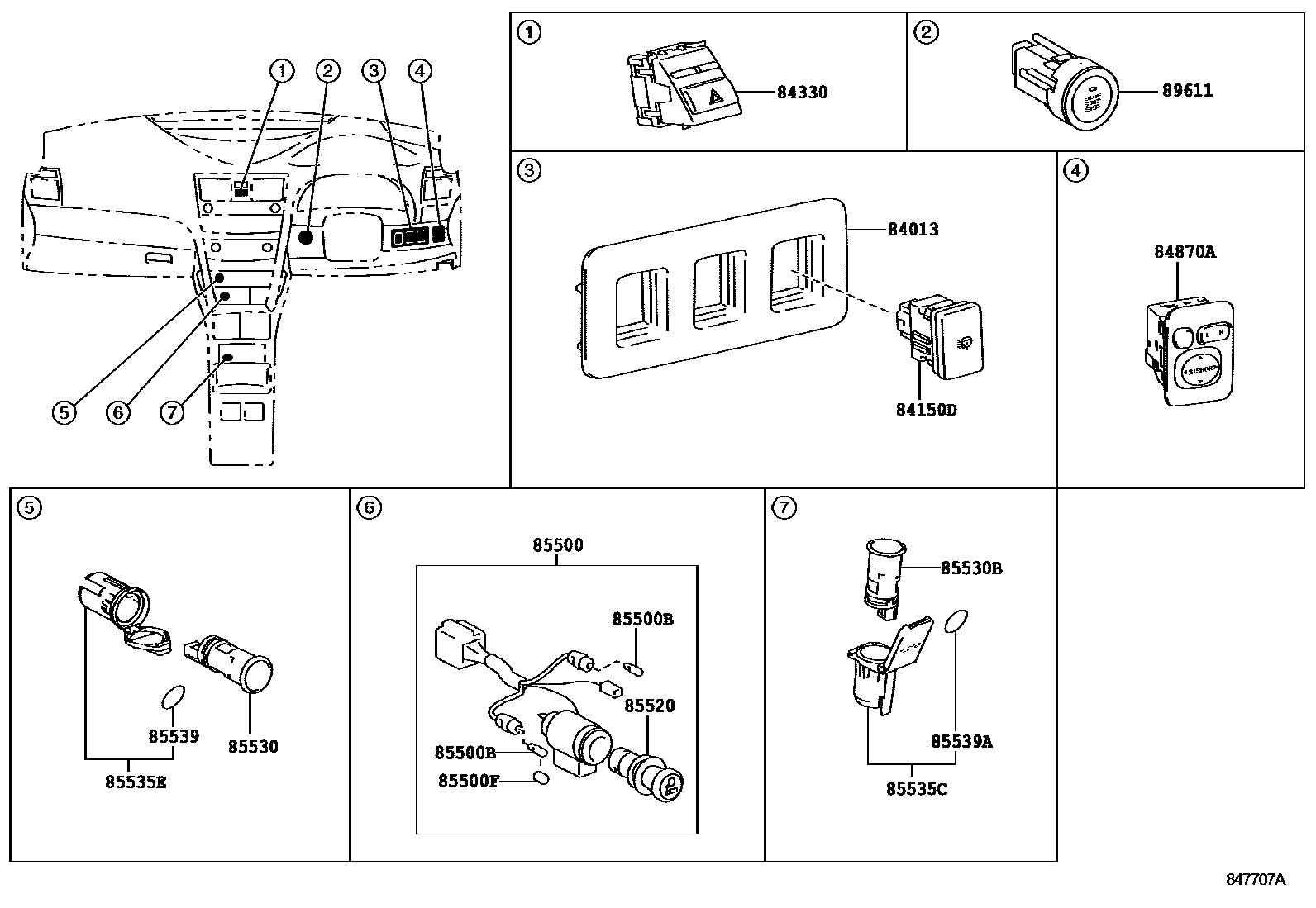

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 81980 | Turn signal flasher relay assembly | 81980-30170 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33030 |
| 82620B | Fuse box assembly | 82620-07050 |
| 82660F | Relay assembly | 82660-33010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-33140 · 82662-33150 · 82662-33180 |
| 82662B | No. 2 relay box upper cover | 82662-33160 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82672A | Junction box cover | 82672-33320 |
| 82673A | Junction box bracket | 82673-33020 |
| 82675B | Terminal block | 82675-44010 |
| 82720 | Engine room junction box assembly | 82720-33100 · 82720-33110 · 82720-33120 · 82720-33140 |
| 82730 | Instrument panel junction box assembly | 82730-33720 · 82730-33721 · 82730-33730 · 82730-33731 · 82730-33A50 · 82730-33A60 · 82730-33C90 · 82730-33D00 · 82730-33D10 |
| 82740 | Engine room relay box assembly | 82740-33010 · 82740-33020 |
| 82742 | Engine room No. 2 relay box | 82742-33020 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-33100 · 83320-33110 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 · 83530-AA011 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-42070 · 84140-42080 · 84140-42110 · 84140-42111 · 84140-48130 · 84140-48200 |
| 84150D | Headlight washer switch assembly | 84150-33050 |
| 84152 | Headlight beam height adjustment switch | 84152-52100 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84244B | Steering wheel decorative cover right switch | 84244-33160 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-33010 · 84250-33130 |
| 84306 | Spiral cable sub-assembly | 84306-48030 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69015 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-71010 |
| 84520 | Clutch start switch assembly | 84520-33010 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-16060 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-33440 · 84652-33441 · 84652-33450 |
| 84751 | Seat heater switch | 84751-33050 |
| 84751B | Seat heater switch light bulb | 90011-01002 |
| 84810 | Electric window lift switch assembly | 84810-33120 · 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-33120 · 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84040-33100 · 84820-33250 · 84820-33251 · 84820-33260 · 84820-52200 |
| 84840 | Trunk door opening switch assembly | 84840-33090 · 84905-33010 |
| 84922B | Front right electric seat switch | 84922-58010 · 84922-60130 |
| 84922C | Front left electric seat switch | 84922-60110 · 84922-60120 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-33050 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85535C | Rear power outlet cover | 85535-33060 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85912 | defogger relay | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916L | Rear fog light relay | 90987-02027 |
| 85916N | Tail light relay | 90987-02027 |
| 85927 | cooling fan relay | 90987-02025 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85930 | Electric window relay assembly | 90987-02027 |
| 85930G | ACC relay | 90987-02025 · 90987-02030 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-33120 · 85940-33130 · 85940-33180 · 85940-33190 |

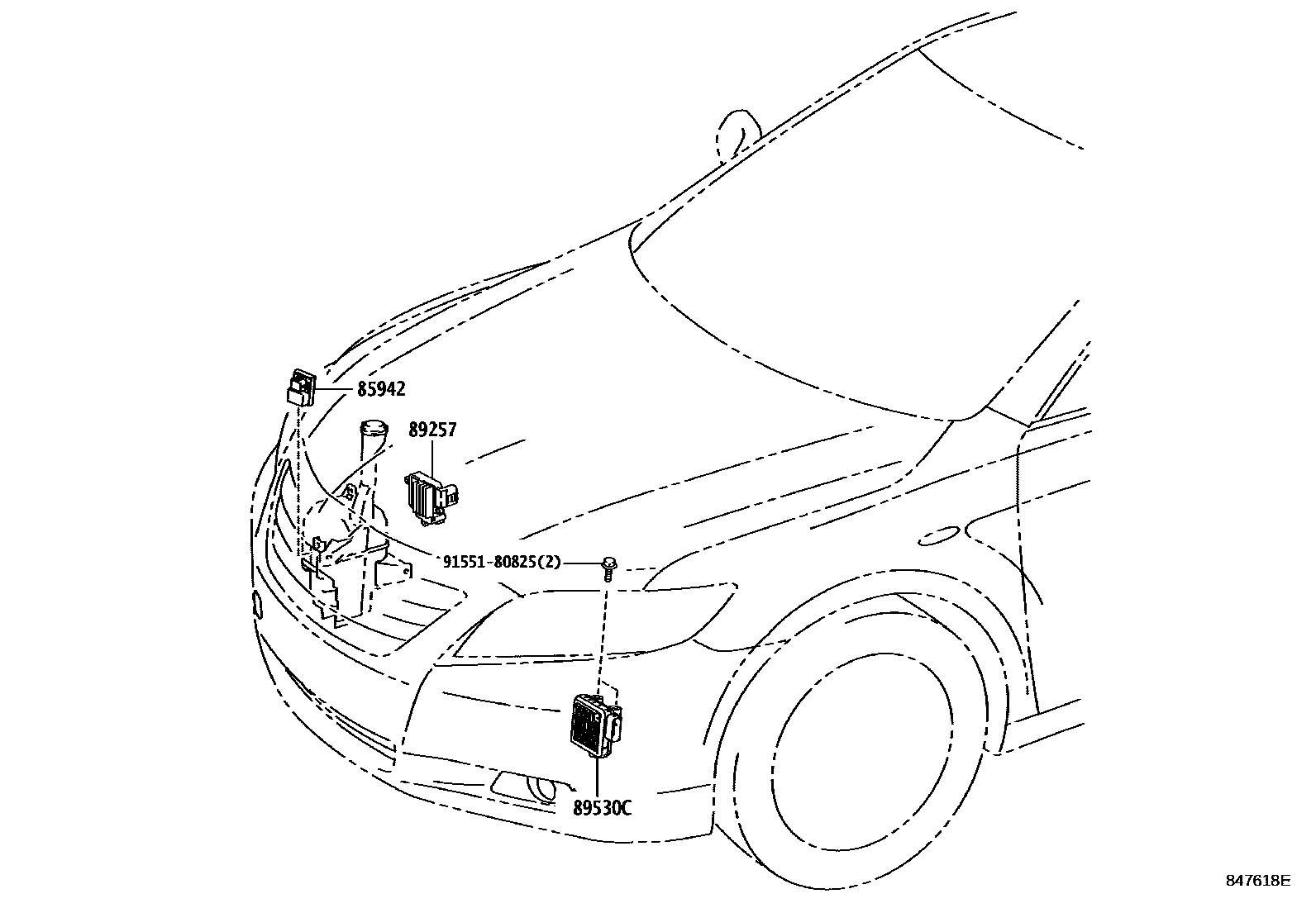

| 85942 | Headlight washer control relay | 85942-30020 · 85942-48020 · 85942-58010 |
| 89245B | steering sensor | 89245-33050 |
| 89257 | Cooling fan ECU | 89257-30060 |
| 89407 | Right rear height control sensor sub-assembly | 89407-41010 |
| 89465 | oxygen sensor | 89465-33360 · 89465-33420 · 89465-33440 |
| 89467B | air fuel ratio sensor | 89467-33080 · 89467-33090 · 89467-33130 · 89467-33160 · 89467-33170 · 89467-33180 |
| 89530C | Transmission control ECU assembly | 89530-33020 · 89530-33021 · 89530-33030 · 89530-33031 · 89530-33160 |
| 89611 | push button start switch | 89611-52011 · 89611-52012 · 89611-52013 |
| 89615 | knock control sensor | 89615-20090 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33160 · 89960-33280 · 89960-33300 · 89960-33320 |
