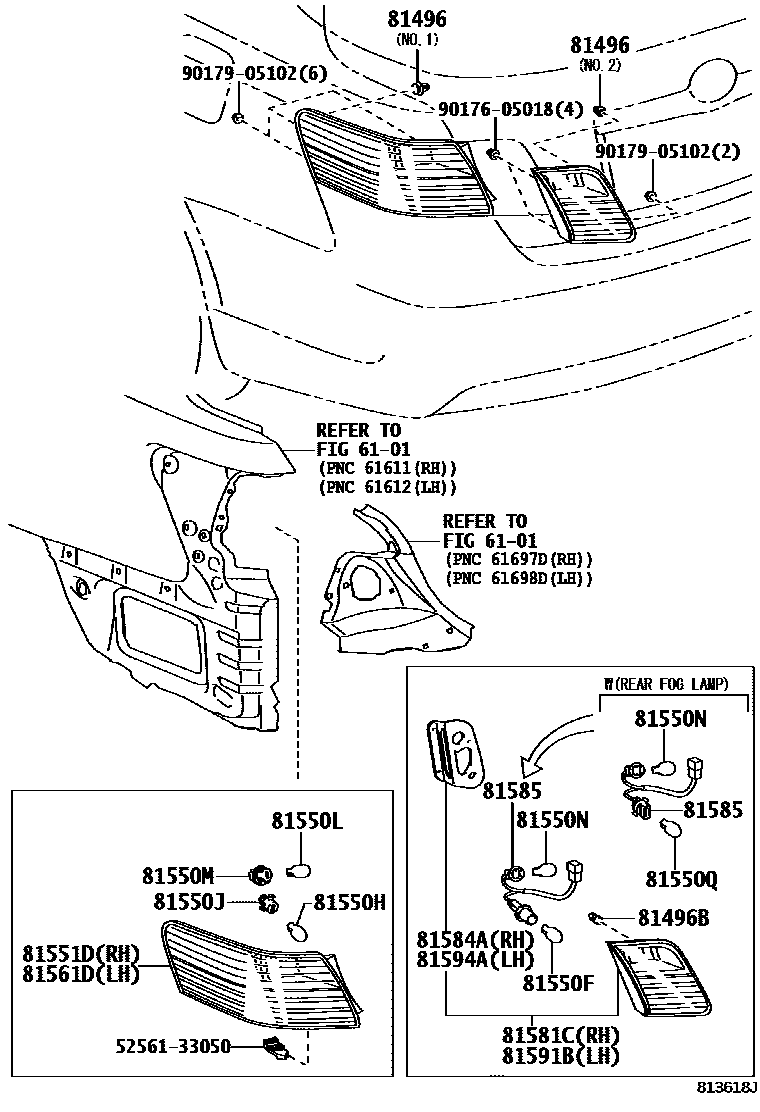

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-33010 · 81496-60010 |
| 81496B | Rear light guide block | 81496-33020 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60079 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-33350 · 81551-33360 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-33470 · 81561-33480 |
| 81581C | Right rear light lampshade and lamp body | 81581-33120 · 81581-33130 |
| 81584A | Right rear light gasket | 81584-33120 |
| 81585 | Rear lamp holder and wiring harness | 81585-33120 · 81585-33130 |
| 81591B | Left rear light shade and body | 81591-33120 · 81591-33130 |
| 81594A | Left rear light gasket | 81594-33120 |
