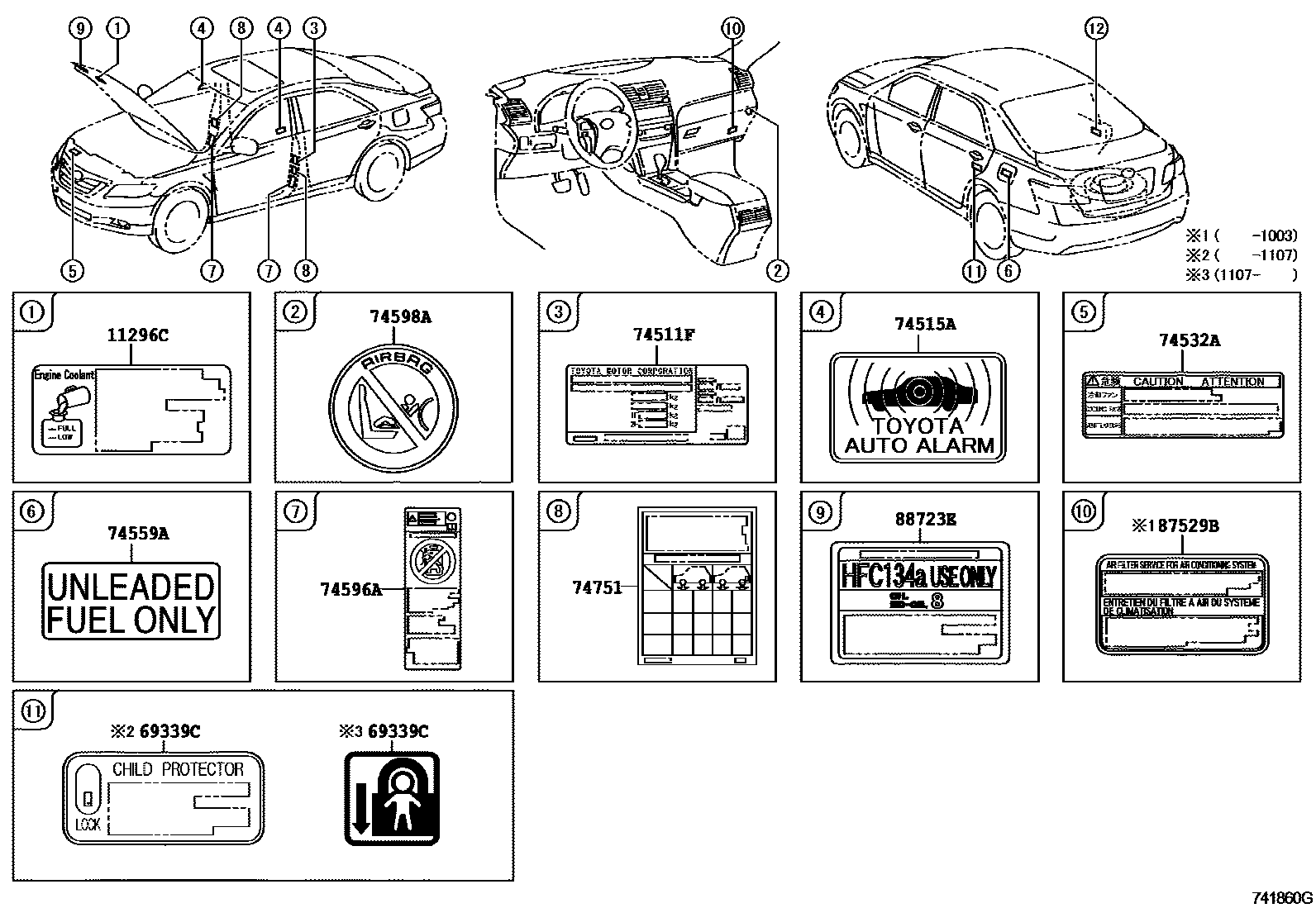

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-28010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-28010 · 16793-28020 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-48020 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74532A | warning nameplate | 16793-46010 |
| 74559A | Fuel warning plate | 74559-14050 |
| 74596A | Side air bag warning label | 74596-30030 · 74596-53010 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-33650 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-28220 |
