Toyota CAMRY 锁芯组件 — Figure 6712

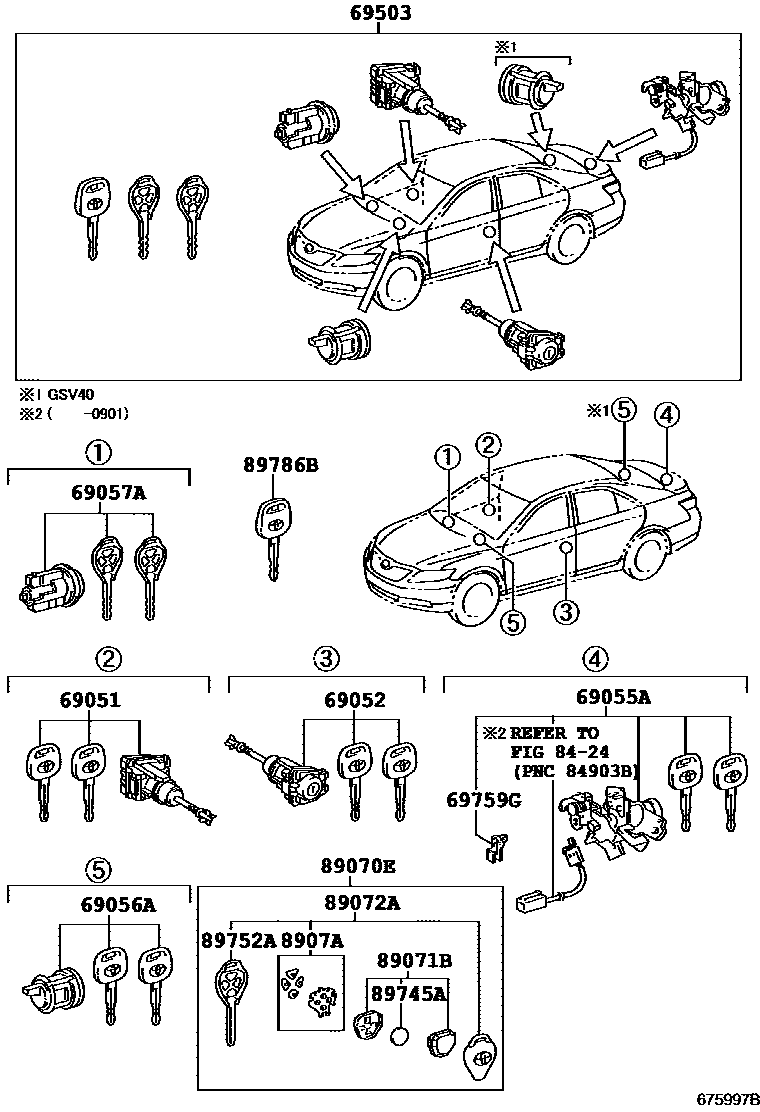

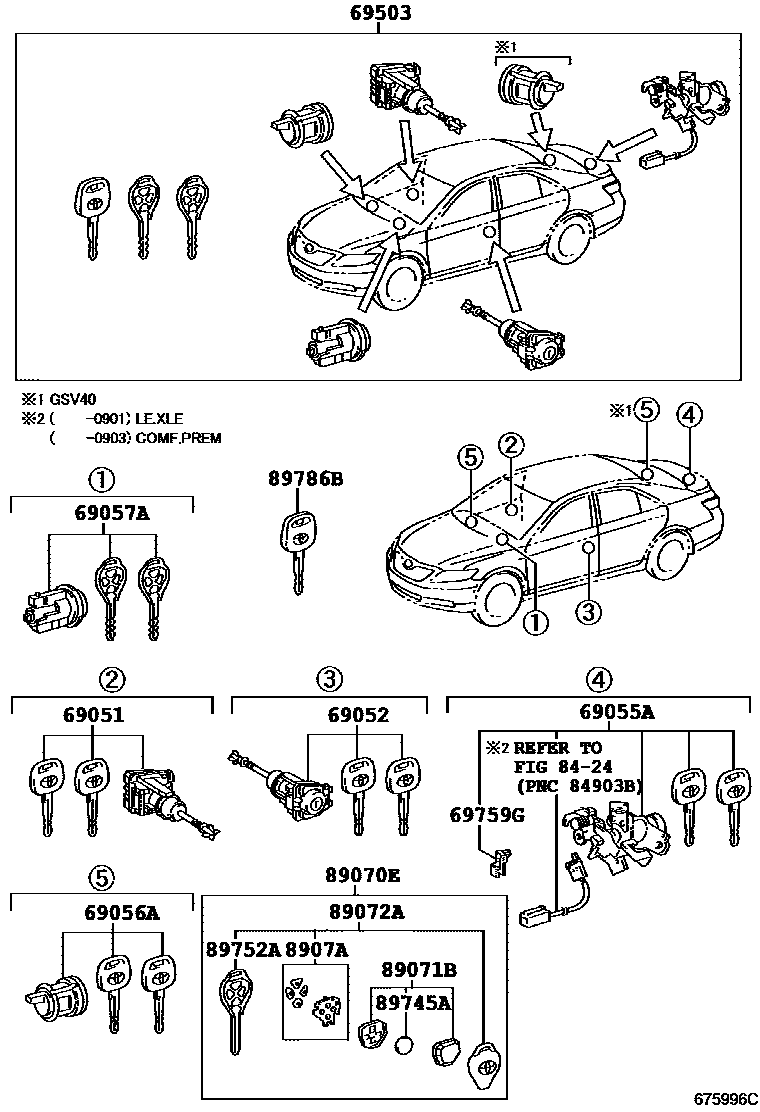

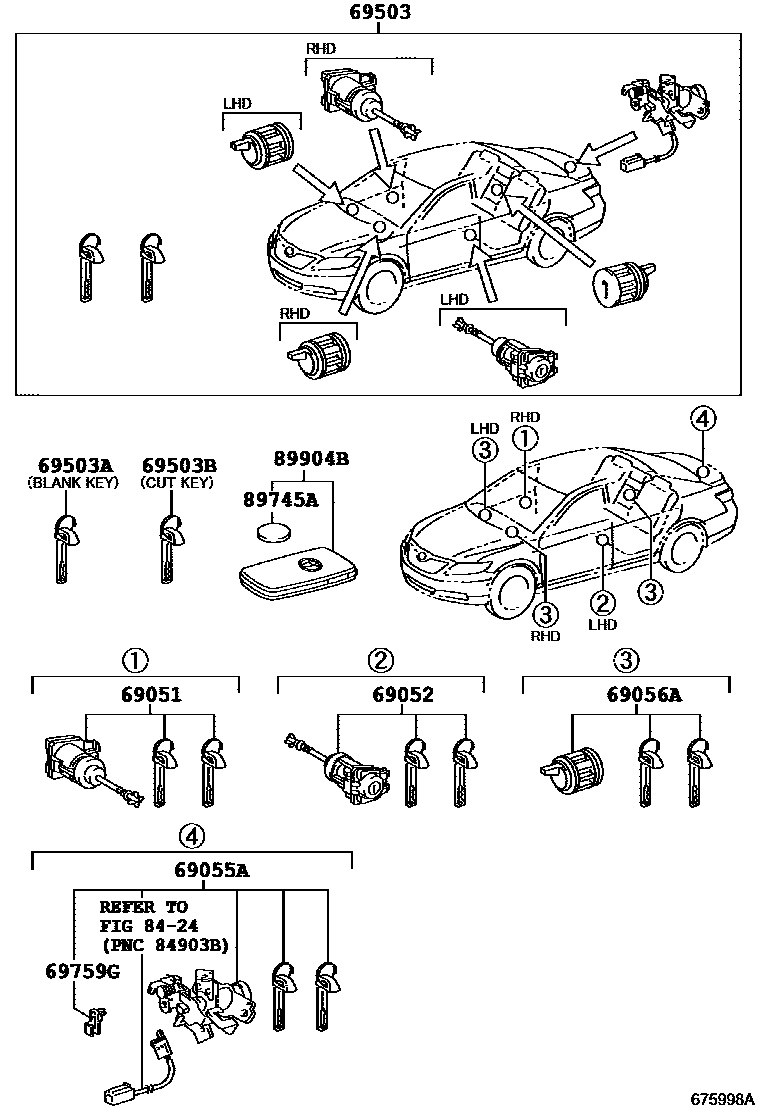

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33300 · 69051-33310 |
| 69052 | Left door lock cylinder and key assembly | 69052-33280 · 69052-33330 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33420 · 69055-33430 · 69055-33440 |
| 69056A | Glove box lock cylinder and key assembly | 69056-33190 · 69056-33200 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33380 · 69057-33381 · 69057-60620 |
| 69503 | Door lock cylinder components | 69005-33A60 · 69005-33A61 · 69005-33A70 · 69005-33A71 · 69005-33C10 · 69005-33C20 · 69005-33C40 · 69005-33C41 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-33890 · 89070-33891 · 89070-33892 · 89070-33A90 · 89070-33A91 · 89070-33A92 · 89070-33C60 · 89070-33C61 · 89070-33C80 |
| 89071B | Remote key sub-assembly module assembly | 89071-33340 · 89071-33341 · 89071-33342 · 89071-33350 · 89071-33351 |
| 89072A | Remote key shell assembly | 89072-22100 · 89072-33480 · 89072-33481 · 89072-33830 |
| 8907A | Transmitter switch assembly | 8907A-33020 |
| 89745A | Transmitter battery | 89745-48030 · 89745-52020 · 89745-52030 |
| 89752A | transmitter housing | 89752-22070 · 89752-33150 · 89752-33151 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33250 · 89904-33270 · 89904-33380 · 89904-33440 |
