Toyota CAMRY 后门板和后门玻璃 — Figure 6705

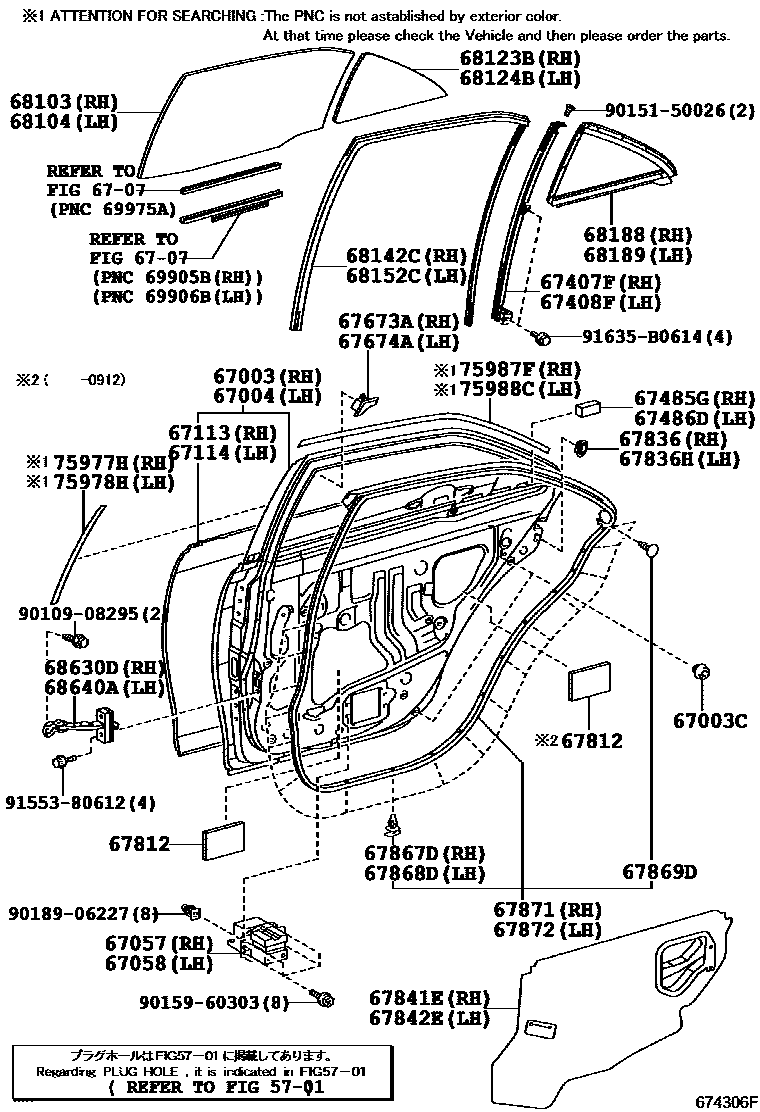

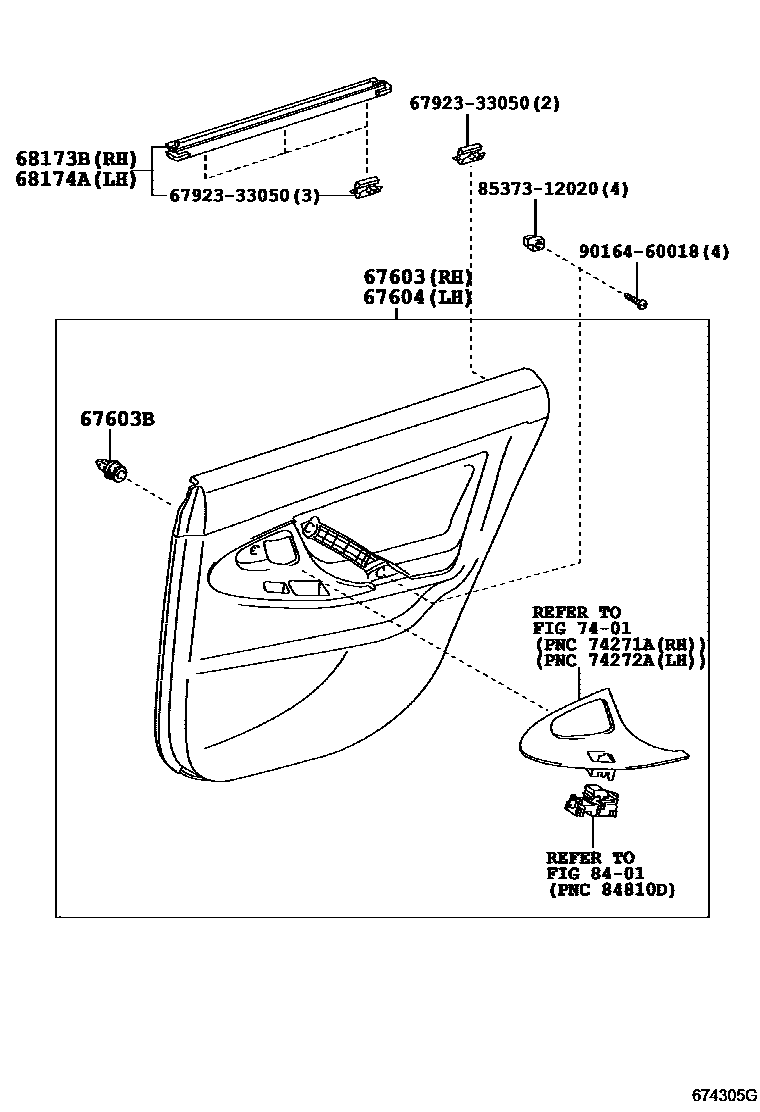

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-33160 · 67003-33161 |
| 67003C | Rear door panel cushion | 90541-09117 · 90541-09124 · 90541-09138 |
| 67004 | Left rear door panel sub-assembly | 67004-33160 · 67004-33161 |
| 67057 | Right rear door inner panel reinforcement sub-assembly | 67057-33020 |
| 67058 | Left rear door inner panel reinforcement sub-assembly | 67057-33020 |
| 67113 | Right rear door outer panel | 67113-33080 |
| 67114 | Left rear door outer panel | 67114-33080 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-33070 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-33070 |
| 67485G | Right rear door rear lower door frame seal | 67482-33050 |
| 67486D | Left rear door rear lower door frame seal | 67482-33050 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-33100 |
| 67674A | Left rear door frame decorative strip | 67674-33100 |
| 67812 | Rear door silencer pad | 67811-33040 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-33080 |
| 67842E | Left rear door access hole cover | 67842-33080 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-33080 |
| 67872 | Left rear door sealing strip | 67872-33080 |
| 68103 | Right rear door glass sub-assembly | 68113-33150 |
| 68104 | Left rear door glass sub-assembly | 68114-33150 |
| 68123B | Right rear door corner window glass | 68123-33060 |
| 68124B | Left rear door corner window glass | 68124-33060 |
| 68142C | Right rear door glass lift slot | 68142-33090 |
| 68152C | Left rear door glass lift slot | 68152-33090 |
| 68173B | Right rear door glass inner sealing strip | 68173-33060 |
| 68174A | Left rear door glass inner sealing strip | 68174-33060 |
| 68188 | Right rear door corner window seal | 68188-33040 · 68188-33041 |
| 68189 | Left rear door corner window seal | 68189-33040 · 68189-33041 |
| 68630D | Right rear door opening limiter assembly | 68630-33070 |
| 68640A | Left rear door opening limiter assembly | 68640-33070 |
| 75977H | Right rear door outer lower trim strip | 75977-33010 |
| 75978H | Left rear door outer lower trim strip | 75978-33010 |
| 75987F | Right rear door outer trim | 75987-33030 |
| 75988C | Left rear door outer trim | 75988-33030 |
