Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

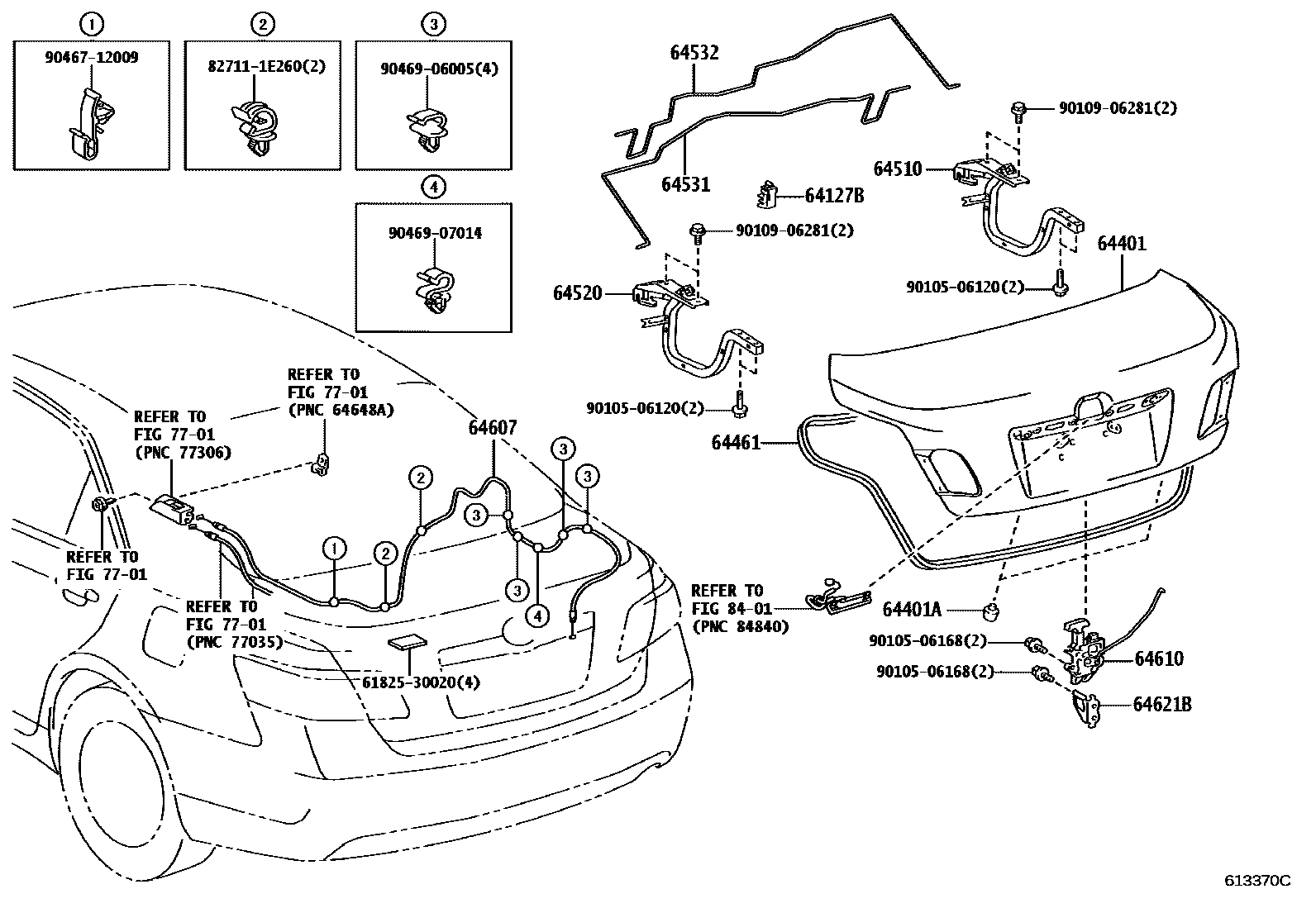

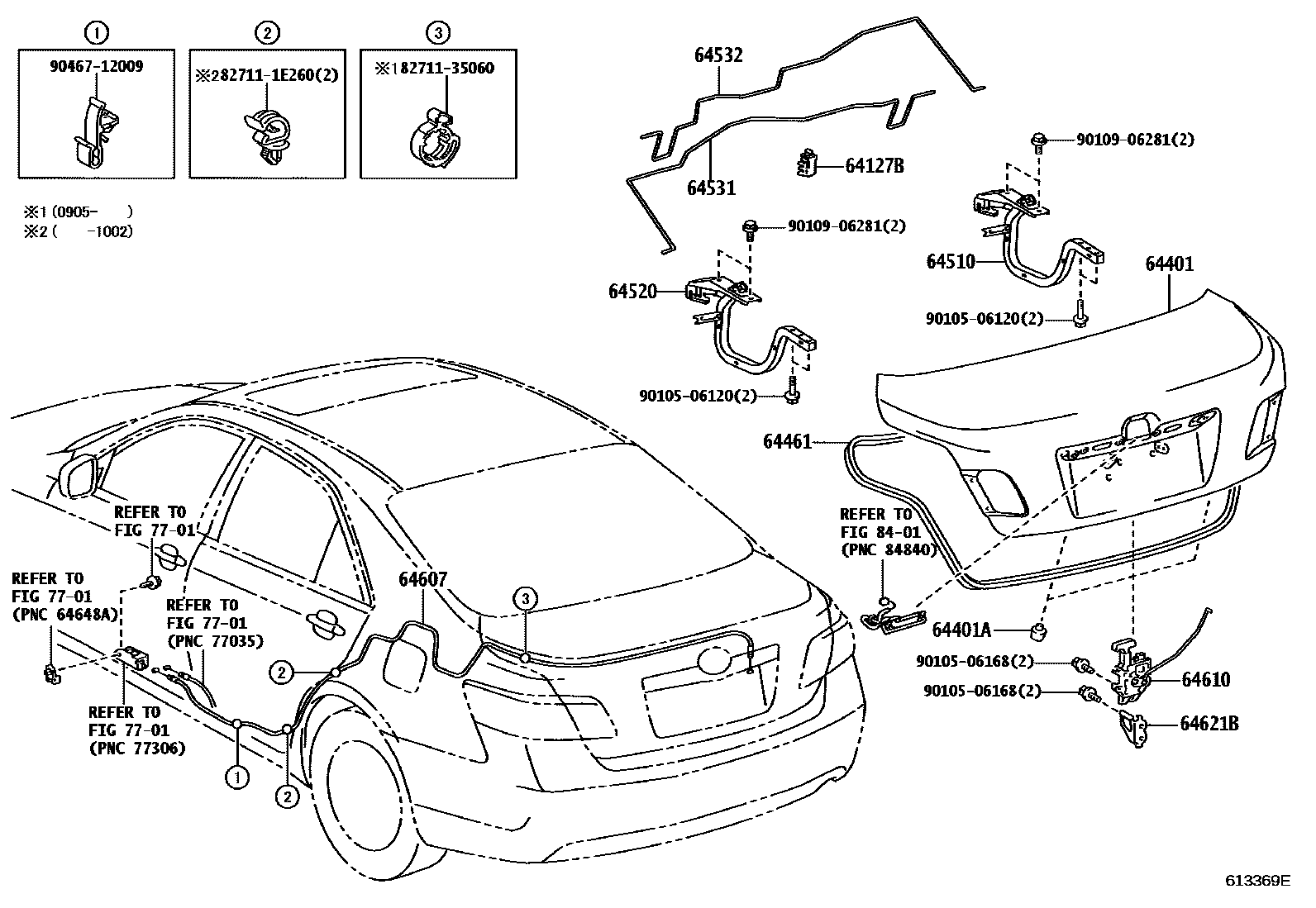

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 · 64127-33070 · 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-33400 · 64401-33401 · 64401-33450 · 64401-33451 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-33070 |
| 64510 | Trunk door right hinge assembly | 64510-33060 · 64510-33070 |
| 64520 | Trunk door left hinge assembly | 64510-33060 · 64510-33070 |
| 64531 | Trunk door right hinge torsion bar | 64531-33220 · 64531-33221 |
| 64532 | Trunk door left hinge torsion bar | 64532-33220 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-33120 · 64607-33130 |
| 64610 | Trunk door lock assembly | 64600-33130 |
| 64621B | Trunk door latch | 64621-33010 |
