Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 30 PNC and OE references.

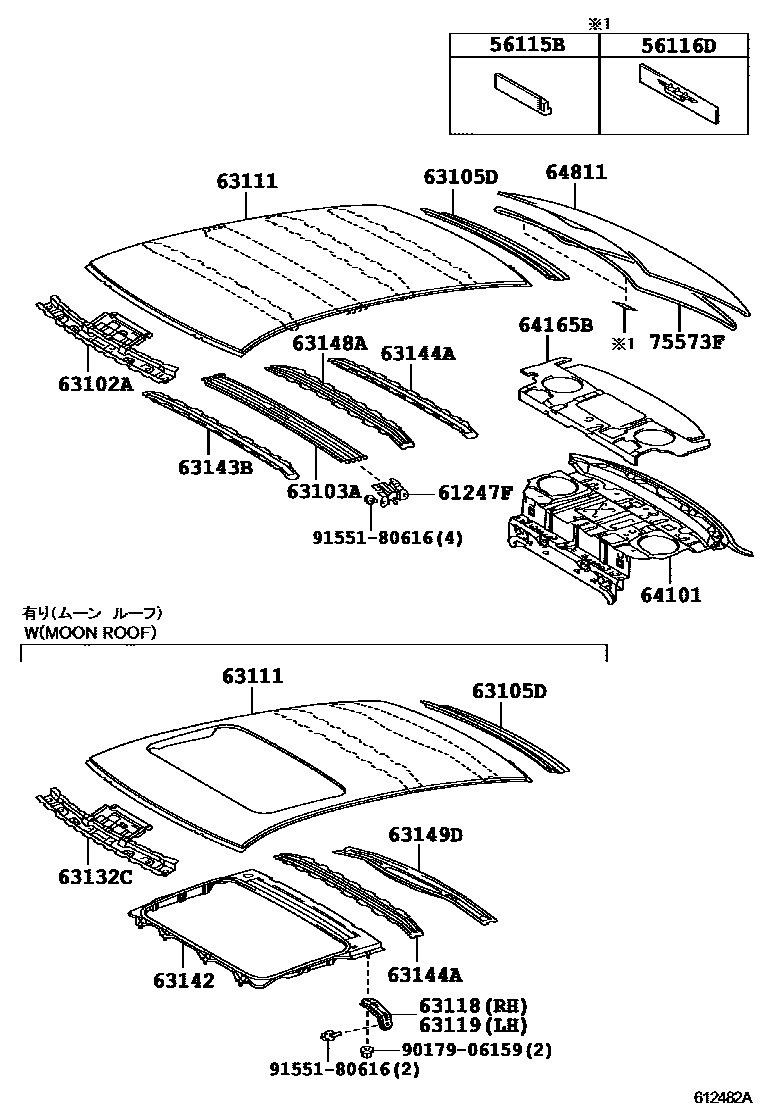

Toyota CAMRY 天窗板和背窗玻璃 EPC diagram — 612482A
天窗板和背窗玻璃 — 612482A (200601 – 999999)
Toyota CAMRY 天窗板和背窗玻璃 EPC diagram — 613720C
天窗板和背窗玻璃 — 613720C (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
56115BBack window glass stop No. 156115-30120
56116DNo. 2 stopper for back window glass56116-22050
61247FRoof inner longitudinal beam reinforcement61247-33010
63102AWindshield roof sub-assembly63102-33902
63103ARoof panel reinforcement sub-assembly63103-33010
63105DRear window upper frame sub-assembly63105-33020
63111roof panel63111-33230 · 63111-33240
63118Right roof panel bracket63118-33030
63119Left roof panel bracket63118-33030
63132CWindshield inner roof panel63132-33070
63142No. 2 roof panel reinforcement63142-33060
63143BNo. 3 roof panel reinforcement63143-33080
63144ANo. 4 roof panel reinforcement63144-33110 · 63144-33120
63148ANo. 7 roof panel reinforcement63148-33030
63149DNo. 8 roof panel reinforcement63149-33020
63201GSliding sunroof glass sub-assembly63201-33100
63203FSliding sunroof frame sub-assembly63203-33100
63205ASliding sunroof transmission cable sub-assembly63205-48010
63217GRight sliding sunroof trim63217-48030
63218GSliding sunroof trim, left63218-48030
63247ERight rear sliding sunroof drain hose63247-33010 · 63247-33011
63248ELeft rear sliding sunroof drain hose63248-33010 · 63248-33011
63249ESliding skylight drain hose63249-33090 · 63249-33091
63251Sliding skylight panels or removable skylight seals63251-30090
63260ASliding sunroof driving gear sub-assembly63260-33060 · 63260-33061
63669BSliding skylight drain seal63669-50010
64101Upper back panel sub-assembly64101-33290
64165BNo. 1 upper back panel hole cover64165-33070
64811back window glass64811-06160 · 64811-33530
75573FProtective strip for rear window75573-33020 · 75573-33060
