Toyota CAMRY 仪表板和手套箱 — Figure 5501

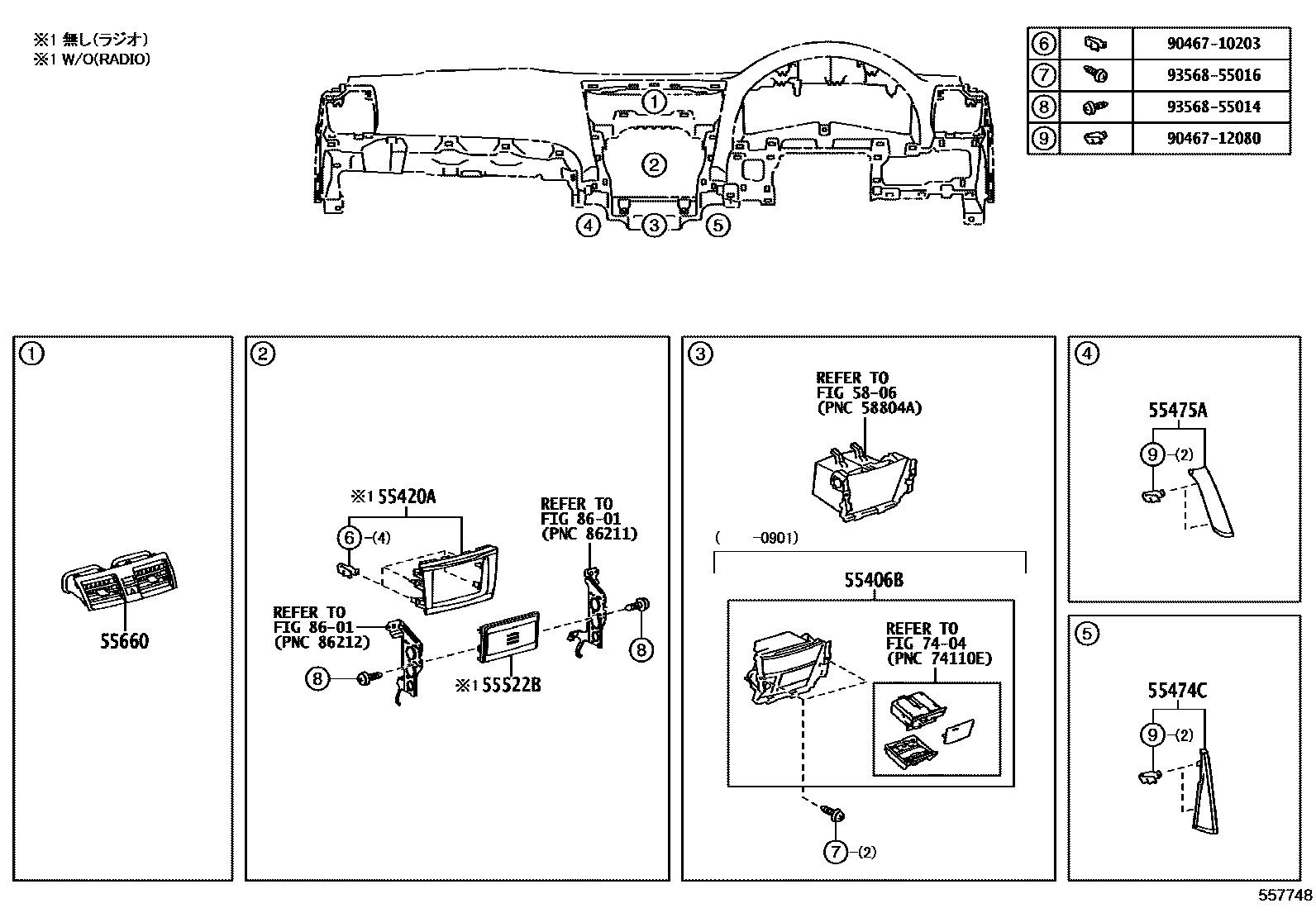

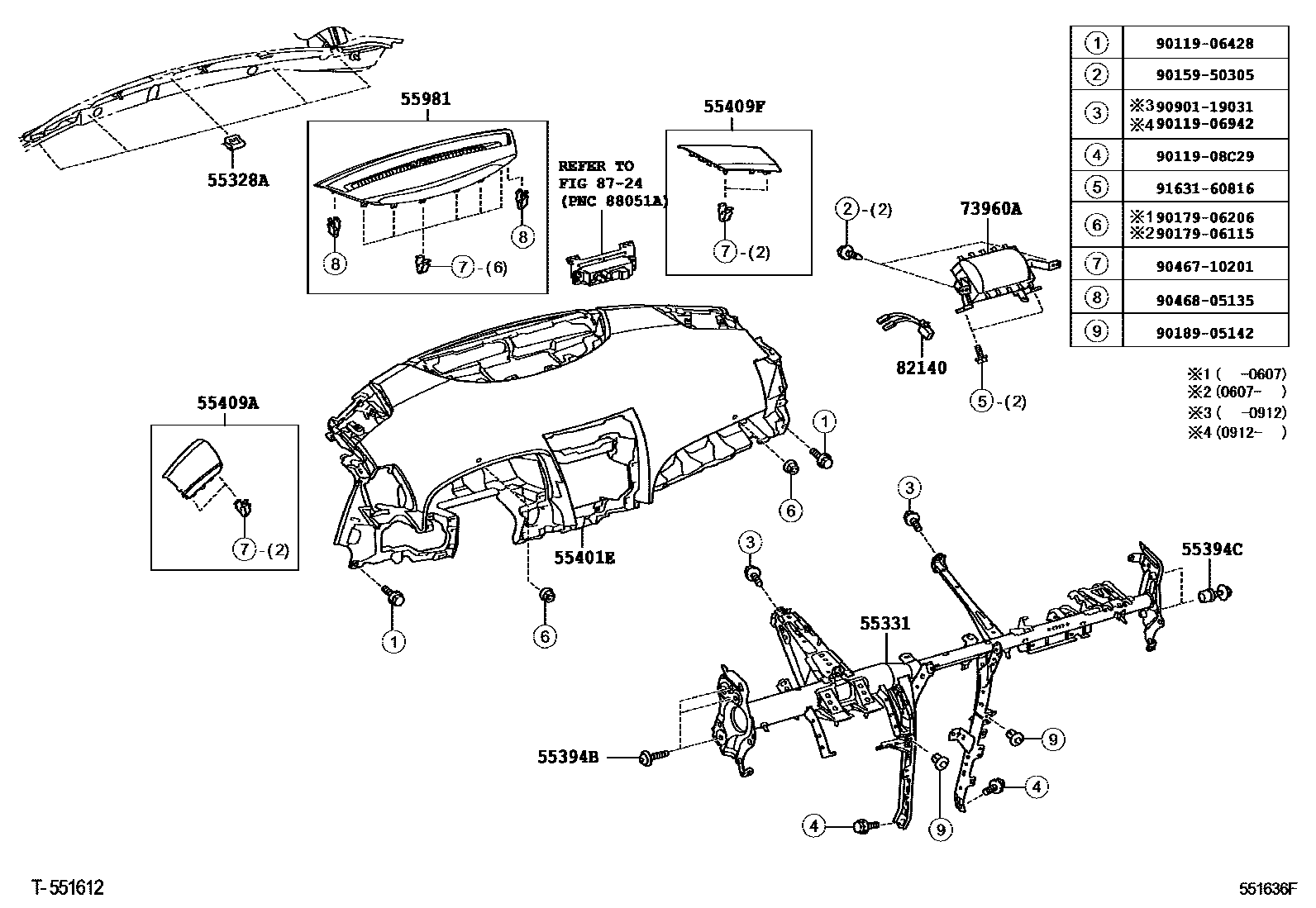

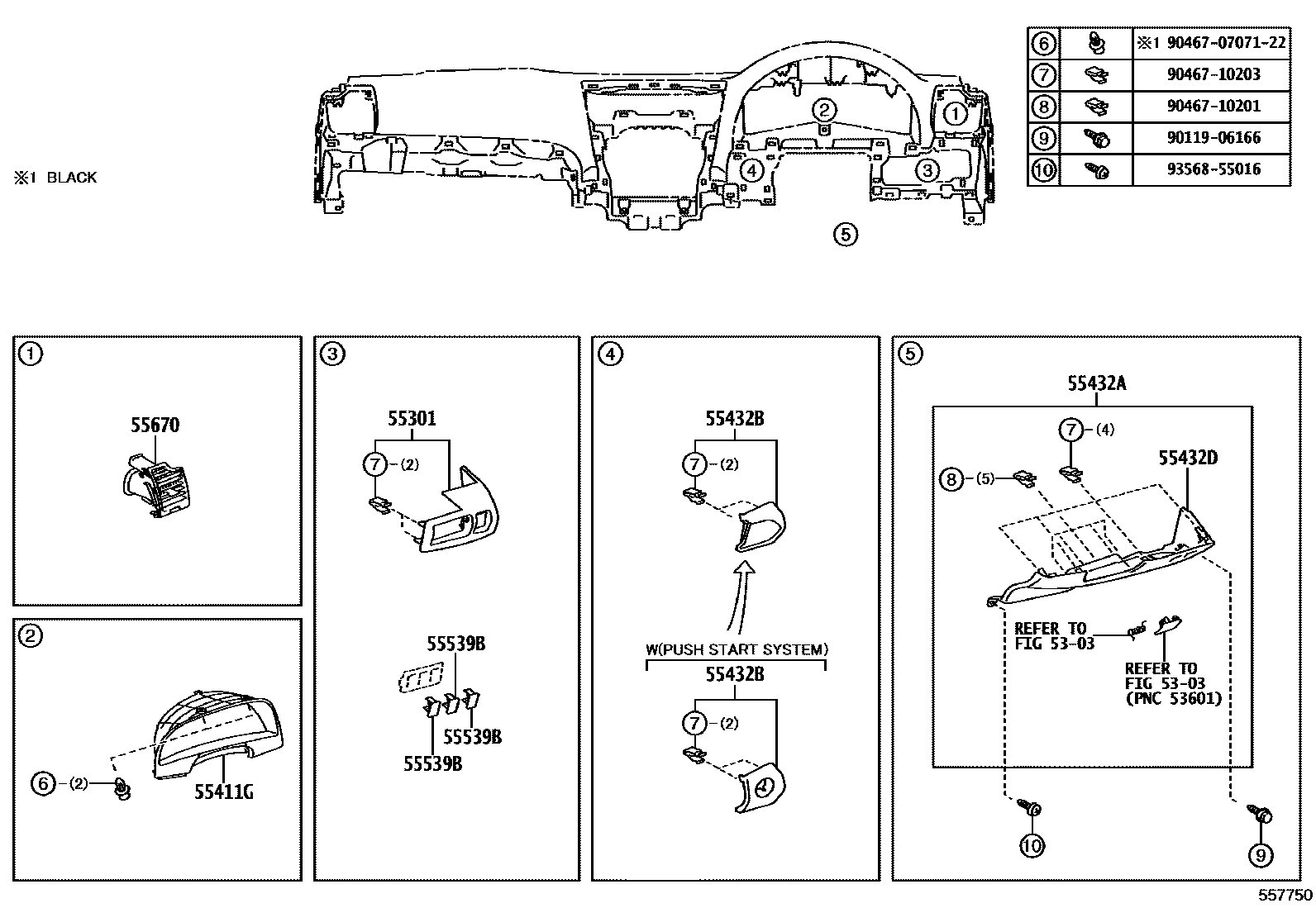

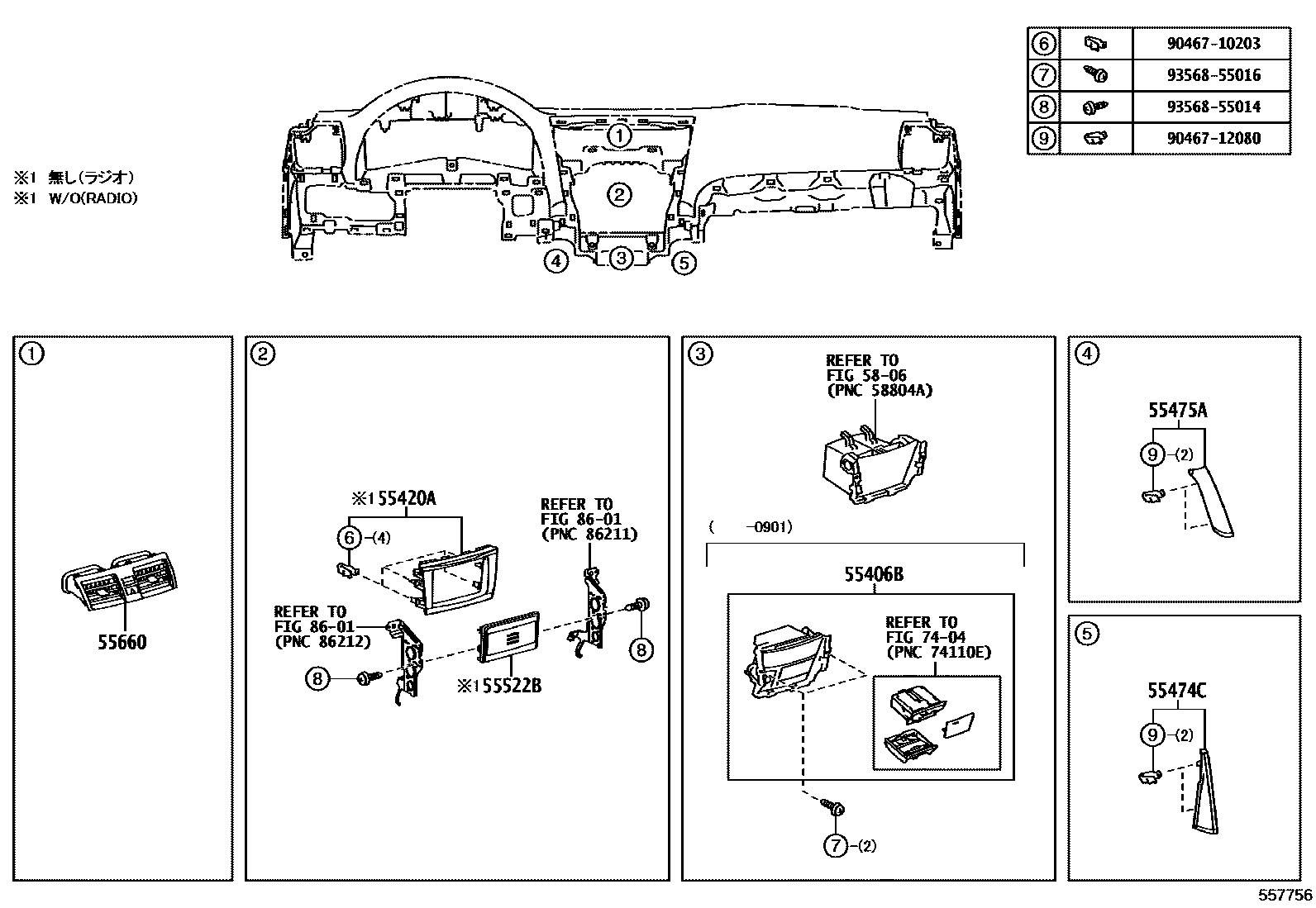

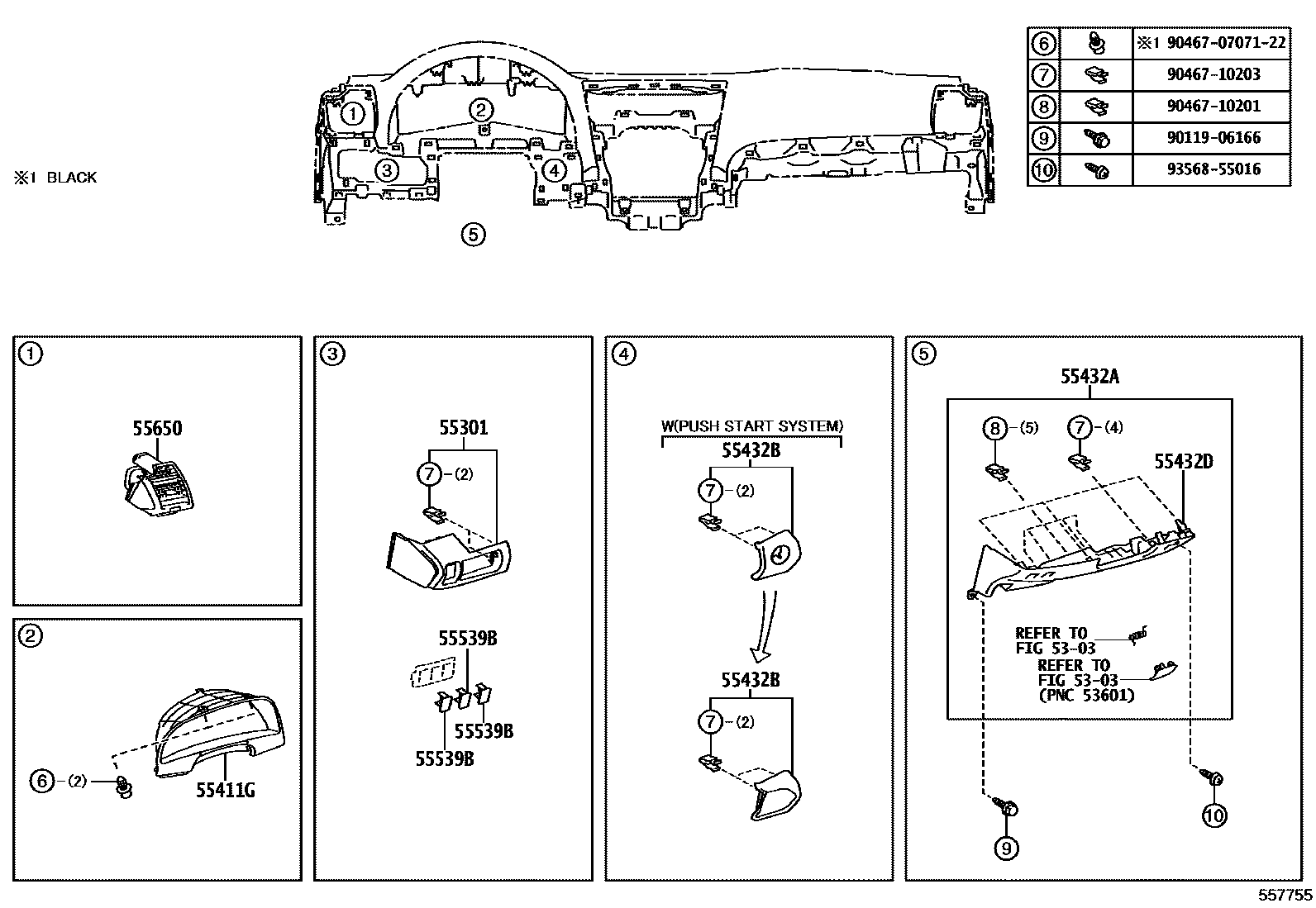

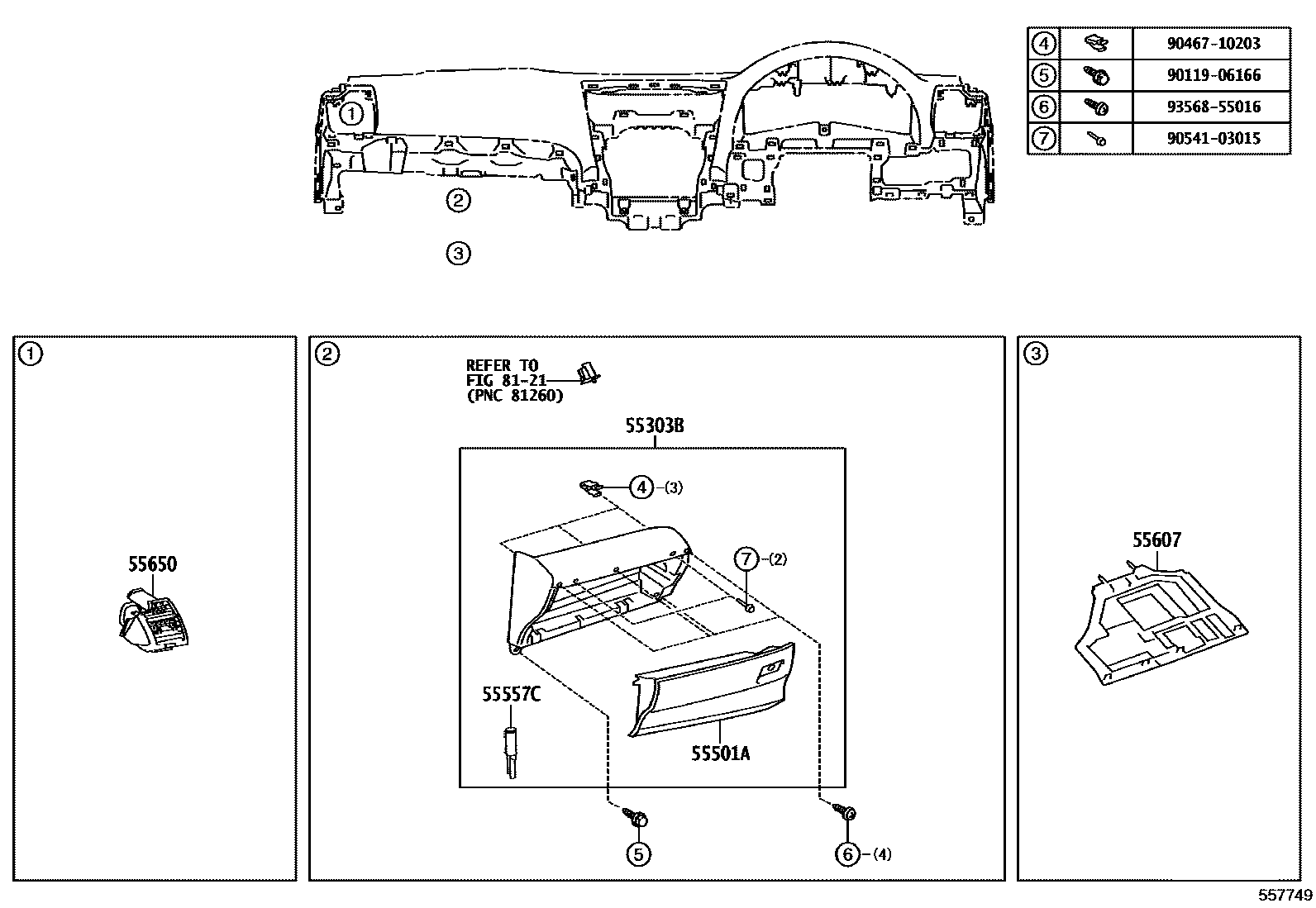

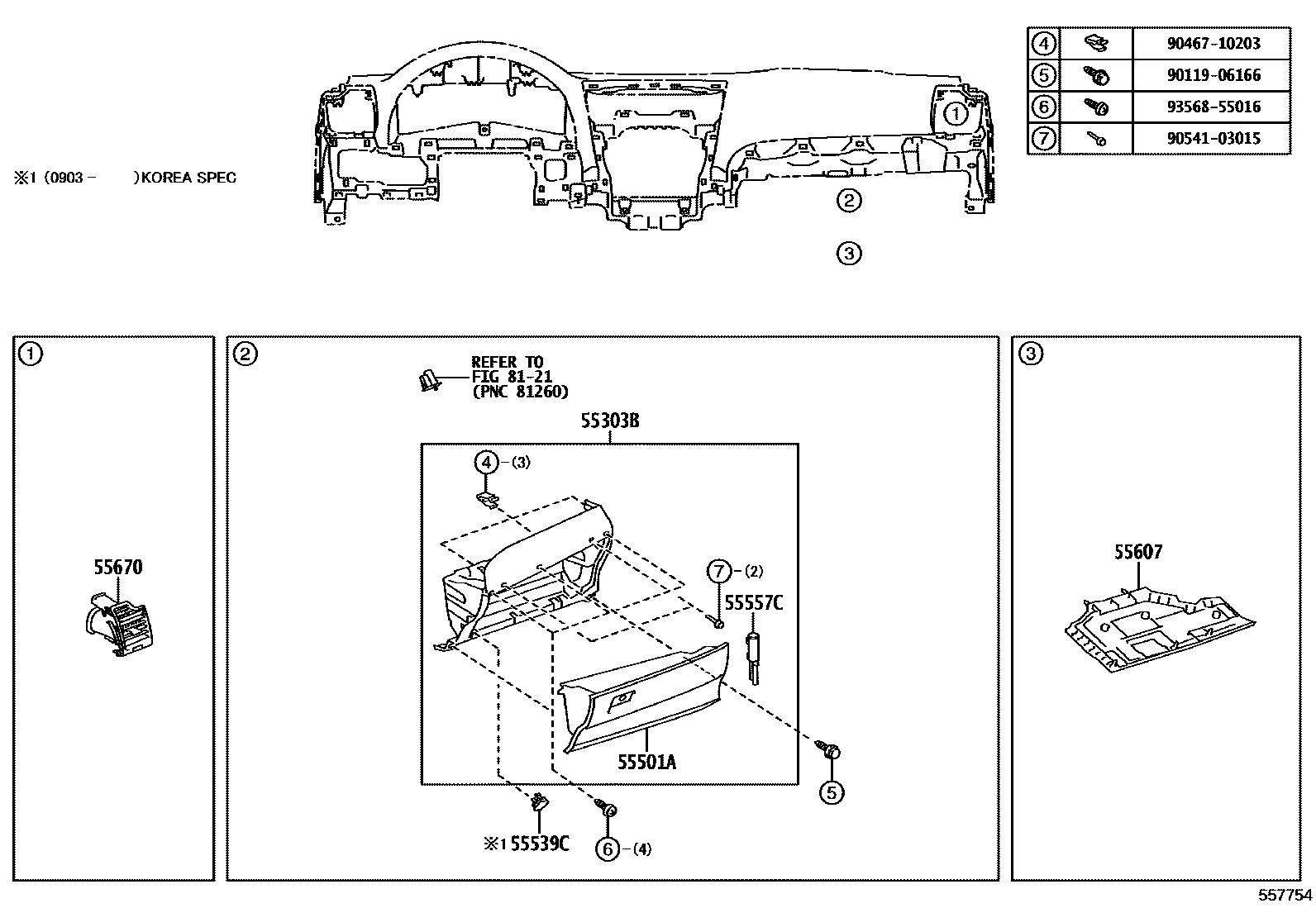

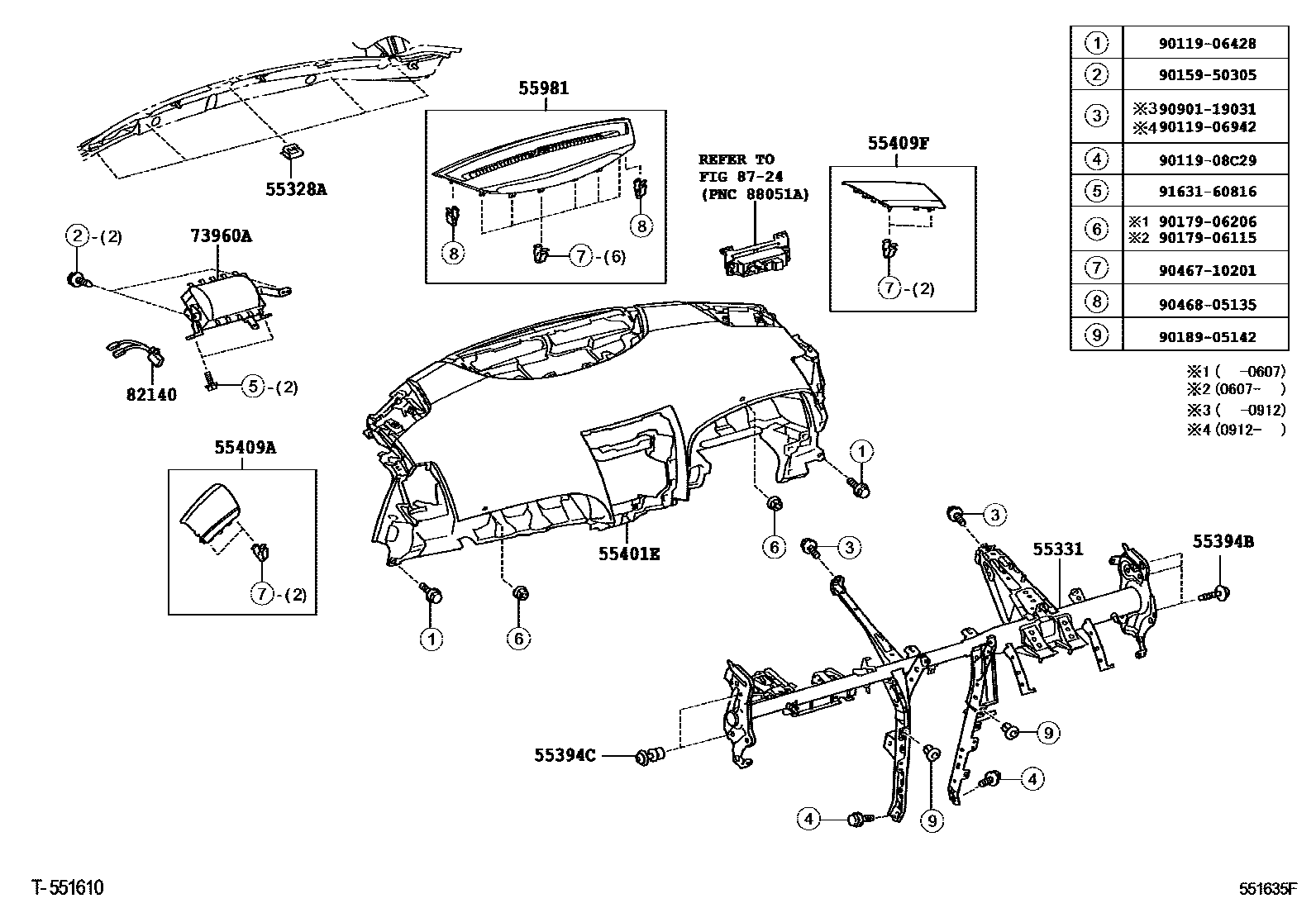

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55328A | Dashboard No. 3 stay | 55328-30160 · 55328-33120 · 55328-48110 · 55328-50170 |
| 55331 | Dashboard reinforcement | 55330-33320 · 55330-33330 · 55330-33331 · 55330-33360 |
| 55394B | Dashboard bolts | 55394-30020 · 55394-30021 |
| 55394C | Dashboard bolts | 55394-33040 · 55394-33041 · 55394-51010 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-33100 |
| 55411G | Instrument cluster No. 1 decorative panel | 55404-33120 · 55404-33121 · 55404-33130 · 55404-33131 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-33010 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55539C | Spare switch hole cover | 55539-48020 |
| 55557C | Glovebox lid damper | 55557-33030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-3T020 · 55607-3T030 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-33120 |
| 82140 | Instrument panel wiring harness assembly | 82140-33010 |
