Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

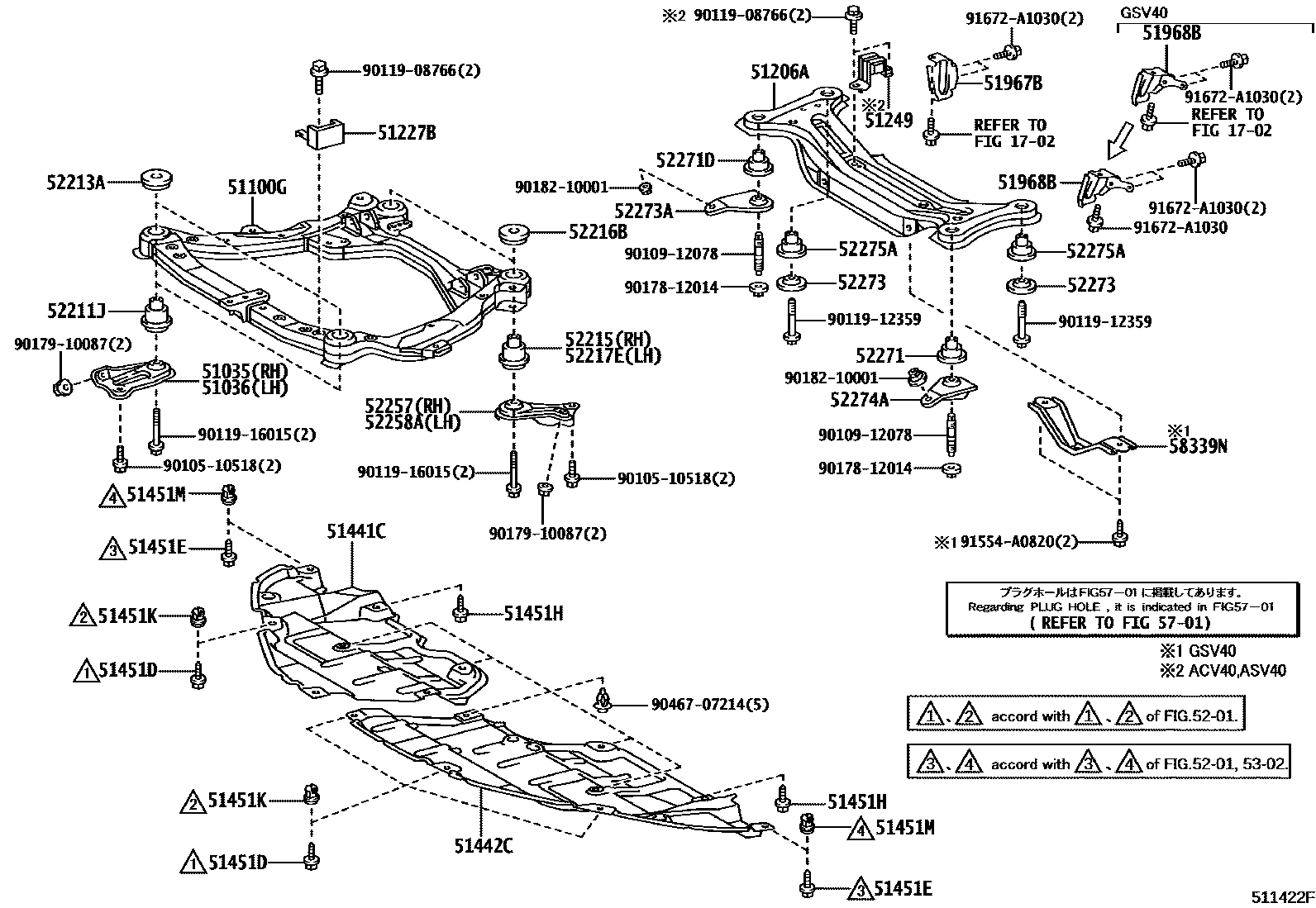

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-33030 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-33030 |
| 51100G | Front frame assembly | 51100-33070 · 51100-33090 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33061 · 51206-33100 |
| 51227B | Front suspension beam dynamic damper | 51227-33110 |
| 51249 | Rear suspension cross member shock absorber | 51249-33010 |
| 51441C | Engine right bottom cover | 51441-33080 · 51441-33110 |
| 51442C | Engine left bottom cover | 51442-33080 · 51442-33110 |
| 51451D | VIS, NO.1 | 90159-60383 |
| 51451E | VIS, NO.2 | 90159-60383 |
| 51451H | VIS, NO.3 | 90159-60383 |
| 51451K | RONDELLE, VIS, NO.1 | 90189-06193 |
| 51451M | RONDELLE, VIS, NO.2 | 90189-06193 |
| 51967B | right rear transport hook | 51967-33030 |
| 51968B | Left rear transport hook | 51968-33020 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-33080 · 52211-33090 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-33080 · 52213-33090 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-33090 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-33070 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-33020 |
| 52257 | Right front suspension cross member rear bracket | 51023-33060 |
| 52258A | Left front suspension cross member rear bracket | 51024-33070 |
| 52271 | Rear suspension cross member cushion | 52272-33050 · 52272-33051 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-33050 · 52271-33051 |
| 52273 | Rear suspension cross member lower block | 52273-33010 |
| 52273A | Rear suspension cross member right lower stop | 52203-33030 |
| 52274A | Rear suspension cross member left lower stop | 52204-33030 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-33050 · 52275-33051 |
| 58339N | Lift the bracket | 58339-33020 · 58339-33021 |
