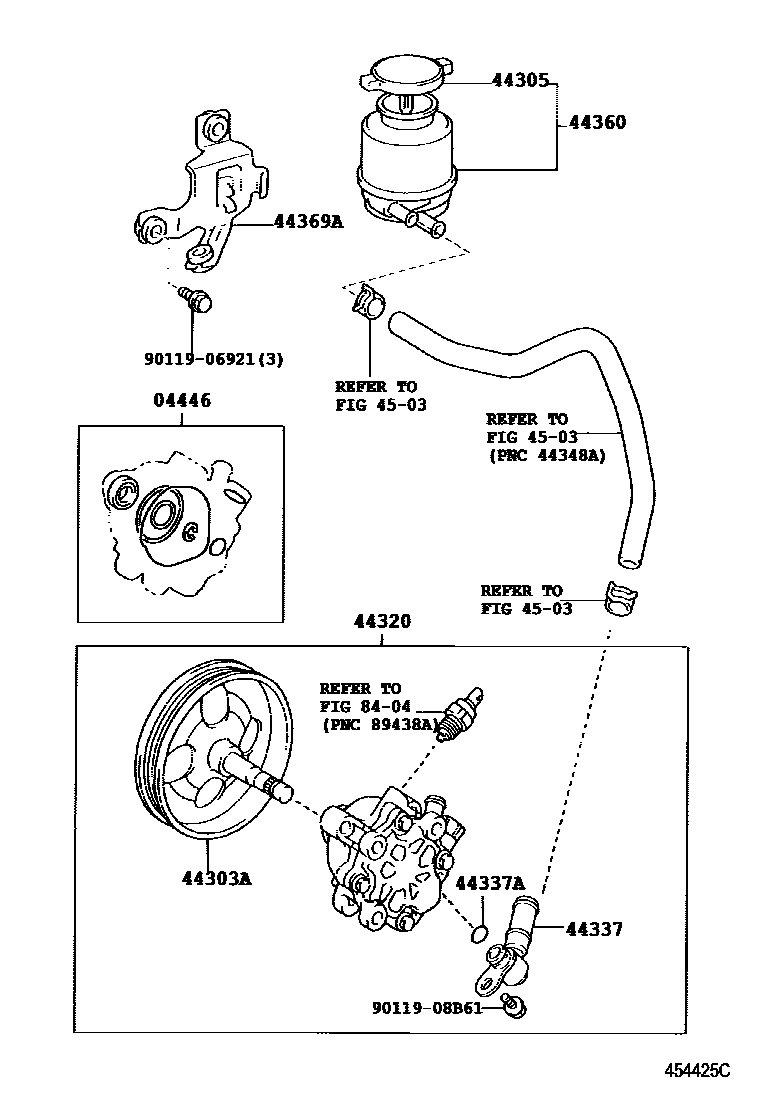

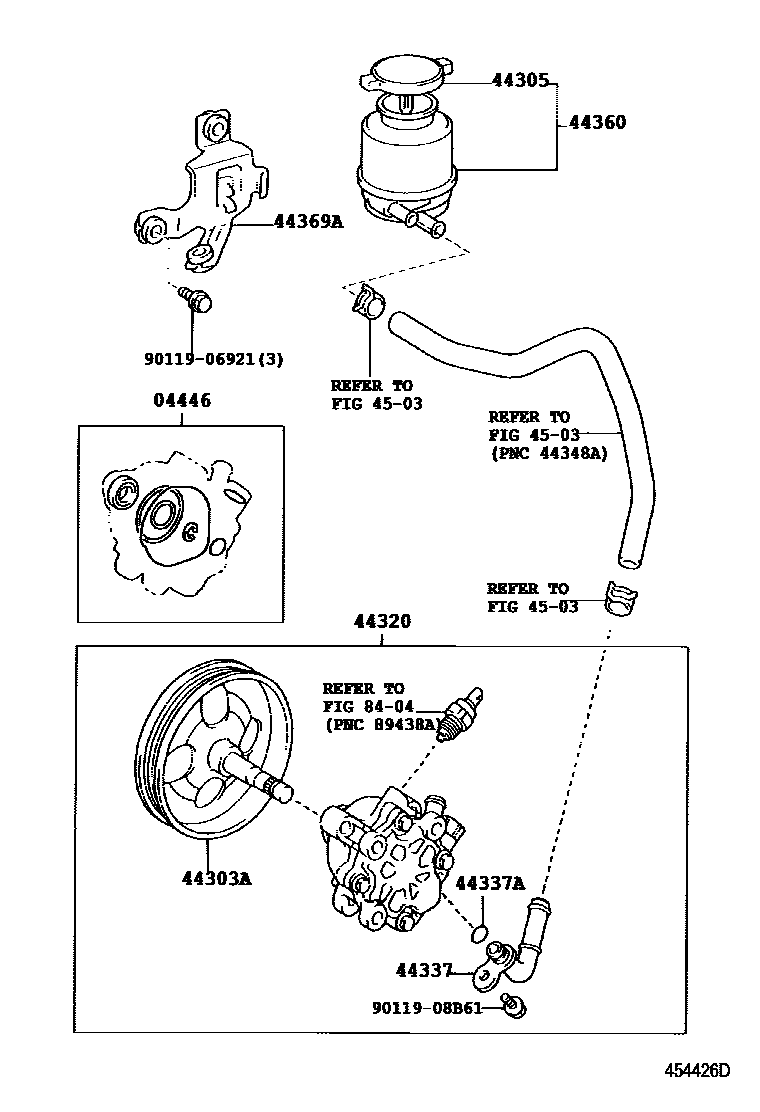

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-32050 |
| 44303A | Shaft sub-assembly with pulley | 44303-28010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-28030 · 44305-28060 |
| 44320 | Vane pump assembly | 44310-33170 · 44310-33180 |
| 44337 | Power steering suction port connector | 44337-32110 · 44337-58010 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11020 |
| 44360 | Vane pump oil storage tank assembly | 44360-33040 |
| 44369A | No. 1 oil storage tank bracket | 44390-33020 · 44390-33021 |
