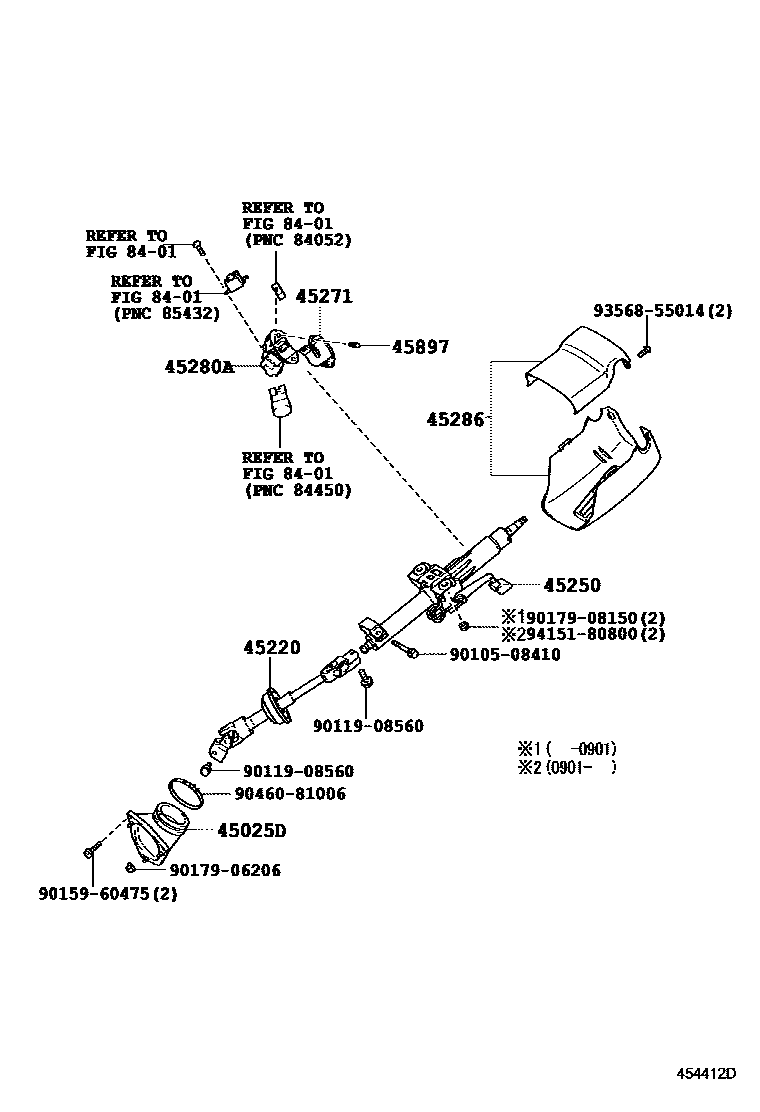

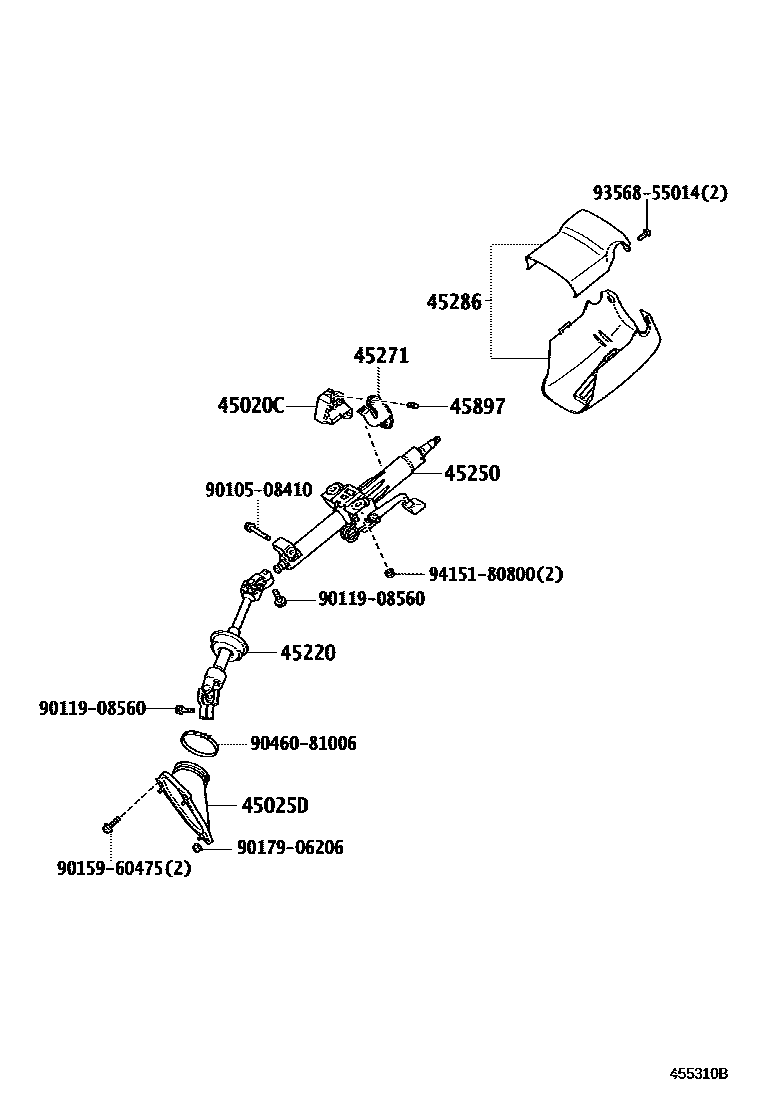

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-52140 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-33100 · 45025-33110 |
| 45220 | Steering intermediate shaft assembly | 45220-33180 · 45220-33190 · 45220-33280 · 45220-33281 |
| 45250 | Steering column assembly | 45250-33660 · 45250-33670 |
| 45271 | Clamp on steering column | 45271-22020 · 45271-33050 |
| 45280A | Steering column upper bracket assembly | 45280-22510 · 45280-52090 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
