Toyota CAMRY 车轮和车轮盖 — Figure 4103

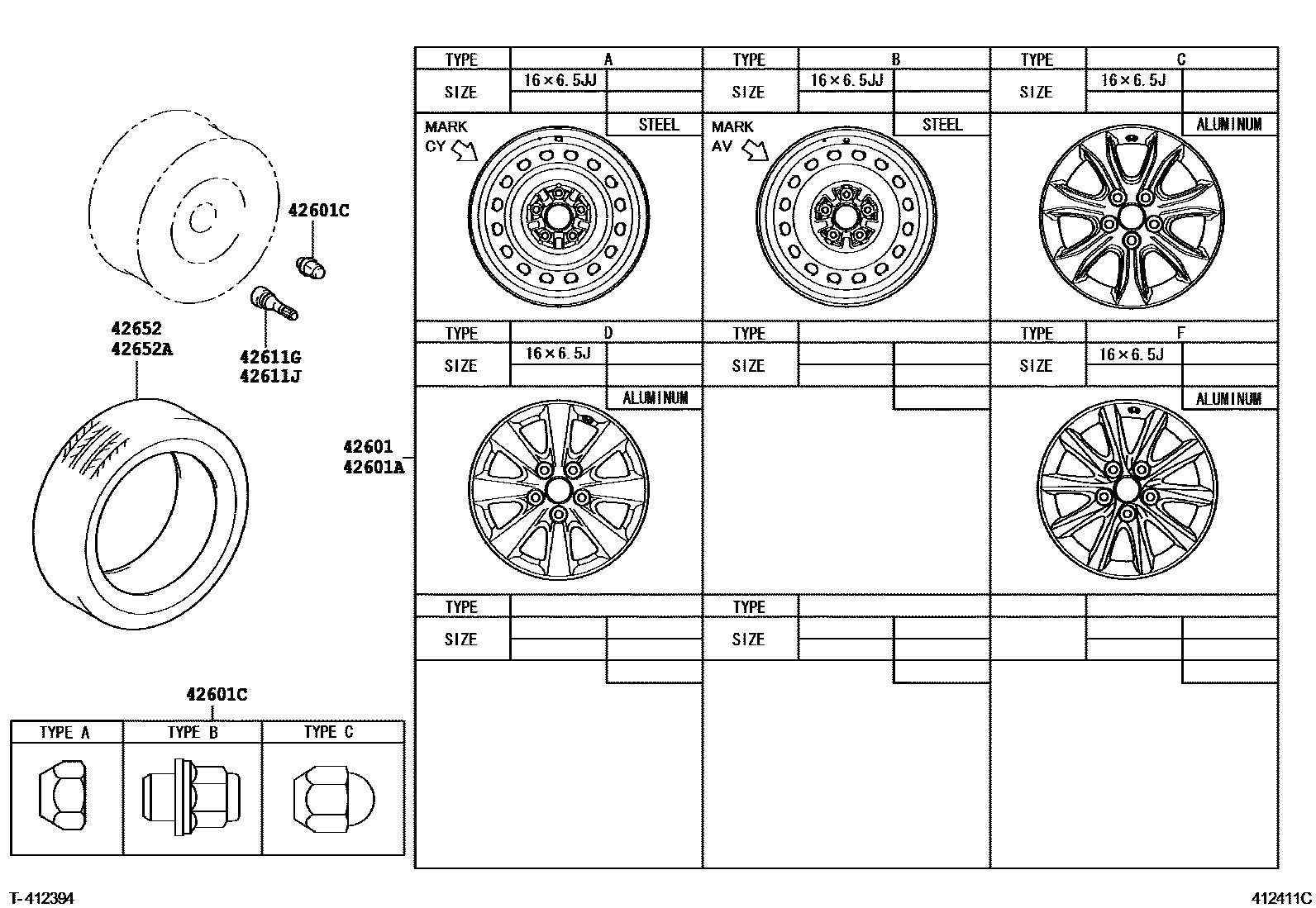

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-33491 · 42611-33500 · 42611-33530 · 42611-33531 · 42611-33541 · 42611-33580 · 42611-33670 · 42611-33680 · 42611-33690 · 42611-33750 · 42611-33760 · 42611-33770 · 42611-33780 |
| 42601A | Spoke wheel (for spare tire) | 42611-33491 · 42611-33500 · 42611-33530 · 42611-33531 · 42611-33541 · 42611-33580 · 42611-33670 · 42611-33680 · 42611-33690 · 42611-33750 · 42611-33760 · 42611-33770 · 42611-33780 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01082 |

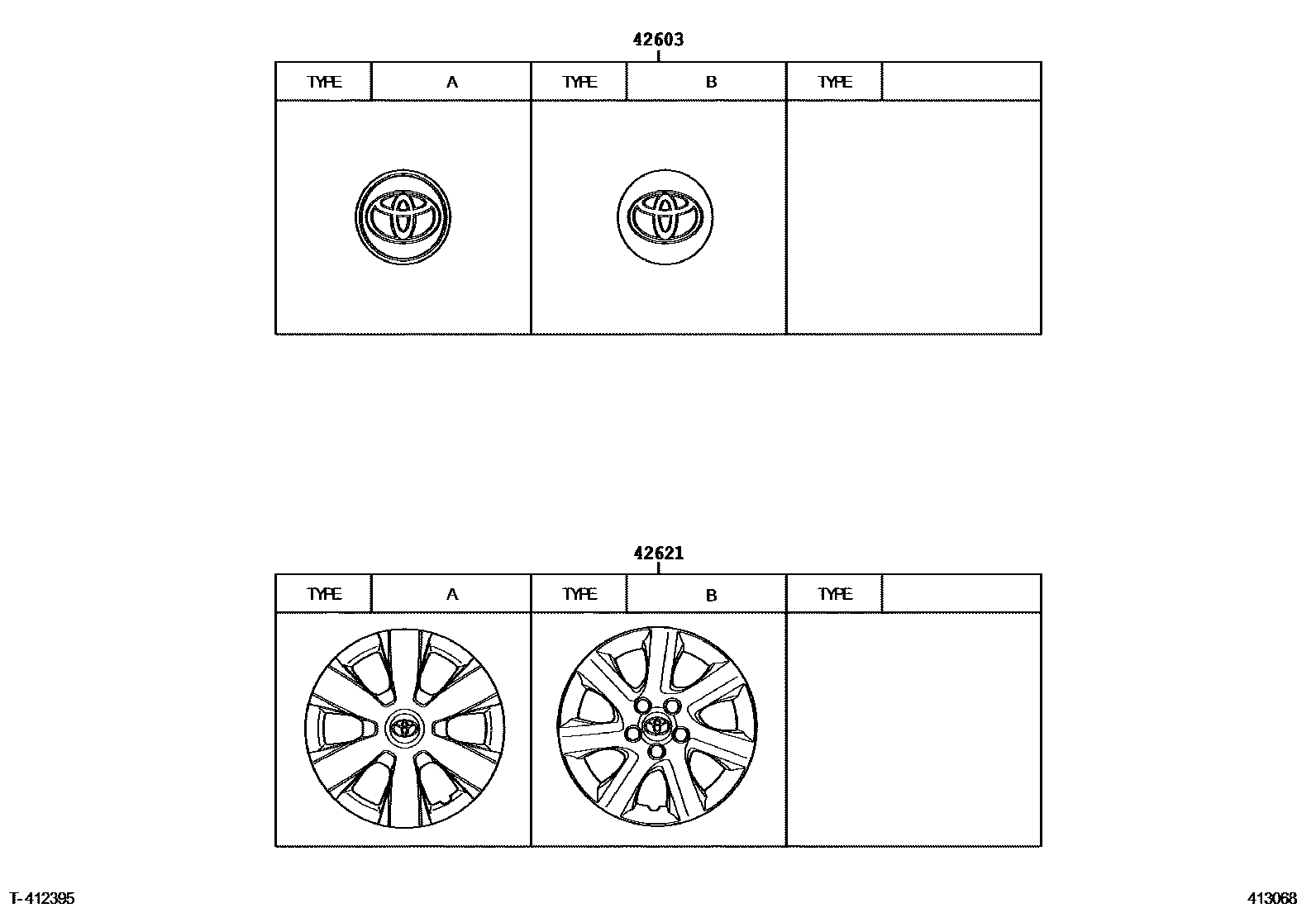

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12750 · 42603-44070 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-33110 · 42602-33130 · 42602-33140 |
| 42652 | tires | 42652-33502 · 42652-33522 · 42652-33581 · 42652-33591 |
| 42652A | Tire (for Spare Wheel) | 42652-33502 · 42652-33522 · 42652-33581 · 42652-33591 |
