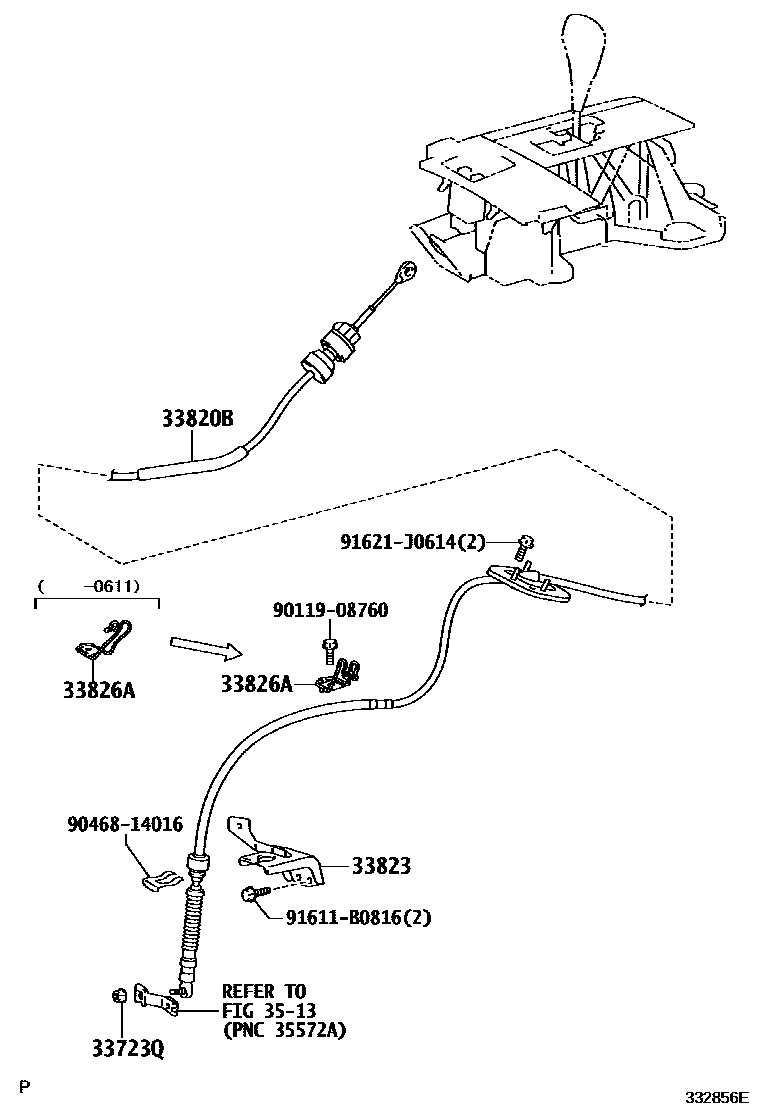

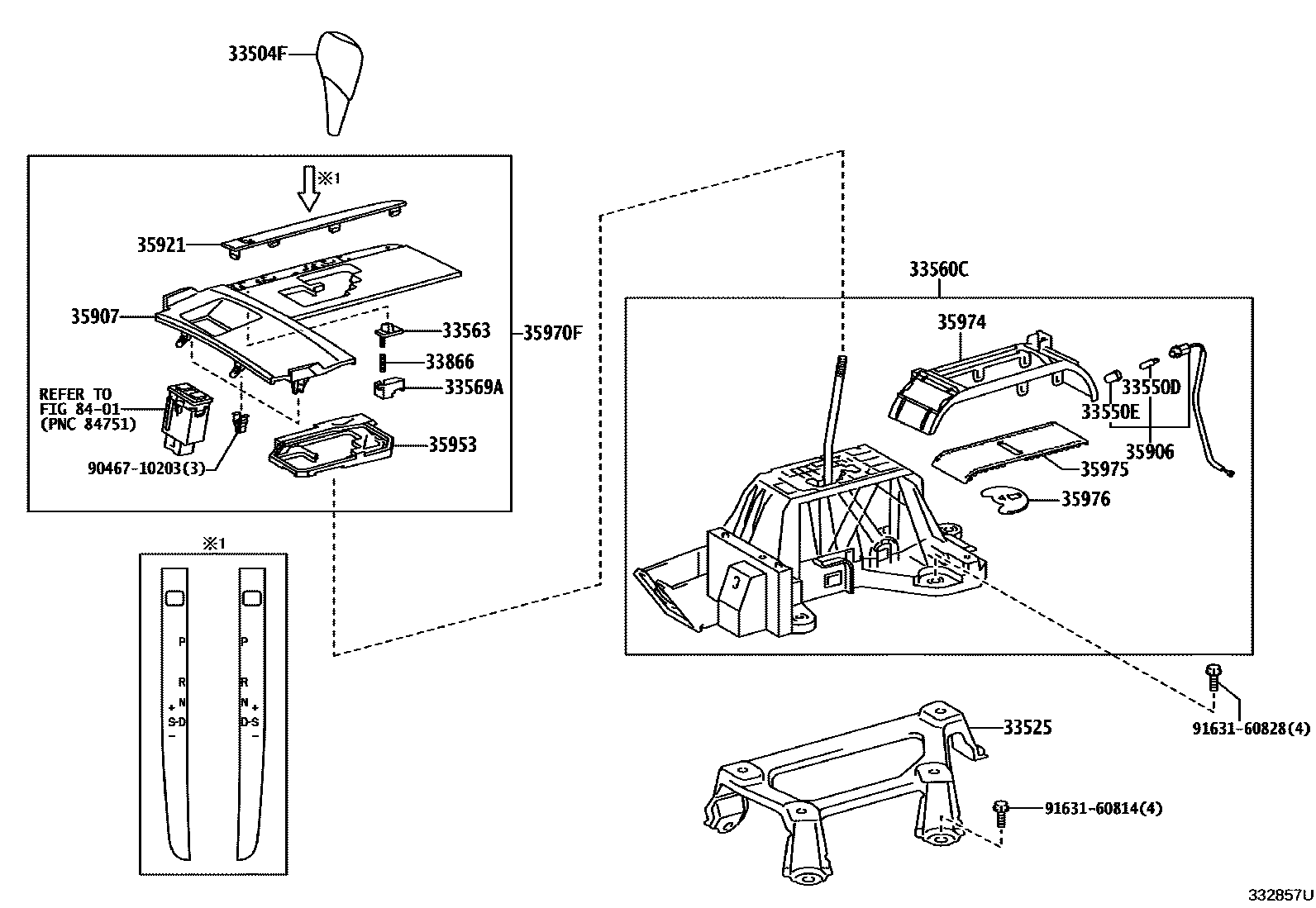

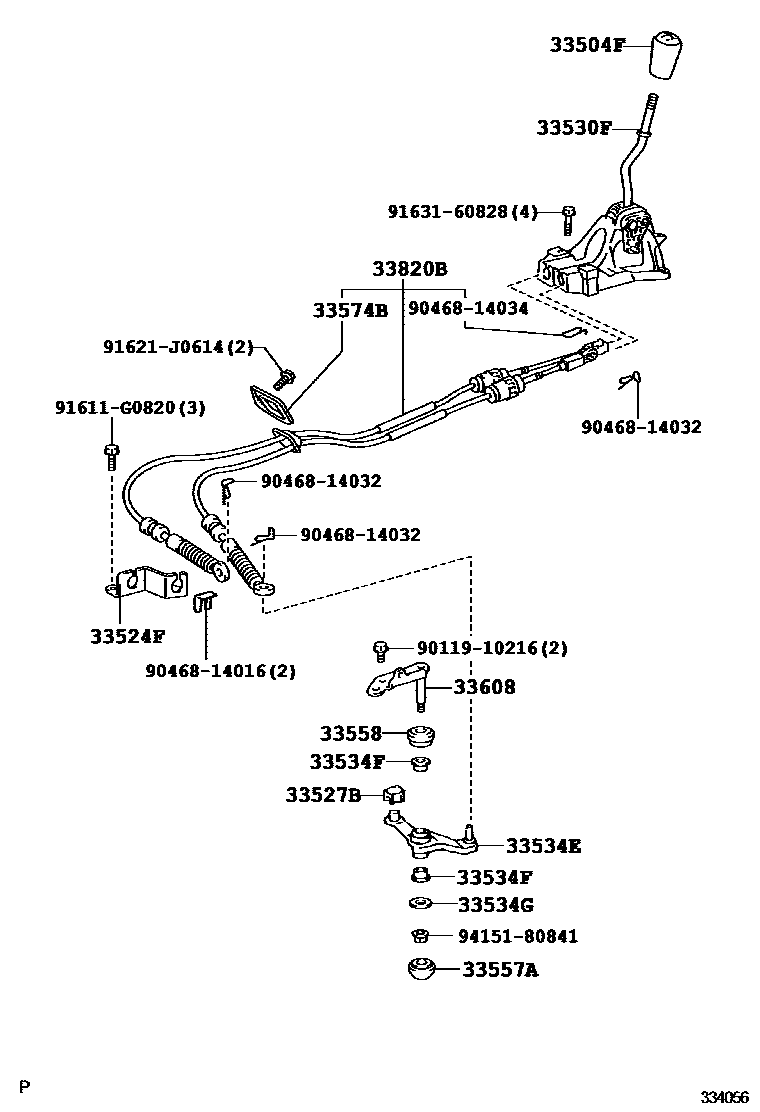

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 |
| 33525 | shift lever bracket | 58123-33010 · 58123-33020 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-33130 · 33530-33131 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560C | Lower shift lever assembly | 33560-33160 · 33560-33170 · 33560-33180 · 33560-33210 · 33560-33220 · 33560-33270 |
| 33563 | Shift lock release button | 33563-33230 · 33563-33240 |
| 33569A | Shift lock release button guide | 33569-33010 · 33569-33020 |
| 33574B | No. 2 shift cable seal | 33574-33060 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-33180 · 33820-33270 · 33820-33280 |
| 33823 | No. 1 transmission control cable bracket | 33823-33050 · 33823-33090 |
| 33826A | No. 2 transmission control cable bracket | 33826-33040 · 33826-33041 |
| 33866 | Shift lock release spring | 33866-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33110 · 35906-33111 |
| 35921 | control position indicator board | 35921-33120 · 35921-33130 · 35921-33150 · 35921-33160 |
| 35953 | Position indicator light guide | 35953-33040 · 35953-33050 · 35953-33090 · 35953-33100 |
| 35974 | Position indicator light lower shell | 35974-33130 · 35974-33140 |
| 35975 | Slide cover (for position indicator light) | 35975-33110 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-33130 |
