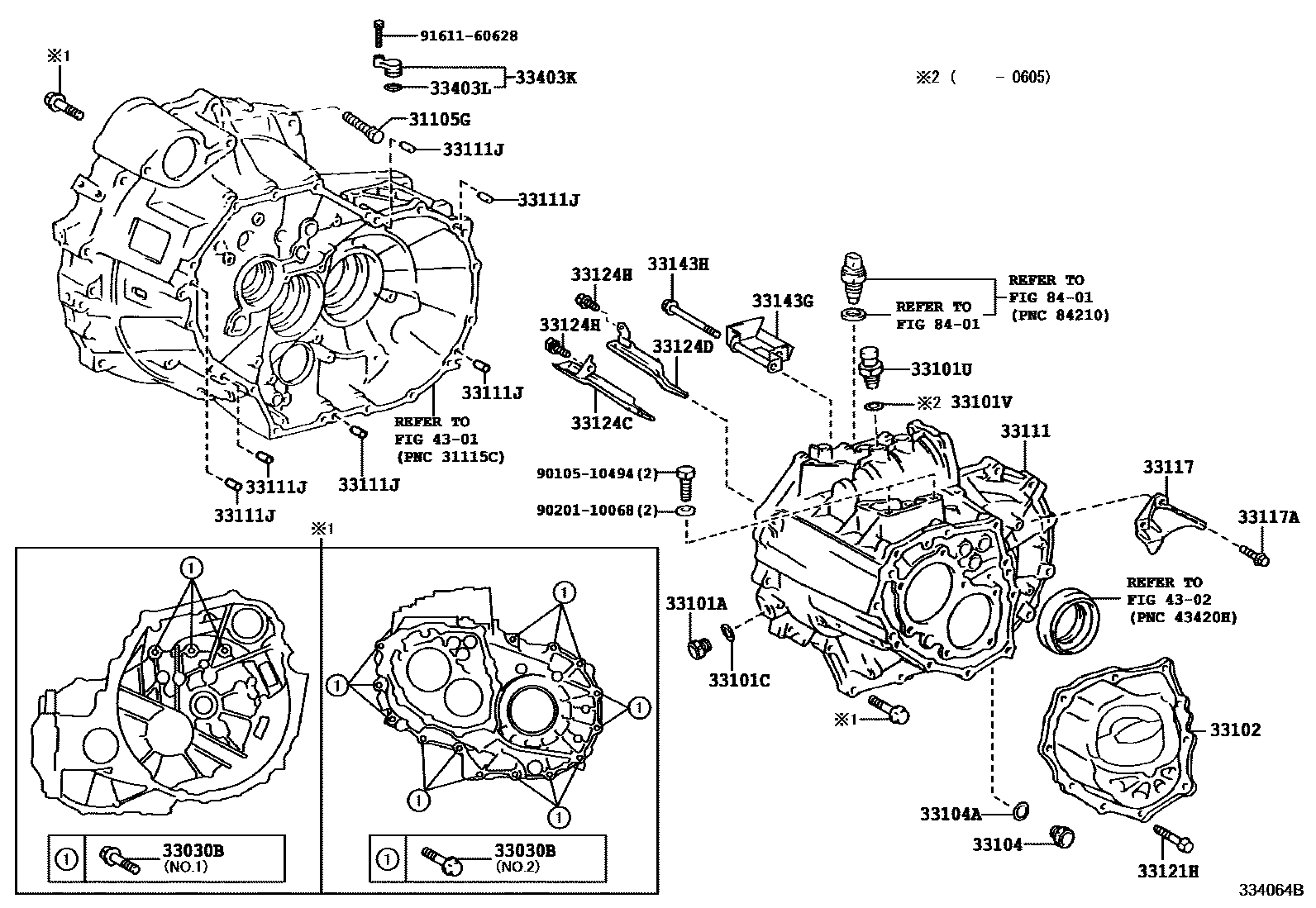

Toyota CAMRY 离合器壳和变速器壳(MTM) — Figure 3302
Toyota CAMRY EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-12147 · 90119-12252 · 91512-61060 · 91512-61065 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 · 90105-08126 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101U | Breather plug (for manual transmission) | 90930-03133 |
| 33101V | Gasket (for manual transmission breather plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-33012 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-42040 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33117 | manual transmission protector | 33107-20010 |
| 33117A | Bolts (for manual transmission guard) | 91641-H0820 |
| 33121H | Bolt with washer (for gearbox cover) | 90105-08273 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-28050 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-28060 |
| 33124H | Bolt (for oil collection pipe) | 90119-08830 |
| 33143G | Transmission oil baffle | 33143-42010 |
| 33143H | Bolt (for transmission oil deflector) | 90119-08439 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-20230 |
| 33403L | O-ring | 96711-24018 |
