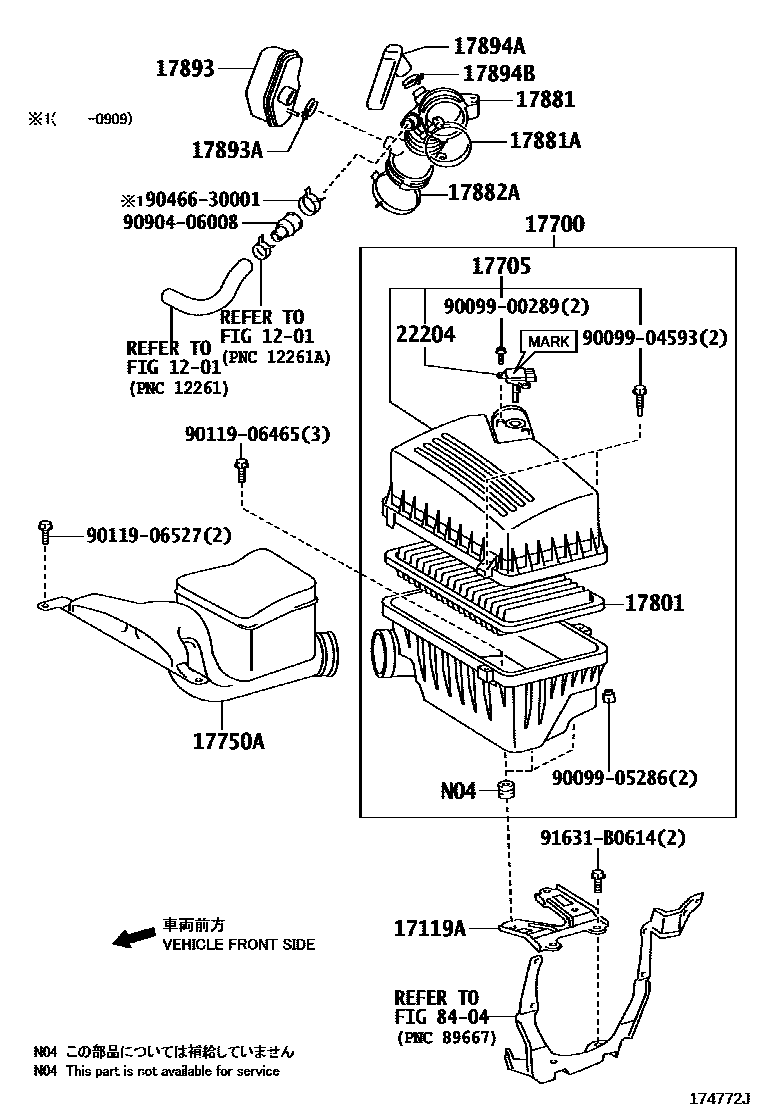

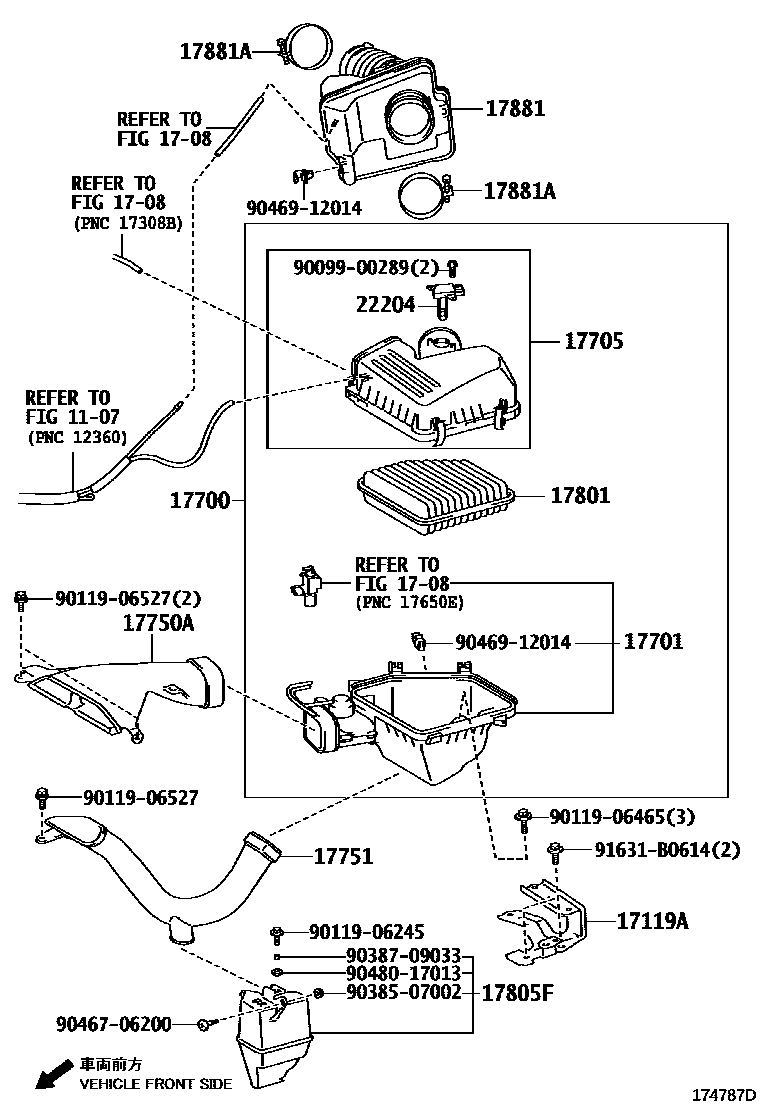

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-28060 · 17119-31050 |
| 17700 | air filter assembly | 17700-28290 · 17700-28291 · 17700-28292 · 17700-31610 · 17700-31740 · 17700-31741 |
| 17701 | Air filter housing sub-assembly | 17701-31530 |
| 17705 | Air filter cover sub-assembly | 17705-28260 · 17705-28261 · 17705-28262 · 17705-31160 · 17705-31270 · 17705-31271 |
| 17750A | Air filter air inlet assembly | 17750-28020 · 17750-31010 |
| 17751 | No. 1 air filter air inlet | 17751-31120 |
| 17801 | Air filter element sub-assembly | 17801-28030 · 17801-31120 |
| 17805F | Intake resonator sub-assembly | 17805-31020 |
| 17881 | No. 1 air cleaner hose | 17881-28250 · 17881-31140 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 · 96111-10900 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-28050 |
| 17893A | hose clamp | 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-28100 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10400 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T010 · 22204-31010 · 22204-31020 |
