Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 2 images and 23 PNC and OE references.

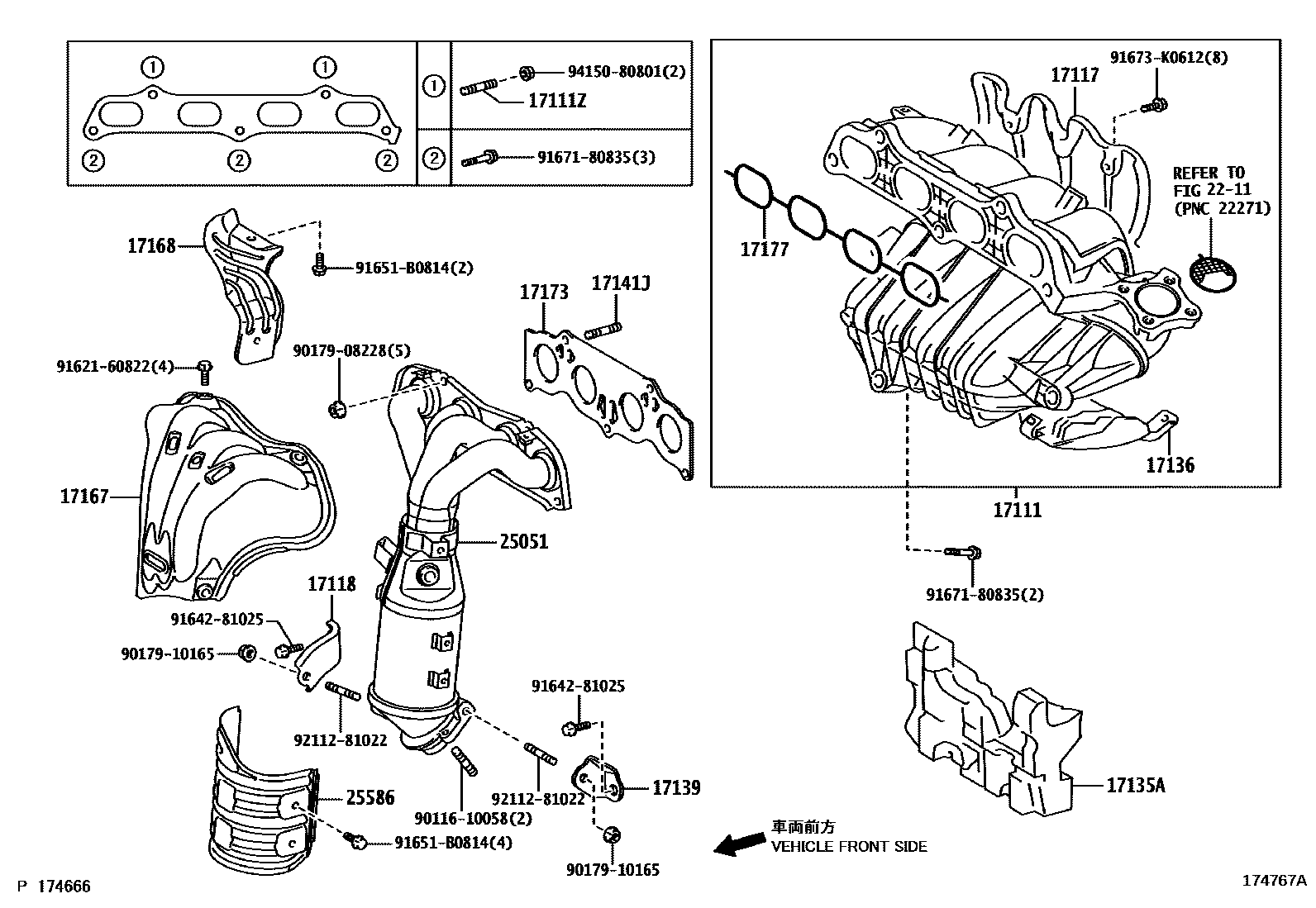

Toyota CAMRY Manifold EPC diagram — 174767A
Manifold — 174767A (200601 – 999999)

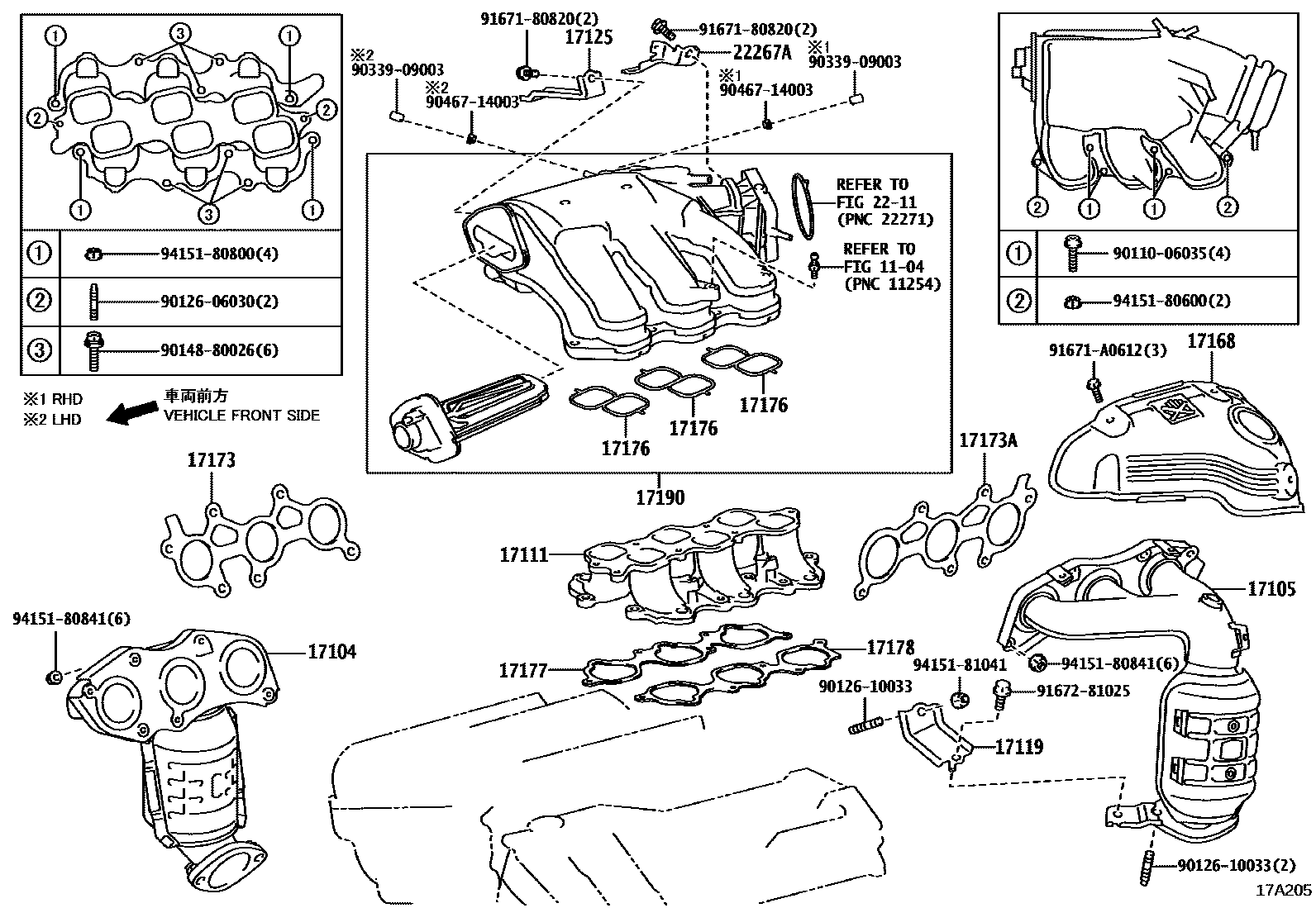

Toyota CAMRY Manifold EPC diagram — 17A205
Manifold — 17A205 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
17104Right exhaust manifold sub-assembly17140-0P041 · 17140-31160 · 17140-31161 · 17140-31750
17105Left exhaust manifold sub-assembly17150-31160 · 17150-31750
17111Intake Manifold17111-31141 · 17120-28140
17111ZStud bolts (for intake manifold to cylinder head)90126-08026
17117Intake pipe insulation pad17117-28040
17118Manifold stays17118-28080
17119No. 2 manifold stay17119-31020
17125No. 1 pressure tank stay17125-31040
17135AIntake manifold No. 1 heat shield17135-28011
17136Intake manifold No. 2 heat shield17136-28020
17139No. 2 manifold stay17139-28050
17141JStuds (for right exhaust manifold)90126-08037
17167Exhaust manifold No. 1 heat shield17167-28060
17168Exhaust manifold No.2 insulation pad17168-28030 · 17168-31010 · 17168-31011
17173Gasket (exhaust manifold to cylinder head)17173-28010 · 17173-31020
17173ALeft side gasket (exhaust manifold to cylinder head)17173-31020
17176Gasket (intake surge tank to intake manifold)17176-31040
17177No. 1 gasket (intake manifold to cylinder head)17177-28010 · 17177-31040
17178No. 2 gasket (intake manifold to cylinder head)17178-31030
17190Intake pressure regulator tank assembly17190-31081
22267AThrottle body bracket22267-31030
25051Exhaust manifold three-way catalytic converter sub-assembly25051-28330 · 25051-28490
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-28090
