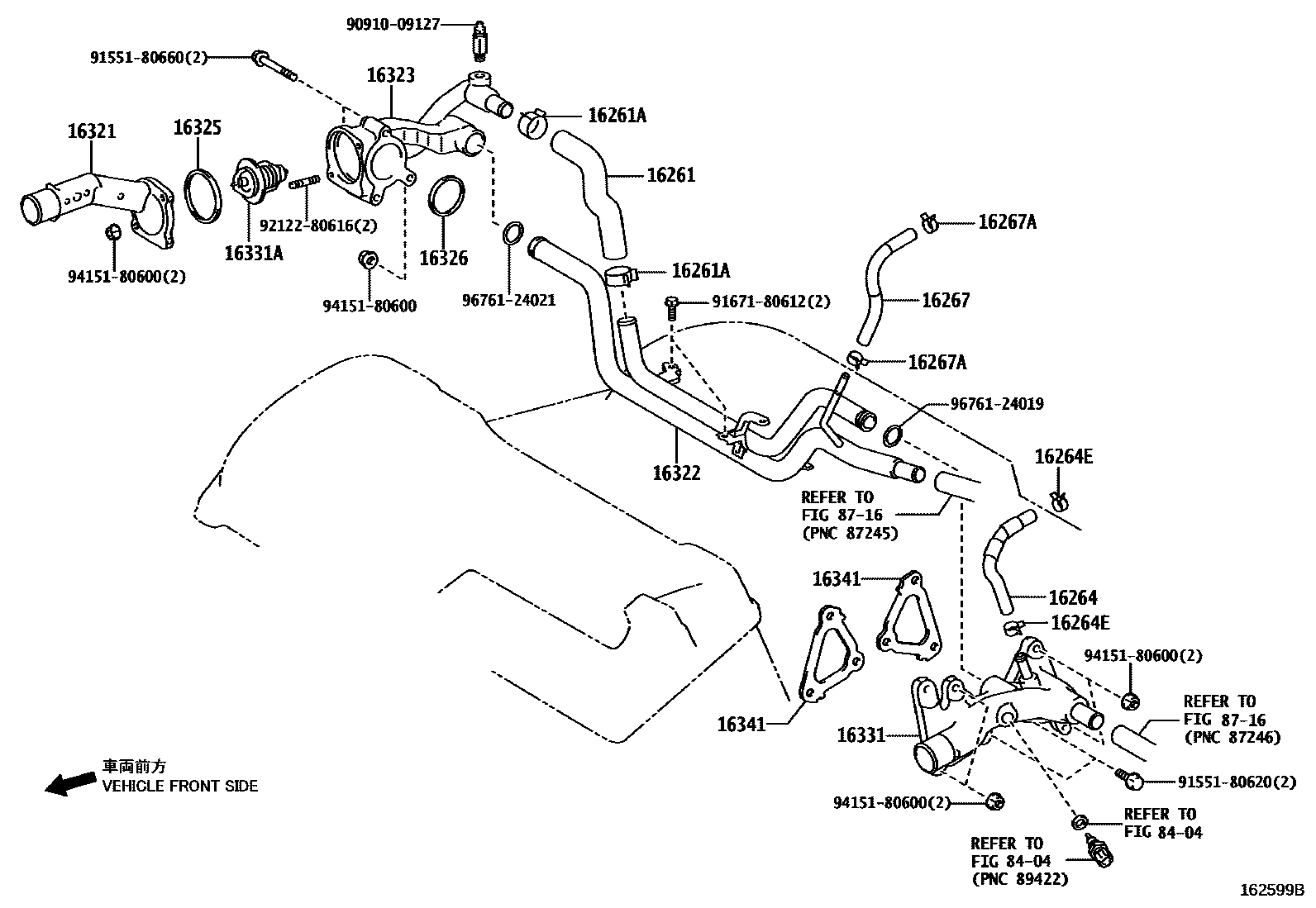

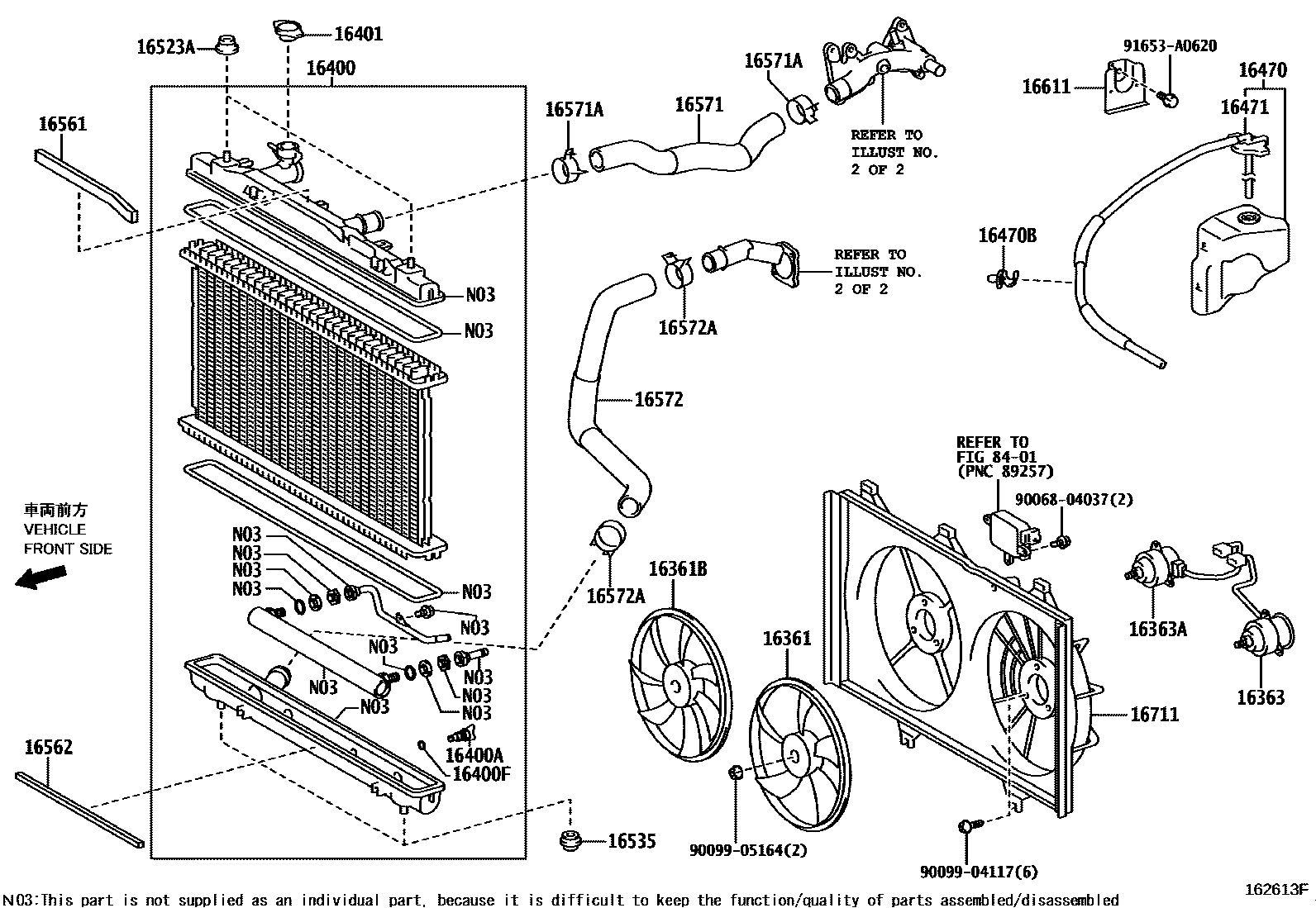

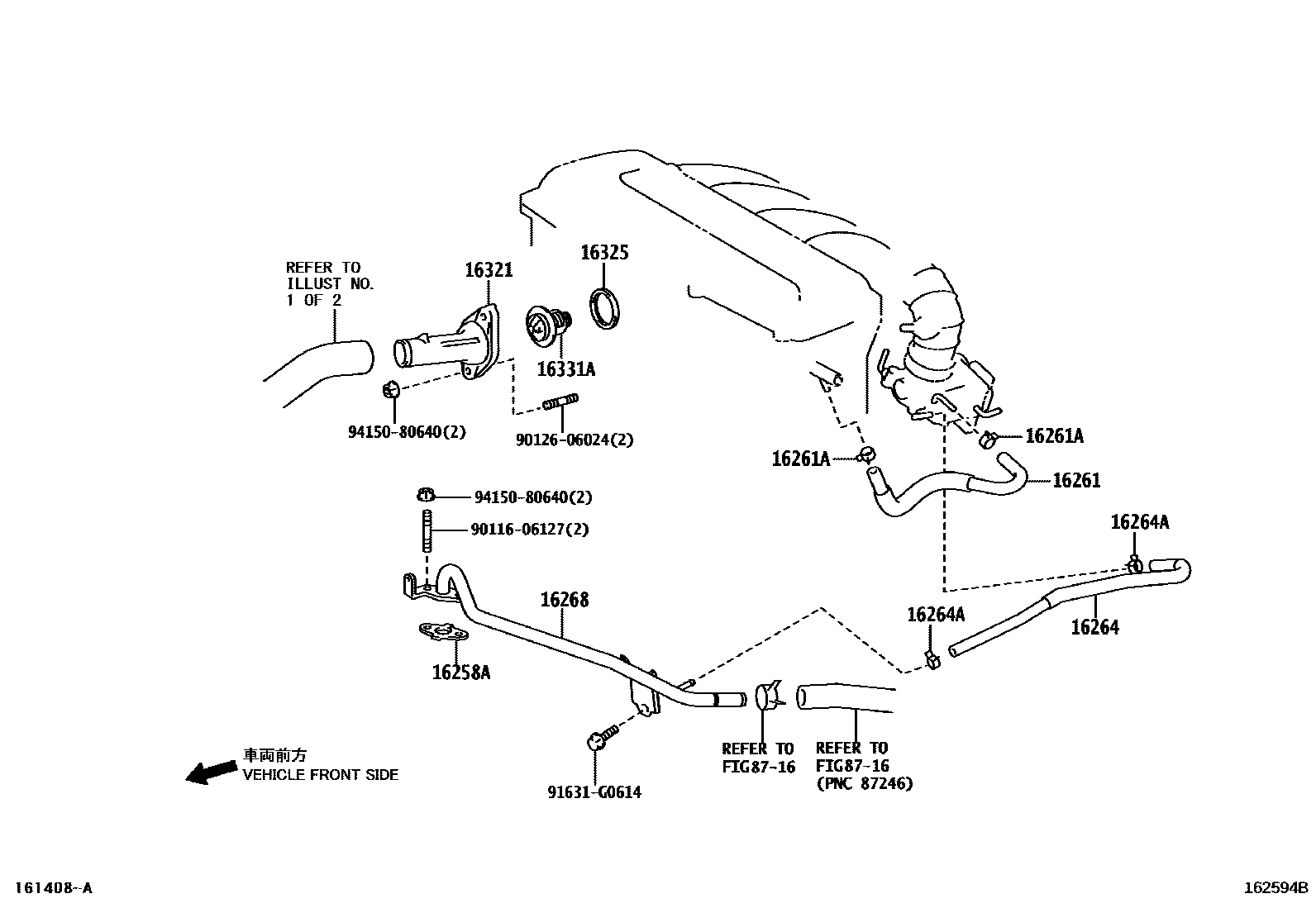

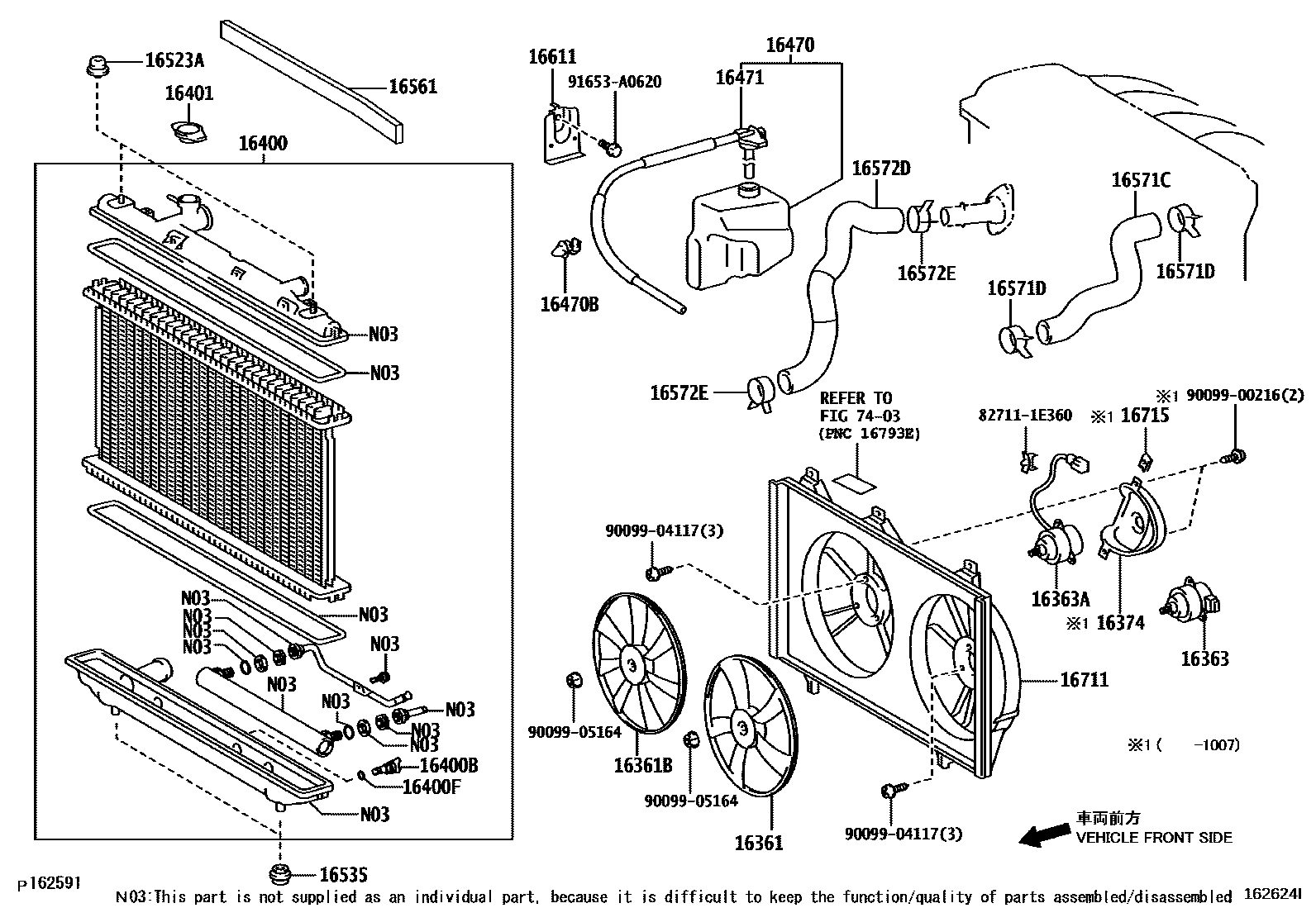

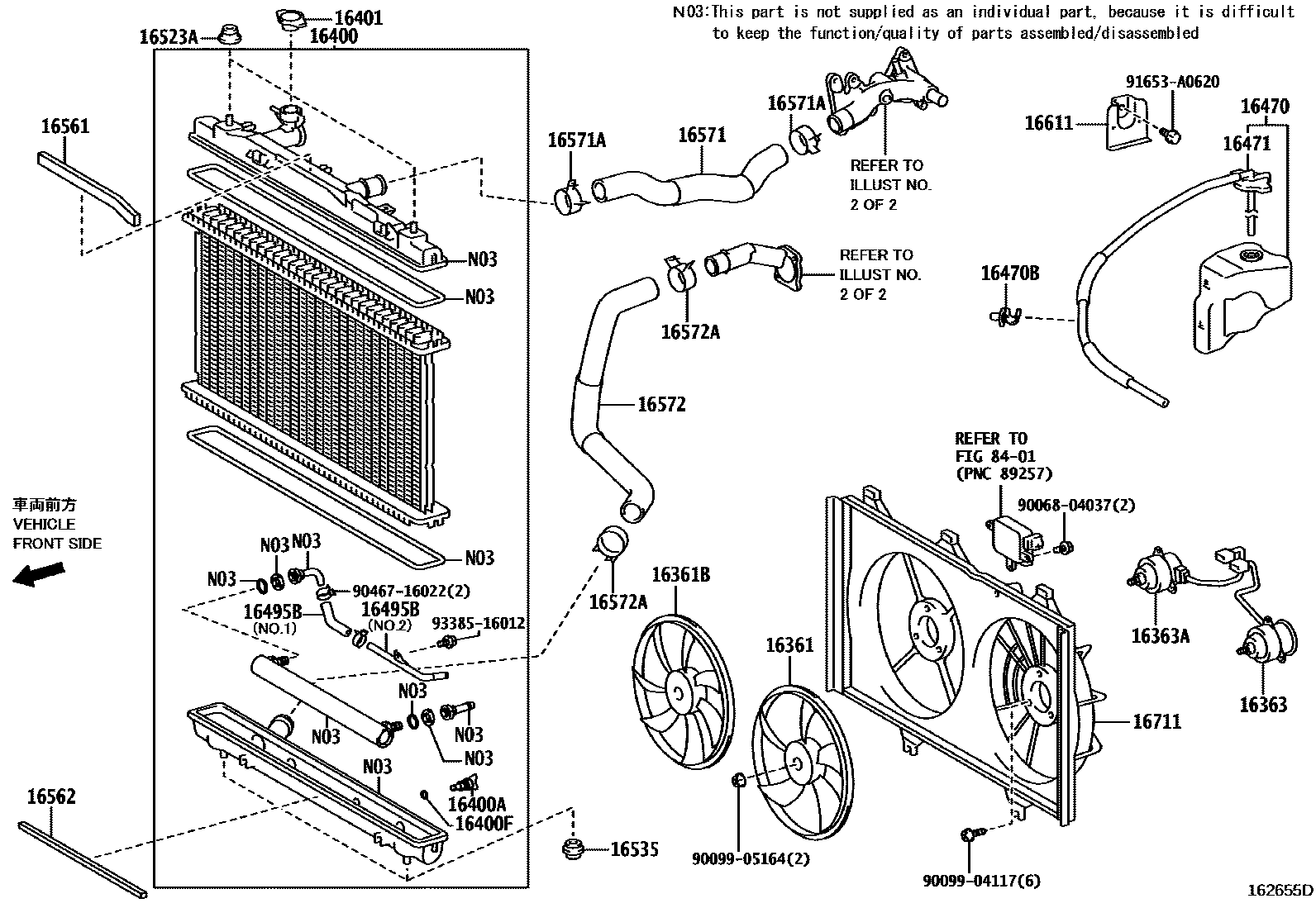

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-28050 · 16261-31050 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 · 96136-42701 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-28060 · 16264-31081 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-51300 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-31040 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-28010 |
| 16321 | water inlet | 16321-28020 · 16321-31011 · 16321-31030 |
| 16322 | PIPE, WATER INLET | 16322-31020 |
| 16323 | HOUSING, WATER INLET | 16323-0W011 · 16323-31040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-31010 |
| 16331 | Water outlet | 16331-31140 |
| 16331A | thermostat | 90916-03133 · 90916-03136 · 90916-03140 |
| 16341 | GASKET, WATER OUTLET | 16341-31010 |
| 16361 | Fan | 16361-28260 · 16361-31120 |
| 16361B | Fan No. 2 | 16361-28180 · 16361-31130 |
| 16363 | cooling fan motor | 16363-23010 · 16363-31080 |
| 16363A | Cooling fan motor No. 2 | 16363-28230 · 16363-31090 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-28130 |
| 16400 | Radiator assembly | 16400-28630 · 16400-28631 · 16400-28640 · 16400-28641 · 16400-31470 · 16400-31520 |
| 16400A | Radiator drain switch sub-assembly | 16417-21280 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31480 · 16401-62100 |
| 16470 | Radiator reservoir assembly | 16470-28100 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90469-12014 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-28070 |
| 16495B | Tube (for automatic transmission oil cooler) | 16492-31470 · 16495-31470 |
| 16523A | Radiator bracket cushion | 16523-20020 |
| 16535 | Radiator lower support | 16535-20010 · 16535-28030 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-28020 · 16561-31010 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-31010 |
| 16571 | Radiator water inlet hose | 16571-31180 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-35001 |
| 16571C | Radiator hose No. 1 | 16571-28240 |
| 16571D | No. 1 radiator hose clip | 90466-35001 |
| 16572 | Radiator outlet hose | 16572-31200 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 |
| 16572D | Radiator hose No. 2 | 16572-28170 |
| 16572E | No. 2 radiator hose clip | 90466-35001 |
| 16611 | Radiator reservoir bracket | 16611-28010 |
| 16711 | fan cover | 16711-28300 · 16711-31250 |
| 16715 | fan cover bracket | 88688-18030 |
