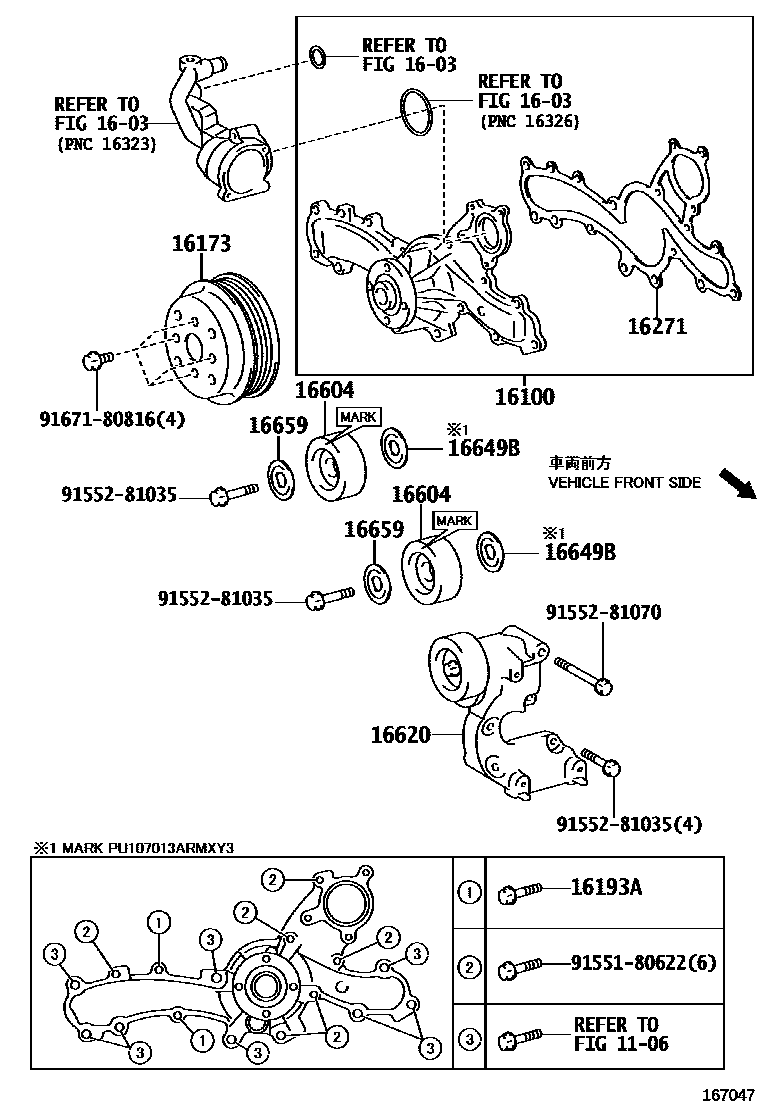

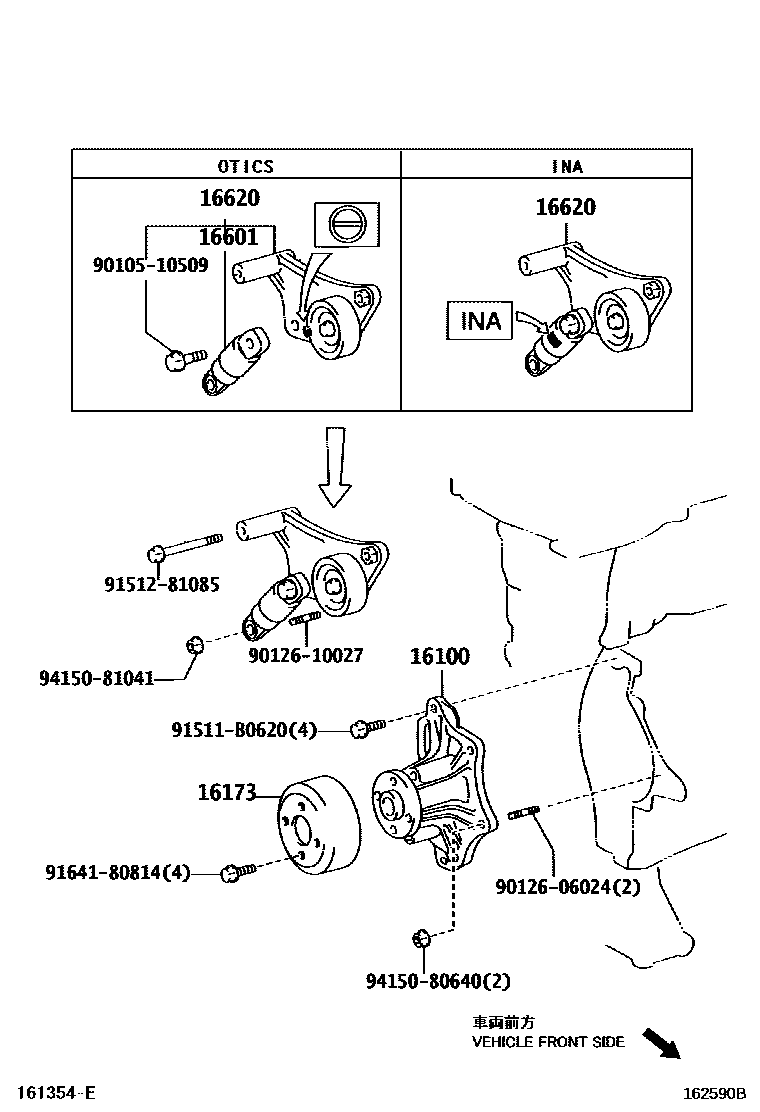

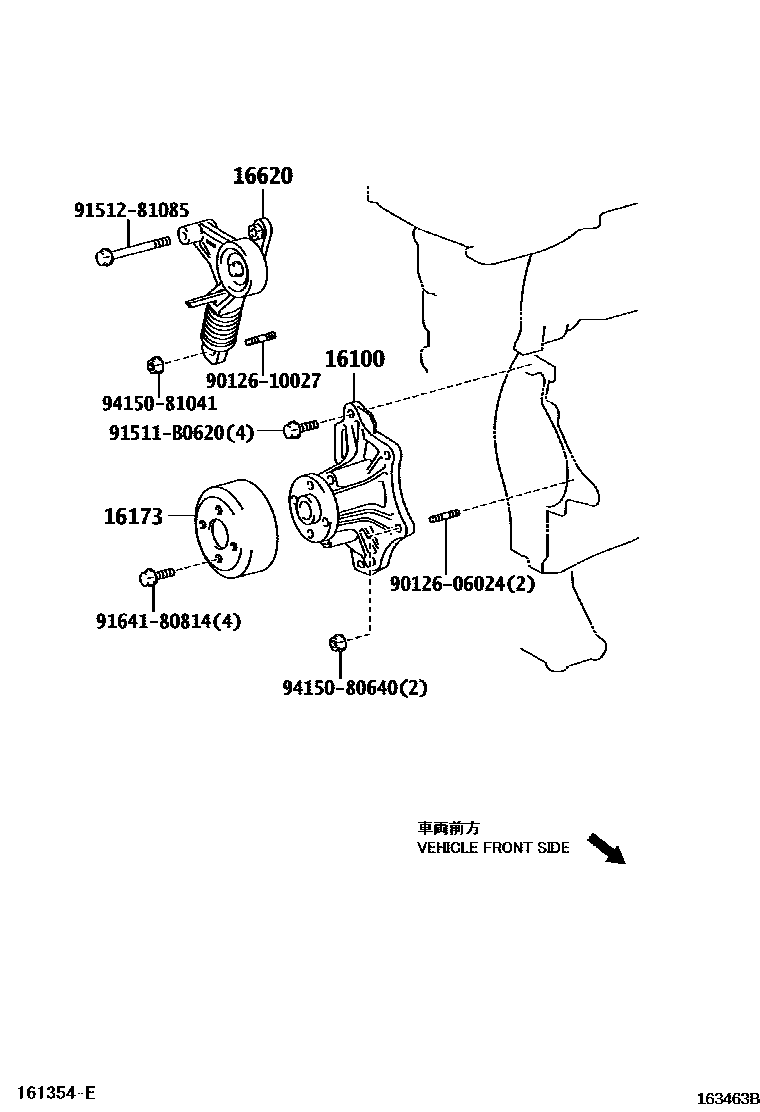

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-28040 · 16100-28041 · 16100-39455 · 16100-39456 |
| 16173 | water pump pulley | 16173-28020 · 16173-31010 |
| 16193A | Bolts (for water pump cover) | 16193-31080 |
| 16271 | water pump gasket | 16271-31030 |
| 16601 | Poly V-belt tensioner sub-assembly | 16601-28020 · 16601-28021 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-31010 · 16604-31020 |
| 16620 | Poly V-belt tensioner assembly | 16620-0H020 · 16620-28040 · 16620-28041 · 16620-31040 |
| 16649B | Idler cover | 16649-31020 |
| 16659 | No. 2 idler cover | 16659-31011 |
