Toyota CAMRY Engine Oil Cooler — Figure 1503

Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 2 images and 15 PNC and OE references.

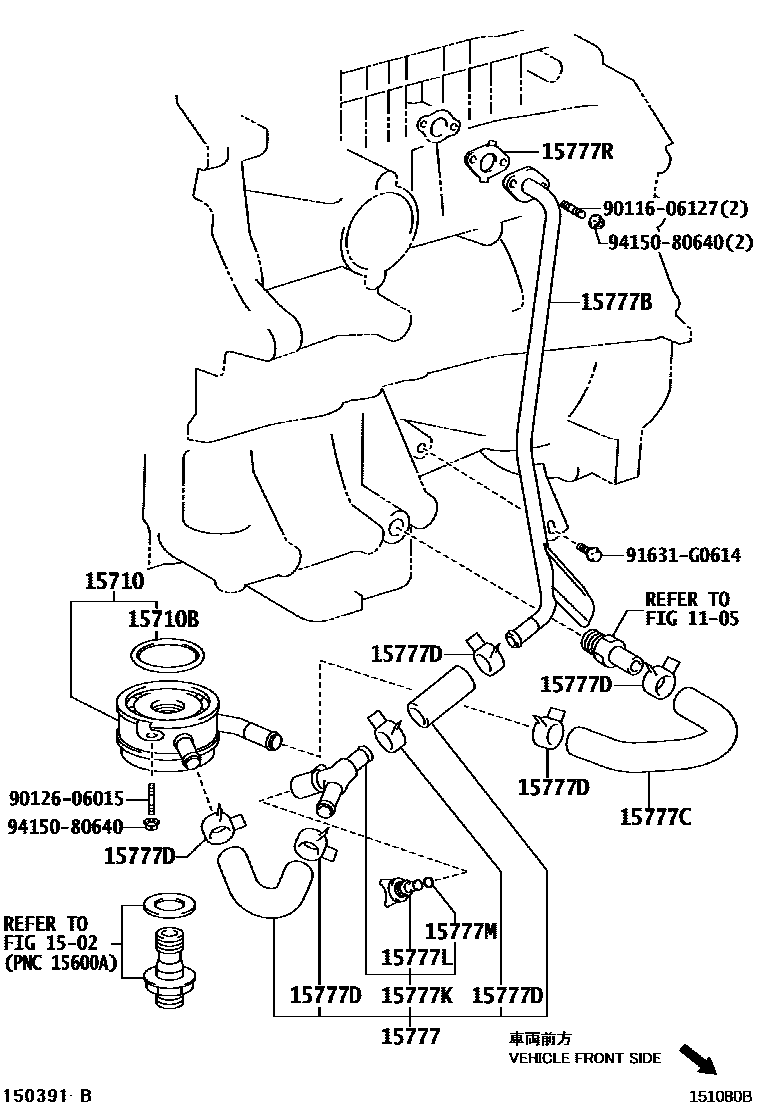

Toyota CAMRY Engine Oil Cooler EPC diagram — 151080B
Engine Oil Cooler — 151080B (200601 – 999999)

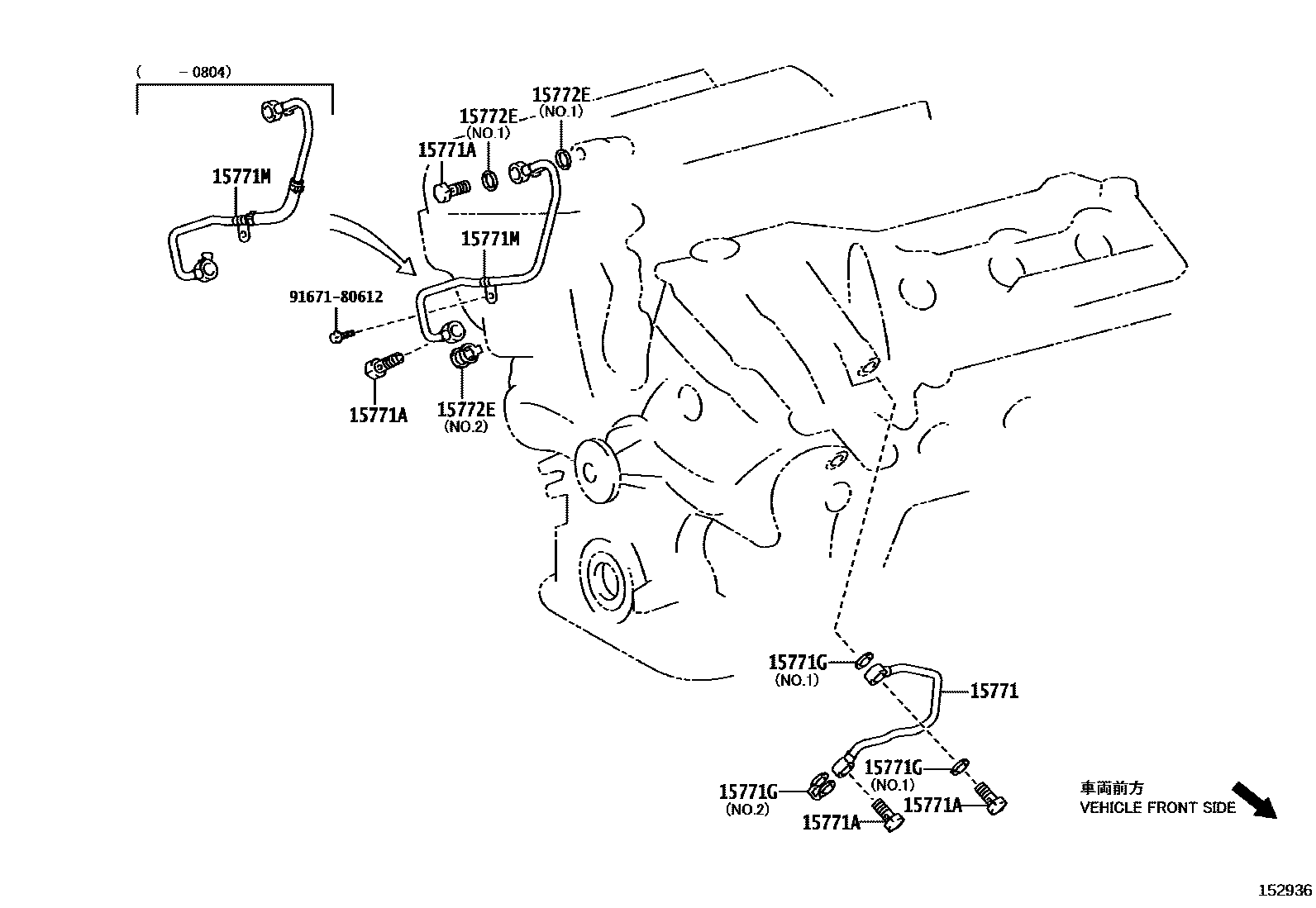

Toyota CAMRY Engine Oil Cooler EPC diagram — 152936
Engine Oil Cooler — 152936 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
15710Oil cooler assembly15710-28020
15710BO-ring (for oil cooler)90301-52006
15771No. 1 oil pipe15771-31010
15771AConnector (for oil pipe)90401-16043
15771Gpadding90430-16012 · 90430-16016 · 90430-16017
15771MOil pipe15707-31010 · 15707-31011 · 15707-31012 · 15772-31030
15772EGasket (for oil pipe)90430-16012 · 90430-16016 · 90430-16017
15777oil cooler hose16267-28020
15777Boil cooler pipe16279-28010
15777Coil cooler hose16281-28010
15777DHose clamp or clip (for oil cooler hose)96134-41900
15777KOil drain switch assembly (for oil cooler hose)90910-09119
15777LAir plug (for oil cooler oil drain switch)23322-54010
15777MO-ring (for oil cooler oil drain switch)16492-21050
15777RGasket (for oil cooler pipe joint bolts)16258-28040
