Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 2 images and 7 PNC and OE references.

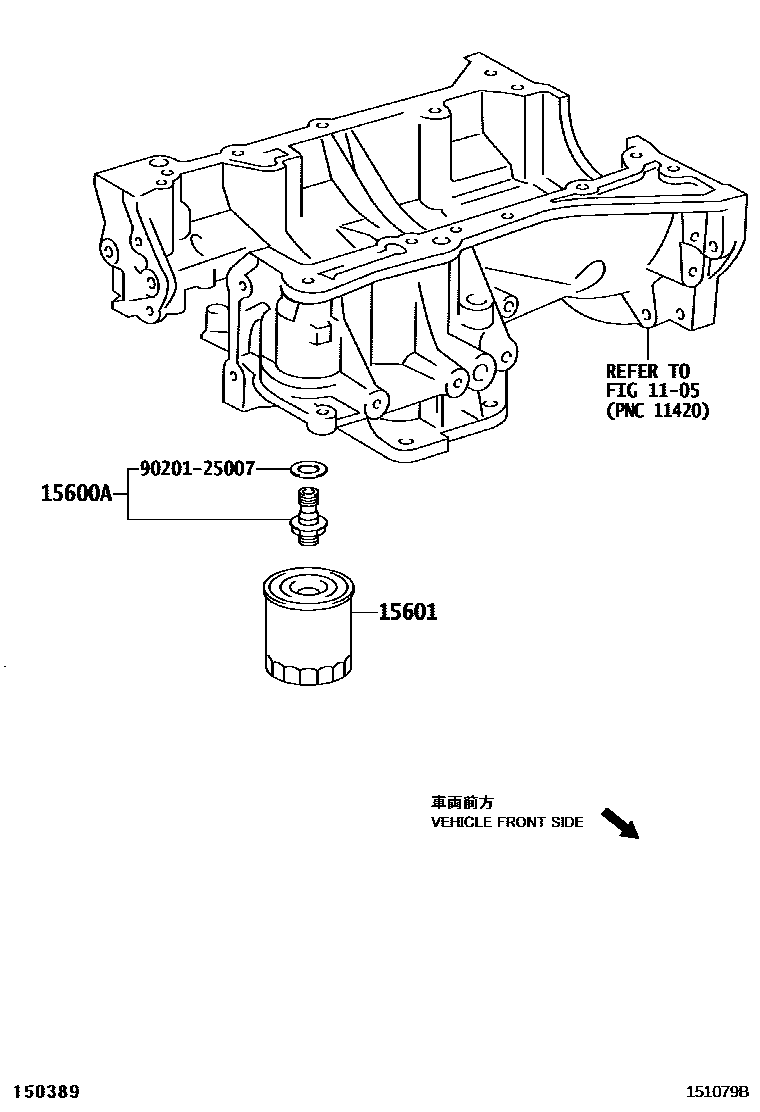

Toyota CAMRY Oil Filter EPC diagram — 151079B
Oil Filter — 151079B (200601 – 999999)

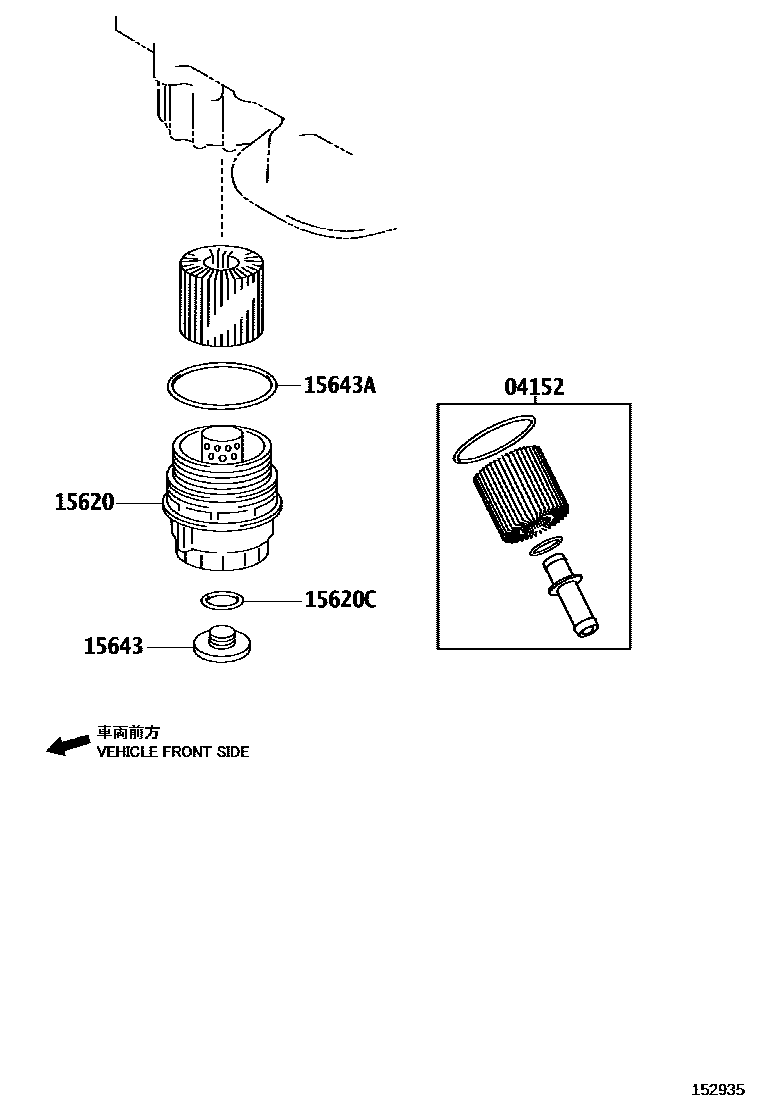

Toyota CAMRY Oil Filter EPC diagram — 152935
Oil Filter — 152935 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31090
15600AConnector (for oil filter)15695-28010
15601Oil filter sub-assembly90915-10004
15620Oil filter cover assembly15620-31060
15620CGasket (for oil filter cover)96723-35028
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)90301-79005 · 90301-79006
