Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 9 PNC and OE references.

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 114072C
Timing Gear Cover & Rear End Plate — 114072C (200601 – 999999)

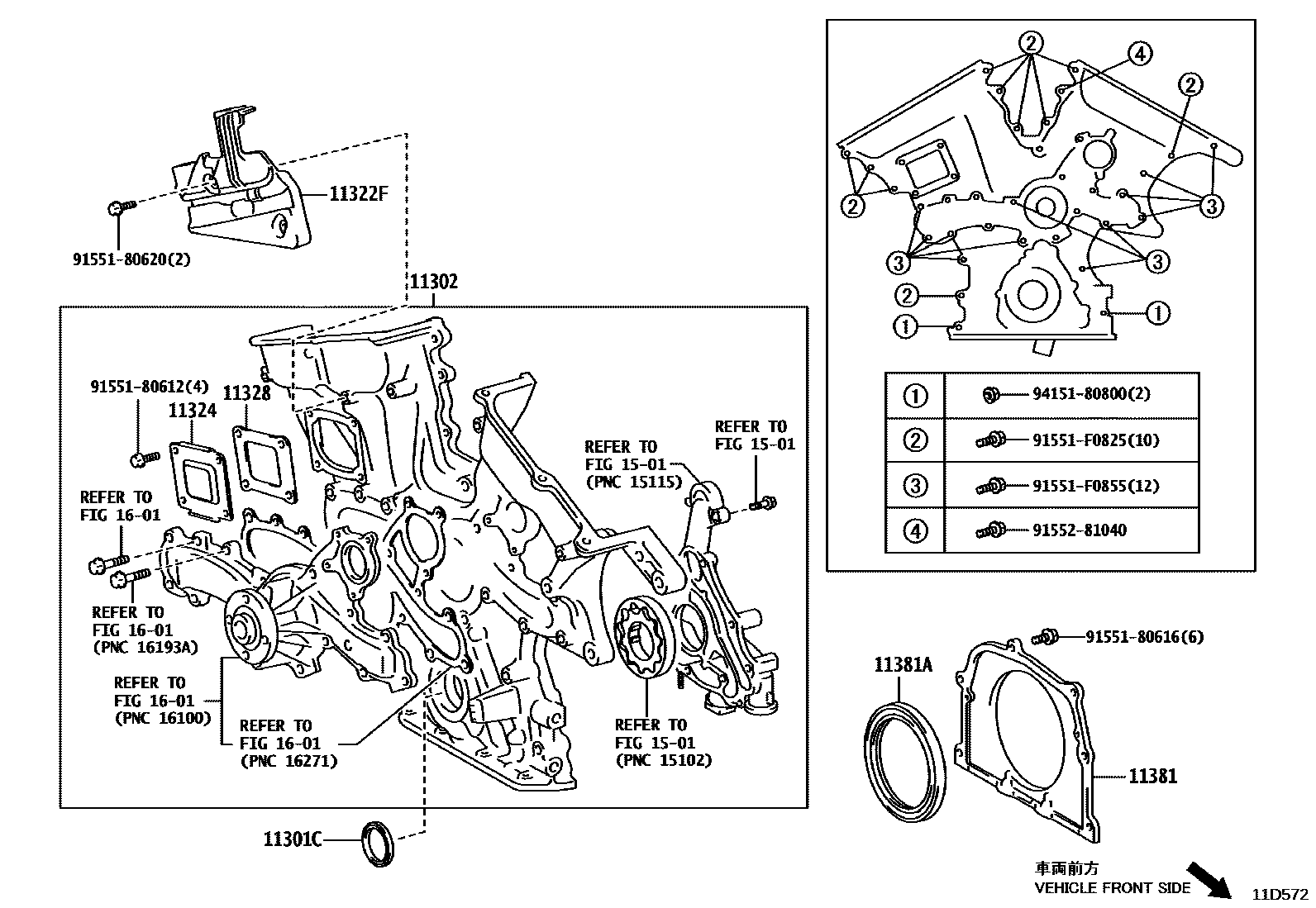

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 11D572
Timing Gear Cover & Rear End Plate — 11D572 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-38089 · 90311-42037 · 90311-42045
11301Kcrankshaft position sensor90919-05047
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-28071 · 11310-31020
11322FNo. 2 timing gear cover11322-31021
11324Timing chain cover11324-31020
11328GASKET, TIMING GEAR OR CHAIN COVER11328-31030
11381RETAINER, ENGINE REAR OIL SEAL11381-31021
11381ASEAL, ENGINE REAR OIL90311-92006 · 90311-92009 · 90311-92010
19529Acard holder19529-28010
