Toyota CAMRY Cylinder Head — Figure 1104

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 3 images and 62 PNC and OE references.

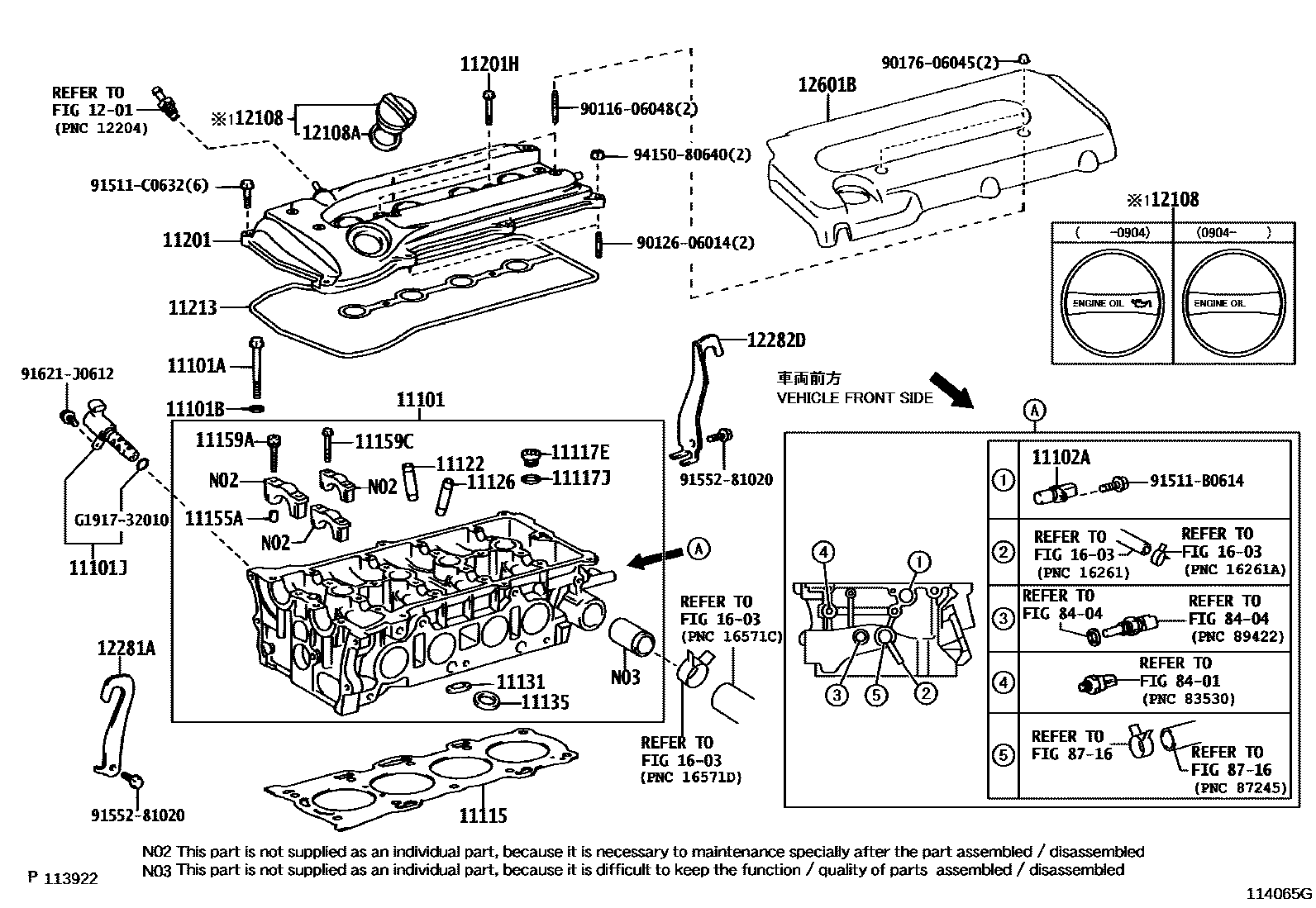

Toyota CAMRY Cylinder Head EPC diagram — 114065G
Cylinder Head — 114065G (200601 – 999999)

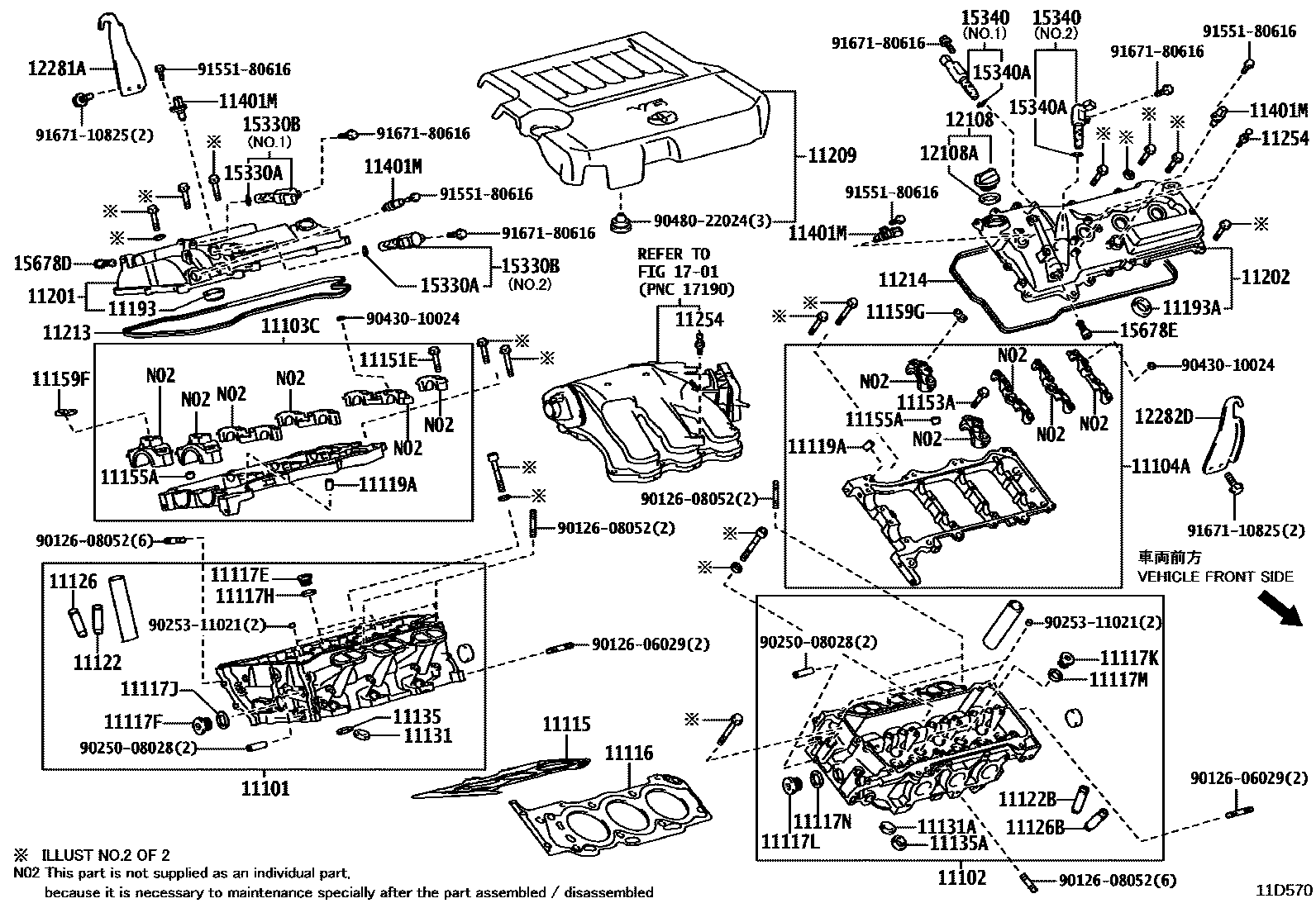

Toyota CAMRY Cylinder Head EPC diagram — 11D570
Cylinder Head — 11D570 (200601 – 999999)

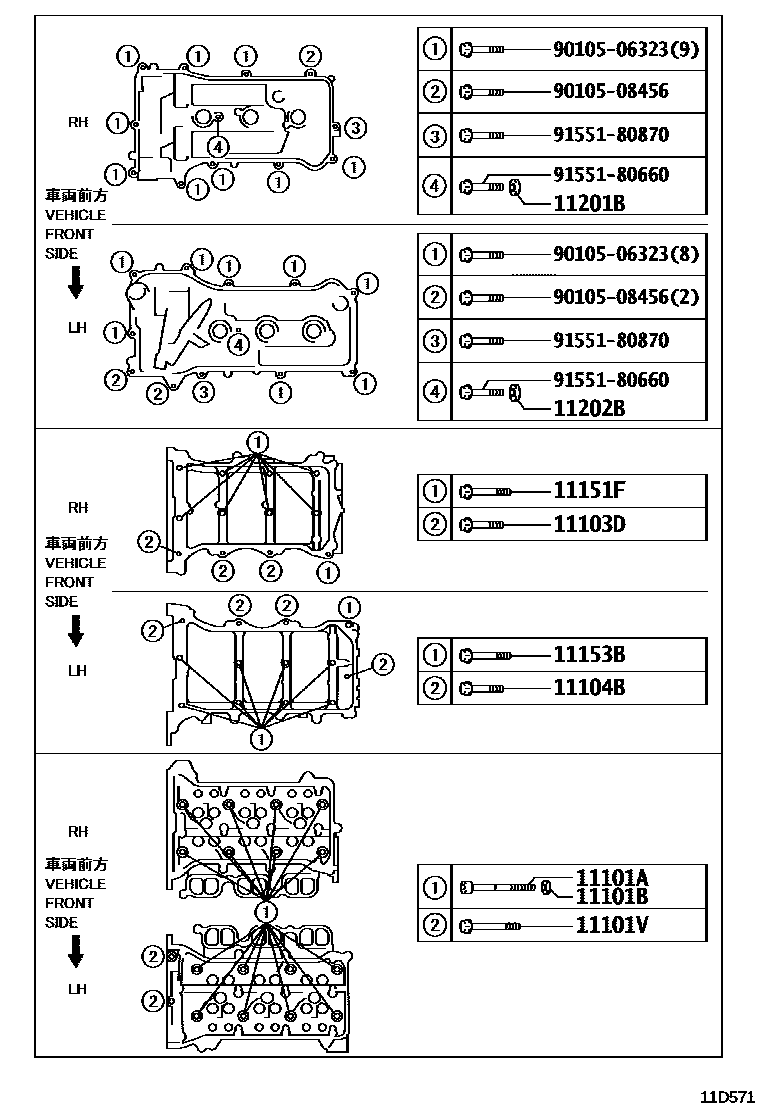

Toyota CAMRY Cylinder Head EPC diagram — 11D571
Cylinder Head — 11D571 (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-0H011 · 11101-28012 · 11101-39535
11101ABOLT (FOR CYLINDER HEAD)90910-02162
11101BFlat Washer (for cylinder head assembly)90201-11034
11101JCamshaft timing oil control valve assembly15330-28020
11101VAuxiliary bolts (for cylinder head assembly)90105-10521
11102left cylinder head11102-39055
11102ACamshaft position sensor90919-05026
11103CRight camshaft housing sub-assembly11103-31020 · 11103-31021 · 11103-31022 · 11103-31031 · 11103-31032
11103DBolt (for mounting camshaft housing to right cylinder head)90105-08465 · 90119-08C84 · 91673-G0850
11104ALeft camshaft housing sub-assembly11104-31020 · 11104-31021 · 11104-31022 · 11104-31042 · 11104-31043
11104BBolt (for mounting camshaft housing to left cylinder head)90105-08465 · 90119-08C84 · 91673-G0850
11115GASKET, CYLINDER HEAD11115-28040 · 11115-31060 · 11115-31080
11116No. 2 cylinder head gasket11116-31040 · 11116-31060
11117EPLUG, STRAIGHT SCREW W/HEAD, NO.190341-20012 · 90341-27006
11117FNo. 2 headed straight thread plug90341-27006
11117HGasket (for coolant hole)90430-20004
11117JGasket (for cylinder head thread plug)90430-27005
11117KNo. 1 left side headed straight thread plug90341-20012
11117LNo. 2 left side headed straight thread plug90341-27006
11117MGasket (for coolant hole No. 2)90430-20004
11117NGasket (for No. 2 cylinder head threaded plug)90430-27005
11119ANo. 1 direct sales90250-05021
11122BUSH, INTAKE VALVE GUIDE11122-28010 · 11122-31050 · 11123-28010 · 11123-31050
11122BNo. 2 intake valve guide bushing11122-31050 · 11123-31050
11126BUSH, EXHAUST VALVE GUIDE11126-20020 · 11126-31030 · 11127-20020 · 11127-31030
11126BNo. 2 exhaust valve guide bushing11126-31030 · 11127-31030
11131intake valve seat11131-0H020 · 11131-28021 · 11131-31040 · 11131-31050 · 11132-0H020 · 11132-28021 · 11132-31040 · 11132-31050
11131ANo. 2 intake valve seat11131-31040 · 11131-31050 · 11132-31040 · 11132-31050
11135Exhaust valve seat11135-0H020 · 11135-28040 · 11135-31060 · 11135-31080 · 11136-0H020 · 11136-28040 · 11136-31060 · 11136-31080
11135ANo. 2 exhaust valve seat11135-31060 · 11135-31080 · 11136-31060 · 11136-31080
11151EBolts (for installing the camshaft bearing cap to the No. 1 right camshaft housing)90119-07009
11151FBolts (for installing the camshaft bearing cap to the No. 2 right camshaft housing)90105-08464 · 90119-08C85 · 91673-G0870
11153ABolts (for mounting the camshaft bearing cap to the No. 1 left camshaft housing)90119-07009
11153BBolts (for installing the camshaft bearing cap to the No. 2 left camshaft housing)90105-08464 · 90119-08C85 · 91673-G0870
11155APIN, RING W/HEAD90253-11021 · 90253-A0007
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90080-10210 · 90105-08353
11159CBOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90080-11292 · 90119-06902
11159FRight camshaft bearing cap oil hole gasket11159-31010
11159GLeft camshaft bearing cap oil hole gasket11159-31010
11193spark plug bushing gasket11193-70010
11193ALeft spark plug bushing gasket11193-70010
11201CYLINDER HEAD COVER SUB-ASSY11201-28031 · 11201-28032 · 11201-31250
11201BGasket (for cylinder head cover)90210-06013
11201HBolts (for cylinder head cover)90119-06903
11202Left cylinder head cover sub-assembly11202-31030
11202BGasket (for left cylinder head cover)90210-06013
11209V-shaped cylinder head sub-assembly11209-31031
11213GASKET, CYLINDER HEAD COVER11213-28021 · 11213-31050
11214No. 2 cylinder head cover gasket11214-31020
11254V-shaped cylinder block cover No. 1 bracket11254-31020
11401MNo. 2 crankshaft position sensor90919-05060
12108OIL FILLER CAP SUB-ASSY12180-28010 · 12180-38010
12108AGASKET (FOR OIL FILLER CAP)90430-35001 · 90430-37004
12281AEngine No. 1 hanger12281-0H010 · 12281-28010 · 12281-31120
12282DENGINE HANGER, NO.212282-0H010 · 12282-28010 · 12282-31100
12601BNo. 1 engine hood sub-assembly12601-28150
15330AO-ring (for camshaft timing oil control valve)90099-14137
15330BRight camshaft timing oil control valve assembly15330-31020 · 15330-31030
15340Left camshaft timing oil control valve assembly15330-31020 · 15340-31020
15340AO-ring (for camshaft timing oil control valve)90099-14137
15678DRight oil control valve filter15678-46020
15678ELeft oil control valve filter15678-46020
