Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

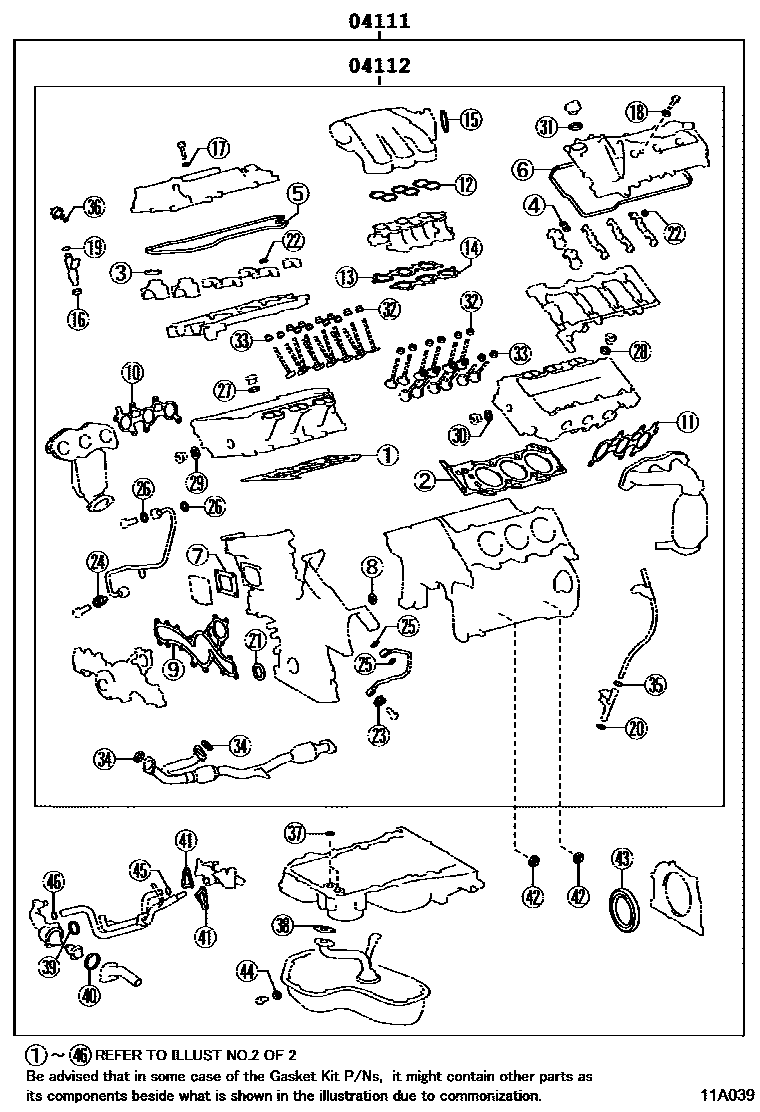

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A039
Engine Overhaul Gasket Kit — 11A039 (200601 – 201108)

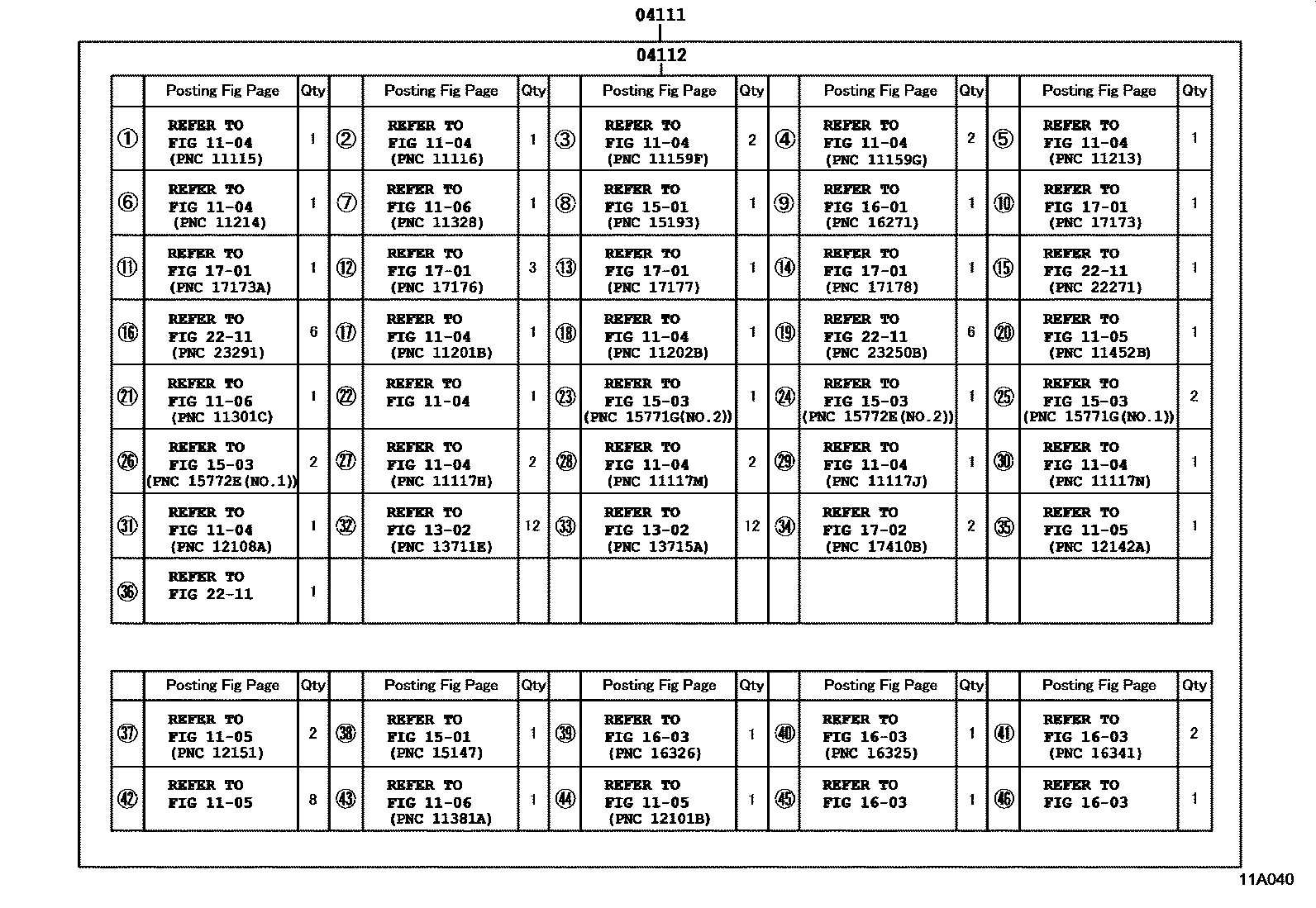

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A040
Engine Overhaul Gasket Kit — 11A040 (200601 – 201108)

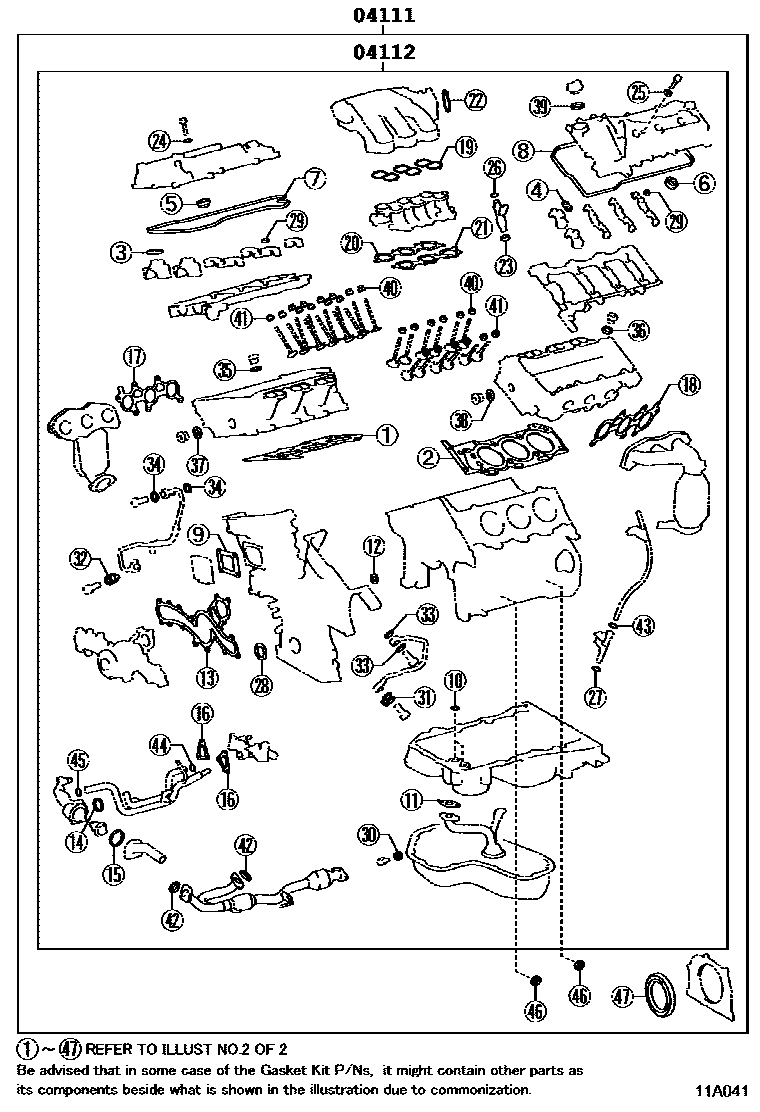

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A041
Engine Overhaul Gasket Kit — 11A041 (201108 – 201109)

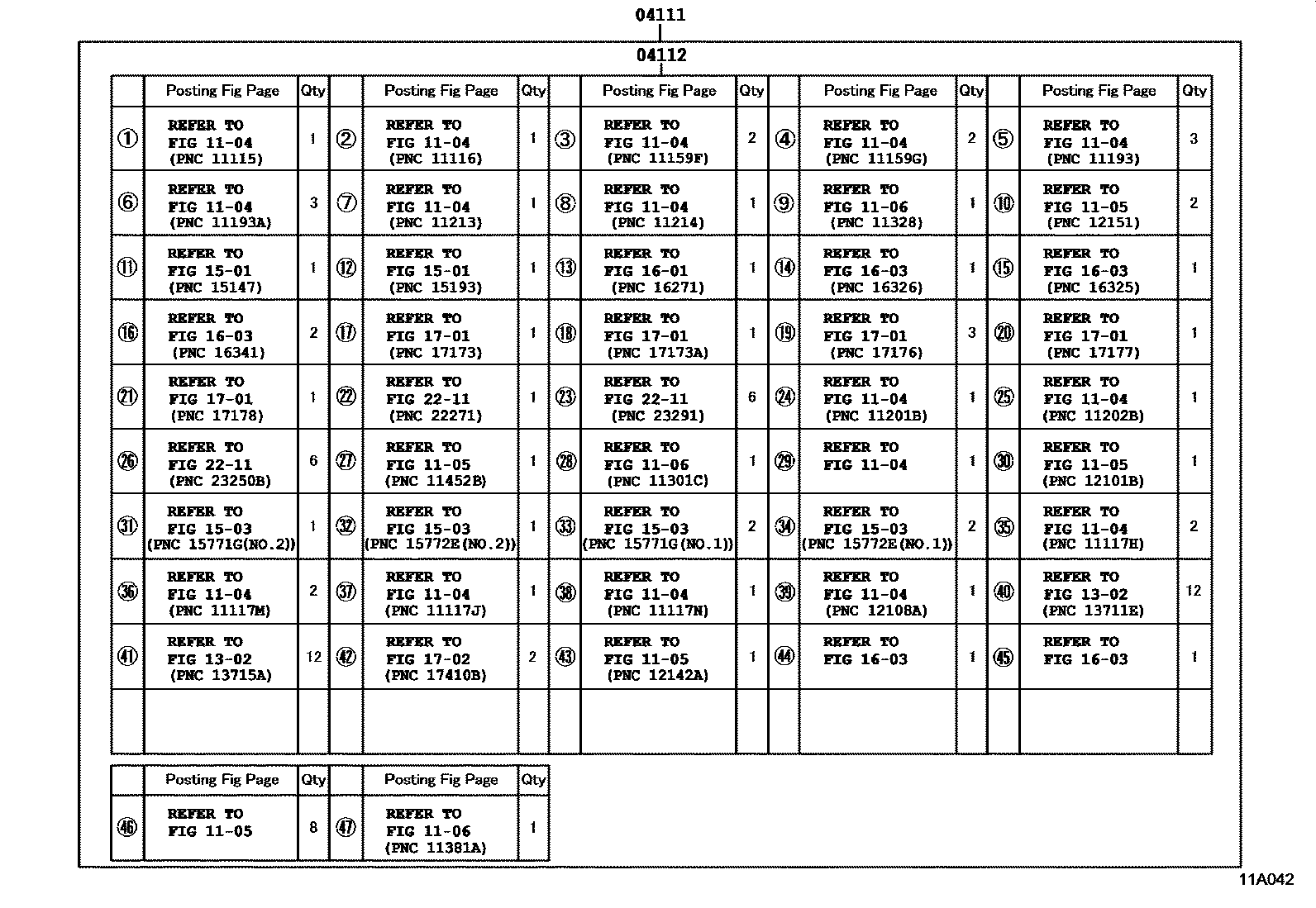

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A042
Engine Overhaul Gasket Kit — 11A042 (201108 – 201109)

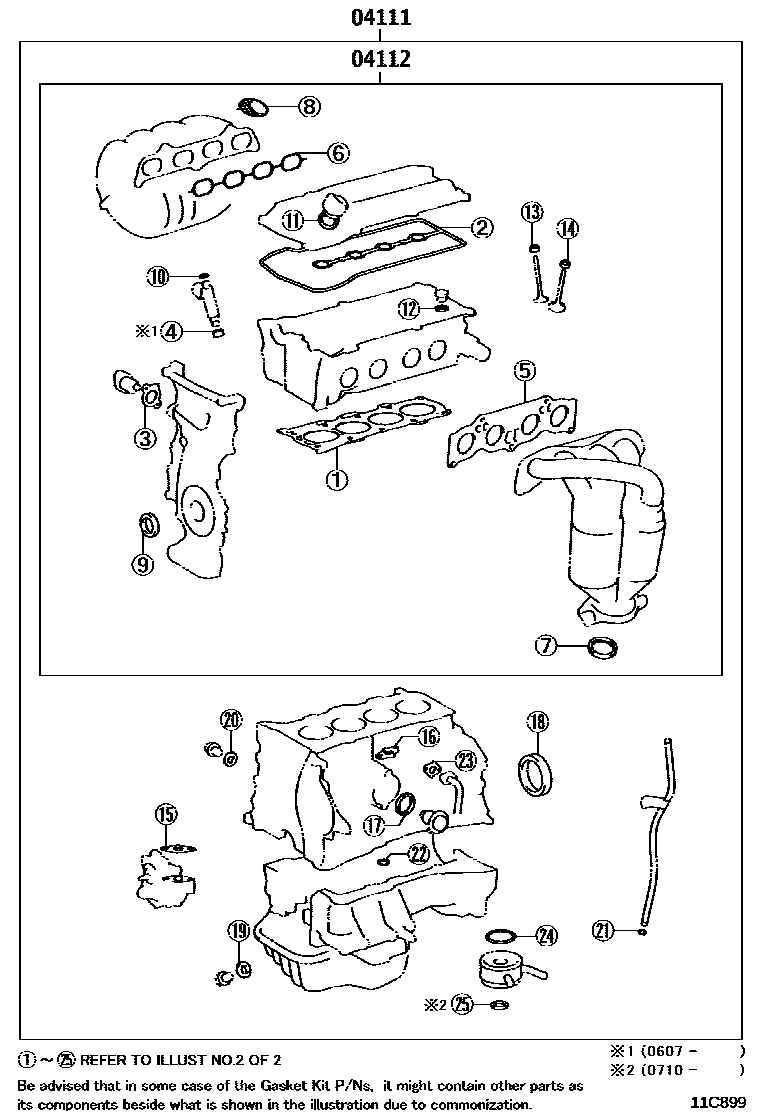

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C899
Engine Overhaul Gasket Kit — 11C899 (200601 – 201109)

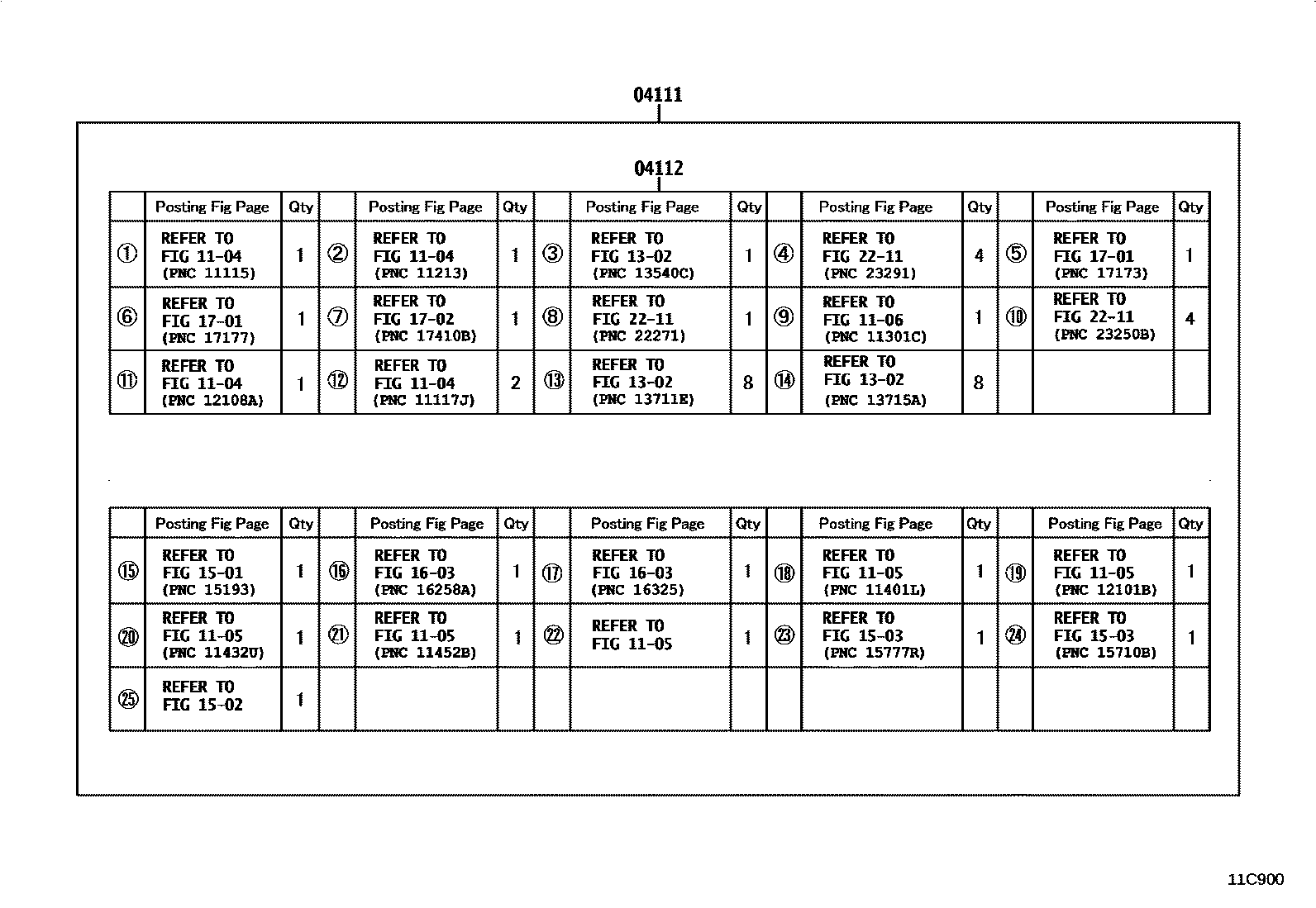

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C900
Engine Overhaul Gasket Kit — 11C900 (200601 – 201109)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-28820 · 04111-28821 · 04111-28822 · 04111-28823 · 04111-31440 · 04111-31441 · 04111-31442 · 04111-31443
04112Engine valve grinding pad assembly04112-28570 · 04112-28571 · 04112-28572 · 04112-28573 · 04112-31270 · 04112-31271 · 04112-31272 · 04112-31273
