Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

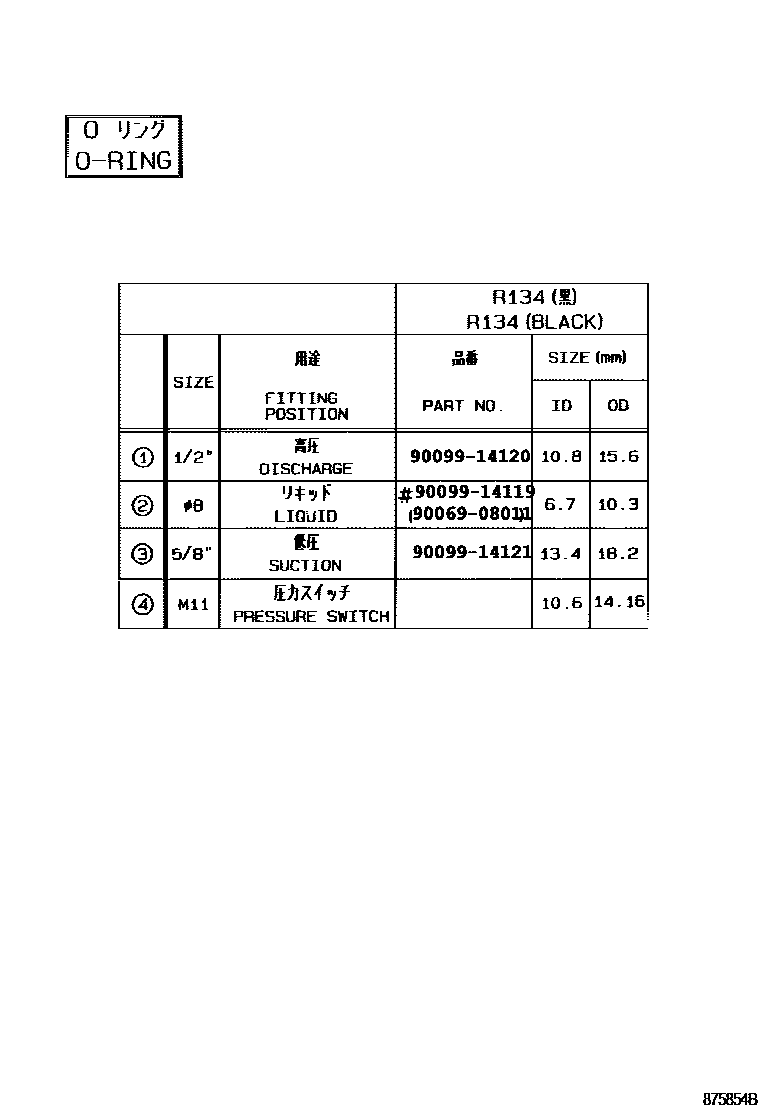

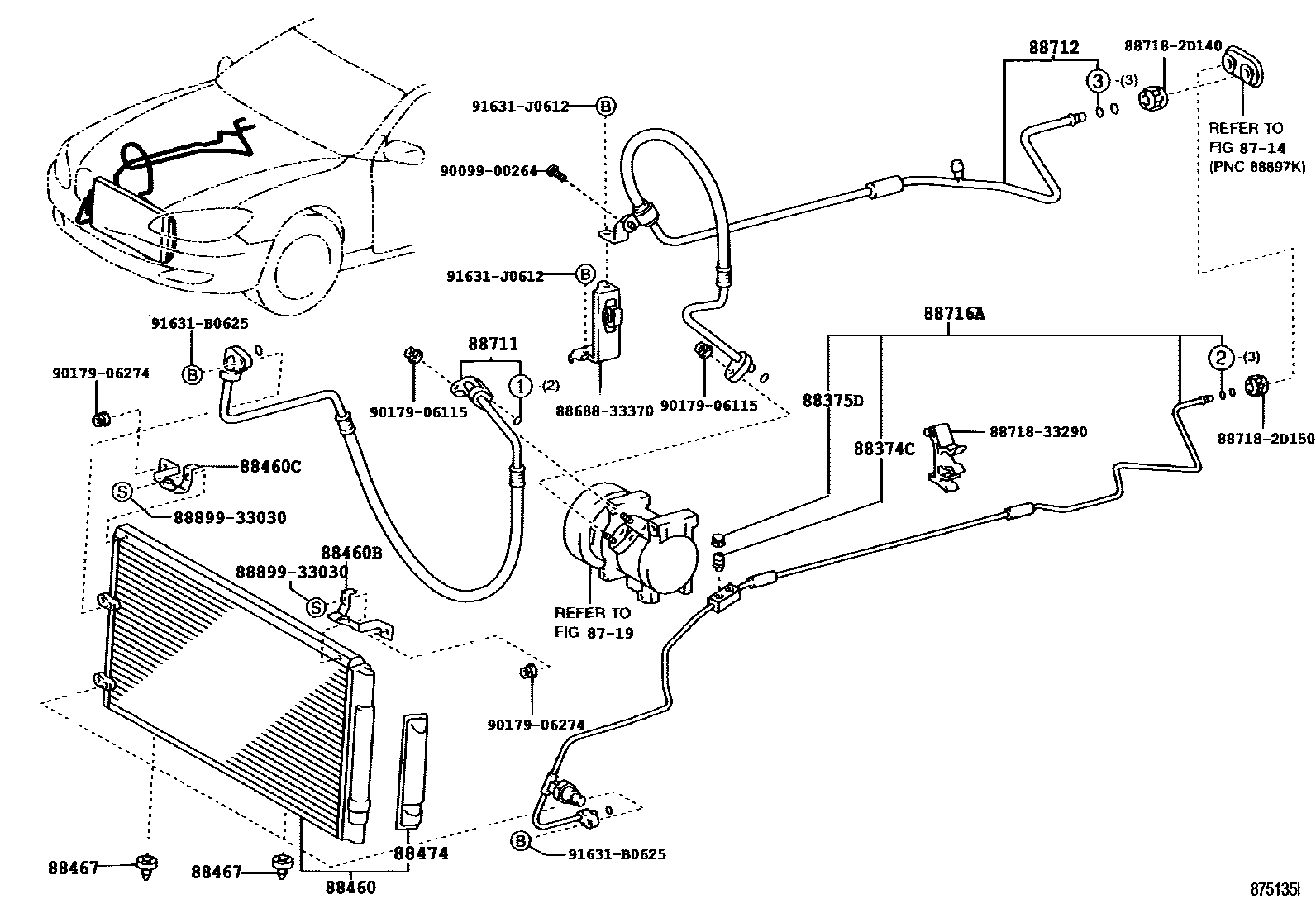

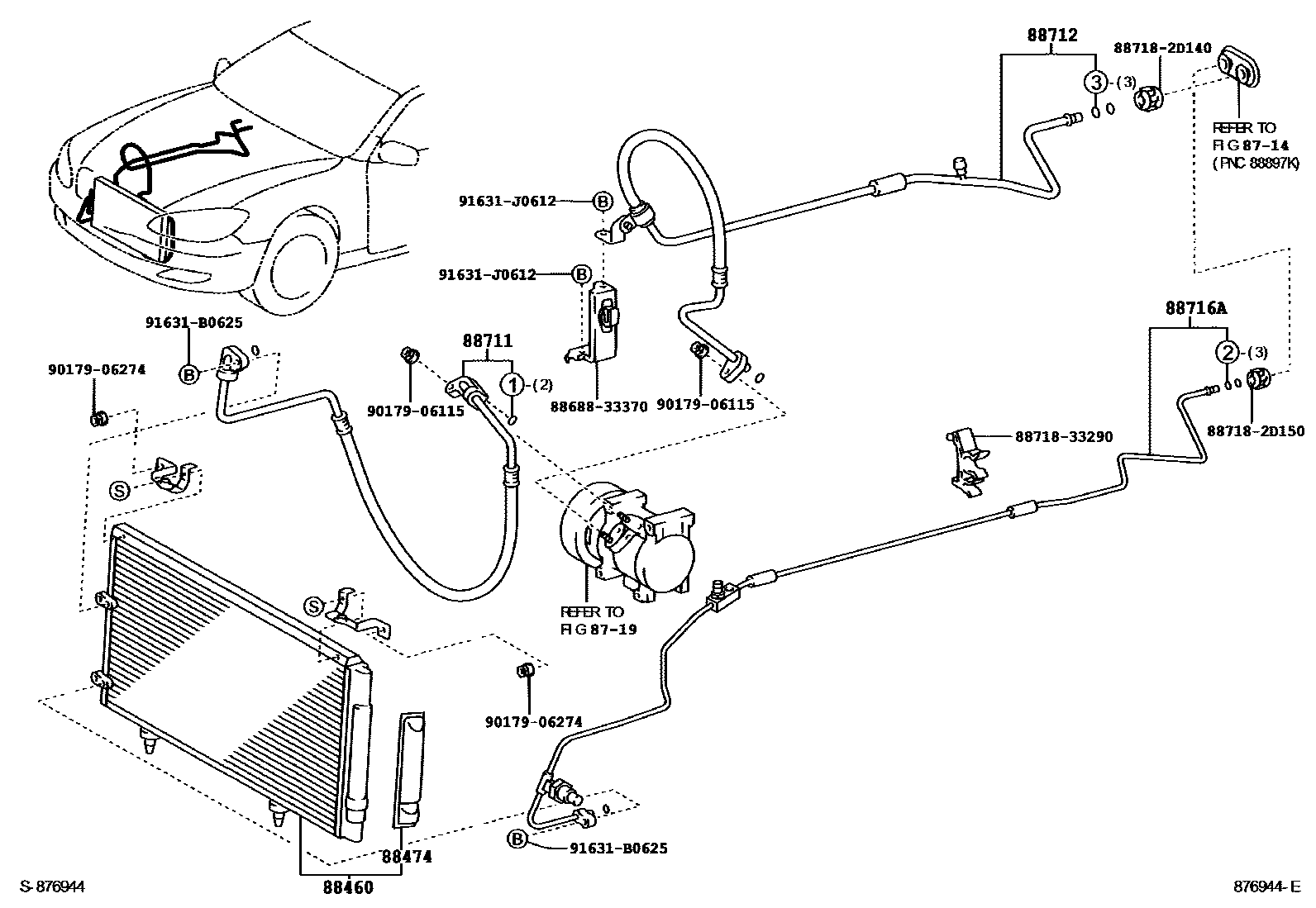

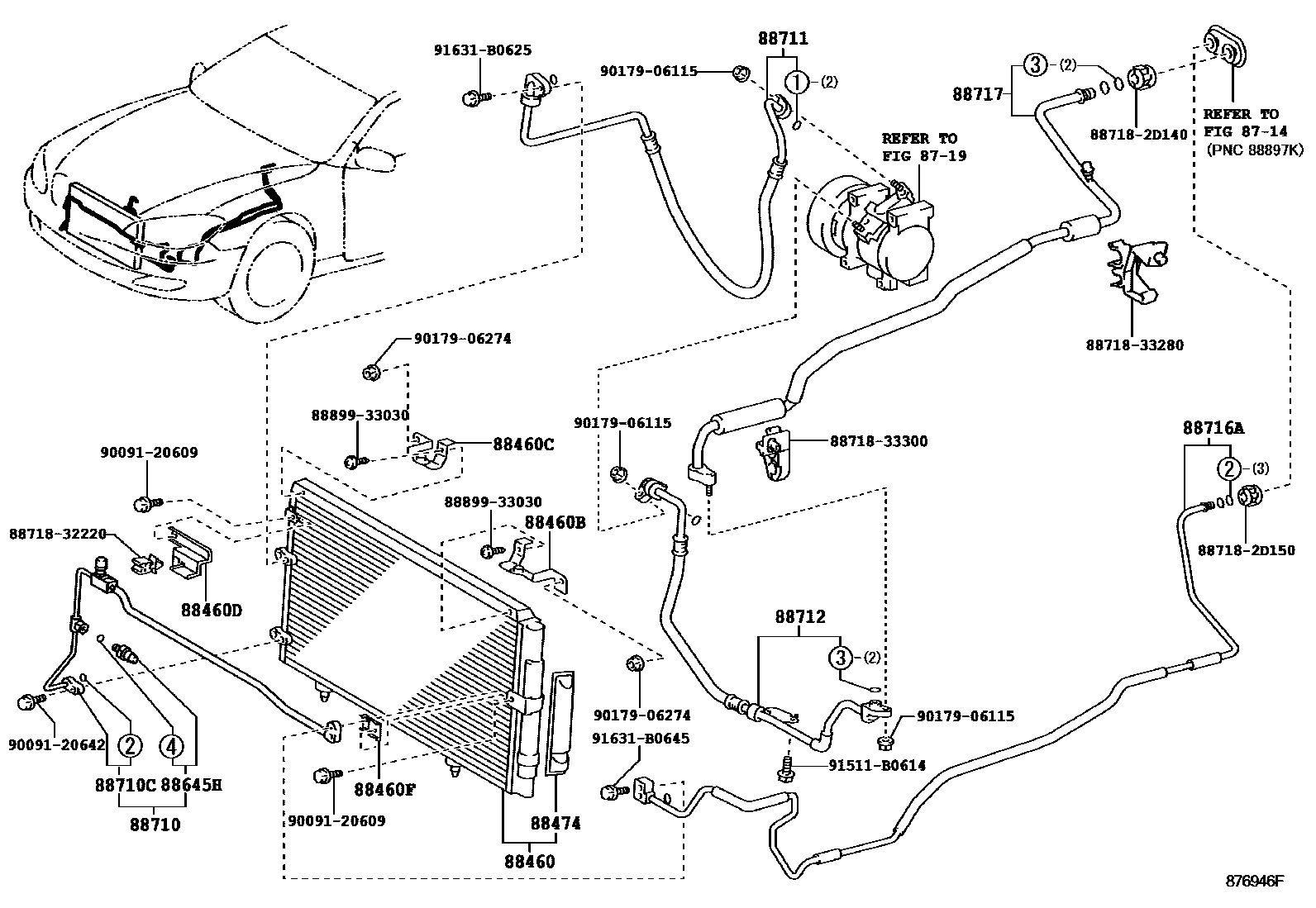

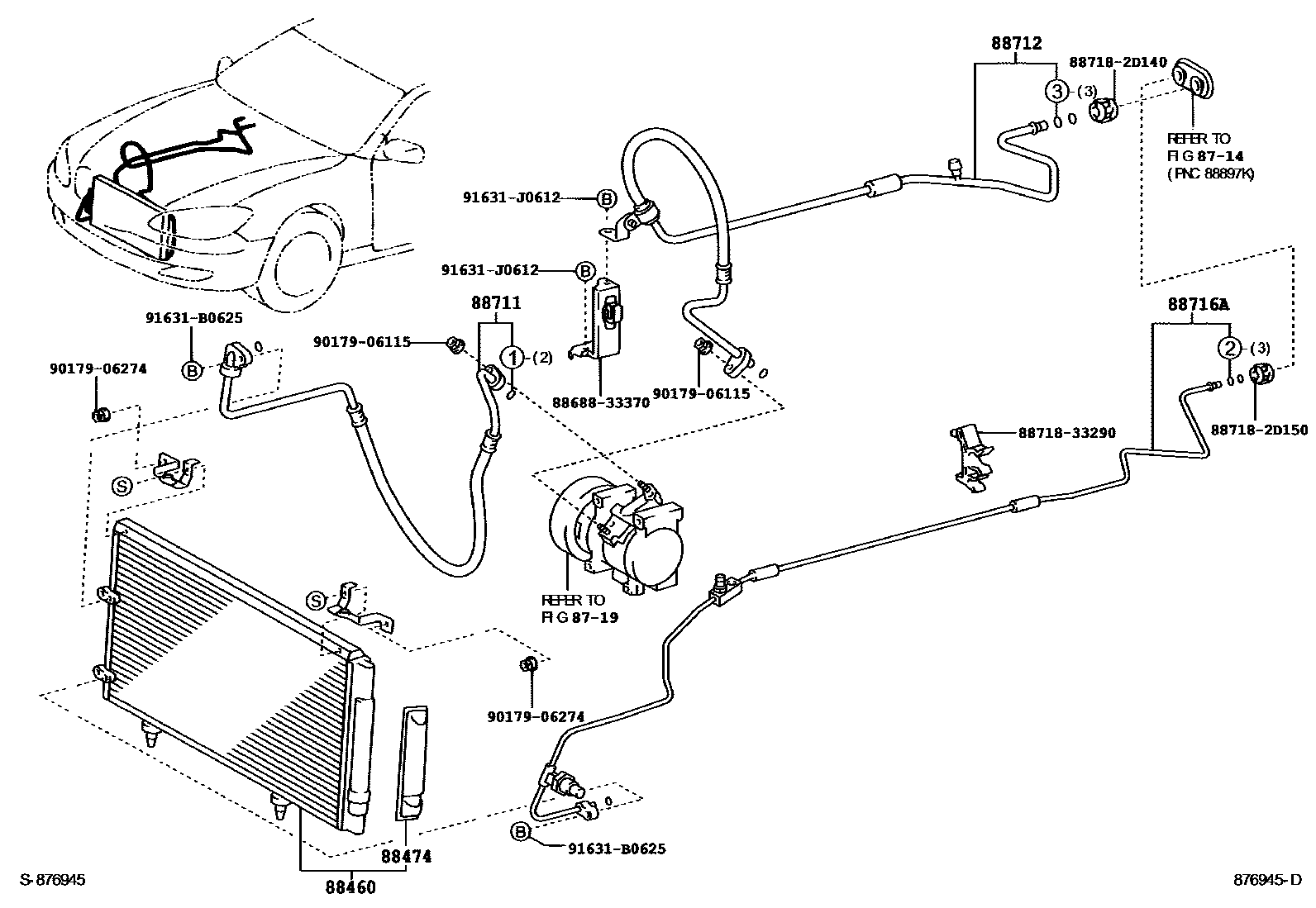

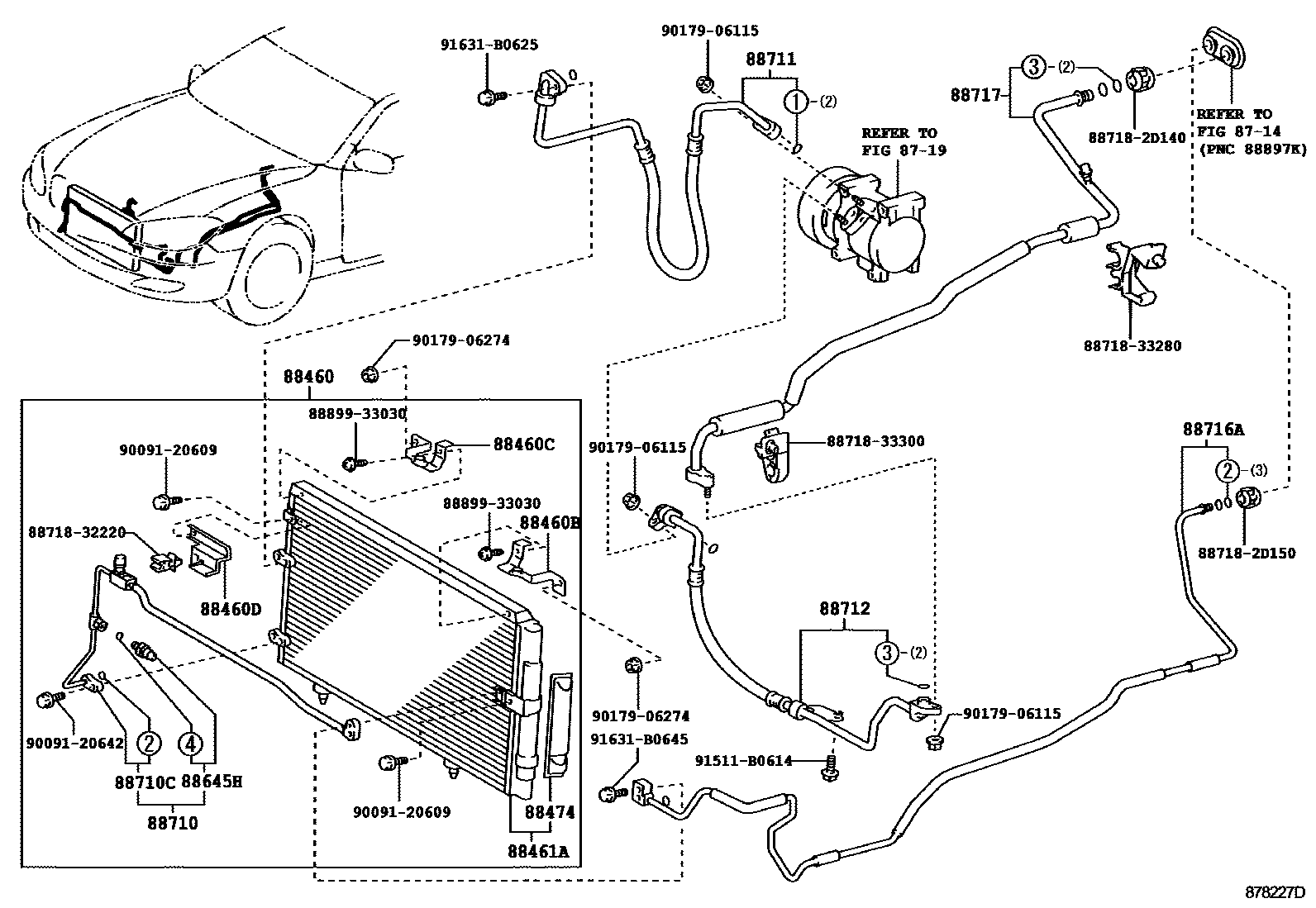

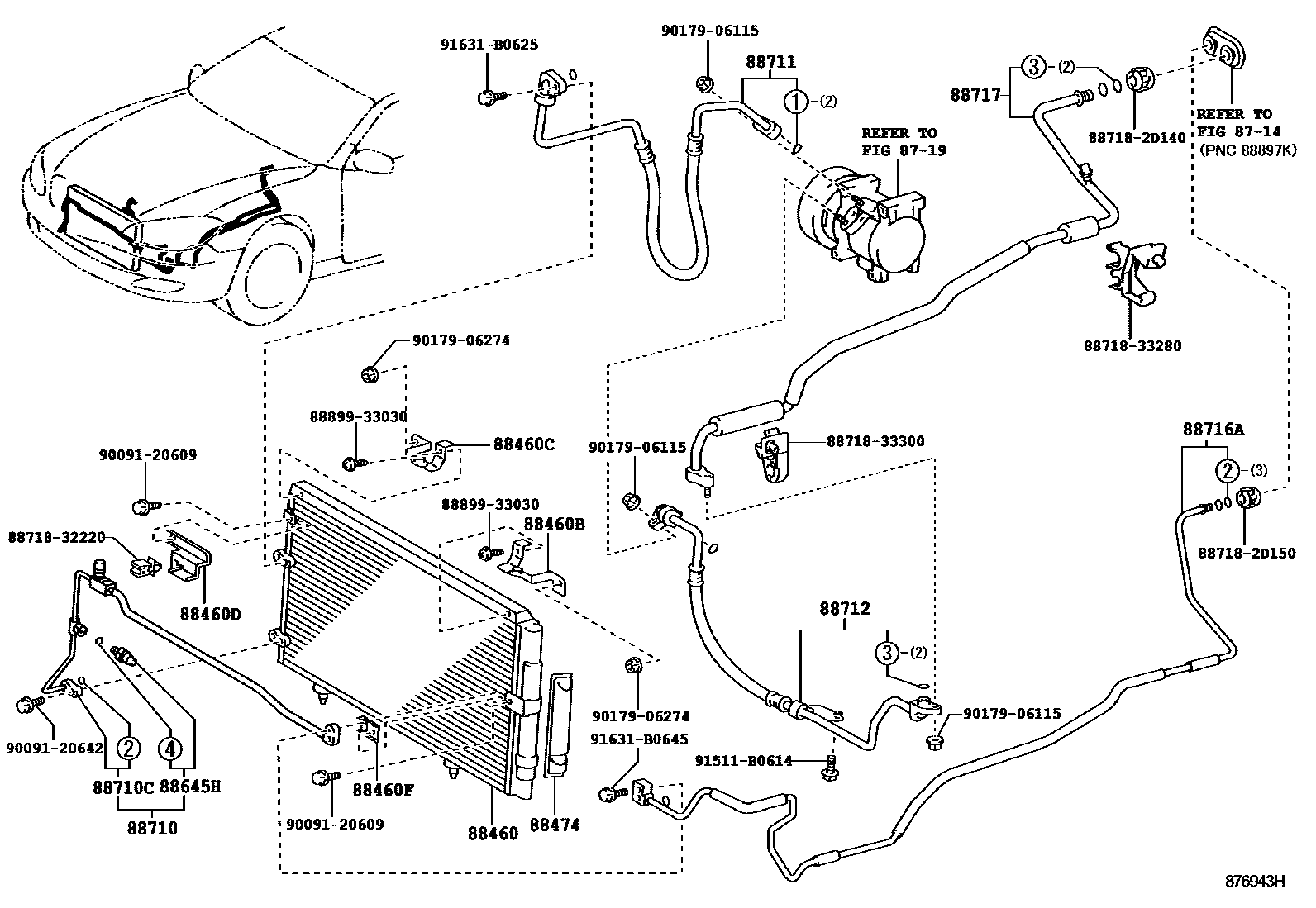

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-06140 · 88460-0W020 · 88460-0W040 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-06120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-06140 |
| 88460D | No. 3 air conditioner condenser bracket | 88688-33390 |
| 88460F | No. 4 air conditioner condenser bracket | 88688-33490 |
| 88461A | Air conditioning condenser core | 88461-06070 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-06060 · 88467-33050 |
| 88474 | cooler dryer | 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-08010 |
| 88710 | Air conditioning pipe assembly | 88710-33300 |
| 88710C | Air conditioning pipe assembly | 88716-33390 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33160 · 88711-33170 · 88711-33180 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-33260 · 88704-33270 · 88704-33280 · 88704-33290 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-33260 · 88716-33370 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88710-33251 |
