Toyota CAMRY antenna — Figure 8604

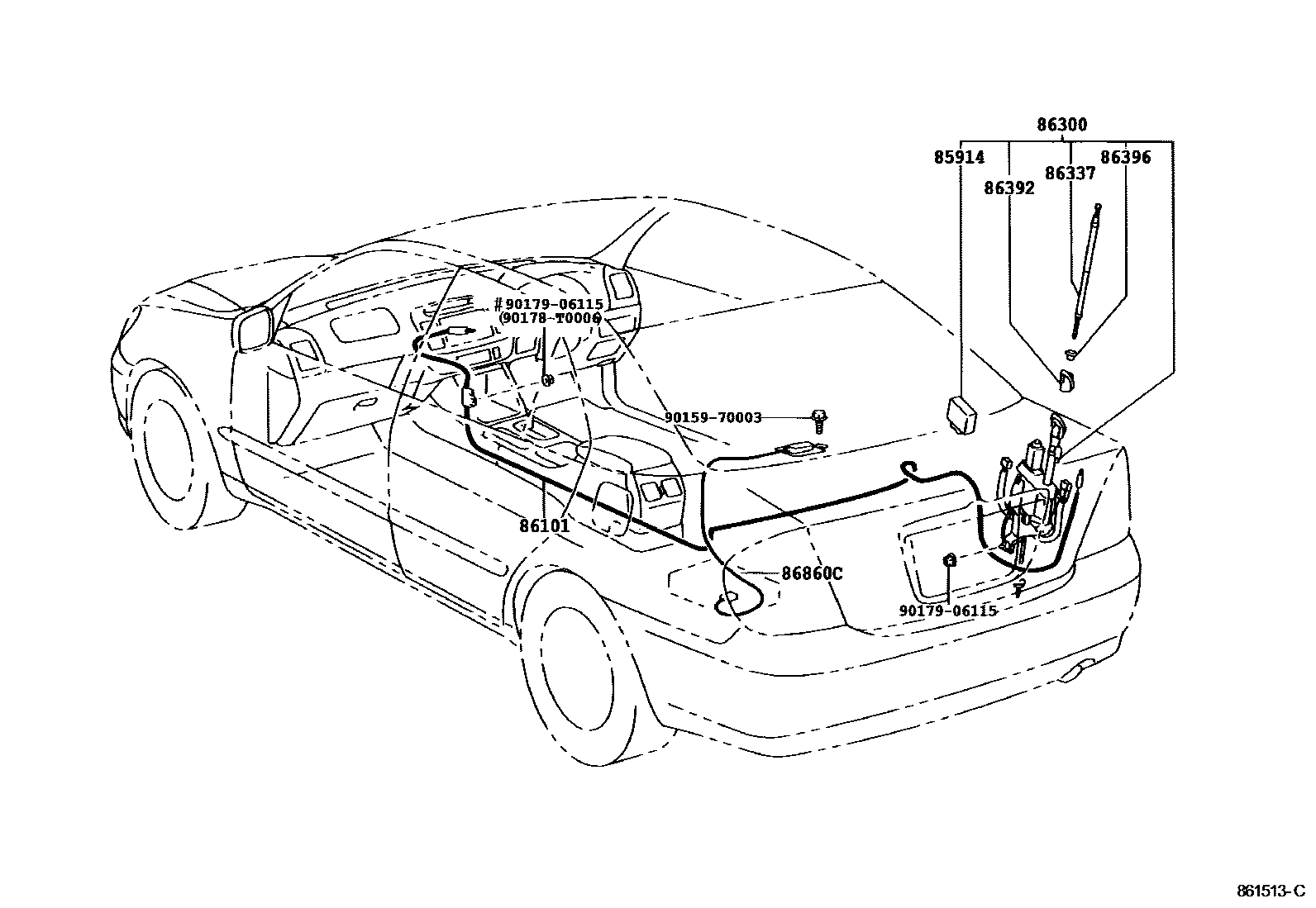

Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-33020 |
| 86101 | Antenna wire sub-assembly | 86101-33340 · 86101-33360 · 86101-33470 · 86101-33480 |
| 86300 | Antenna assembly with fixing parts | 86300-33230 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-33230 |
| 86392 | Antenna decorative parts | 86392-33060 |
| 86396 | Antenna nut | 86396-20030 |
| 86860C | Navigation antenna assembly | 86860-33050 · 86860-33080 |
