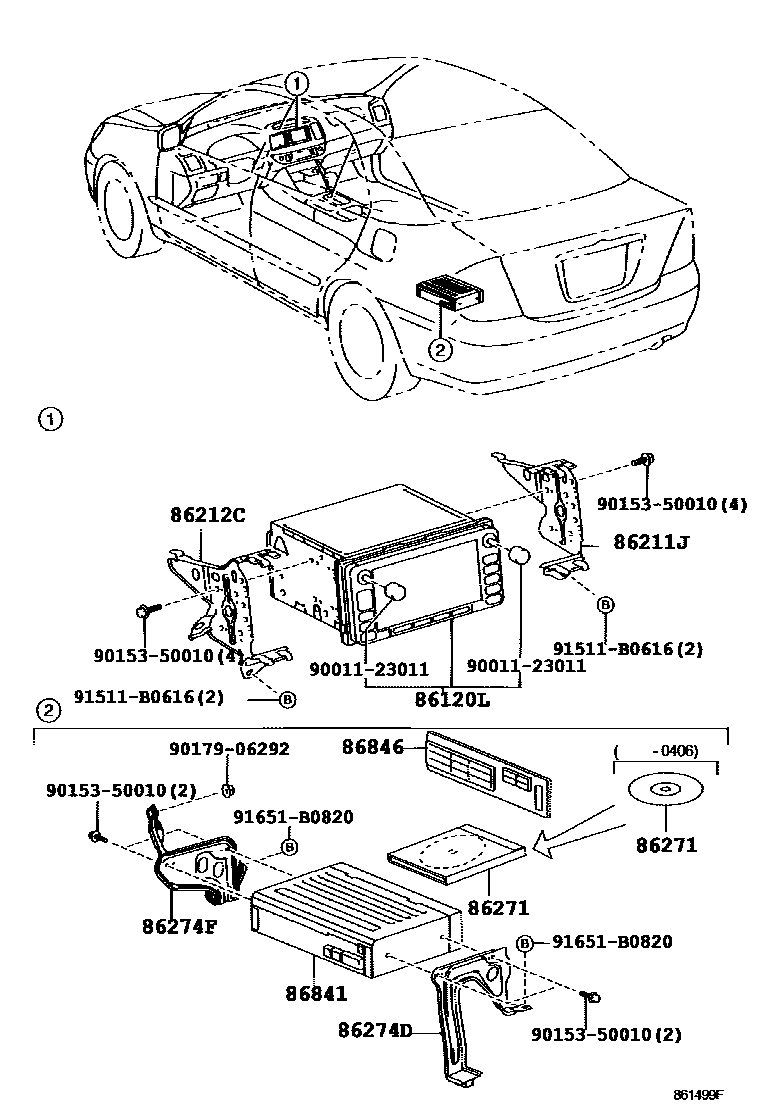

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-33420 · 86120-33421 · 86120-33610 · 86120-33660 |
| 86211J | No. 1 radio bracket | 86211-33150 |
| 86212C | No. 2 radio bracket | 86212-33150 |
| 86271 | CD | 86271-24120 · 86271-24121 · 86271-64010 · 86271-64011 · 86807-0N010 · 86807-0N011 · 86807-0N012 · 86807-0N013 |
| 86274D | CD player stand | 86274-33190 |
| 86274F | No. 2 CD player stand | 86274-33200 |
| 86841 | Navigation ECU | 86841-13020 · 86841-33090 |
| 86846 | Navigation ECU board | 86846-33020 |
