Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

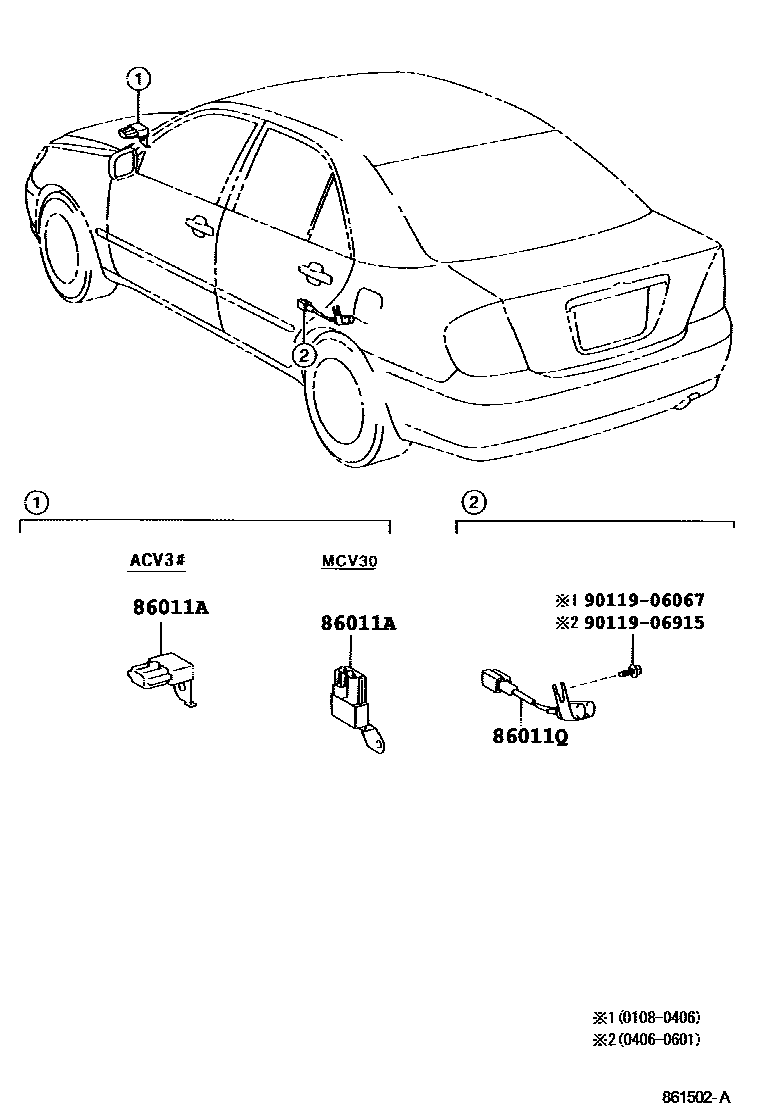

| 86011A | radio settings phase modulator | 90980-04153 · 90980-04157 |
| 86011Q | radio settings phase modulator | 90980-04129 |

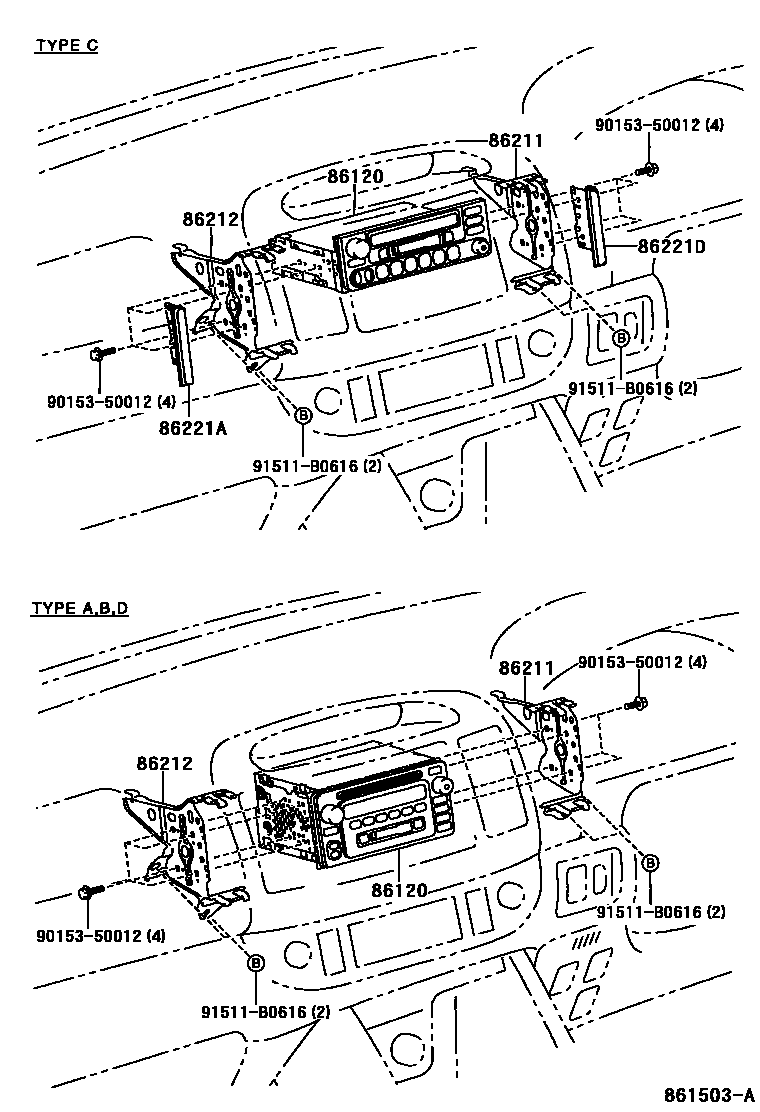

| 86120 | Radio assembly | 86120-28351 · 86120-28382 · 86120-28470 · 86120-33440 · 86120-33450 · 86120-33460 · 86120-33470 · 86120-33690 · 86120-33700 · 86120-44090 |

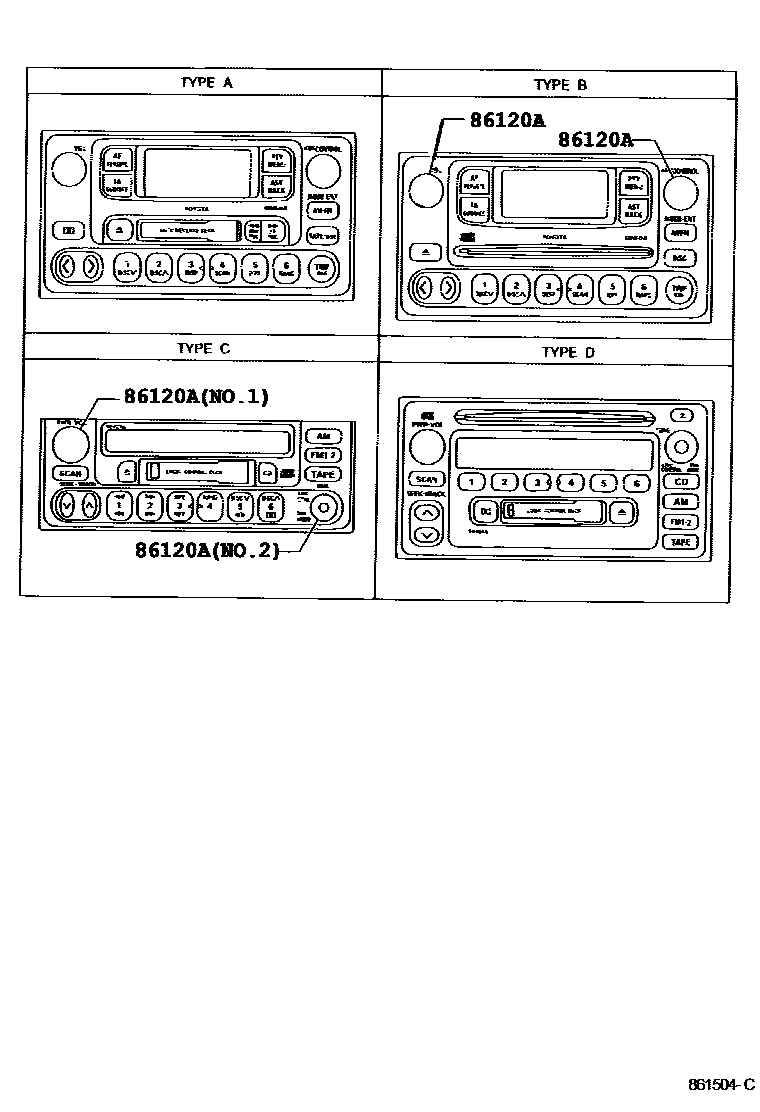

| 86120A | Radio switch knob | 90010-24103 · 90010-24104 · 90010-24118 |
| 86211 | No. 1 radio bracket | 86211-33160 |
| 86212 | No. 2 radio bracket | 86212-33160 |
| 86221A | radio panel | 86221-52050 |
| 86221D | radio panel | 86221-52060 |
