Toyota CAMRY 前大灯清洗器 — Figure 8505

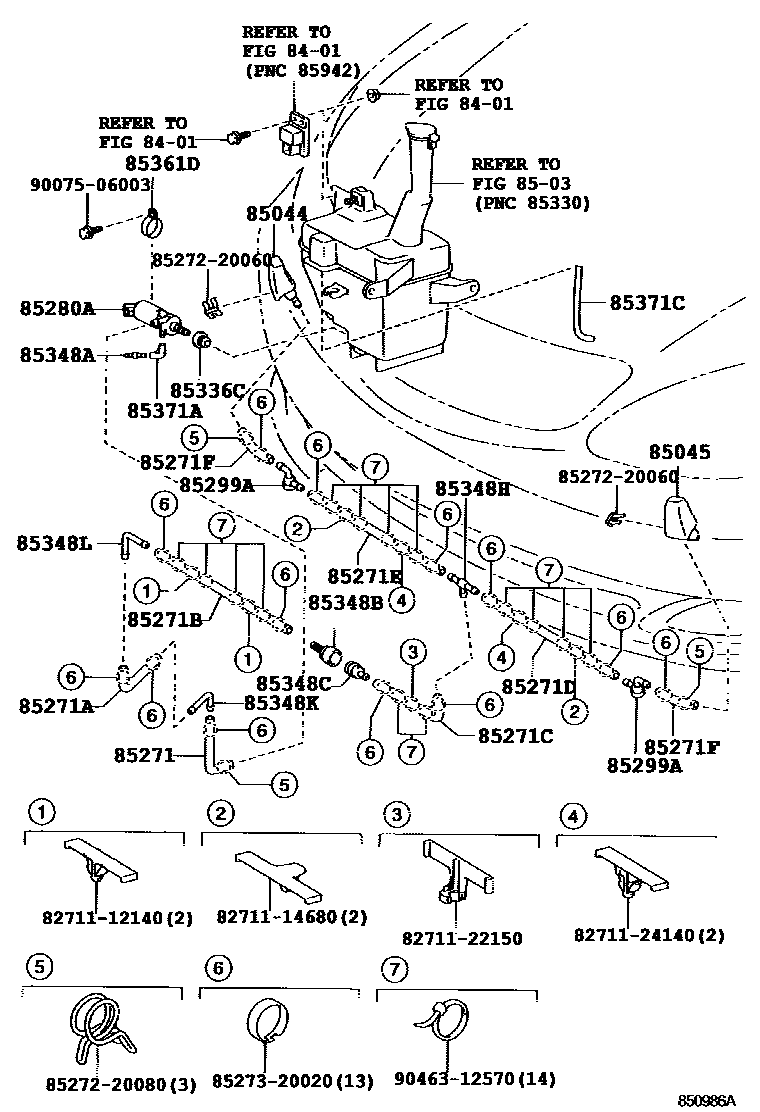

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85044-33060 · 85044-33080 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85045-33020 · 85045-33030 |
| 85271 | No. 1 headlight washer hose | 85375-89133 |
| 85271A | No. 2 headlight washer hose | 85375-14400 · 85375-89133 |
| 85271B | No. 3 headlight washer hose | 85275-33050 |
| 85271C | No. 4 headlight washer hose | 85378-89140 |
| 85271D | No. 5 headlight washer hose | 85276-20590 · 85375-22070 |
| 85271E | No. 6 headlight washer hose | 85271-87706 · 85375-22061 |
| 85271F | No. 7 headlight washer hose | 85275-42010 |
| 85280A | Headlight washer motor and pump assembly | 85280-50020 |
| 85299A | One-way valve assembly | 85299-33020 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85348A | Headlight washer hose connector No. 1 | 85349-89122 |
| 85348B | No. 2 headlight washer hose connector | 85279-33050 |
| 85348C | No. 3 headlight washer hose connector | 85279-33040 |
| 85348H | No. 4 headlight washer hose connector | 85352-12010 |
| 85348K | No. 1 headlight washer elbow joint | 85379-95A09 |
| 85348L | No. 2 headlight washer elbow joint | 85379-95A09 |
| 85361D | No. 2 headlight washer bracket | 85361-33020 |
| 85371A | Headlight washer hose (from motor to connector) | 85336-12230 |
| 85371C | No. 1 headlight washer hose | 85359-60120 |
