Toyota CAMRY 空气囊 — Figure 8421

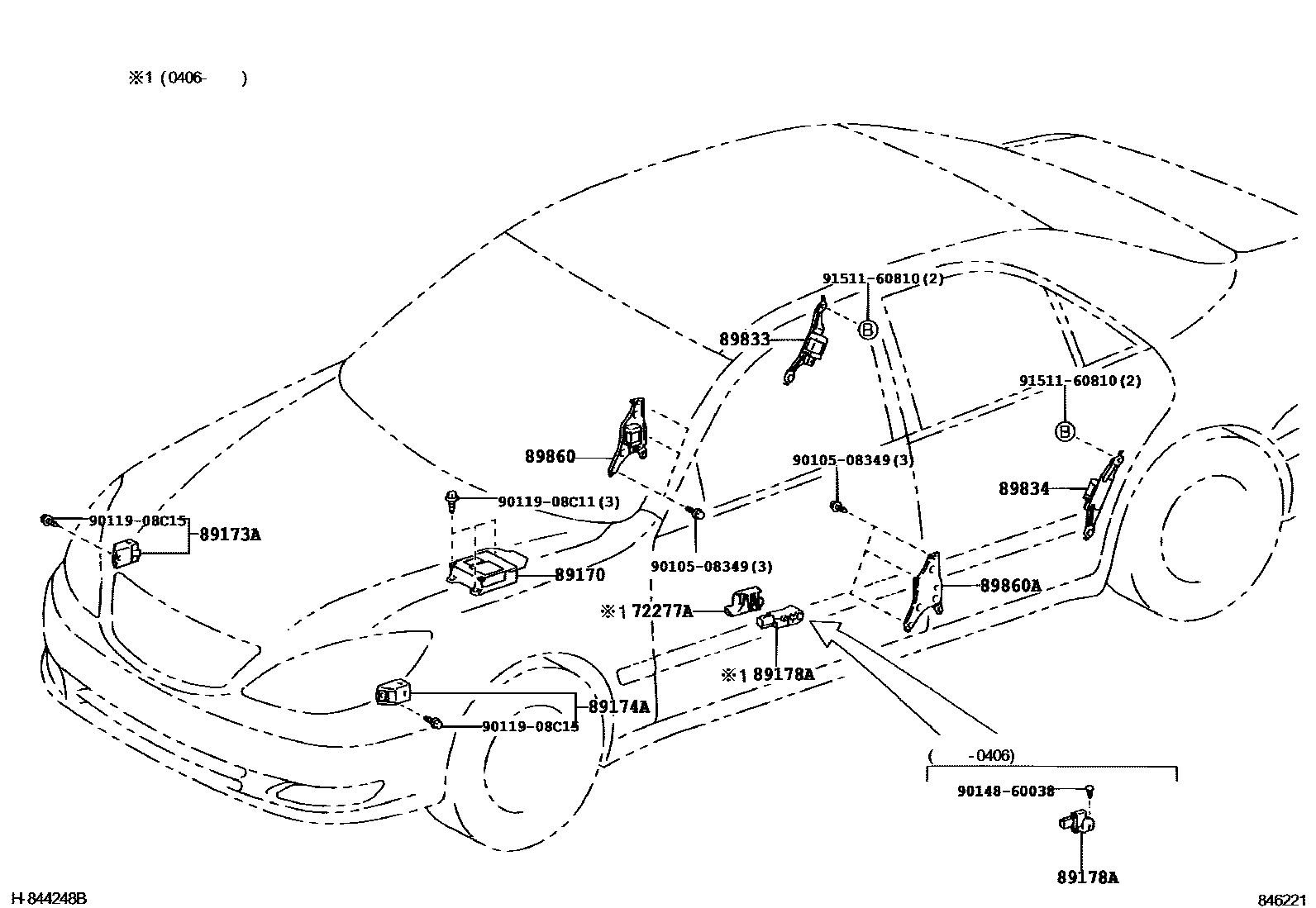

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-33010 · 72277-33021 |
| 89170 | air bag sensor assembly | 89170-33250 · 89170-33260 · 89170-33270 · 89170-33340 · 89170-33450 · 89170-33460 |
| 89173A | Right front air bag sensor | 89173-09110 |
| 89174A | Left front air bag sensor | 89173-09110 |
| 89178A | Seat position air bag sensor | 89178-06020 · 89178-33040 · 89178-33050 |
| 89833 | Right rear air bag sensor | 89833-33010 · 89833-33040 |
| 89834 | Left rear air bag sensor | 89834-33010 · 89834-33040 |
| 89860 | Right side airbag sensor assembly | 89860-33060 · 89860-33100 |
| 89860A | Left side air bag sensor assembly | 89830-33060 · 89830-33100 |
