Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

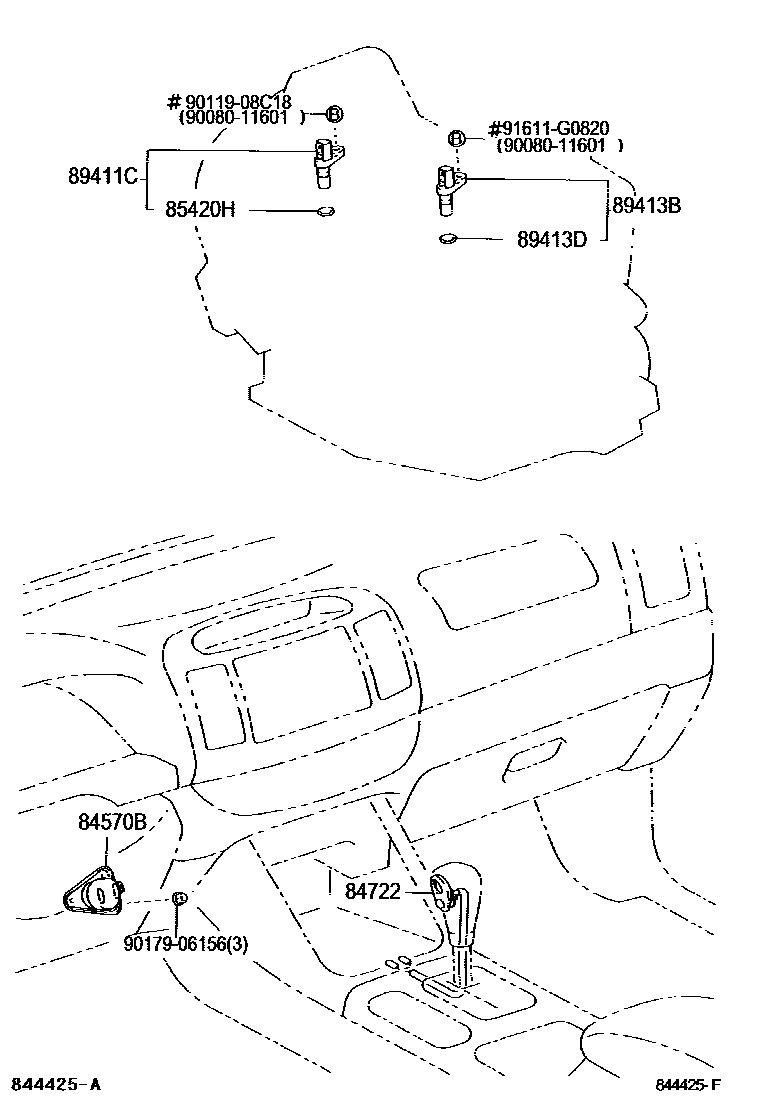

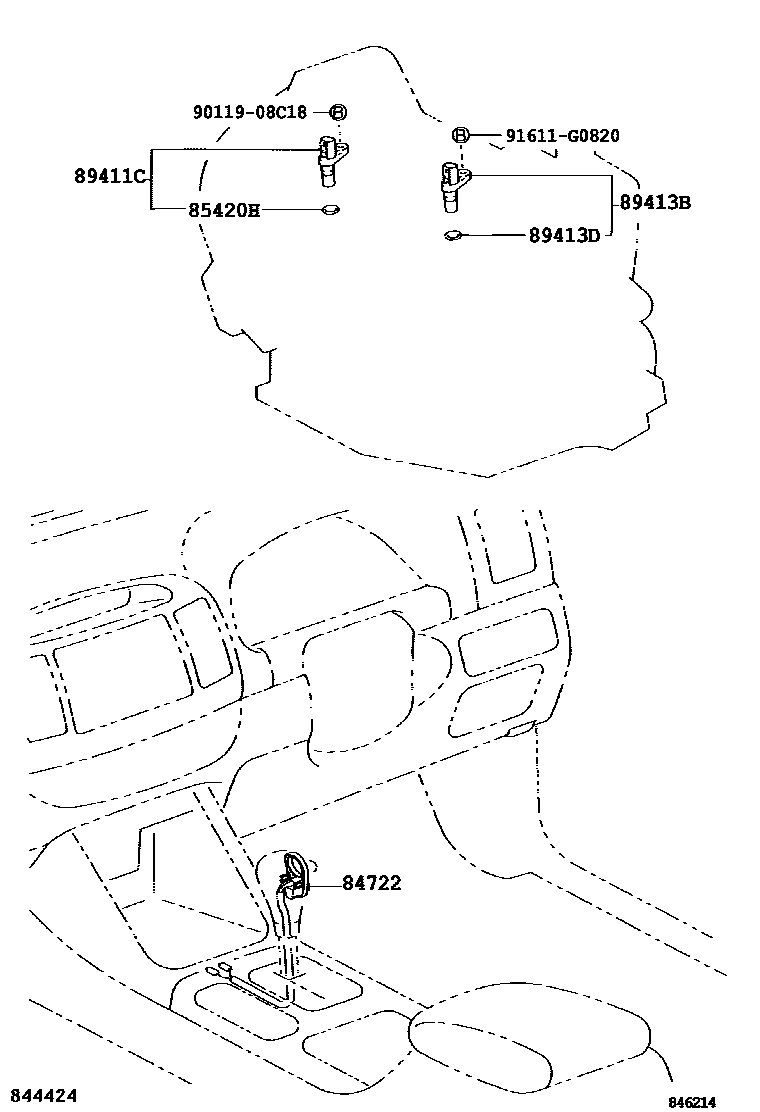

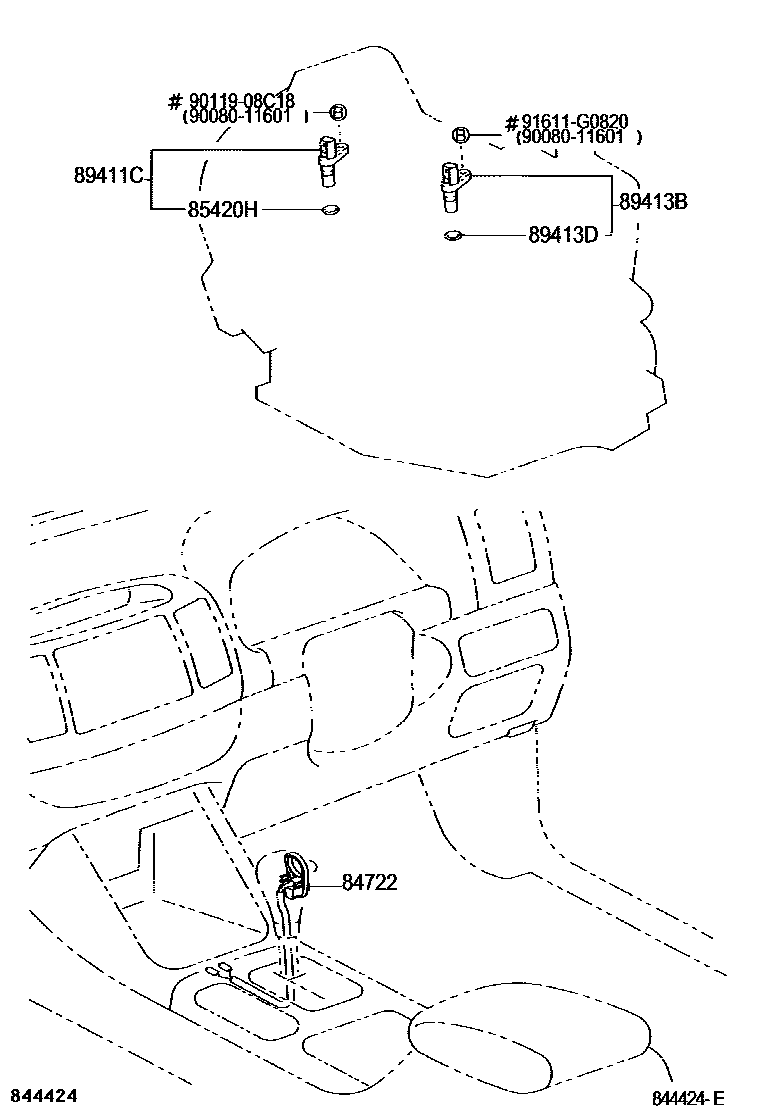

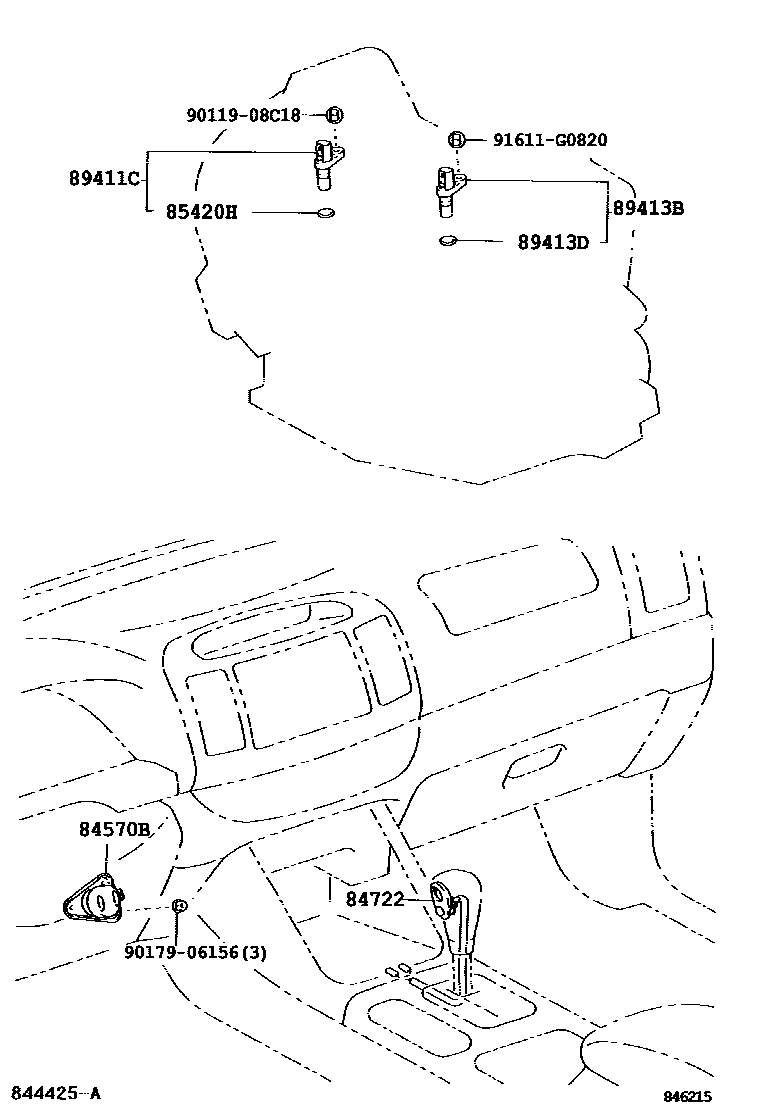

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84570B | Forced downshift switch assembly | 84570-33020 |
| 85420H | O-ring (for speed sensor) | 90301-11008 |
| 89411C | Speed sensor | 89413-08020 · 89413-24010 |
| 89413B | Transmission speed sensor | 89413-08020 · 89413-24010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
