Toyota CAMRY 电子燃油喷射系统 — Figure 8404

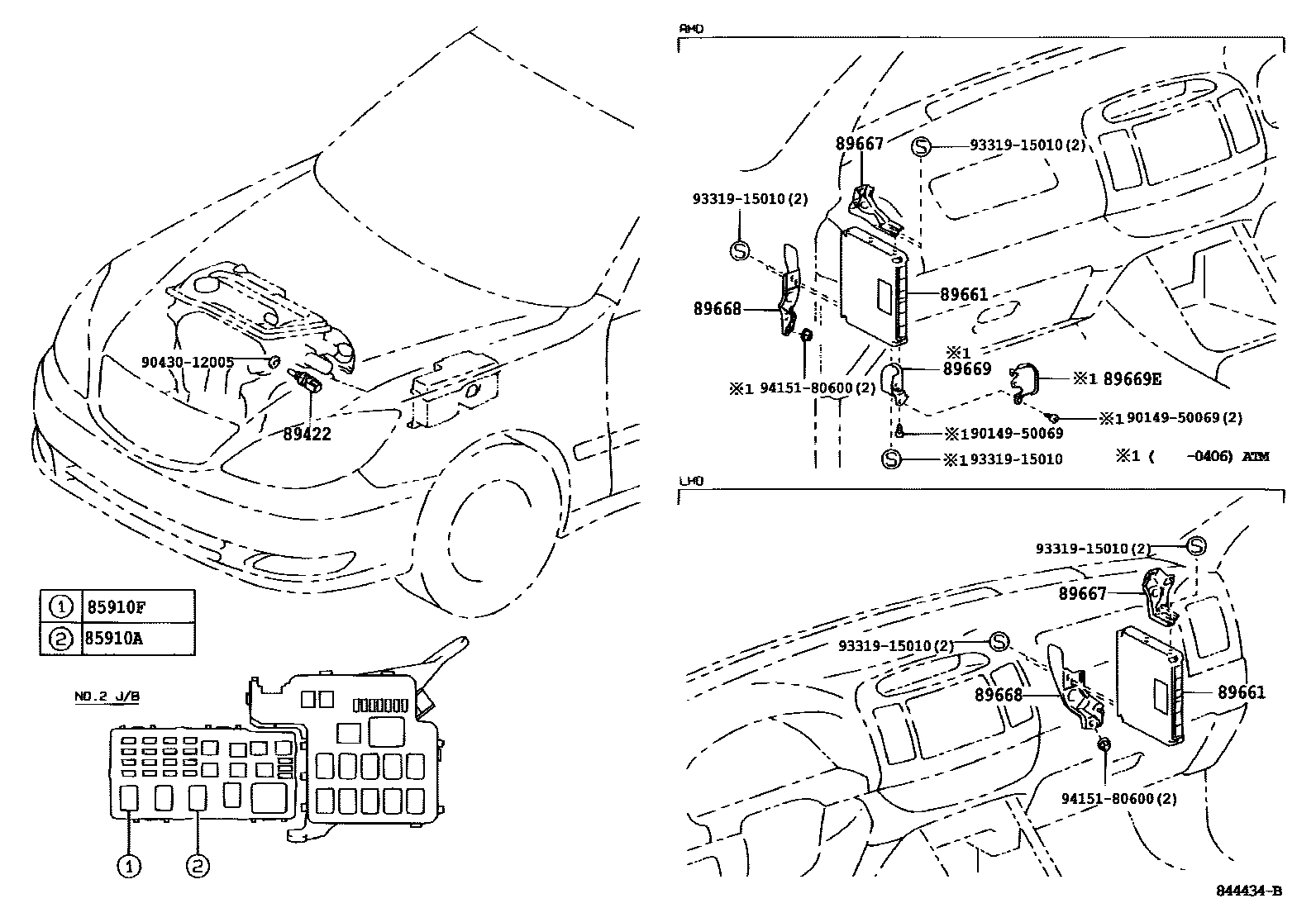

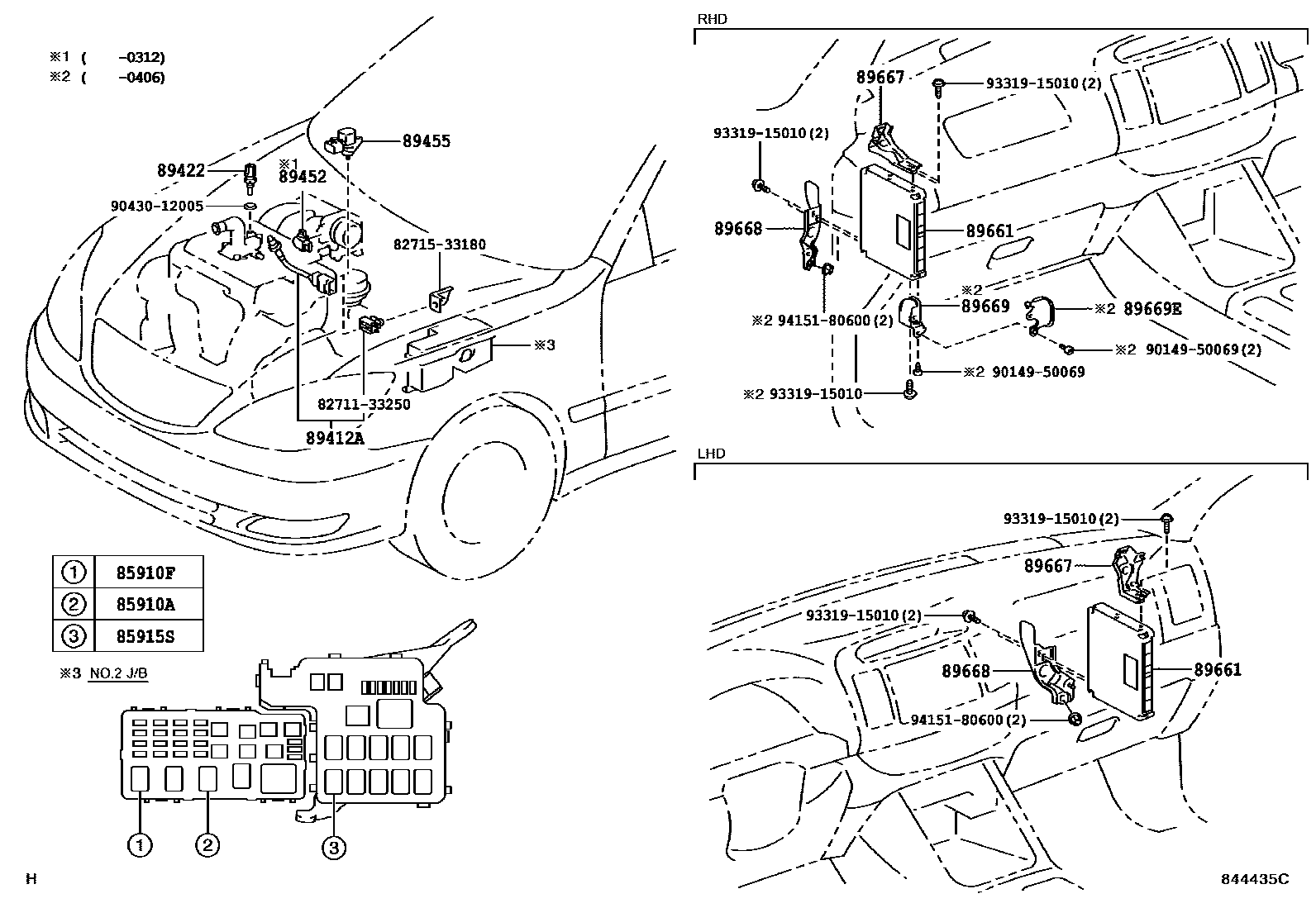

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 · 90987-02027 |
| 85910F | ECU relay (for EFI) | 90987-02012 · 90987-02027 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02012 · 90987-02027 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-33050 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-06010 · 89422-16010 · 89422-33020 · 89422-33030 · 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-30150 |
| 89455 | EGR valve position sensor | 89455-33020 |
| 89661 | Engine control ECU | 89661-33D30 · 89661-33D40 · 89661-3T560 · 89661-3T570 · 89661-3T580 · 89661-3T590 · 89661-3T610 · 89661-3T640 · 89661-3T650 · 89661-3T670 · 89661-3T671 · 89661-3T673 · 89661-3T690 · 89661-3T691 · 89661-3T700 · 89661-3T701 · 89661-3T703 · 89661-3T710 · 89661-3T711 · 89661-3T712 |
| 89667 | Engine control ECU bracket | 89667-33120 · 89667-33130 |
| 89668 | No. 2 engine control ECU bracket | 89668-33140 · 89668-33150 |
| 89669 | No. 3 engine control ECU bracket | 89669-33010 |
| 89669E | No. 4 engine control ECU bracket | 89669-33020 |
