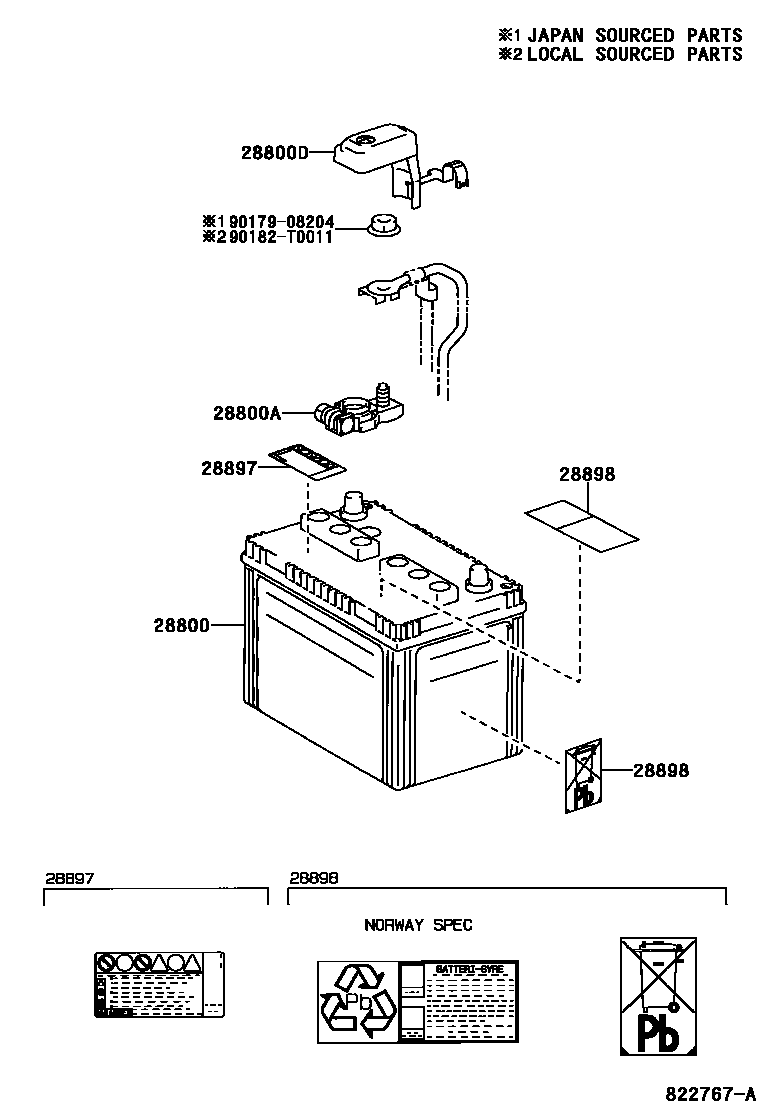

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-16151 · 28800-43262 · 28800-64132 |
| 28800A | battery positive terminal | 90982-05054 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 |
| 28897 | Battery warning nameplate | 28897-50020 · 28897-50030 |
| 28898 | battery plates | 28898-46010 · 28898-46020 |
