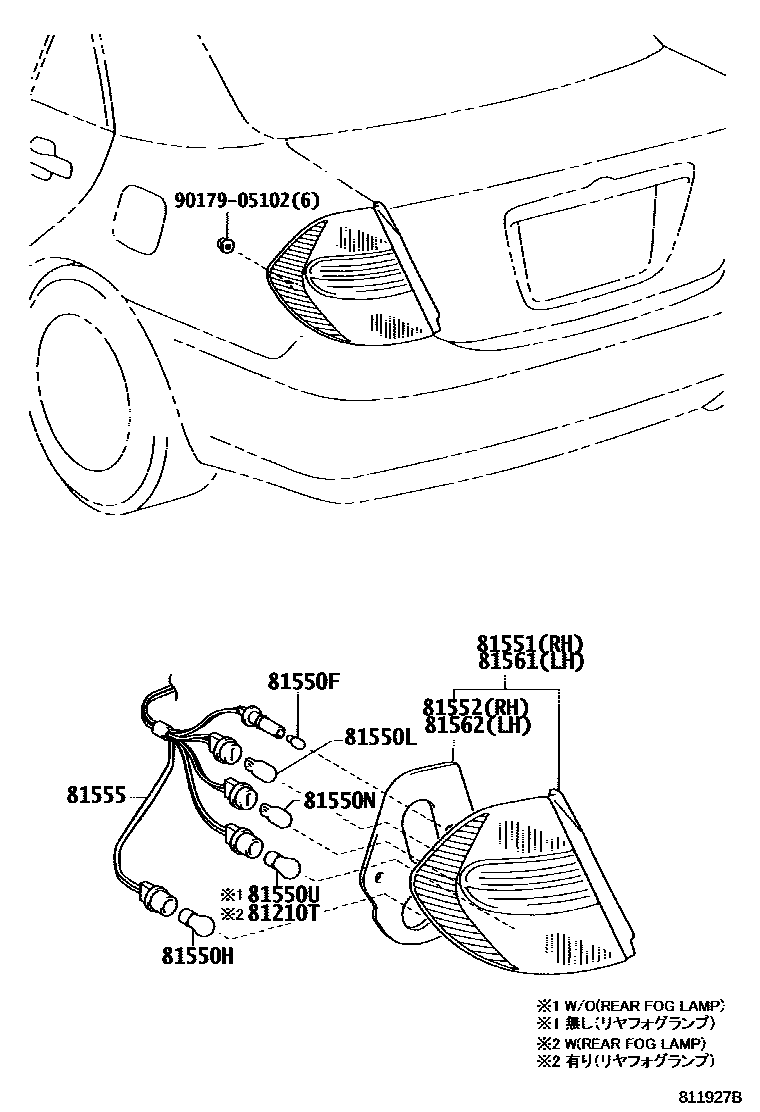

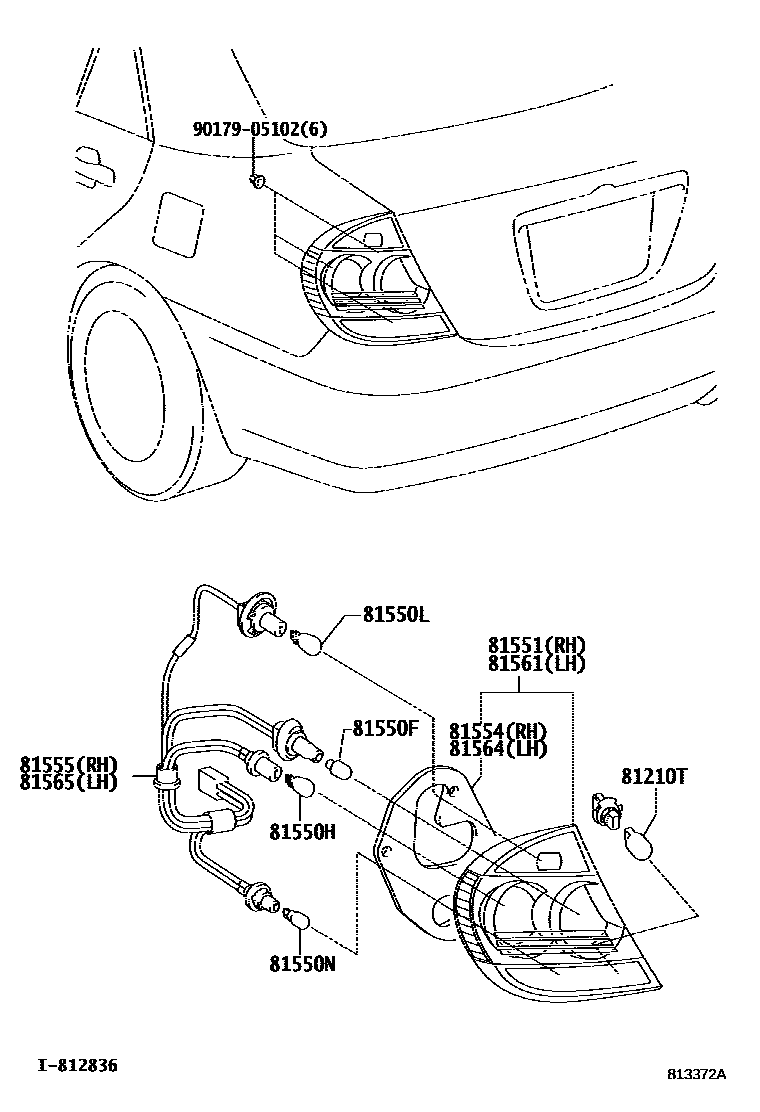

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210T | Rear fog light bulb | 90981-13043 · 90981-13044 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-11059 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550U | brake light bulb | 90981-13044 |
| 81551 | Right rear combination lamp shade | 81551-33260 · 81551-33270 · 81551-33370 · 81551-33390 |
| 81552 | Right rear combination lamp shade gasket | 81552-33260 |
| 81554 | Right rear combination lamp body gasket | 81554-33370 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33260 · 81555-33270 · 81555-33370 · 81555-33390 |
| 81561 | Left rear combination lamp shade | 81561-33260 · 81561-33270 · 81561-33340 · 81561-33360 |
| 81562 | Left rear combination lamp shade gasket | 81562-33260 |
| 81564 | Left rear combination lamp body gasket | 81564-33340 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33370 · 81555-33390 |
