Toyota CAMRY 挡泥板和扰流板 — Figure 7601

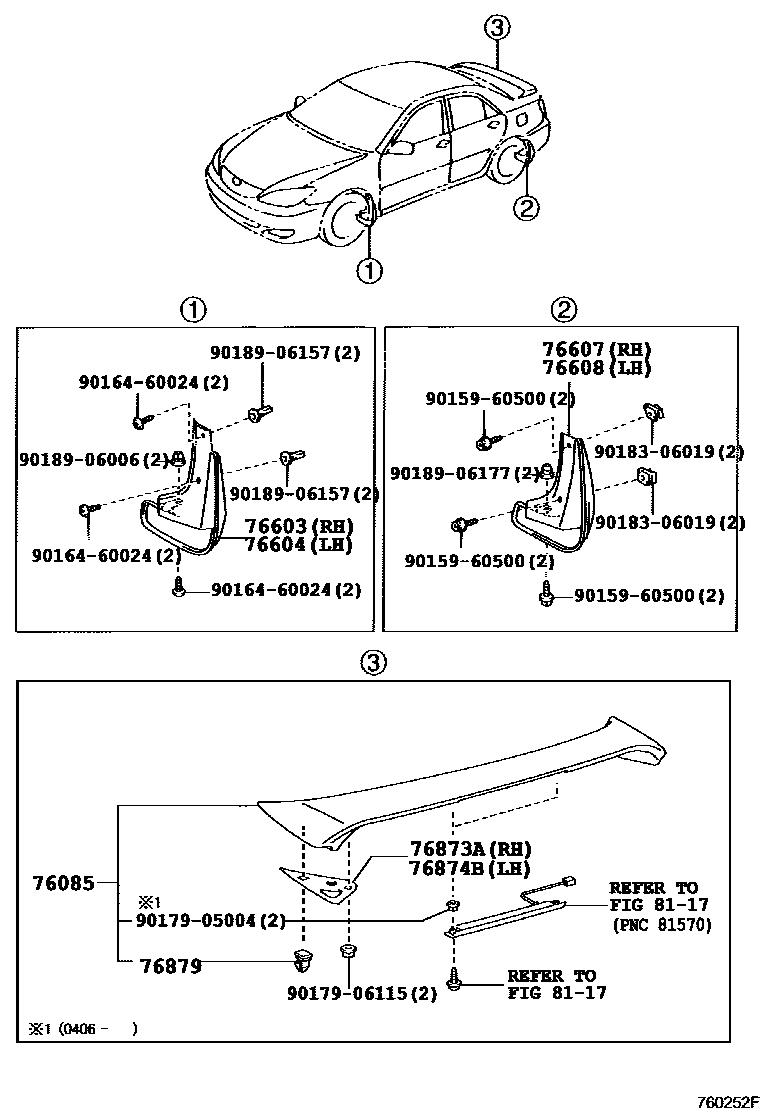

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-33090 · 76085-33091 |
| 76603 | Right front fender fender sub-assembly | 76621-33080 |
| 76604 | Left front fender fender sub-assembly | 76622-33080 |
| 76607 | Right rear side fender sub-assembly | 76625-33110 |
| 76608 | Left rear side fender sub-assembly | 76626-33110 |
| 76873A | Right rear spoiler protective strip | 76781-33010 |
| 76874B | Left rear spoiler protective strip | 76782-33010 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 |
