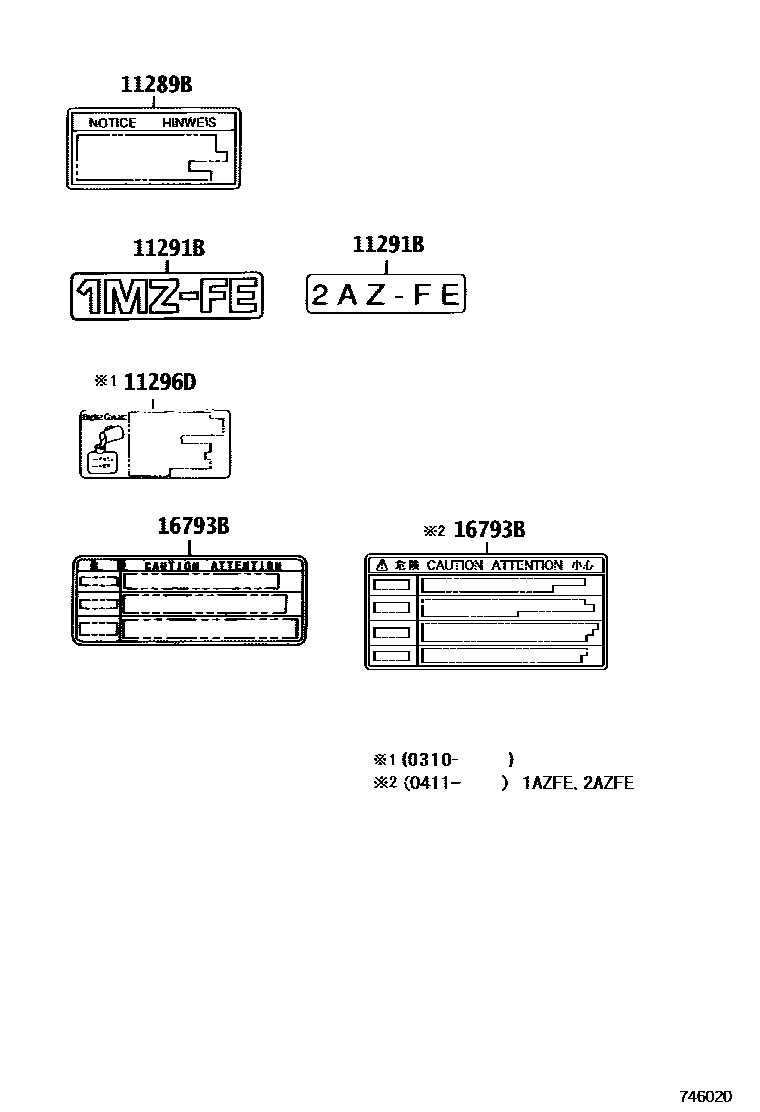

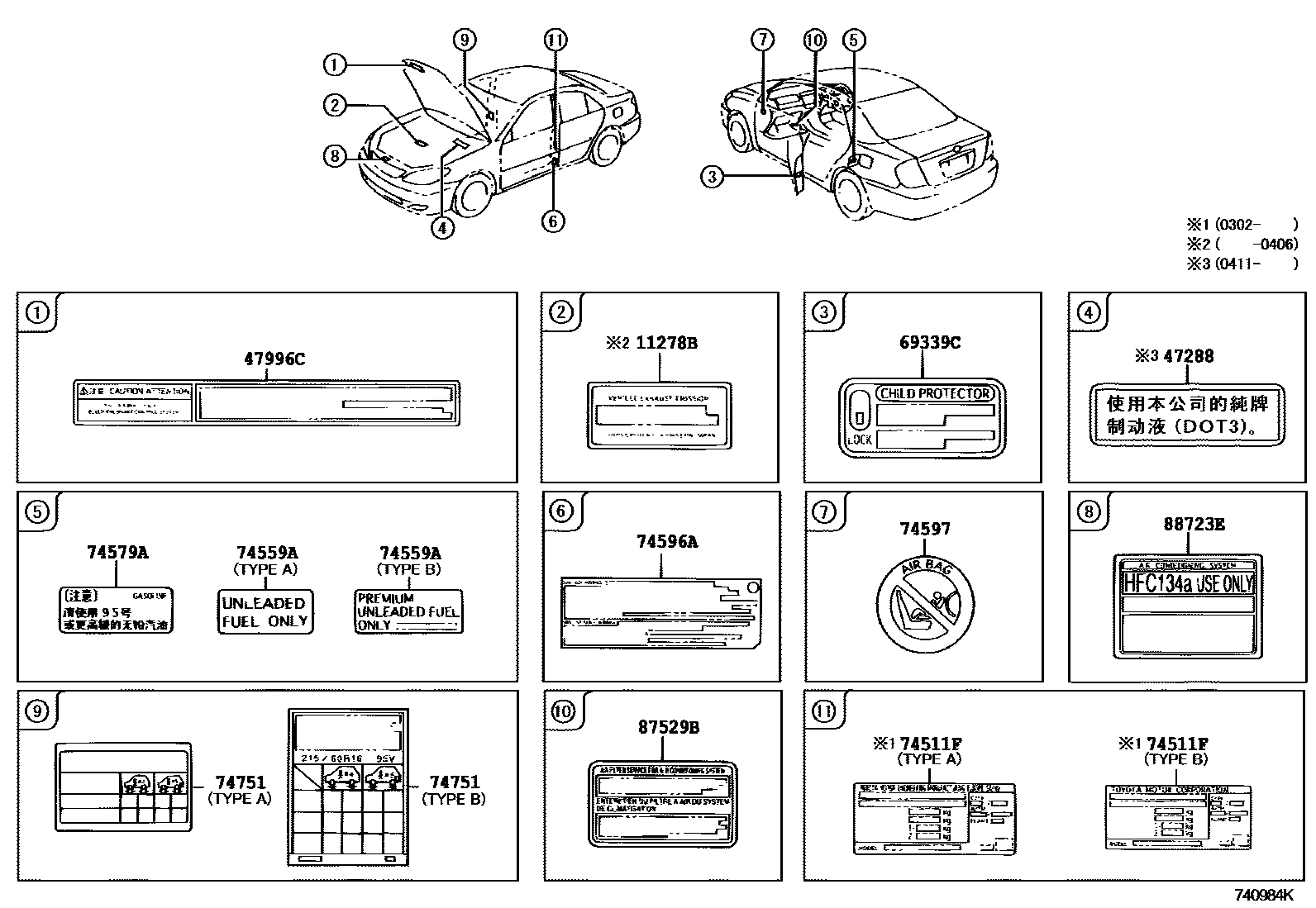

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16050 |
| 11289B | spark plug caution label | 11289-50010 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11291-20010 · 11291-28060 |
| 11296D | Engine maintenance information label | 11296-27020 |
| 16793B | Cooling fan information label | 16793-28010 · 16793-50010 |
| 47288 | Brake Fluid Caution Label | 47288-60010 |
| 47996C | Brake Bleed Warning Label | 47996-50050 |
| 69339C | Child Restraint Information Label | 69339-12010 |
| 74511F | Nameplate (laser identification label) | 74511-33030 · 74511-48010 · 74511-48020 · 74511-48030 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-50010 |
| 74579A | Unleaded Fuel Information Label | 74579-33010 |
| 74596A | Side air bag warning label | 74596-12011 · 74596-30050 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74598-20010 |
| 74751 | tire pressure information label | 42661-33300 · 42661-33580 · 42661-33590 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-28220 |
