Toyota CAMRY 扶手和遮阳板 — Figure 7401

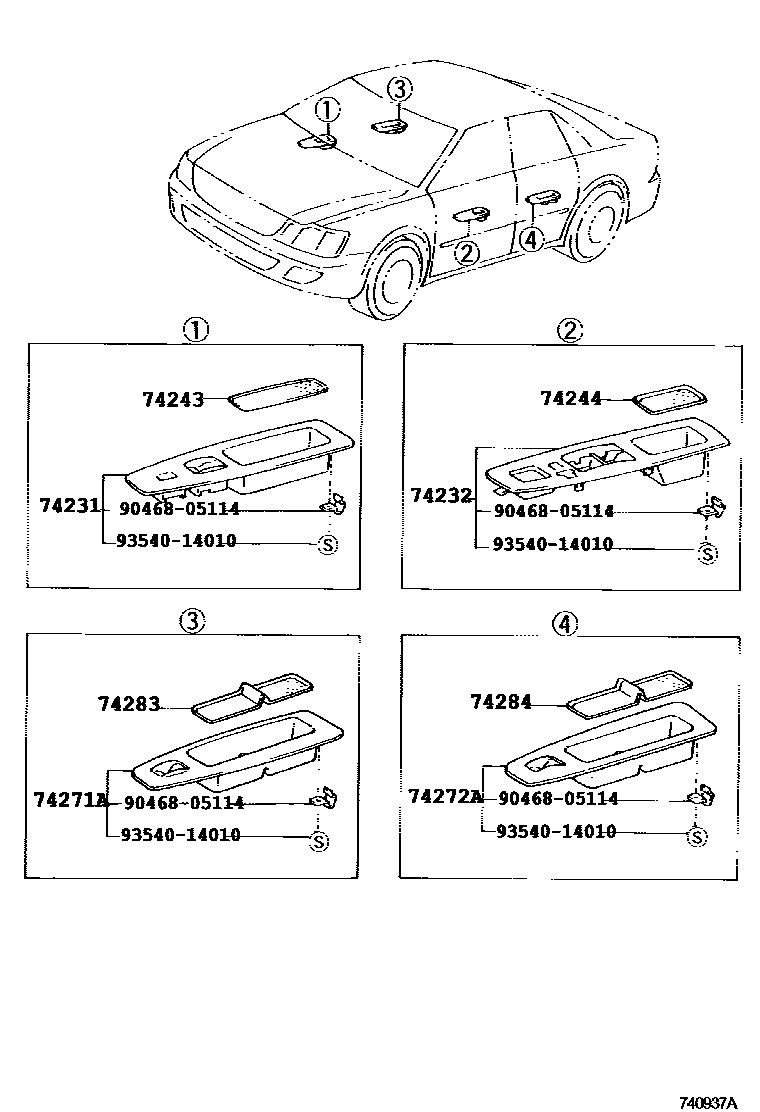

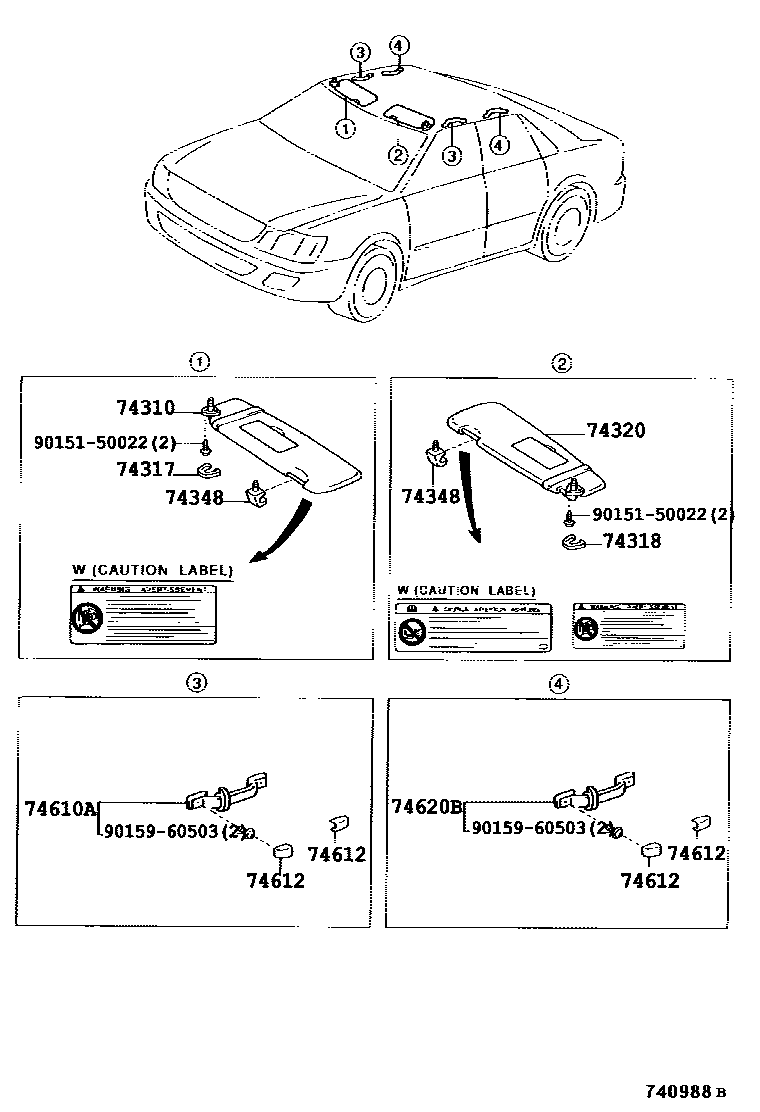

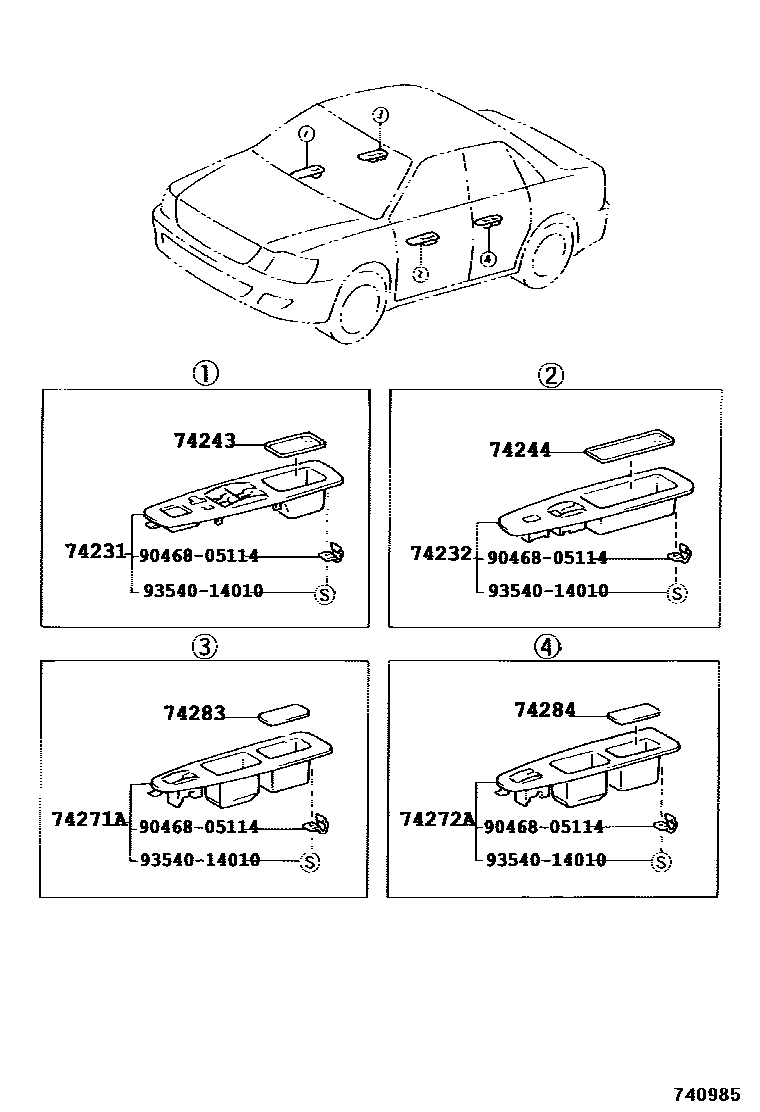

Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-33240 · 74231-33250 |
| 74232 | Left front armrest upper panel | 74232-33190 · 74232-33200 |
| 74243 | Right front door armrest lower cover | 74243-33010 · 74244-33010 |
| 74244 | Left front door armrest lower cover | 74243-33010 · 74244-33010 |
| 74271A | Right rear door armrest upper panel | 74271-33140 |
| 74272A | Left rear door armrest upper panel | 74272-33140 |
| 74283 | Right rear door armrest lower seat cover | 74283-33020 |
| 74284 | Left rear door armrest lower seat cover | 74283-33020 |
