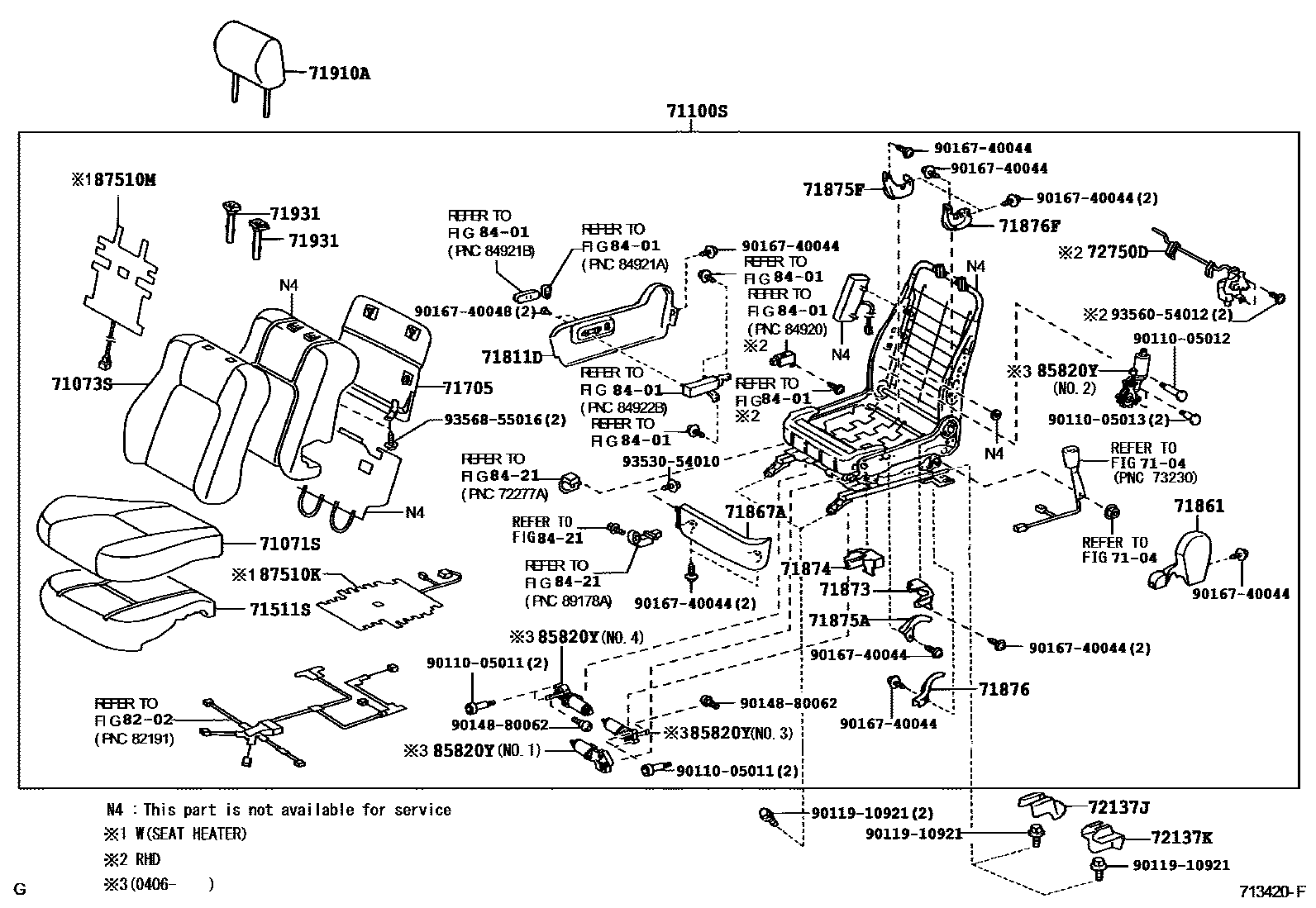

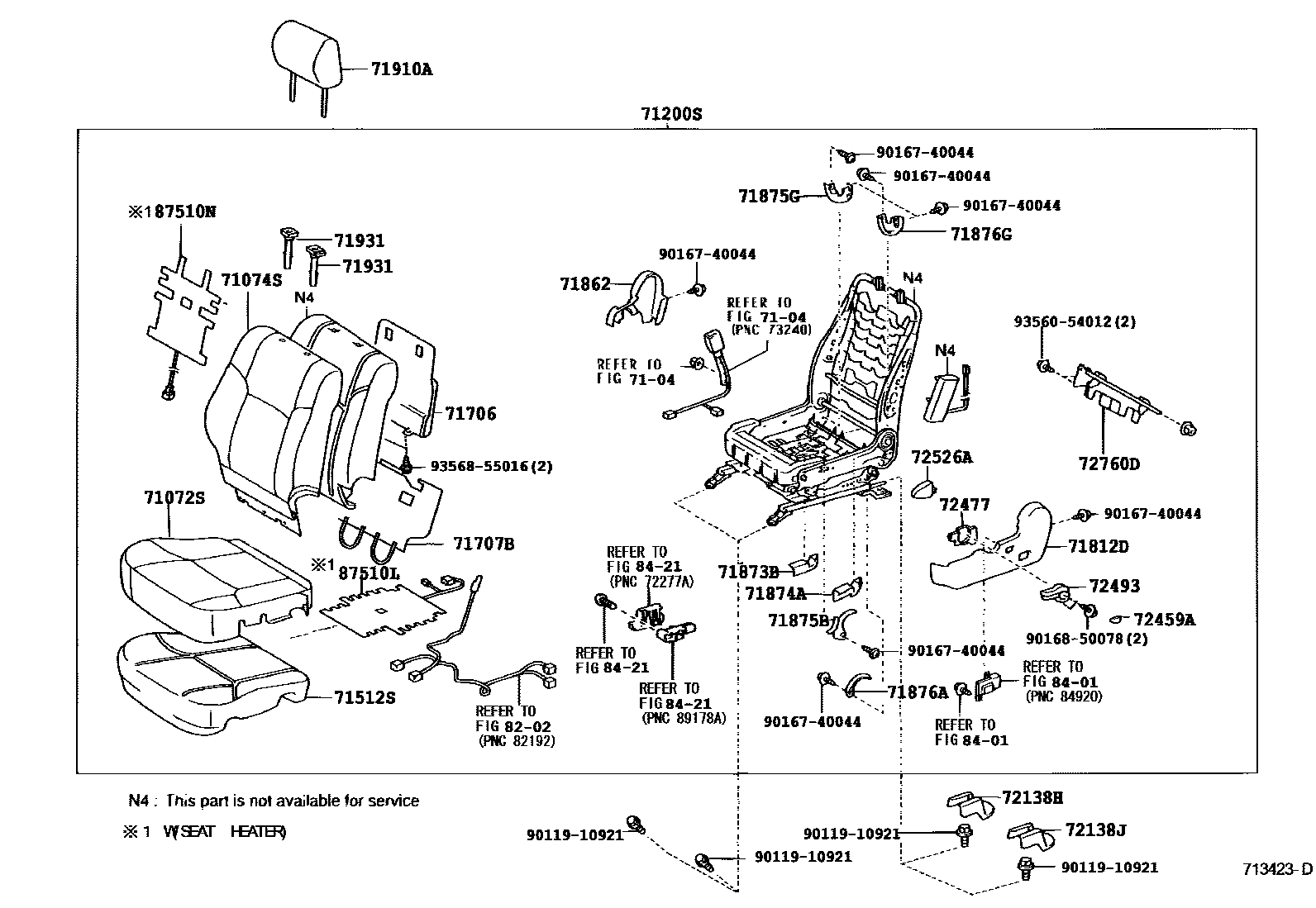

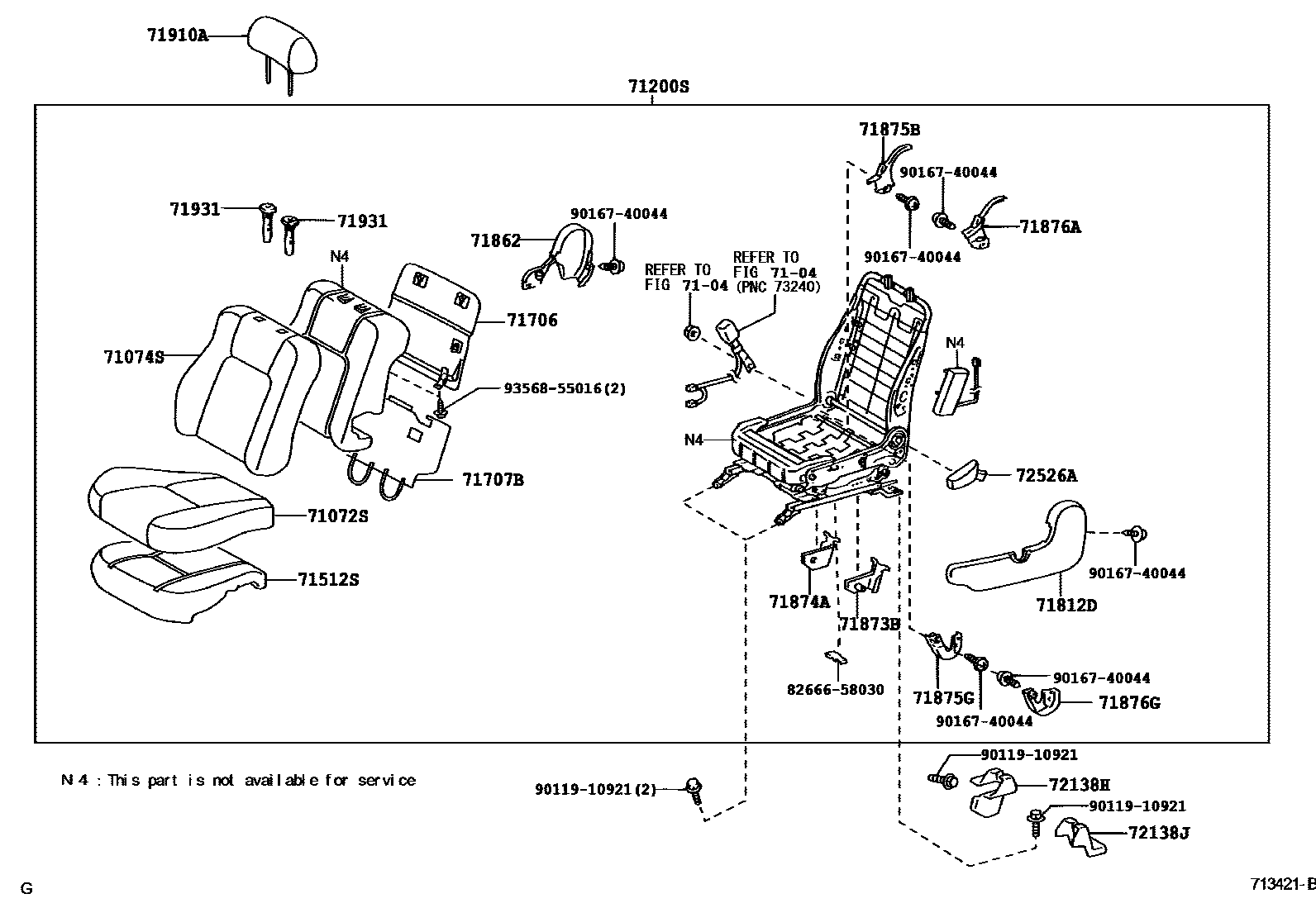

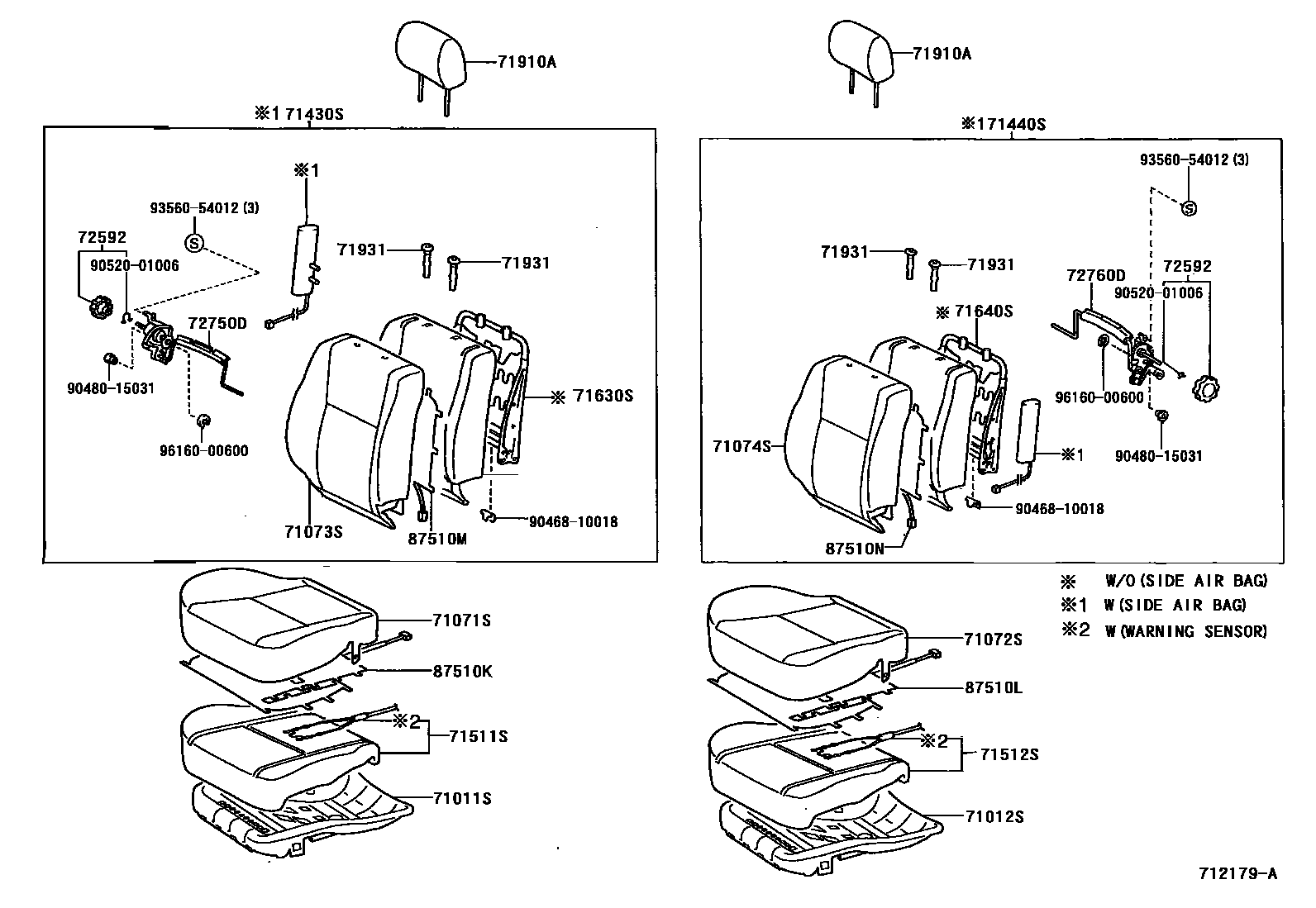

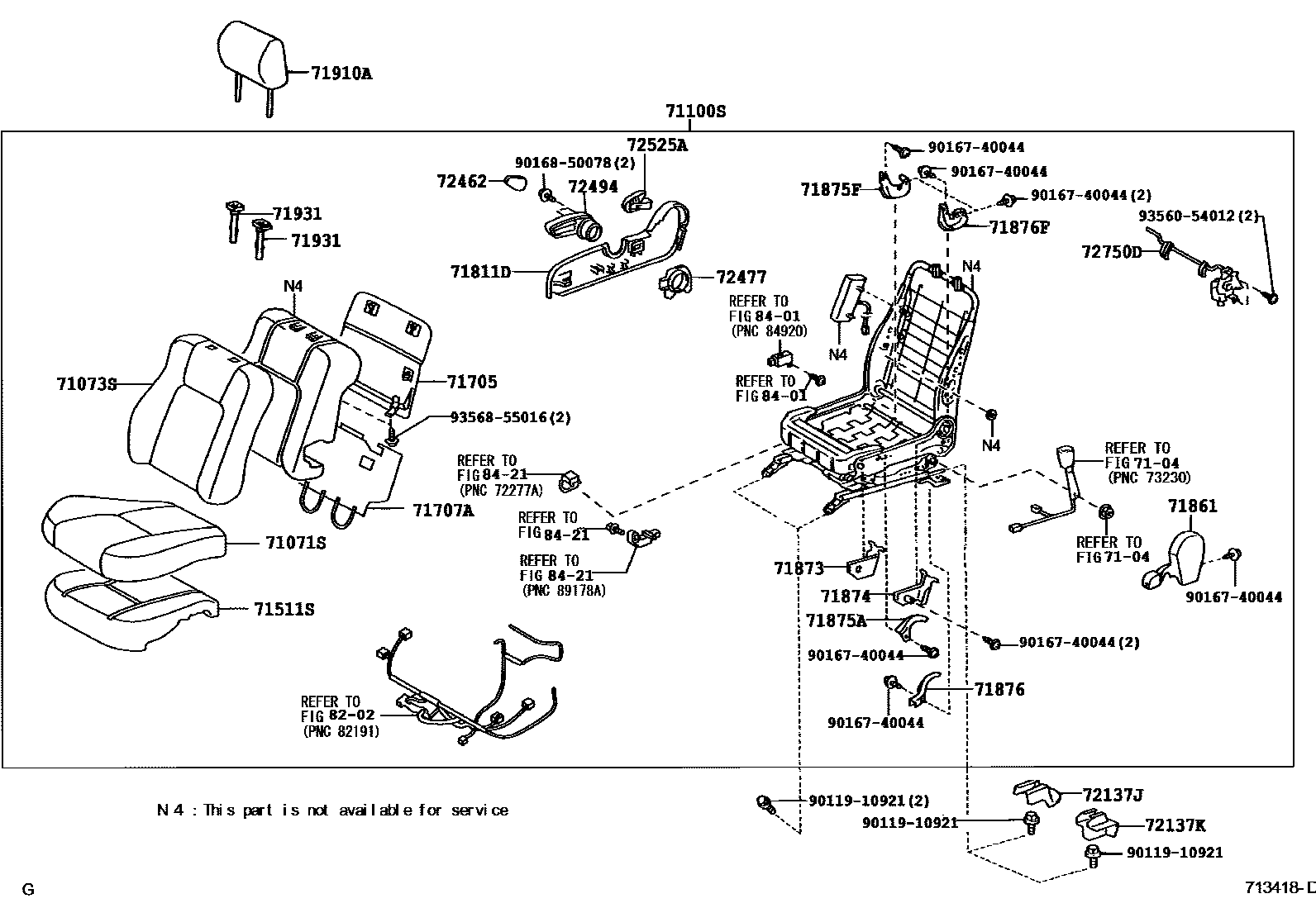

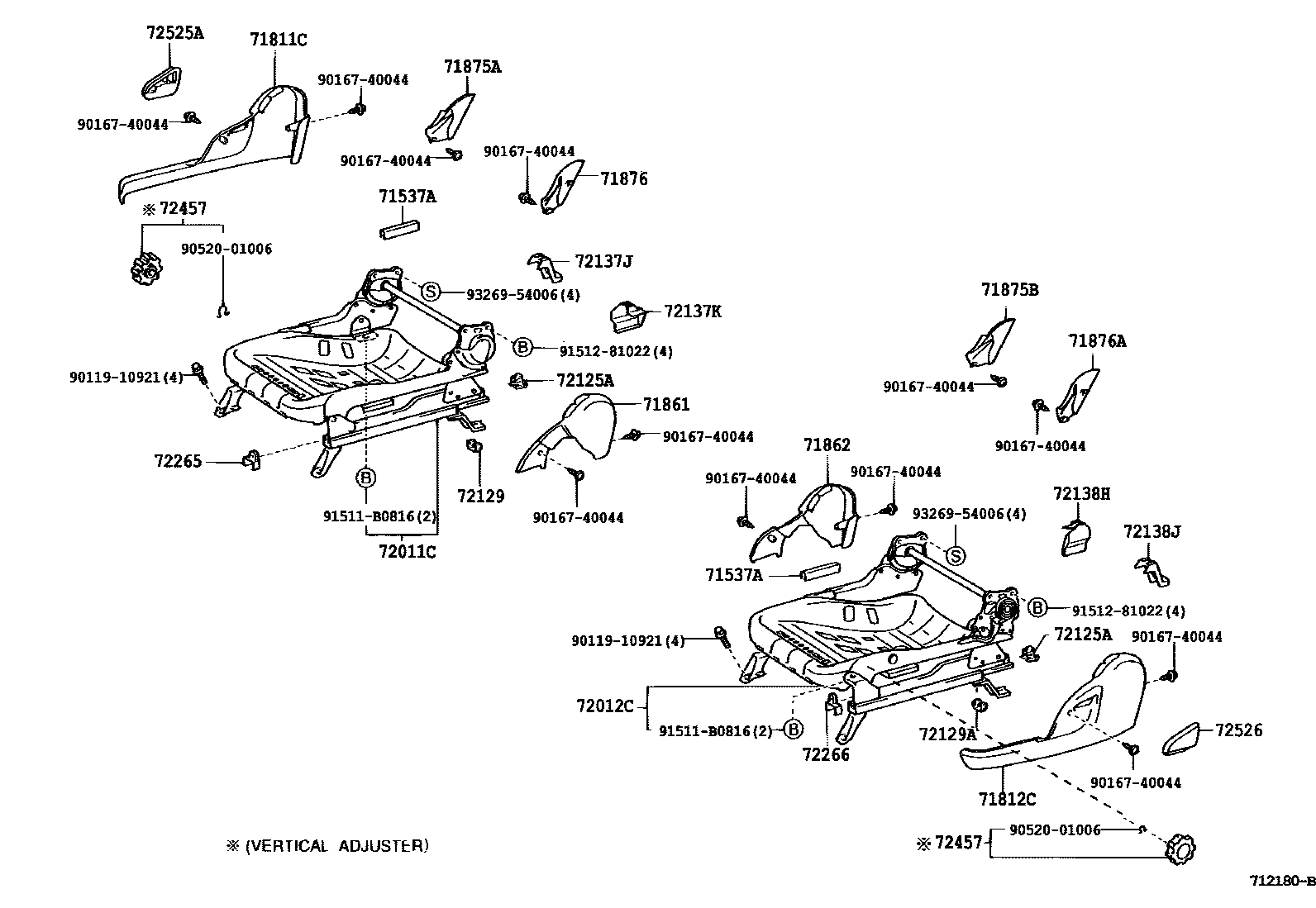

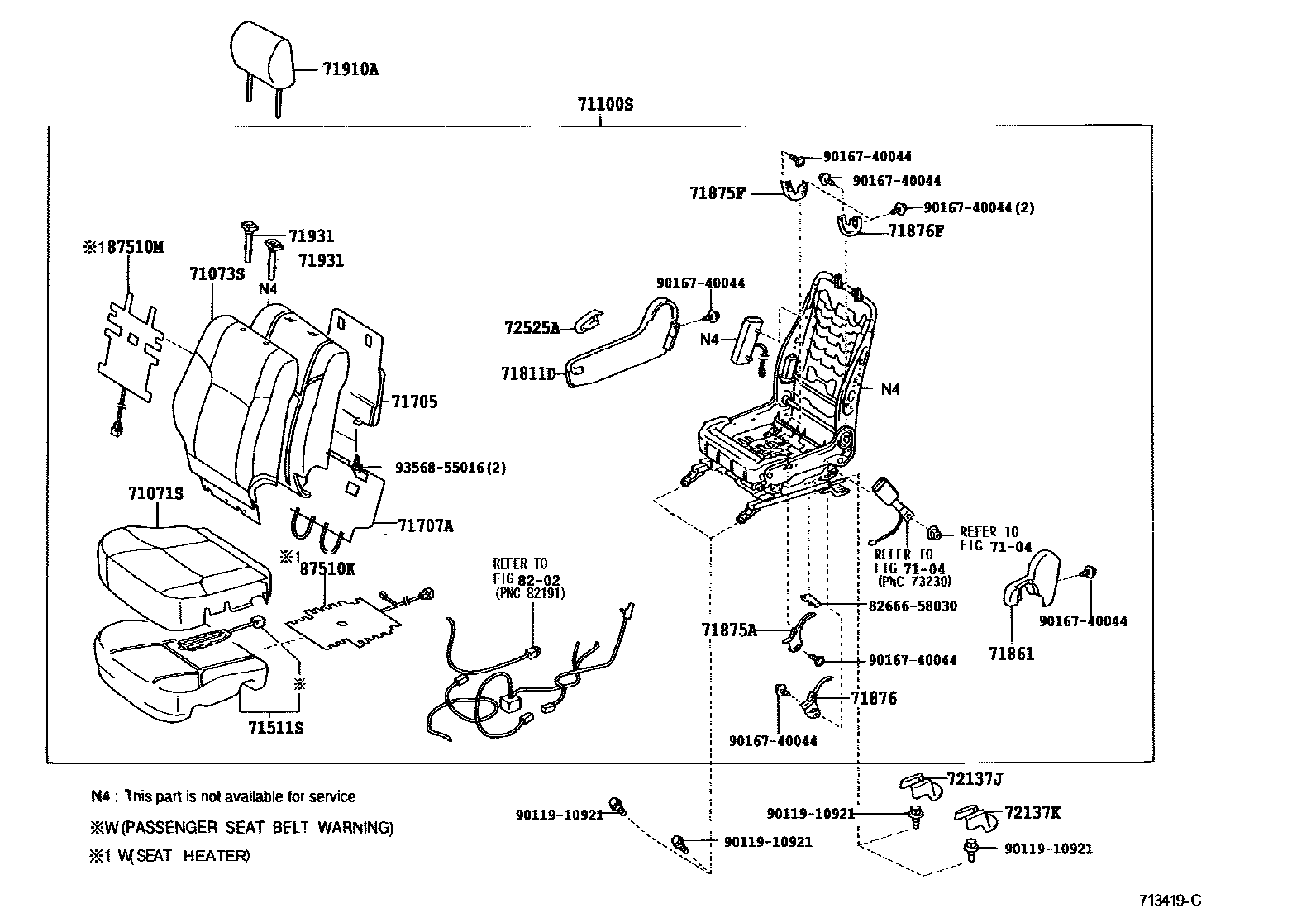

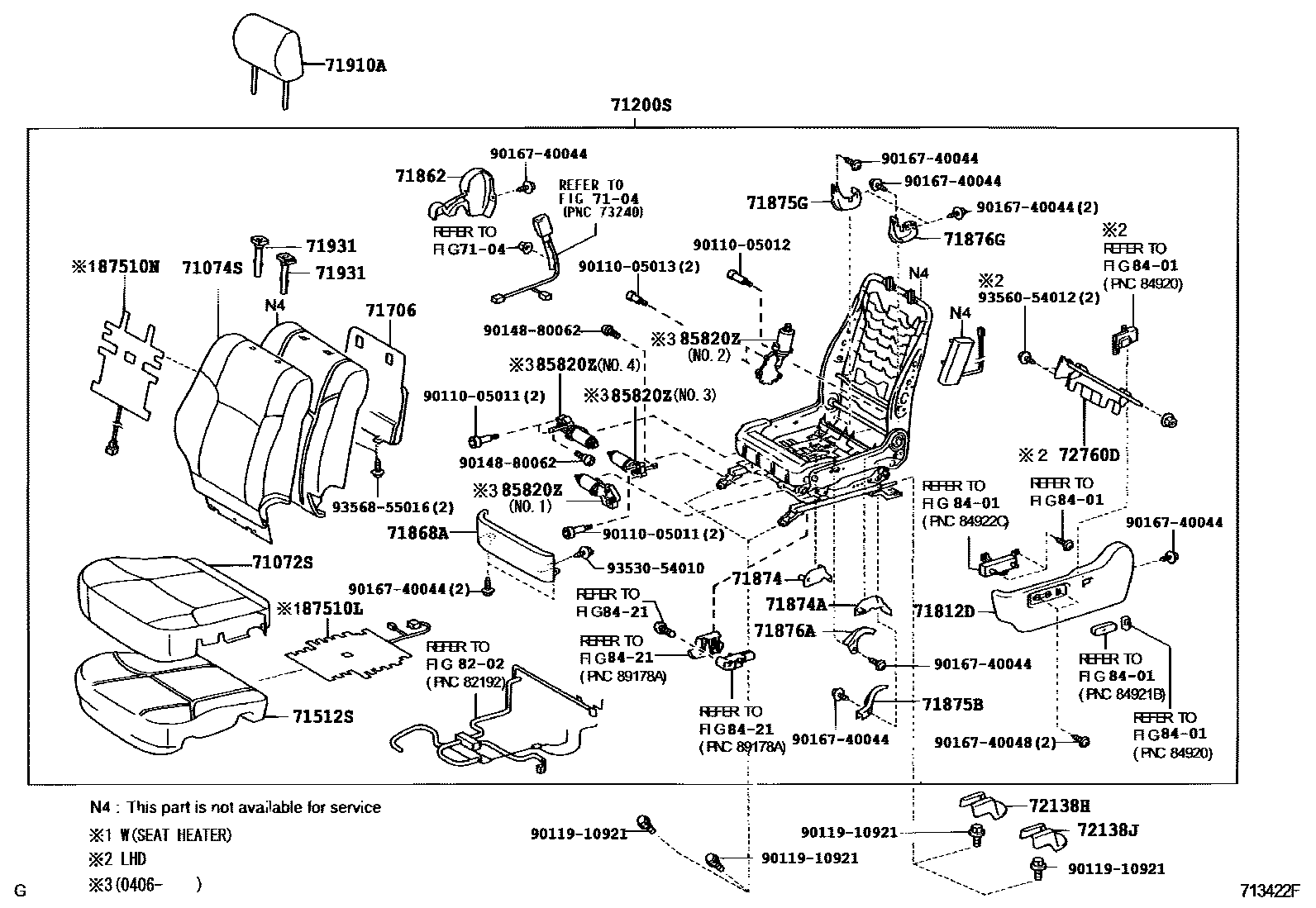

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

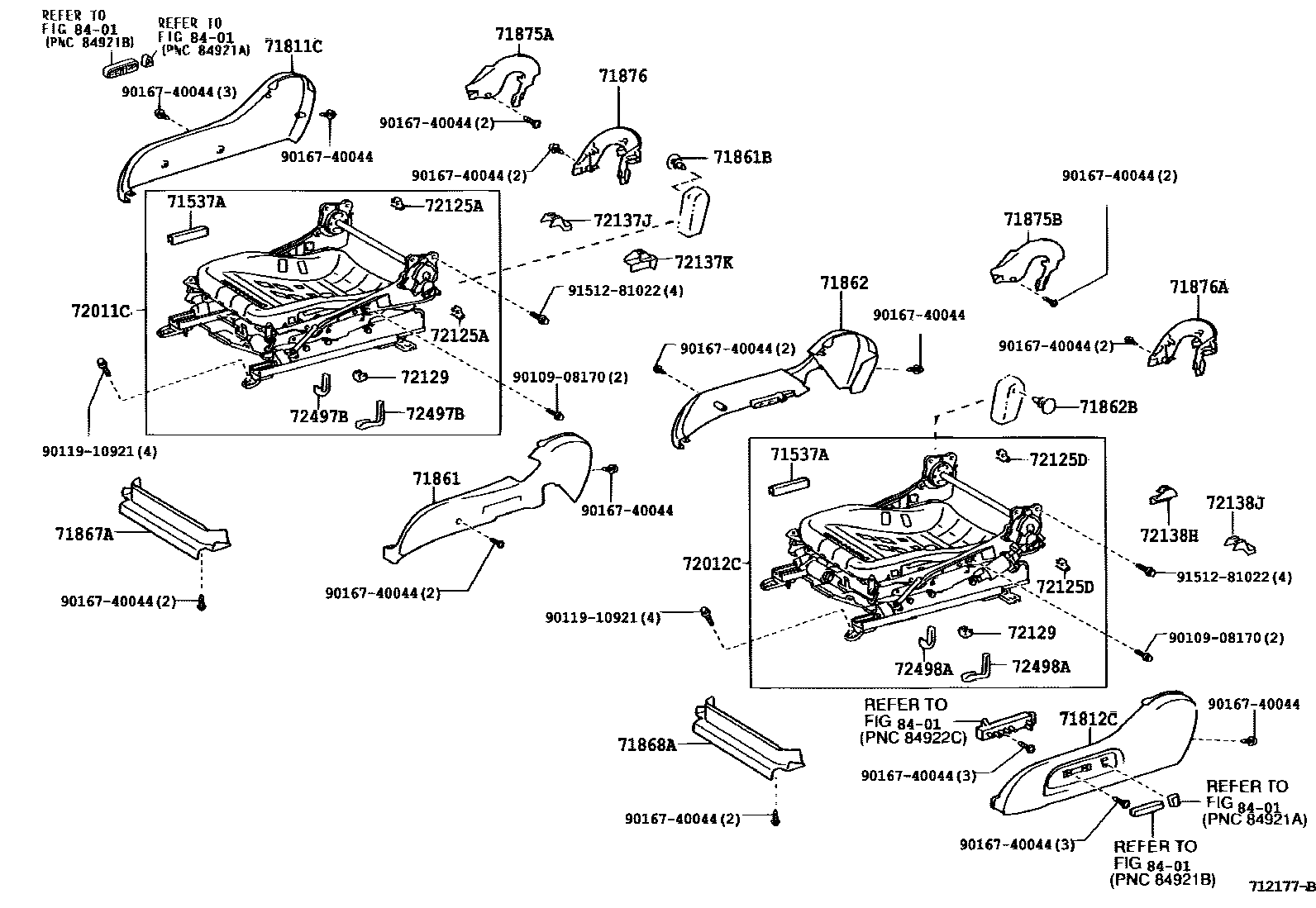

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 9 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-33020 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-33020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71502-33010 · 71502-33020 · 71502-33070 · 71502-33080 · 71502-33090 · 71511-33120 · 71511-33160 · 71511-33240 · 71511-33250 · 71511-33260 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33010 · 71502-33020 · 71502-33110 · 71502-33120 · 71502-33130 · 71511-33120 · 71511-33160 · 71512-33080 · 71512-33110 · 71512-33180 |
| 71537A | Front seat cushion protective cover | 71537-33010 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-33070 · 71630-33080 · 71630-33090 · 71630-47010 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-33070 · 71630-33080 · 71630-33090 · 71630-47010 |
| 71873 | Front right seat cushion lower guard panel | 71874-48020 · 71874-48050 |
| 71873B | Front right seat No. 1 seat cushion lower guard panel | 71874-48020 · 71874-48050 |
| 71874 | Front left seat cushion lower guard | 71874-48020 · 71874-48050 |
| 71874A | Front left seat cushion lower guard | 71874-48020 · 71874-48050 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-58050 · 71875-58060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-58060 · 71875-60140 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-58050 · 71876-58060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-58060 · 71876-60140 |
| 72011C | Front right seat adjuster sub-assembly | 72010-33120 · 72010-33240 · 72010-33250 · 72010-33280 |
| 72012C | Front left seat adjuster sub-assembly | 72020-33050 · 72020-33180 · 72020-33210 · 72020-33220 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 · 72125-33020 · 72125-33030 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-13040 · 72125-33020 · 72125-33030 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-33040 · 72129-33050 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-33040 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
| 72477 | Height adjuster spacer | 72477-52010 |
| 72497B | Right height adjuster bracket cover | 72498-33010 · 72498-33020 |
| 72498A | Left height adjuster bracket cover | 72498-33010 · 72498-33020 |
| 72750D | Right lumbar support adjuster assembly | 72750-33040 · 72750-33070 · 72750-48020 |
| 72760D | Left lumbar support adjuster assembly | 72760-33030 · 72760-33060 |
| 85820Y | Electric seat motor assembly | 85801-58010 · 85801-58020 · 85801-58030 · 85801-58040 |
| 85820Z | Electric seat motor assembly | 85801-60010 · 85801-60020 · 85801-60030 · 85801-60040 |
| 87510K | Front right seat cushion heater assembly | 87510-06010 · 87510-06030 · 87510-06040 · 87510-0W350 |
| 87510L | Front left seat cushion heater assembly | 87510-06010 · 87510-06030 · 87510-06040 · 87510-0W350 |
| 87510M | Front right seat back heater assembly | 87510-06020 · 87510-0W360 · 87530-06010 · 87530-06020 |
| 87510N | Front left seat back heater assembly | 87510-06020 · 87510-0W360 · 87530-06010 · 87530-06020 |
