Toyota CAMRY 锁芯组件 — Figure 6712

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.

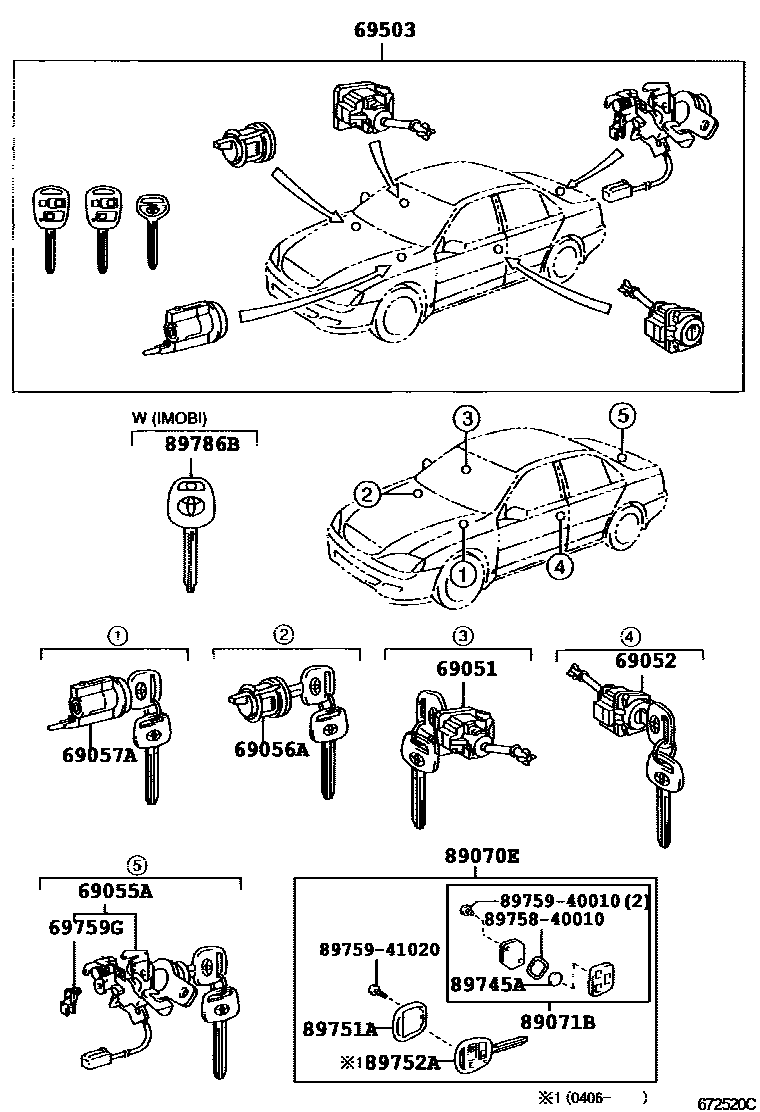

Toyota CAMRY 锁芯组件 EPC diagram — 672520C
锁芯组件 — 672520C (200108 – 999999)

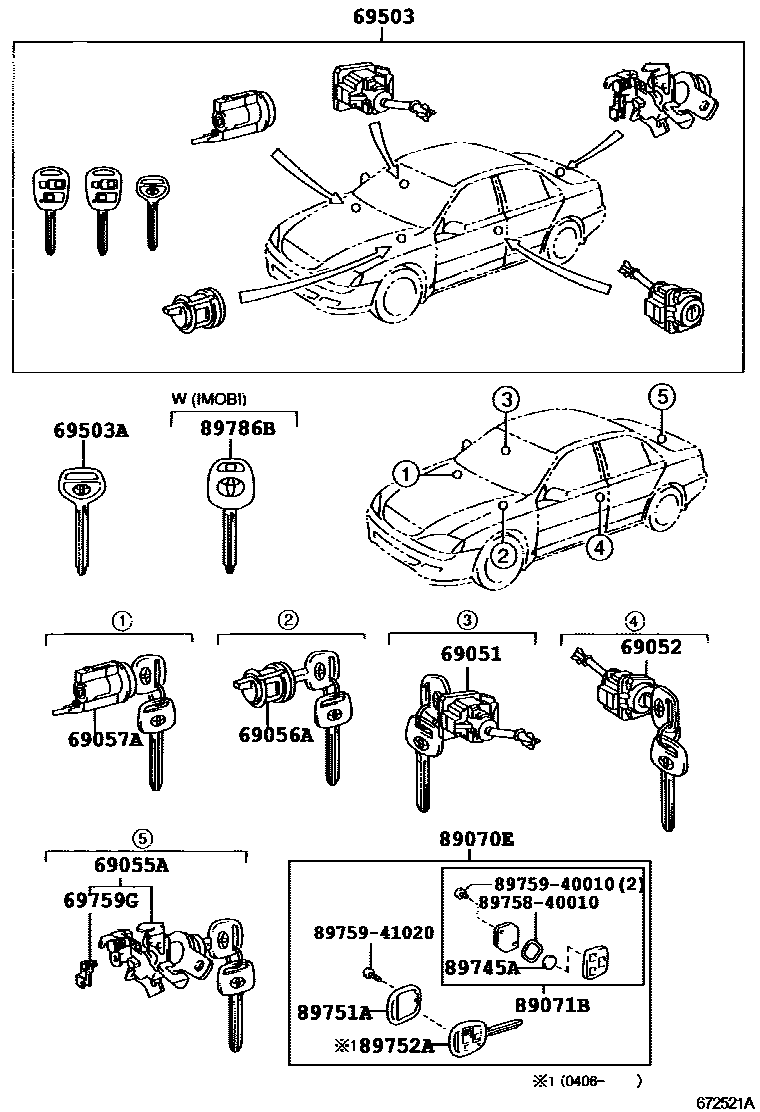

Toyota CAMRY 锁芯组件 EPC diagram — 672521A
锁芯组件 — 672521A (200108 – 999999)

PNC and OE references

PNCPart nameOE numbers
69051Right door lock cylinder and key assembly69051-33230
69052Left door lock cylinder and key assembly69052-33230
69055ALuggage lock cylinder and key assembly69055-33380 · 69055-33400
69056AGlove box lock cylinder and key assembly69056-44010
69057AIgnition switch lock cylinder and key assembly69057-33270 · 69057-33290 · 69057-58050
69503Door lock cylinder components69005-3T130 · 69005-3T140 · 69005-3T200
69503Aexternal tooth key90999-00188
69759GTrunk door lock core buckle69759-24090
89070ERemote key assembly89070-33490 · 89070-33500 · 89070-33510 · 89070-33720 · 89070-33850
89071BRemote key sub-assembly module assembly89071-30041 · 89071-53012 · 89071-53051 · 89071-53080 · 89071-53090
89745ATransmitter battery89745-40010
89751ATransmitter housing cover89751-13010 · 89751-13011 · 89751-33030 · 89751-33031 · 89751-44030 · 89751-44040
89752Atransmitter housing89752-33060
89786Btransceiver key secondary transmitter89786-60050
