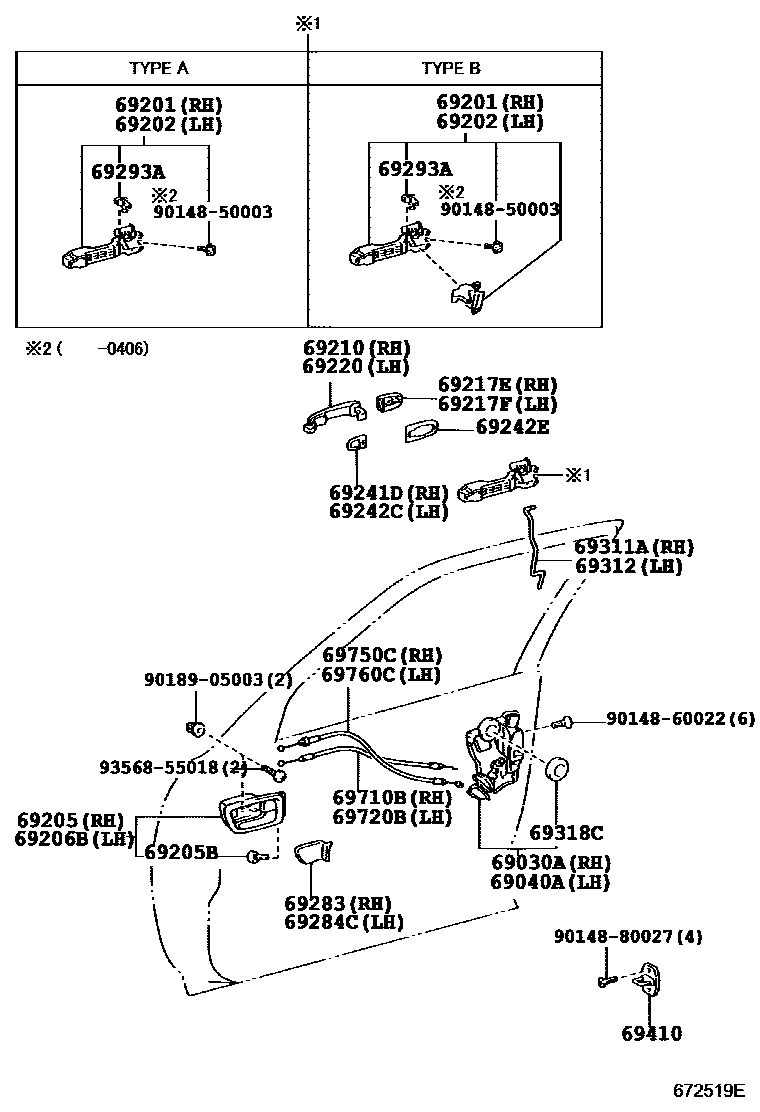

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-33231 · 69030-33241 · 69030-33251 |
| 69040A | Left front door door lock assembly with motor | 69040-33231 · 69040-33241 · 69040-33251 |
| 69201 | Right door outer handle sub-assembly | 69201-33010 · 69201-33020 |
| 69202 | Left door outer handle sub-assembly | 69202-33010 · 69202-33020 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69241D | Right front door outer handle pad | 69241-42020 |
| 69242C | Left front door outer handle pad | 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-42010 |
| 69293A | Front door outer handle buckle | 69293-33010 · 69293-33020 |
| 69311A | Right front door lock opening lever | 69311-33050 |
| 69312 | Left front door lock opening lever | 69312-33050 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710B | Right front door lock remote control cable assembly | 69710-33040 |
| 69720B | Left front door lock remote control cable assembly | 69710-33040 |
| 69750C | Right front door inner lock cable assembly | 69750-33010 |
| 69760C | Left front door inner lock cable assembly | 69750-33010 |
