Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

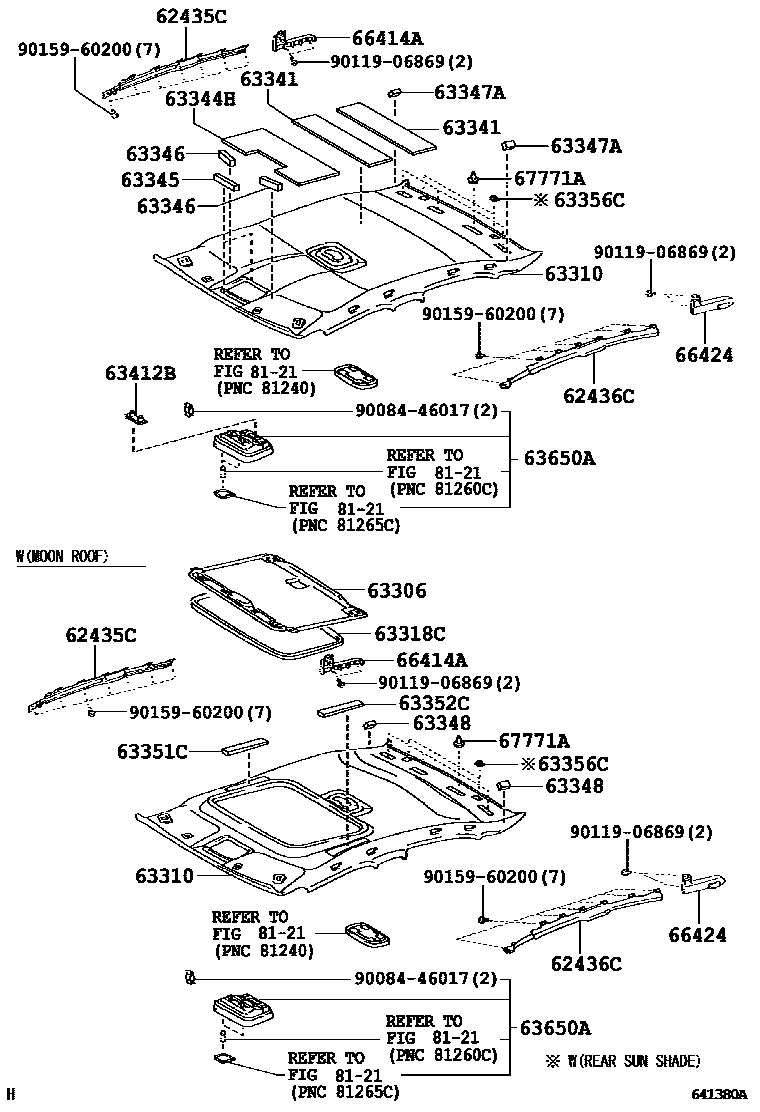

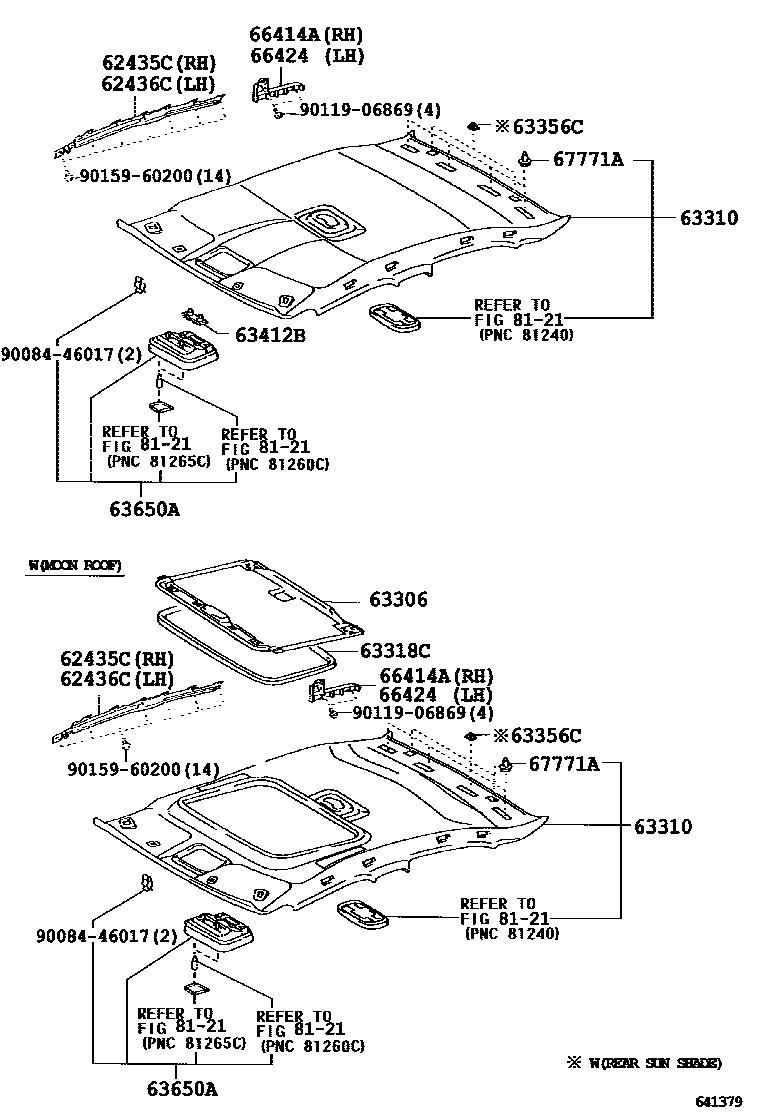

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435C | Roof right side rail decorative pad | 62435-33010 |
| 62436C | Roof left side rail decorative pad | 62436-33010 |
| 63341 | No. 1 roof silencer mat | 63341-20330 |
| 63344H | No. 4 roof silencer mat | 63344-33050 |
| 63345 | No. 5 roof silencer mat | 63345-33040 |
| 63346 | No. 6 roof silencer mat | 63345-33040 · 63346-33040 |
| 63347A | No. 7 roof silencer mat | 63347-33010 |
| 63348 | No. 8 roof silencer mat | 63348-33010 |
| 63351C | roof lining pads | 63351-33020 |
| 63352C | Headlining end pads | 63352-33010 |
| 63412B | roof console fixings | 63412-33010 |
| 66414A | Right rear longitudinal member spacer | 66414-33010 |
| 66424 | Left rear longitudinal member spacer | 66424-33010 |
| 67771A | headliner fixings | 67771-12040 |
