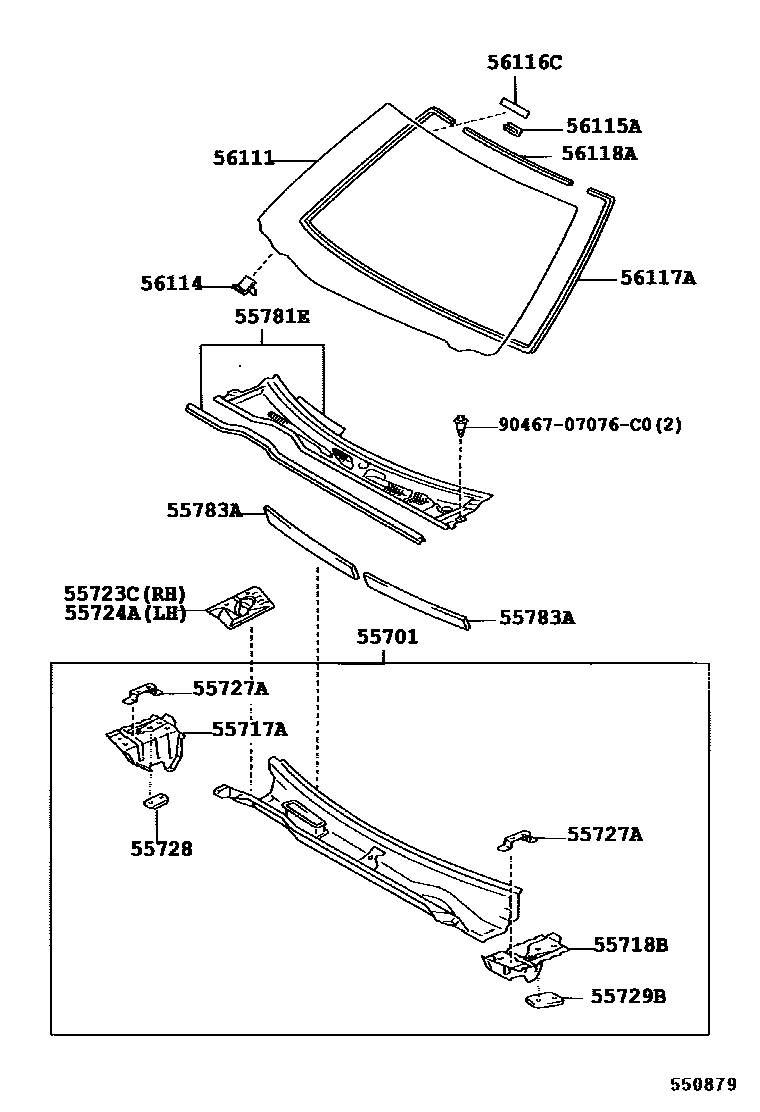

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55701 | Front apron sub-assembly | 55700-33200 · 55700-33240 |
| 55717A | Upper right inner panel of cowl | 55717-33030 · 55717-33031 |
| 55718B | Upper left inner panel of front wall | 55718-33030 |
| 55723C | Right front wall upper side reinforcement | 55723-33030 |
| 55724A | Left front wall upper side reinforcement | 55724-33030 |
| 55727A | Front panel reinforcement fixings | 55727-33030 |
| 55728 | Engine cover right block reinforcement | 55728-33020 |
| 55729B | Engine cover left block reinforcement | 55729-33020 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-33030 · 55708-33040 |
| 55783A | Front cowl upper cover silencer pad | 55783-33040 |
| 56111 | windshield | 56101-33300 · 56101-33420 · 56101-33430 |
| 56114 | windshield stopper | 56114-22050 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-33060 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-33050 |
