Toyota CAMRY 前保险杠及附件 — Figure 5201

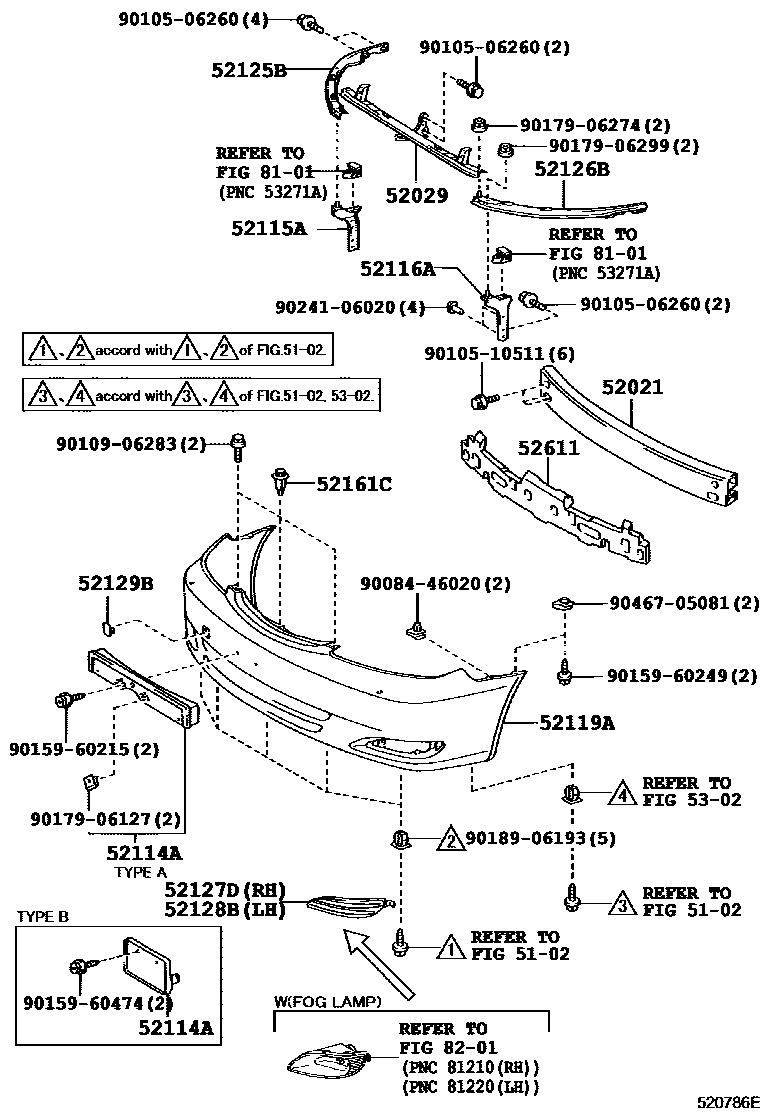

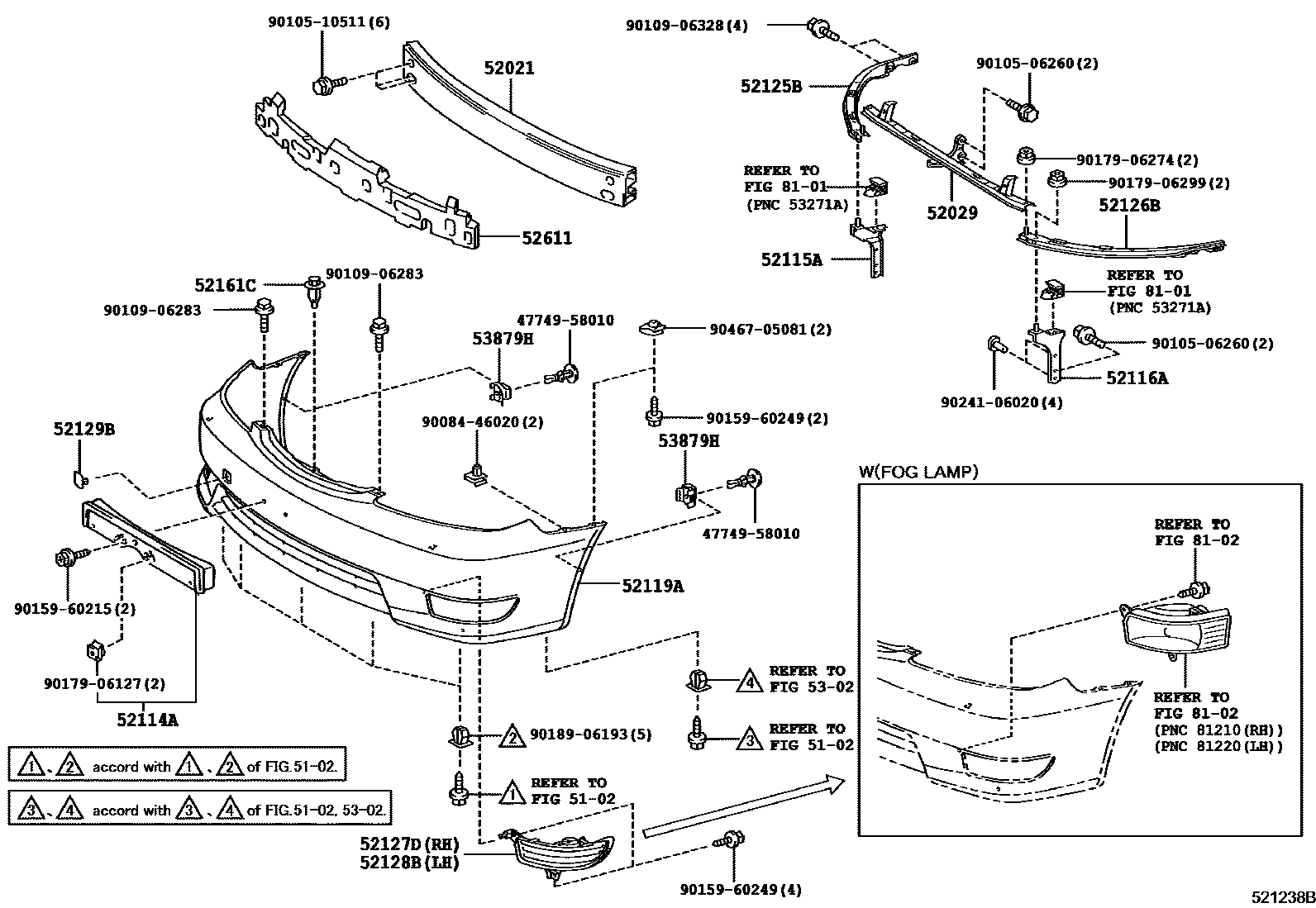

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-33100 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-33070 |
| 52114A | Front bumper extension mounting bracket | 52114-33120 · 75111-33010 |
| 52115A | Front bumper right side bracket | 52115-33060 |
| 52116A | Front bumper left bracket | 52116-33050 |
| 52119A | front bumper cover | 52119-33924 · 52119-33925 · 52119-33926 · 52119-33935 · 52119-33938 |
| 52125B | Front bumper reinforcement right extension section | 52125-33050 |
| 52126B | Front bumper reinforcement left extension section | 52126-33050 |
| 52161C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-33120 · 52611-33121 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
