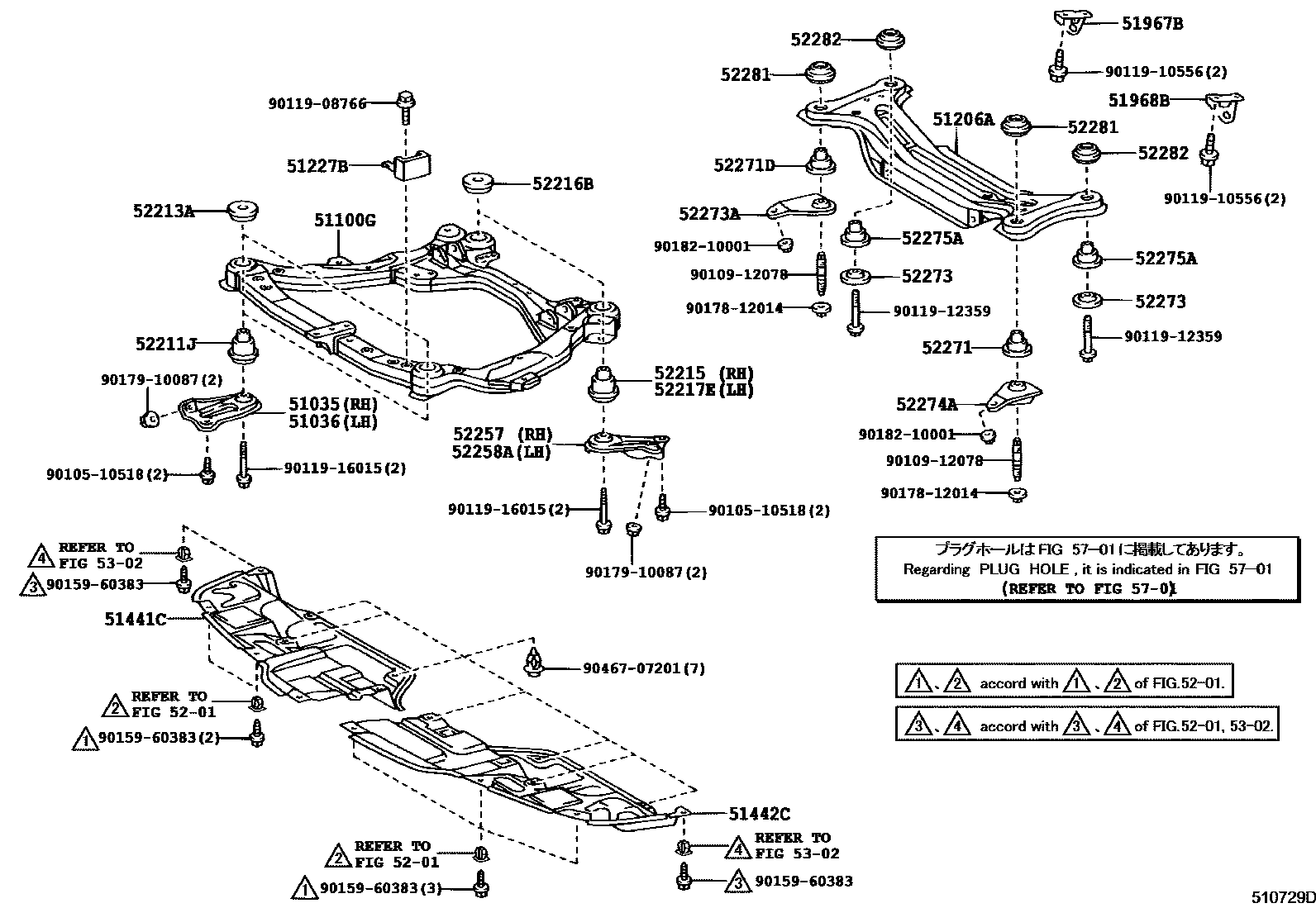

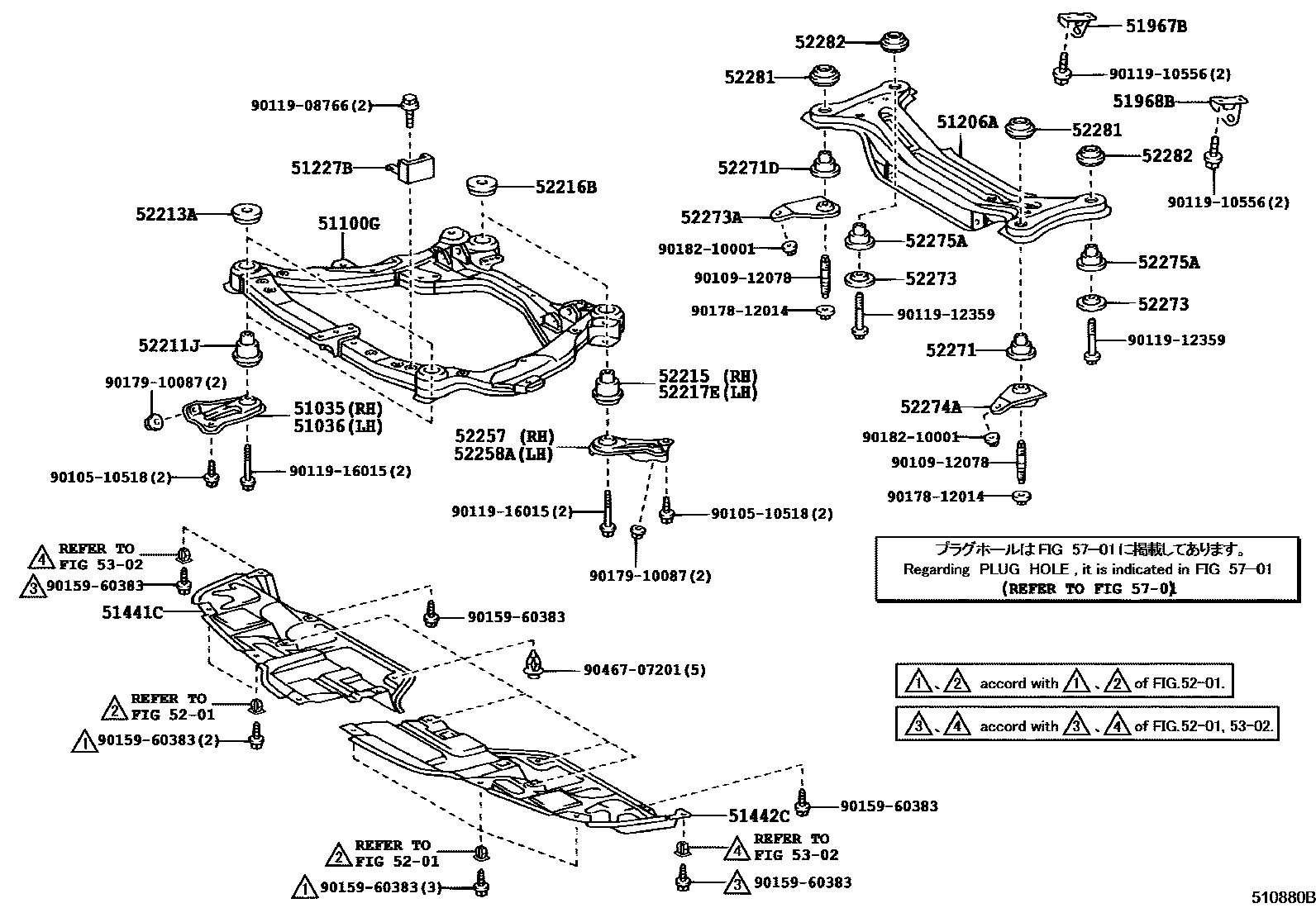

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-33010 · 51035-33011 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-33010 · 51036-33011 |
| 51100G | Front frame assembly | 51100-28020 · 51100-33070 · 51100-33090 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33060 · 51206-33061 |
| 51227B | Front suspension beam dynamic damper | 51227-33080 · 51227-33101 |
| 51441C | Engine right bottom cover | 51441-33040 |
| 51442C | Engine left bottom cover | 51442-33040 |
| 51967B | right rear transport hook | 51967-33020 |
| 51968B | Left rear transport hook | 51968-33010 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-28010 · 52211-33070 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-28010 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-28010 · 52215-33080 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-28010 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-28010 · 52217-33010 |
| 52257 | Right front suspension cross member rear bracket | 51023-33040 |
| 52258A | Left front suspension cross member rear bracket | 51024-33050 |
| 52271 | Rear suspension cross member cushion | 52272-33050 · 52272-33060 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-33040 · 52271-33050 |
| 52273 | Rear suspension cross member lower block | 52273-33010 |
| 52273A | Rear suspension cross member right lower stop | 52203-33020 |
| 52274A | Rear suspension cross member left lower stop | 52204-33020 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-33050 · 52275-33060 |
| 52281 | Differential support beam cushion | 52281-33010 |
| 52282 | Differential support beam upper stop | 52282-33050 |
