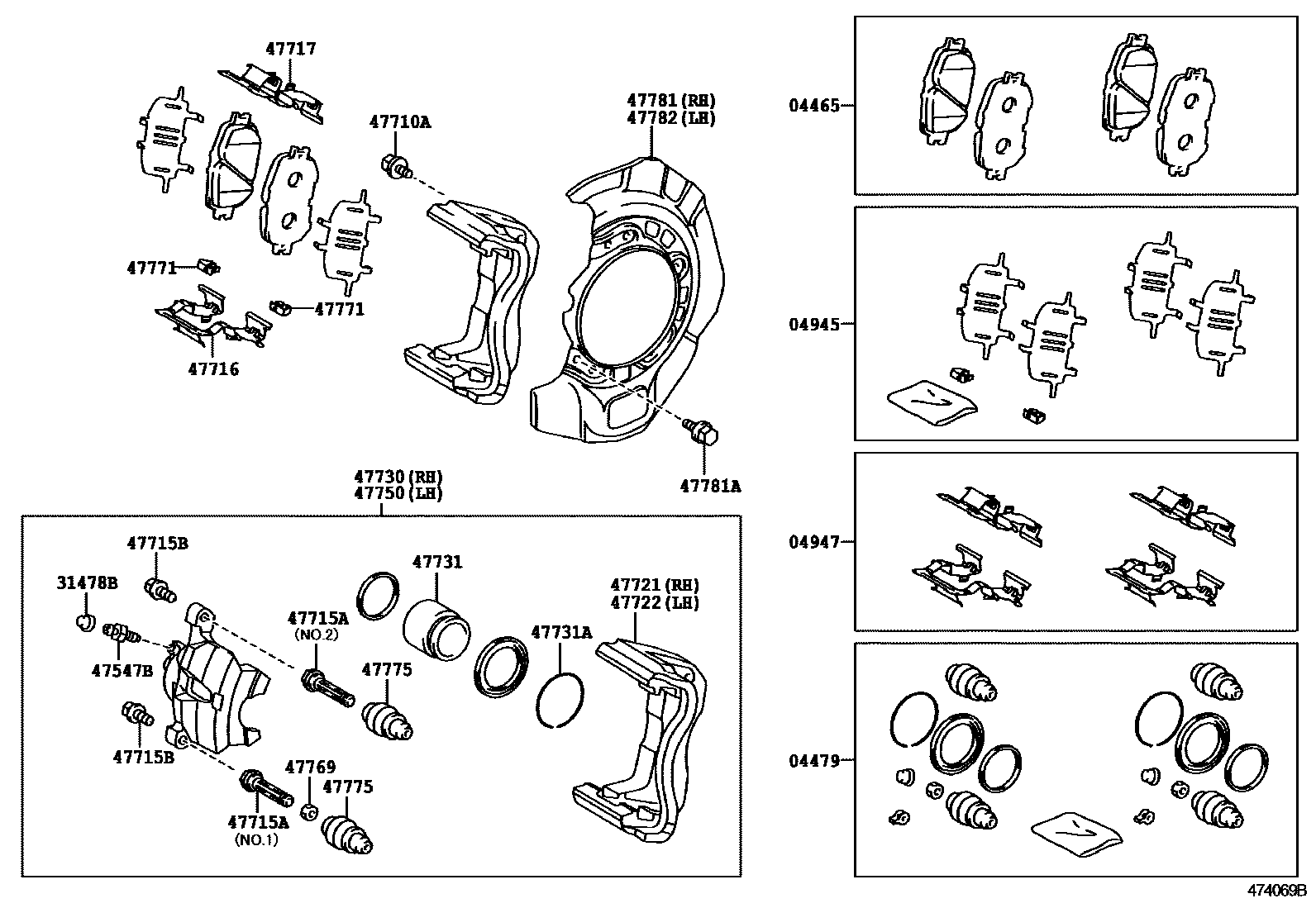

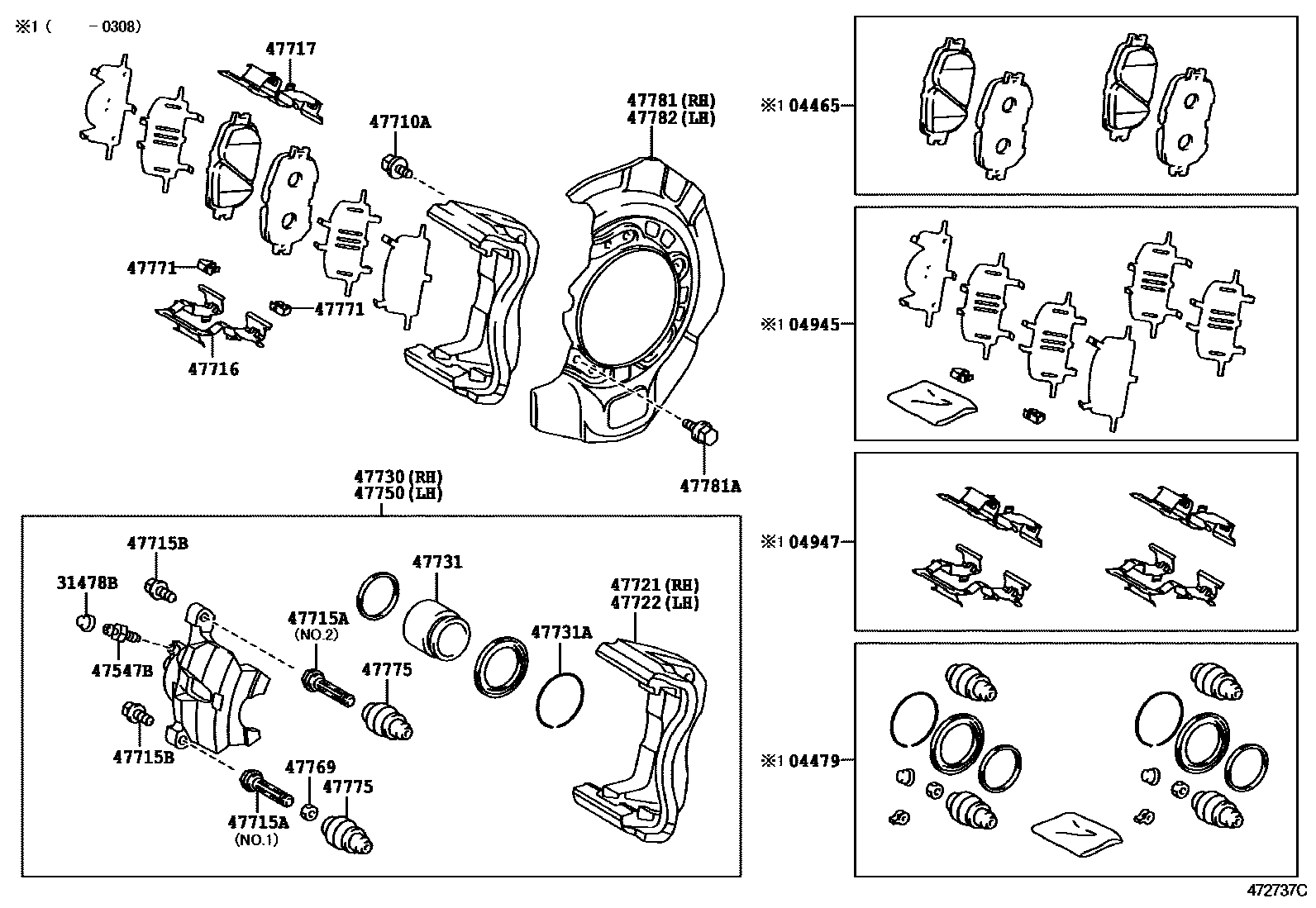

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-33320 · 04465-33350 |
| 04479 | Front disc brake cylinder assembly | 04479-33150 |
| 04945 | Front silencer gasket assembly | 04945-33050 · 04945-58010 |
| 04947 | Front disc brake mounting kit | 04947-33170 · 04947-33180 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-22070 · 47715-33050 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90105-08164 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-33110 · 47716-33130 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-33080 · 47717-33100 |
| 47721 | Right front disc brake cylinder retainer | 47721-33130 · 47721-33140 · 47721-33160 |
| 47722 | Left front disc brake cylinder retainer | 47721-33130 · 47721-33140 · 47721-33160 |
| 47730 | Right front disc brake cylinder assembly | 47730-33190 · 47730-33200 · 47730-58010 |
| 47731 | Front disc brake piston | 47731-33090 |
| 47731A | retaining ring (for front disc brake piston) | 90522-76002 |
| 47750 | Left disc brake cylinder assembly | 47750-33190 · 47750-33200 · 47750-58010 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-30090 · 47771-33020 |
| 47775 | Bushing boot (for front disc brake) | 47775-30070 |
| 47781 | Right front disc brake dust cover | 47781-28200 · 47781-33030 · 47781-48020 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-28200 · 47782-33030 · 47782-48020 |
