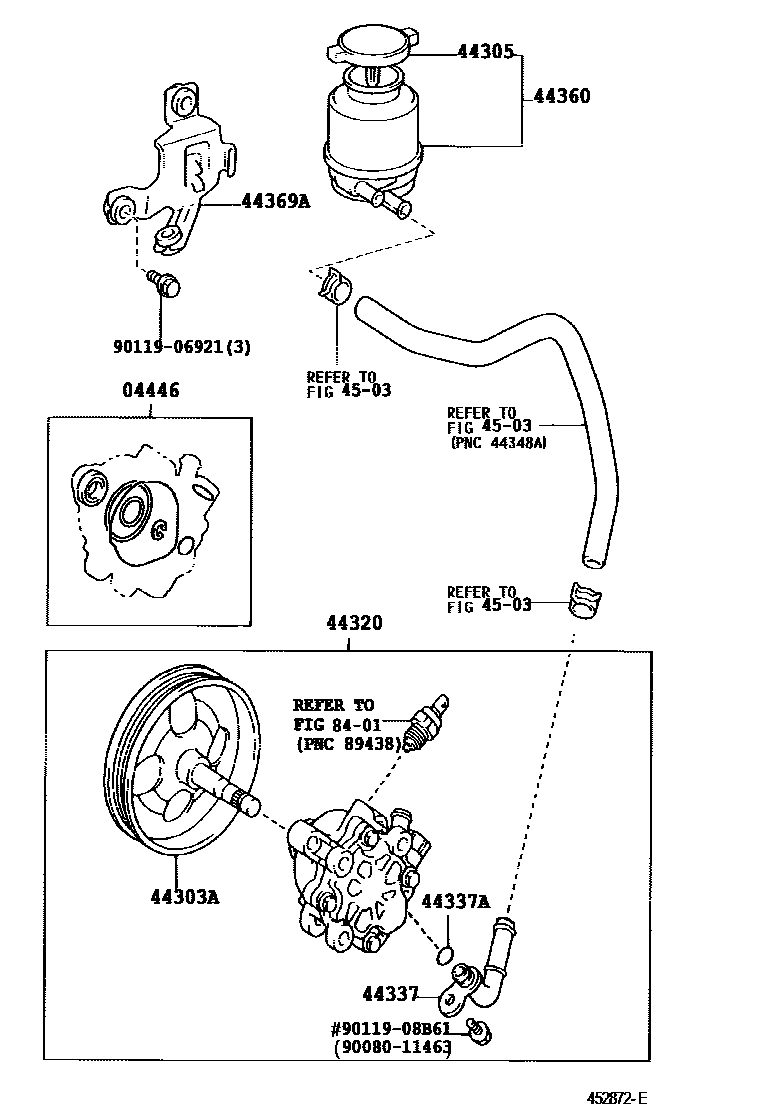

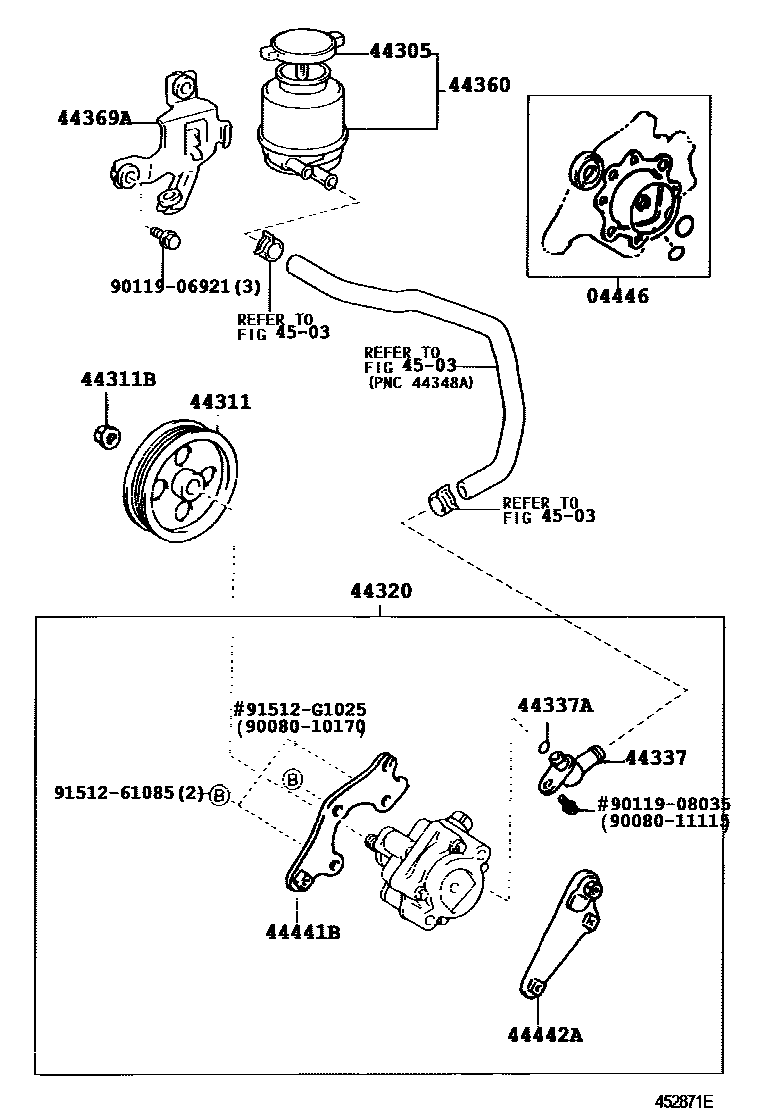

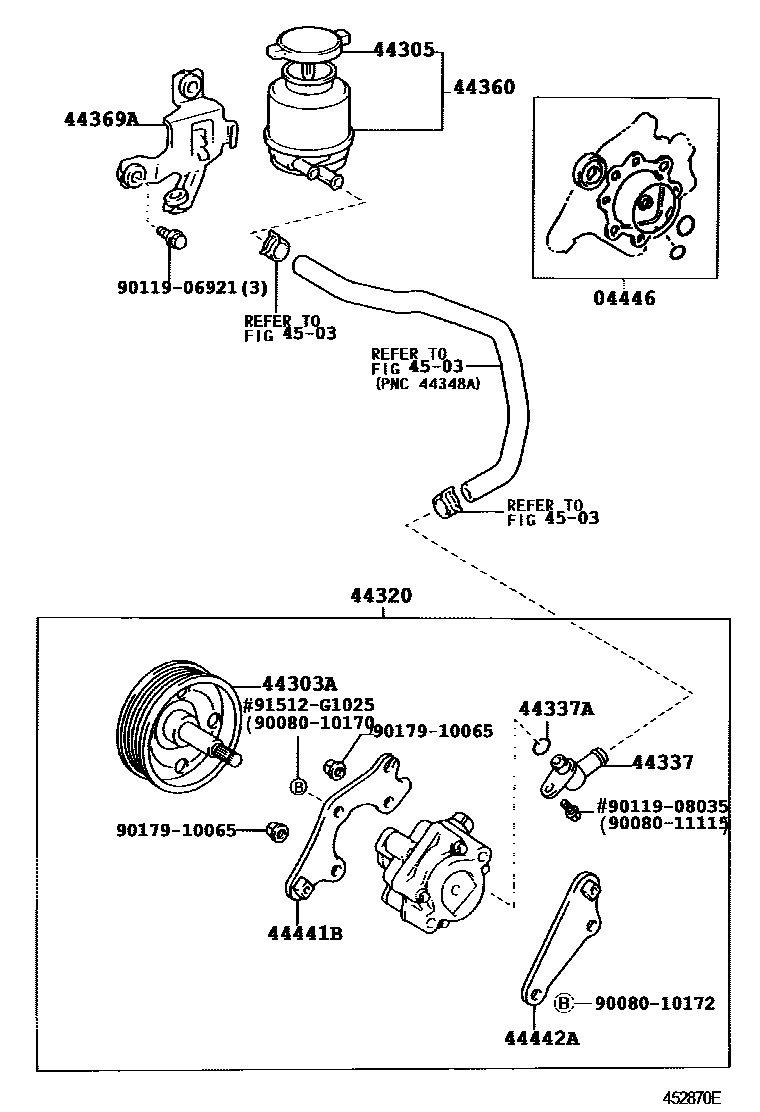

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-06040 · 04446-06050 · 04446-32050 · 04446-34010 · 04446-53030 |
| 44303A | Shaft sub-assembly with pulley | 44303-06010 · 44303-06030 · 44303-06060 · 44303-28010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-28030 |
| 44311 | vane pump pulley | 44311-28110 |
| 44311B | Nut (for vane pump pulley) | 90178-12003 |
| 44320 | Vane pump assembly | 44310-06070 · 44310-06071 · 44310-06080 · 44310-33150 · 44320-33140 |
| 44337 | Power steering suction port connector | 44337-06040 · 44337-32110 · 44337-33040 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30034 · 90301-11016 · 90301-11020 |
| 44360 | Vane pump oil storage tank assembly | 44360-33040 |
| 44369A | No. 1 oil storage tank bracket | 44390-33010 |
| 44441B | Pump front bracket | 44441-06040 · 44441-28020 |
| 44442A | Vane pump rear bracket | 44442-07010 · 44442-33021 |
